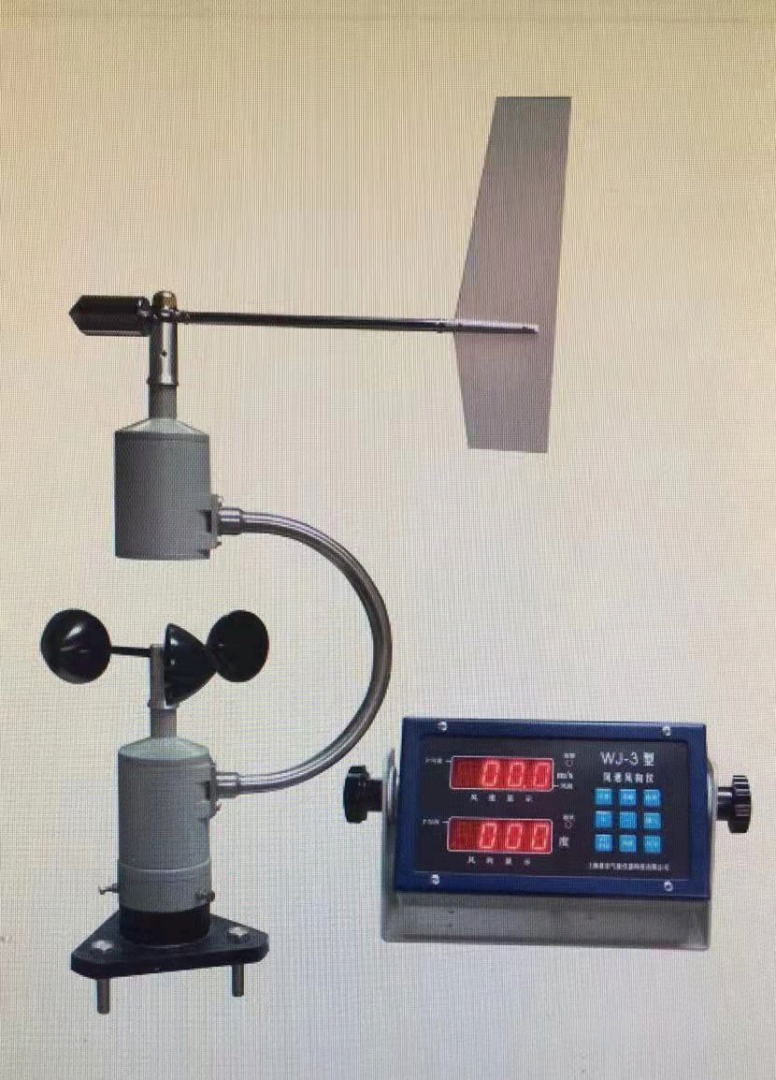

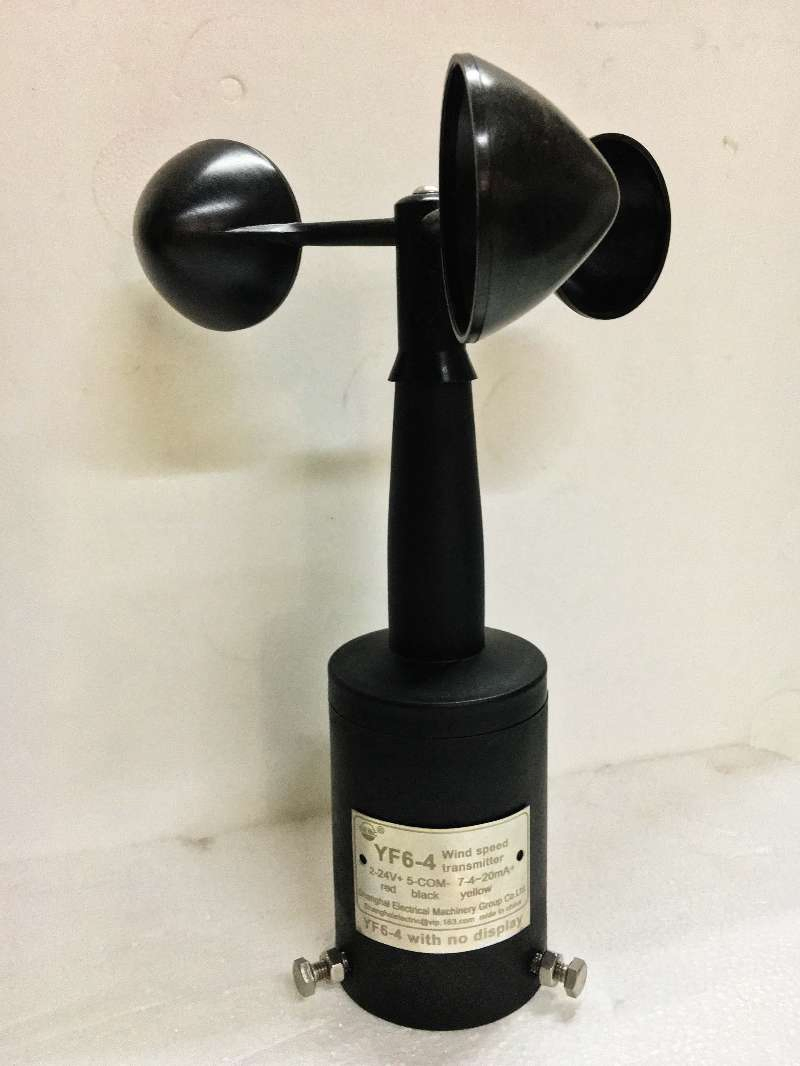

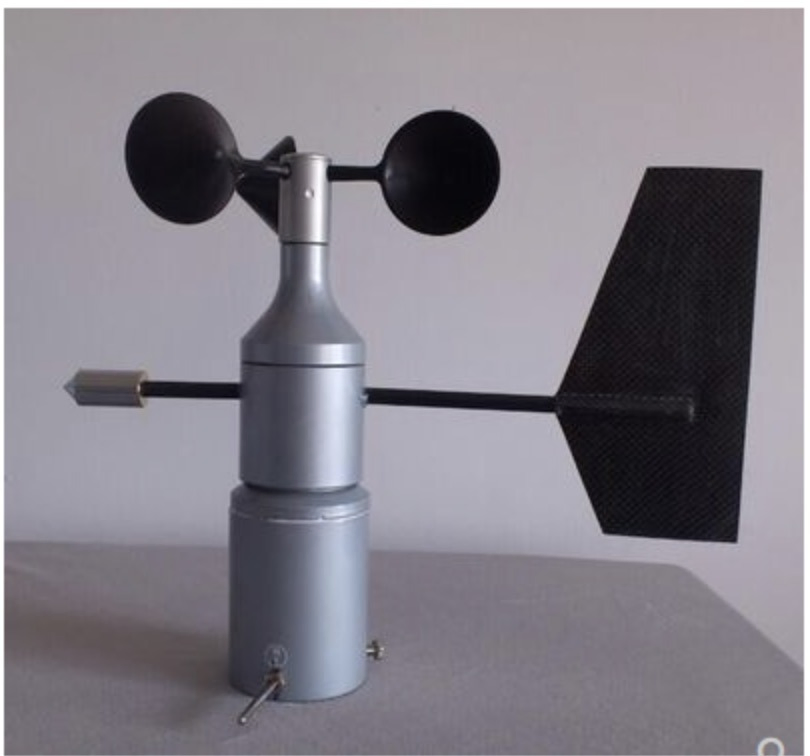

Zheng Yu Yf6-4 Yf6-8b Yf5 Yf6 Yf5-8 Yf5-485 Anemometer

Wind Speed Range: 0~60m/s
Accuracy:±0.4+(0.05×Actual Wind Speed)m/s
Starting Threshold: 0.8m/s
Wind Direction Range: 0~360°
Accuracy: ±2°
Output Type: 4~20mA
Resolution: 12bit
Supply Voltage: DC12~24V
Max Consumption: 0.8W
Operation Temperature: -40~80ºC
Operation Humidity: 0~100%
Material: Aluminum alloys, Copper, Plastics
Weight: 1.5kg
Protection Level: IP65

ANALOG OUTPUT FORMAT Type: 4~20mA Wind Speed(m/s)=3.75×Current(mA)-15 Wind Direction(°)=22.5×Current(mA)-90 (N-0° E-90° S-180° W-270°) INSTALLATION
1. Sensor is usually installed at a high place without obstacles that may affect the measurement of the wind speed and direction.
2. The diameter of its support tube is about 50mm.
3. Pass the communication cable through the tube. Then connect the plug of the cable into the socket on the sensor's bottom. Then twist the outer sleeve of the plug until you feel a click.
4. Mount the sensor onto the support tube. Make sure its north maker points to the due north by using compass. Then fix the sensor to the support tube by 3 screws.
5. The shell is suggested to be earthed. Earthing resistance is less than 5ohm in plain area and 15ohm in mountain area. 6
. The cable is not supposed to be hung in the air. It should be fixed firmly to avoid being broken by wind.
