Product Description

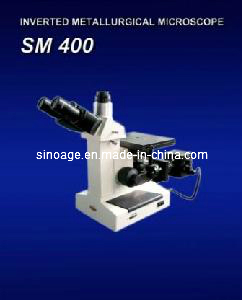

SM400 inverted microscope is Trinocular microscope

Key Features

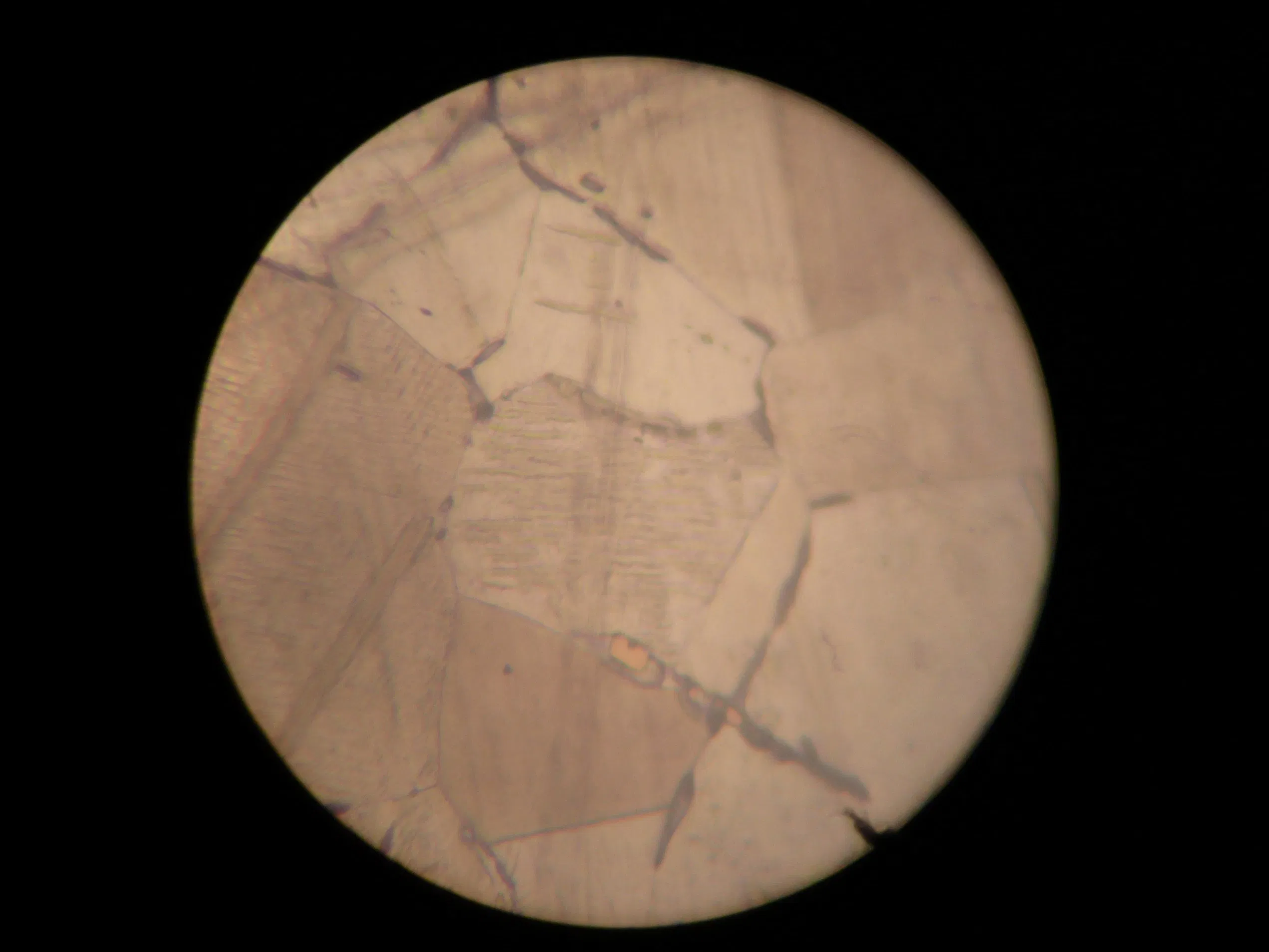

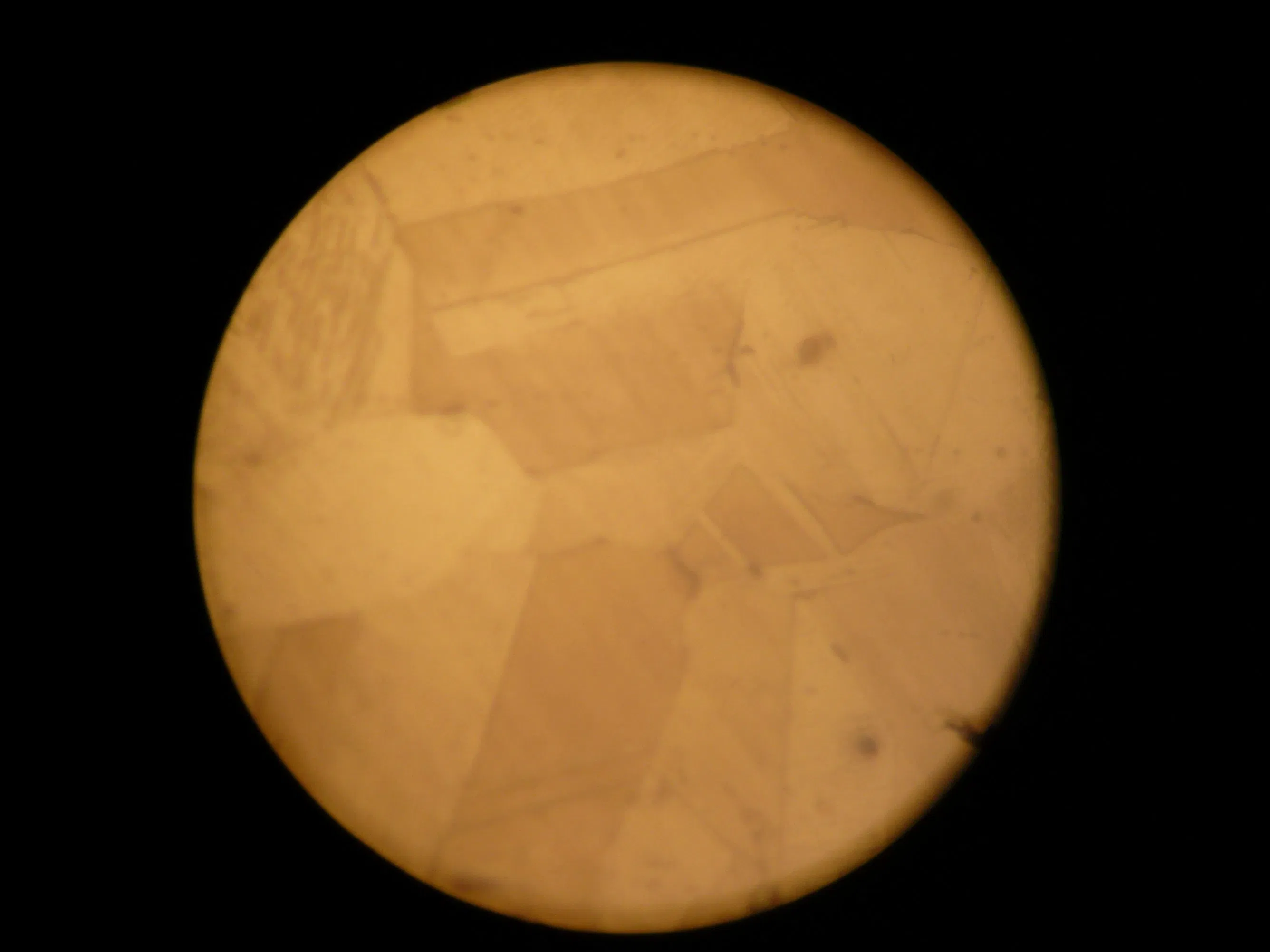

Economical practical design offering for inspecting grain coarsening metallurgical samples.
Easy installation by the production line and easy to carry.
Suitable for colleges and factories.

Standard Package
. Main body
. Trinocular head
. Mechanical stage
. Eyepiece 10xx2
. Objective 10x, 20x, 40x
. Illuminator: 6v 30w
. Power supply: 220v
. Operation manualModelSM400Observation methodMagnificationIlluminatorStageEyepieceNosepieceObjectiveField diaphramMirrorPower consumptionDimensionWeight

Observation method	brightfield, polarizing
Magnification	100X, 200X, 400X, 1000X
Illuminator	6V30W
Stage	180x150mm
Eyepiece	10X(F. N18)
Focus	Graduation:1μm
Objective	10X/0.25 20X/0.40 40X0.65 100X/1.25(oil)
Field diaphragm	1
Nosepiece	1
Power supply	220V, 110V
Dimension(mm)	560X195X300mm
Net weight (kg)	12Kgs
