Product Description

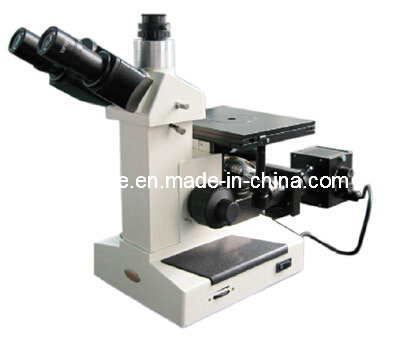

Inverted Metallurgical Microscope SM400

Introduction
An adapter for attaching an digital camera to the trinocular tube is also available. This mode needs MI of the metallographic image printing with fixed sizes.

We have a selection of CCD adapters for computer print-out with standard magnification and more than
60% observation view...

Key Features
SM400 inverted microscope is Trinocular microscope with many advantages:

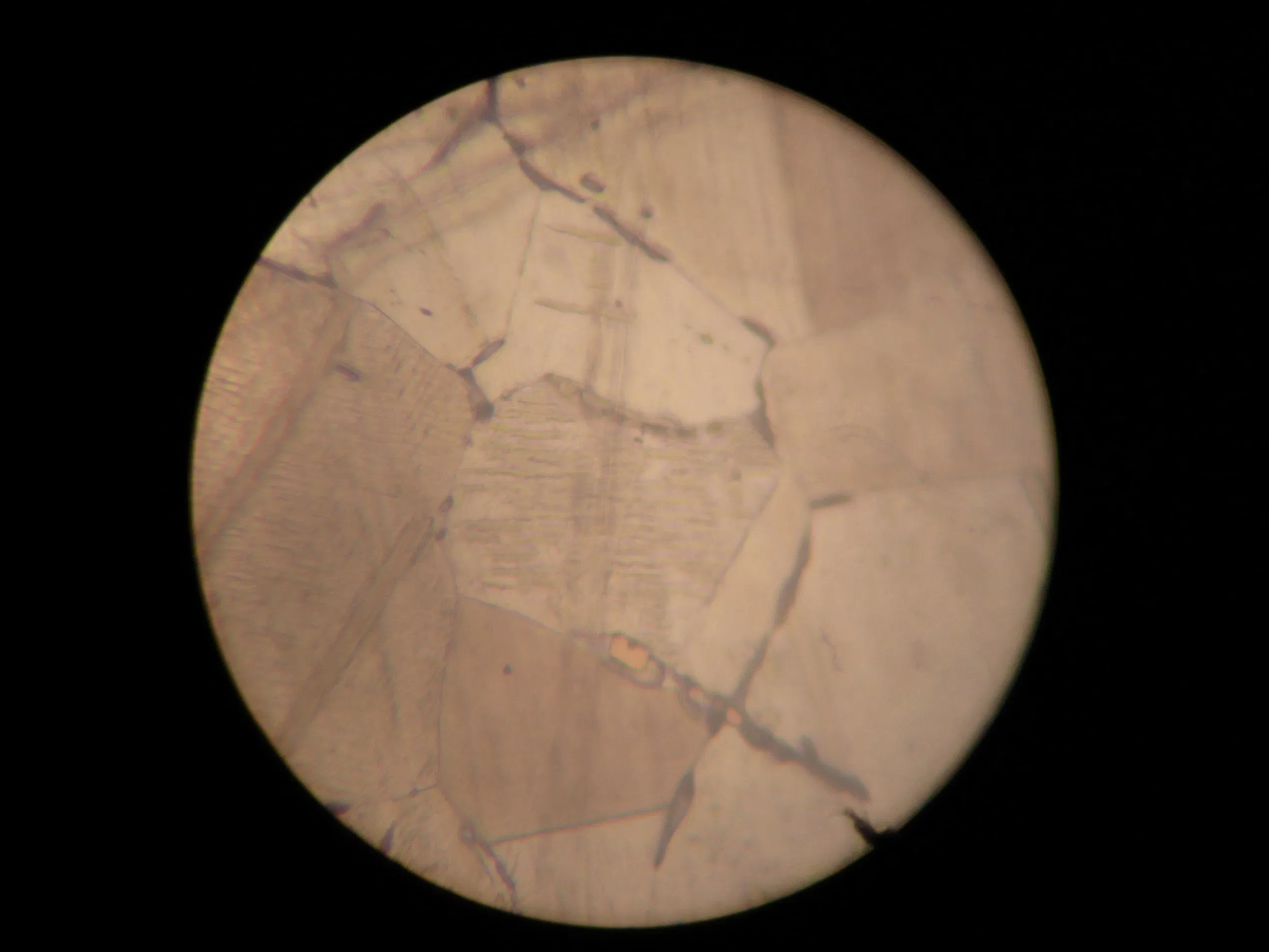

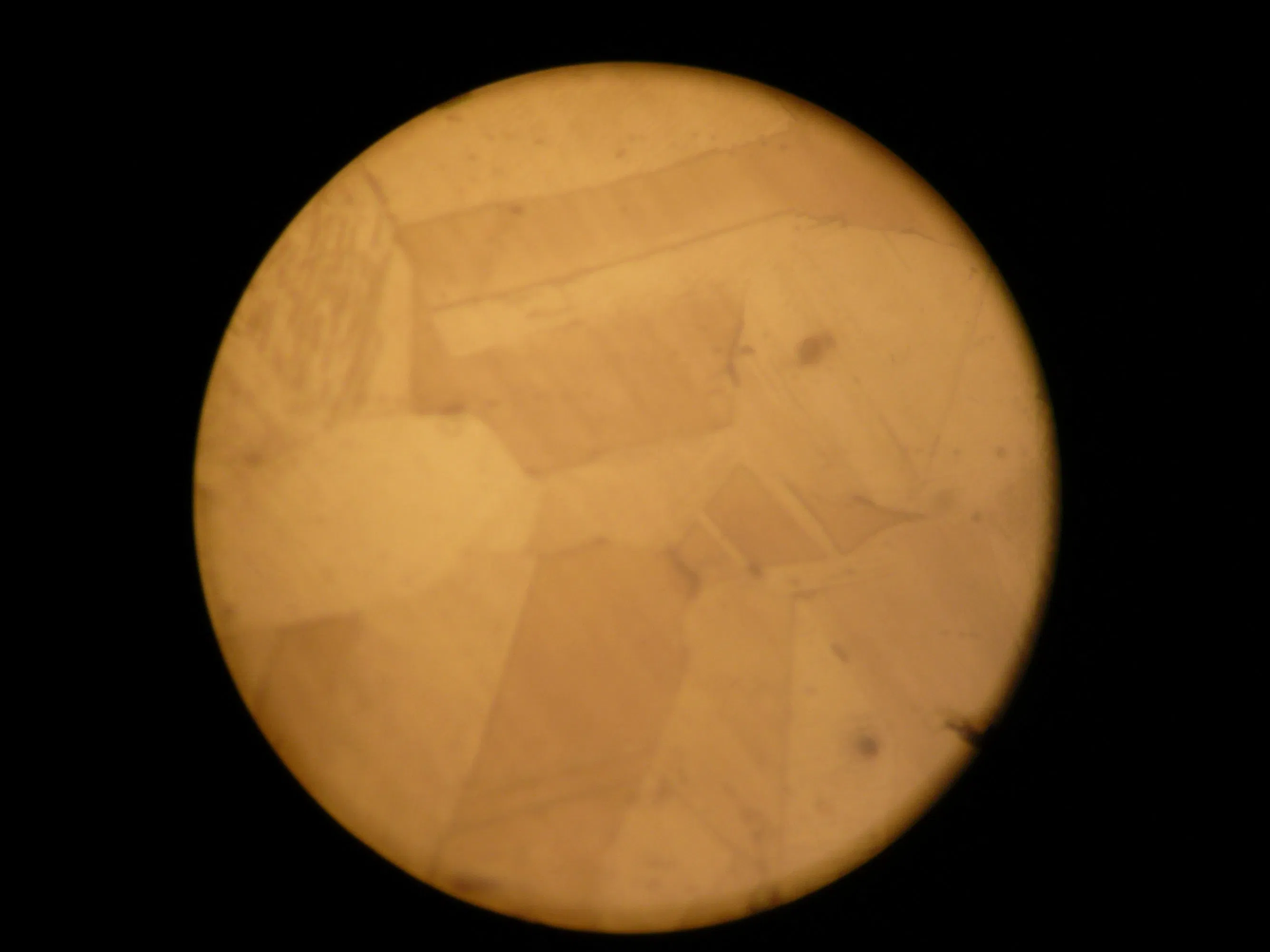

Economical practical design offering for inspecting grain coarsening metallurgical samples.
Easy installation by the production line and easy to carry.
Suitable for colleges and factories.

Standard Package
. Main body
. Trinocular head
. Mechanical stage
. Eyepiece 10xx2
. Objective 10x, 20x, 40x
. Illuminator: 6v 30w
. Power supply: 220v
. Operation manualModelSM400Observation

Specifications

Observation method	Inverted, bright field, polarizing
Magnification	100X,200X,400X, 1000X(optional)
Focus	Graduation:1μm
Illuminator	6V, 30W
Stage	180x150mm
Eyepiece	10X(F.N18) x 2
Objective	10X / 0.25 20X / 0.4 40X / 0.65 100X / 1.25 (oil, optional)
Field diaphragm	1
Nosepiece	1
Power supply	220V / 110V
Dimension(mm)	560x195x300
Net weight (kg)	12
