Product Description

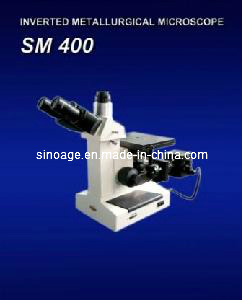

Inverted Metallographic Microscope SM400

Key features

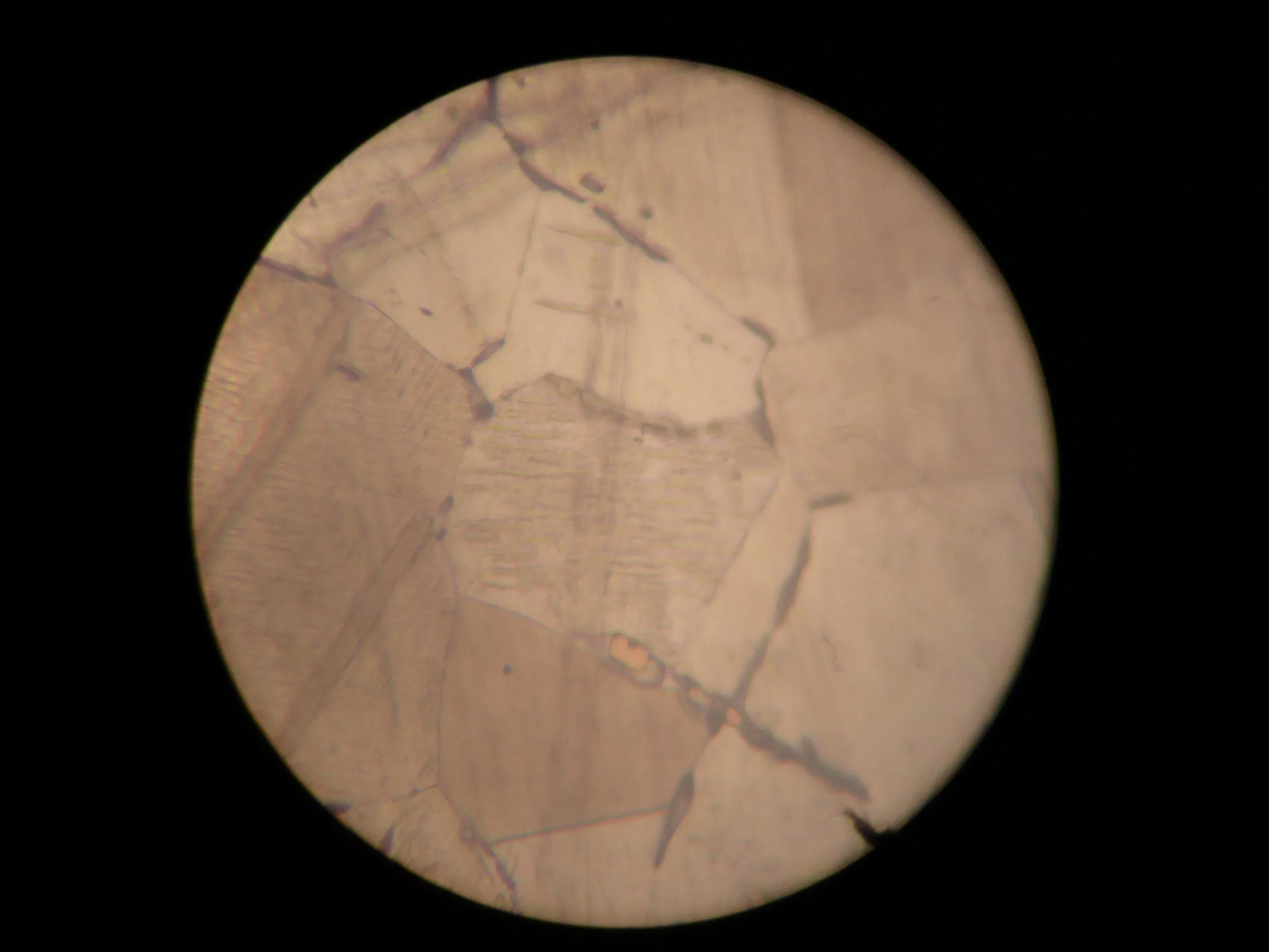

§ Economical practical design offering for inspecting grain coarsening metallurgical samples.
§ Easy installation by the production line and easy to carry.
§ The SM400 is suitable for colleges and factory .

An adapter for attaching an digital camera to the trinocular tube is also available. This mode needs MI of the metallographic image printing with fixed sizes.
We have a selection of CCD adapters for computer print-out with standard magnification and more than
60% observation view...

Standard package
. Main body
. Trinocular head
. Mechanical stage
. Eyepiece 10xx2
. Objective 10x, 20x, 40x
. Illuminator: 6v 30w
. Power supply: 220v
. Operation manualModelSM400Observation methodMagnificationIlluminatorStageEyepieceNosepieceObjectiveField diaphramMirrorPower consumptionDimensionWeight

Specifications

Observation method	Inverted, bright field, polarizing
Magnification	100X,200X,400X, 1000X(optional)
Focus	Graduation:1μm
Illuminator	6V, 30W
Stage	180x150mm
Eyepiece	10X(F.N18) x 2
Objective	10X / 0.25 20X / 0.4 40X / 0.65 100X / 1.25 (oil, optional)
Field diaphragm	1
Nosepiece	1
Power supply	220V, 110V
Dimension(mm)	560X195X300mm
Net weight (kg)	12Kgs
