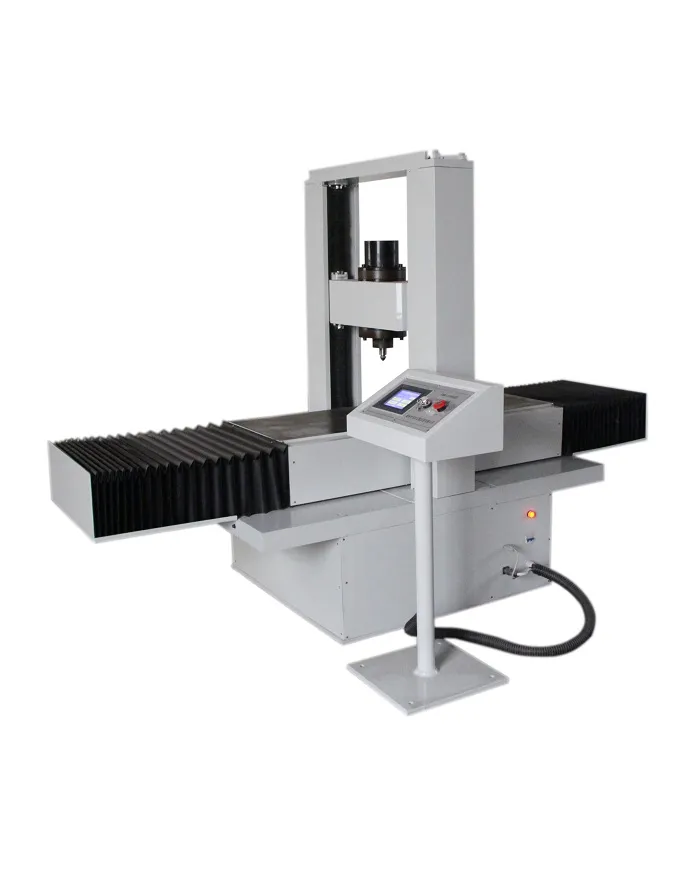

Hbms- 3000c Portal Type Electronic Brinell Hardness Tester
Standards: GB/T231.2, ISO 6506-2, ASTM E10ApplicationCastings, annealed steel, normalized steel, ferrous metal, soft alloy FeaturesLarge measuring stroke, easy operation, stable test accuracySolid structure, good rigidness, durable in usePortal frame, large moveable platform, max moveable distance u......
Send Inquiry
Product Description
Standards: GB/T231.2, ISO 6506-2, ASTM E10
Application
Castings, annealed steel, normalized steel, ferrous metal, soft alloy
Features
Large measuring stroke, easy operation, stable test accuracy
Solid structure, good rigidness, durable in use
Portal frame, large moveable platform, max moveable distance up to 1000mm
Max sample height up to 950mm
Main shaft horizontal move distance 500mm
Precision digital readout microscope measuring system
Specially suitable to test large metal parts Brinell hardness
Precision spoke type pressure sensor for testing mechanism, test load automatic compensation
Full closed loop controlled gradient load applying ensure smooth loading,
high speed micro processor guarantee accurate loading
Step motor, precision ball screw rod, liner guide, accurate positioning, easy maintenance
Test load, loading time, loading speed, test speed all can be adjusted by human
Automatic test process no human operation error.
Imaging system can capture the Indentation, automatic indicate the Brinell hardness value, the test data can be stored and test report can be generated, also the hardness value can be converted, the test data will be saved automatically in database.
Technical Specifications
Standard configuration
Application
Castings, annealed steel, normalized steel, ferrous metal, soft alloy
Features
Large measuring stroke, easy operation, stable test accuracy
Solid structure, good rigidness, durable in use
Portal frame, large moveable platform, max moveable distance up to 1000mm
Max sample height up to 950mm
Main shaft horizontal move distance 500mm
Precision digital readout microscope measuring system
Specially suitable to test large metal parts Brinell hardness
Precision spoke type pressure sensor for testing mechanism, test load automatic compensation
Full closed loop controlled gradient load applying ensure smooth loading,
high speed micro processor guarantee accurate loading
Step motor, precision ball screw rod, liner guide, accurate positioning, easy maintenance
Test load, loading time, loading speed, test speed all can be adjusted by human
Automatic test process no human operation error.
Imaging system can capture the Indentation, automatic indicate the Brinell hardness value, the test data can be stored and test report can be generated, also the hardness value can be converted, the test data will be saved automatically in database.
Technical Specifications
| Measuring range | 32-650HBW |
| Test force | 7355.3,9807,29421N(750,1000,3000kgf) |
| Sample max allowed height | 950mm(or customized) |
| Column distance | 1350mm(or customized) |
| Working platform size | 1500x1000mm(L*W) (or customized) |
| Platform max moving distance | 1000mm (or customized) |
| Working platform max loading | >3000kg |
| Overall size | 2000*1500*2000mm( main machine) |
| Control box | 510 x 500 x 1450mm |
| Power supply | AC220V,50/60Hz |
| Net weight | Main machine 3000kg, controller 40kg |
| Item | Qty |
| Main machine | 1set |
| Control box | 1set |
| Computer | 1set |
| Brinell automatic measuring system | 1set |
| 20×reading microscope (JC-10) | 1pc |
| Brinell carbide indenter(Φ5 & Φ10) | 3pcs each |
| Brinell carbide ball(Φ5 & Φ10) | 10pcs each |
| Standard Brinell hardness block(HBW100±25 HBW200±25) | 5pcs each |
