Product Description

* Automatic testing process, no human operating error
* Large LCD screen displaying for parameters setup, easy operation
* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
Suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Standard Accessories: Large flat anvil:1 pc. Tungsten carbide ball penetrator:Φ2.5, Φ5, Φ10mm, 1 pc. each V-notch anvil:1 pc. Brinell standardized block:2 pcs. 20X Readout microscope:1 pc.

Measuring range	8-650HBW
Test force	612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N(62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf)
Diameter of tungsten carbide ball	2.5, 5, 10mm
Dwelling time of test force	2-99s
Max. height of test piece	240mm
Depth of throat	120mm
Power supply	220V AC or 110V AC, 50 or 60Hz
Dimensions	630 x 250 x 1000mm
Weight	Approx.150kg

Contact information
Daisy
Sales manager
Laizhou LaiHua Testing Instrument Factory

Http://metallographiclaihua.en.made-in-china.com

Packaging and shipping
Packaging: Standard export package, wooden case
Delivery: 3 days upon receipt of payment, depend on order quantity

Company Information:
Laizhou LaiHua Testing Instrument Factory was founded in 2010,which specializes in the manufacture of hardness testers and metallographic equipments for metaland nonmetal materials. Besides, we can also design special, large-scale dedicated machines according to the requirements of customers.

FAQ:
1, Min. Order Quantity
1 piece
2, Our technical team construction.
We have professional technicians with several years' experience.
3, What's our warranty?
12 months
4, Ways of payment

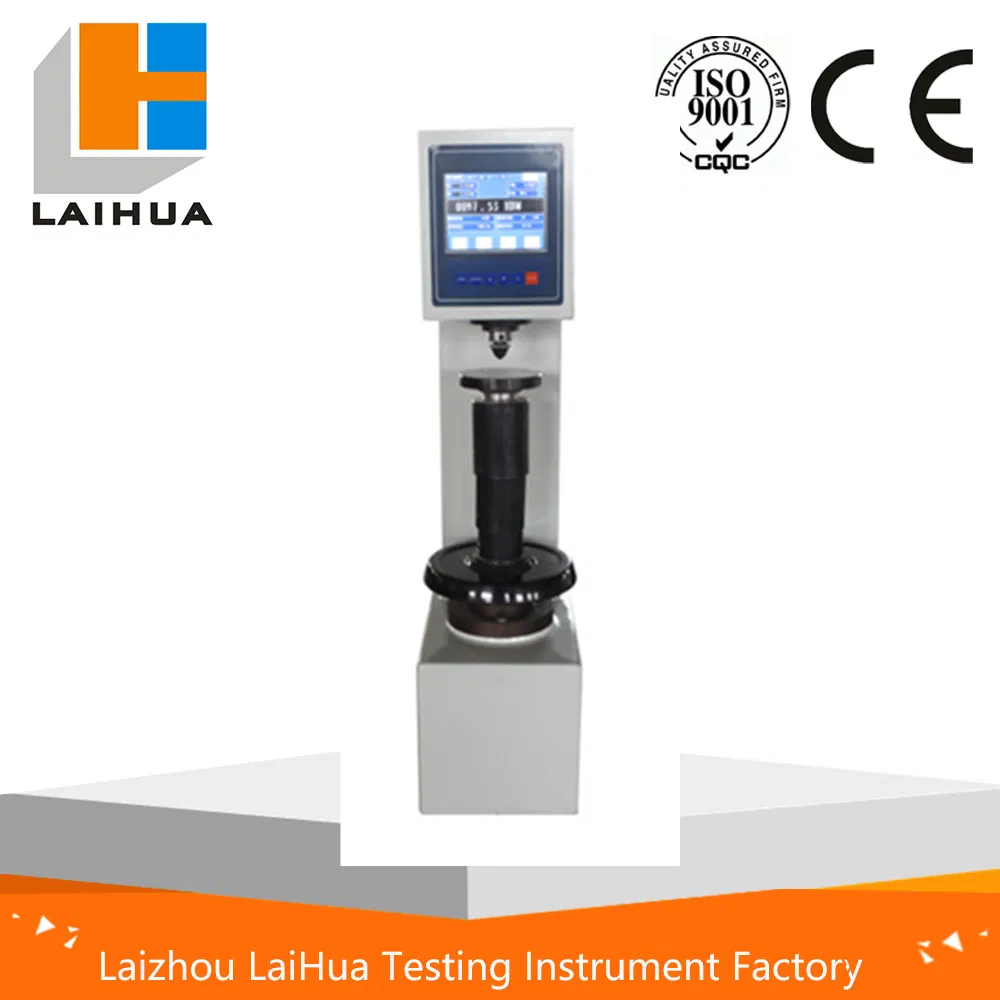

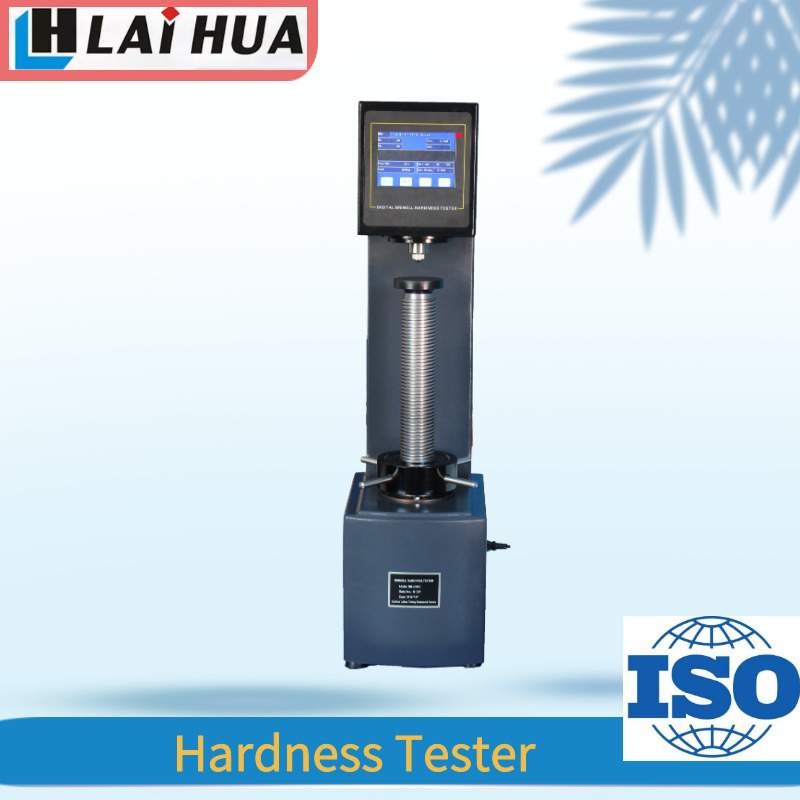

Hb-3000c Digital Brinell Hardness Tester Displays The Brinell Hardness Value
