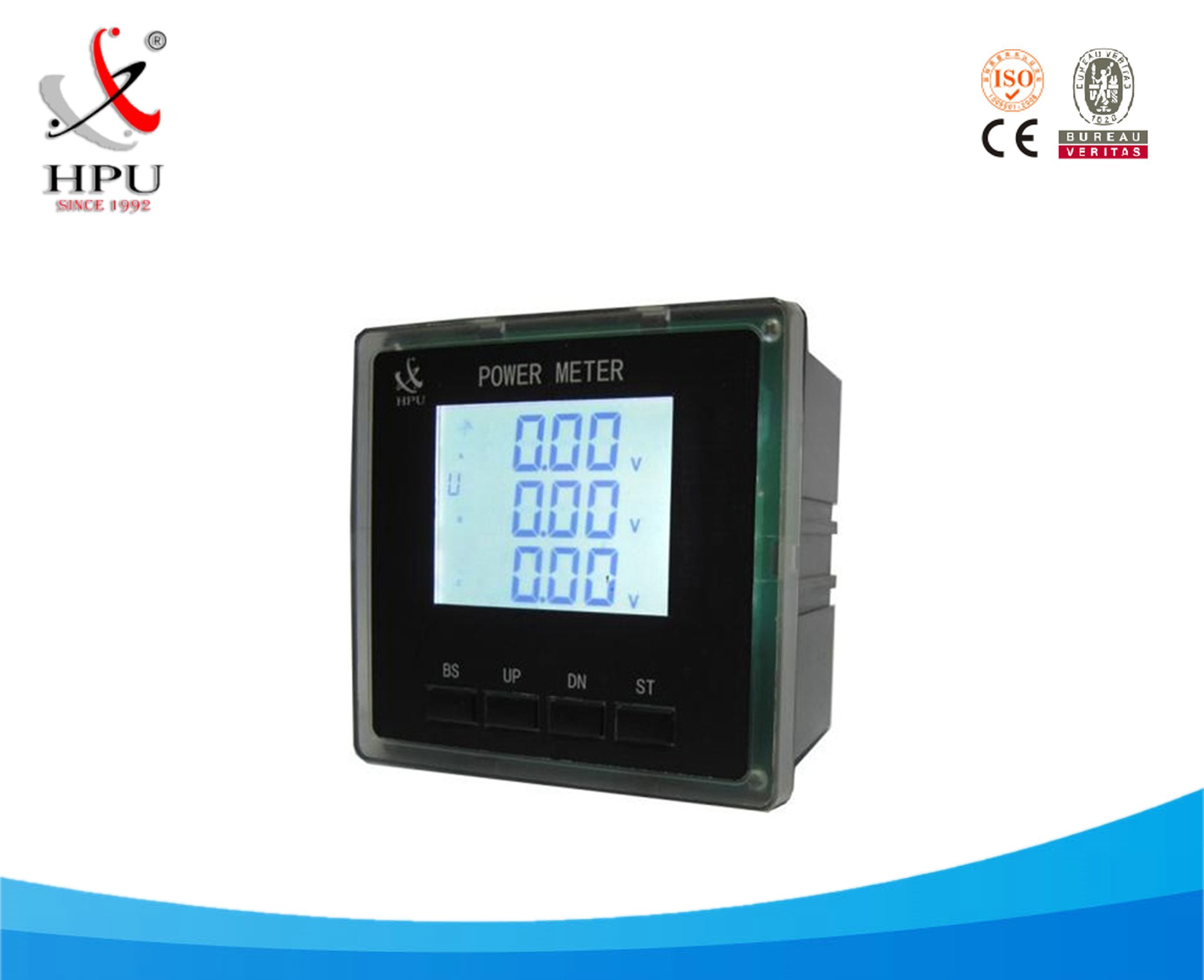

China Three Phase Multi-Function Smart Power Meter (PD6814Z-2SY)

Product Description

PD6814Z Series Network Power Meter

Summarize

The new intelligent Network Power meter PD6814Z series is having the unified style,programmable power measurement ,digital display ,digital communications ,and variety of inputs and outputs with high efficiency performance.

PD6814Z series Network Power Meter measures mostly common power parameters, and also presences of reactive power with extensions such as RS485 communication, switches value of inputs and outputs, electrical pulse output and analog output. The Switching values of inputs are used to monitor the status of the switch; also the switching values of outputs are remotely controlled and off-limit alarm. Further, the Analog output function of PD6814Z is the best choice to be the replacement of traditional transmitters under request. Certainly, all data can be read through the RS-485 communication port.

PD6814Z power meter adapt to all the voltage grades and connection mode; it meets the distribution and concentration of all kind of high and low voltage switchgear installations.

Specialty

Integrated electric power parameter measurement
Monitor and control the switch
Calculate active and reactive power
Can be imported directly from the current and voltage transformer, can be arbitrary set PT/CT ratio.
LCD or big character LED display, intuitive display image.
Easy installation, small quantities
RS485 communication port, the standard Modbus RTU protocol, can inset SCDA/PLC system

Applications
The side range of applications of PD6814Z series Network Power Meter are its specialty which suits for higher requirements of power monitoring and safety. The PD6814Z offers the needs for places serve the internal power measurements such as energy management systems, industrial automation, power monitoring, substation automation, intelligent buildings, power distribution panel and switch cabinets, etc.

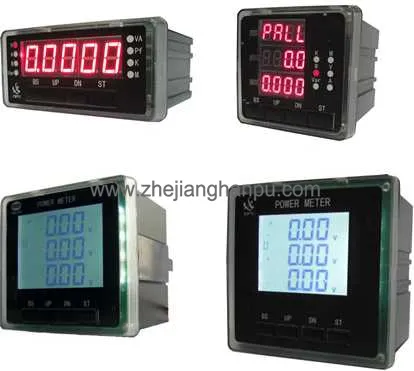

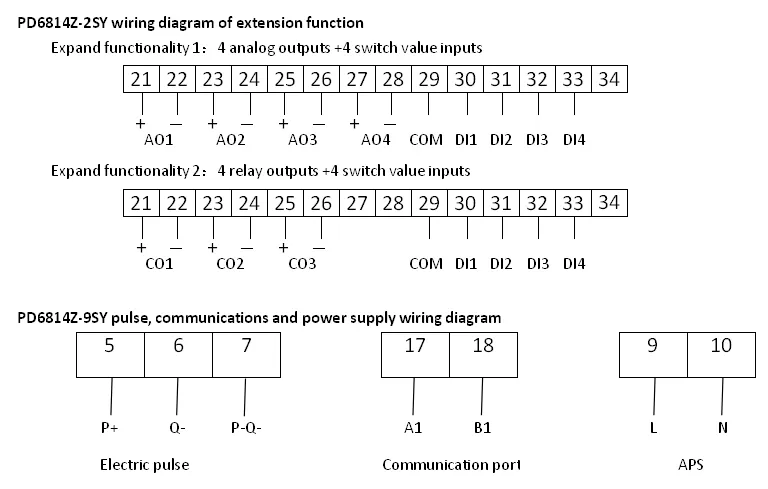

Type specification

Model No.	Measurement	Display	Additional Function
Model No.	Measurement	Display	Digital communication	Electric pulse	Analog output (optional)	Switch value input and output(optional)
PD6814Z-9SY	Three phase electricity parameters and electric energy metering	Segment code LCD display	1 circuit RS485	1 circuit	Maximum 4 circuit	Maximum 3circuit relay output and 4 circuit switch value input
PD6814Z-2SY		Segment code LCD display		1 circuit	Maximum 4 circuit	Maximum 3circuit relay output and 4 circuit switch value input
PD6814Z-AS4		Triplex row LED display		1 circuit	NON	NON
PD6814Z-AS1	Single phase electricity parameters and electric energy metering	Single row LED display		1 circuit	Maximum 1 circuit	NON
PD6814Z-5S1		Single row LED display		2 circuit	Maximum 1 circuit	NON

Installation hole size (Unit:mm)

Shape code	Pointer table type	Frame size	Hole size	The minimum installation distance		General Installation
Shape code	Pointer table type	Frame size	Hole size	A	B	General Installation
2	42 square	120X120	111X111	130	120	93
5	5 sulciform	98X50	91X44	100	50
9	9 square	98X98	91X91	108	98
A	61 square	74X74	67X67	87	82

Performance Index

Technical parameters			Index
Reference standard			GB/T 13978-1992 GB/T 13850-1998(IEC688-1992)
Input	Mode of connection		Single phase, Three phase 3 wires, Three phase 4 wires
	Voltage	Rated value	Rated AC 220V(optional 57.7V/100V/380V),indicate when you order it;
		Excess load	Last:1.2double instant:2 double/1s
		Power dissipation	<0.5VA(per phase)
		accuracy	±0.5%
	current	Rated value	Rated AC 5A or 1A, indicate when you order it;
		Excess load	Last:1.2 double instant:20 double/1s
		Power dissipation	<0.5VA(per phase)
		accuracy	±0.5%
	Frequency		45~65Hz
	Power accuracy		Active, reactive power apparent power is ±0.5%
Electric power measurement	accuracy		Active power 0.5, reactive power 2.
Electrical source	APS(Auxiliary power supply)		AC,DC 85~260V
	Power dissipation		<5VA
Security	Withstand voltage		2kV 50Hz/1min
	insulation		2kV 50Hz/1min
Electromagnetic Compatibility	ESD(electrostatic discharge)		Accord with GB/T 17626.2-1998 3 class
	Fast transient pulse burst immunity		Accord with GB/T 17626.4-1998 3 class
	Surge (impact) immunity		Accord with GB/T 17626.5-1998 4 class
Environment	Temperature		Work:-10~55ºC,Storage:-25~70ºC
	Humidness		≤95%RH,no condensation, no corrosive gas
	Height		≤ 3000m
Protection grade, flame retardant grade			Protection grade :IP40 flame retardant grade :V0
Shell material			Fully enclosed plastic shell
