China Manufacturer of Meter for Electricity

Product Description

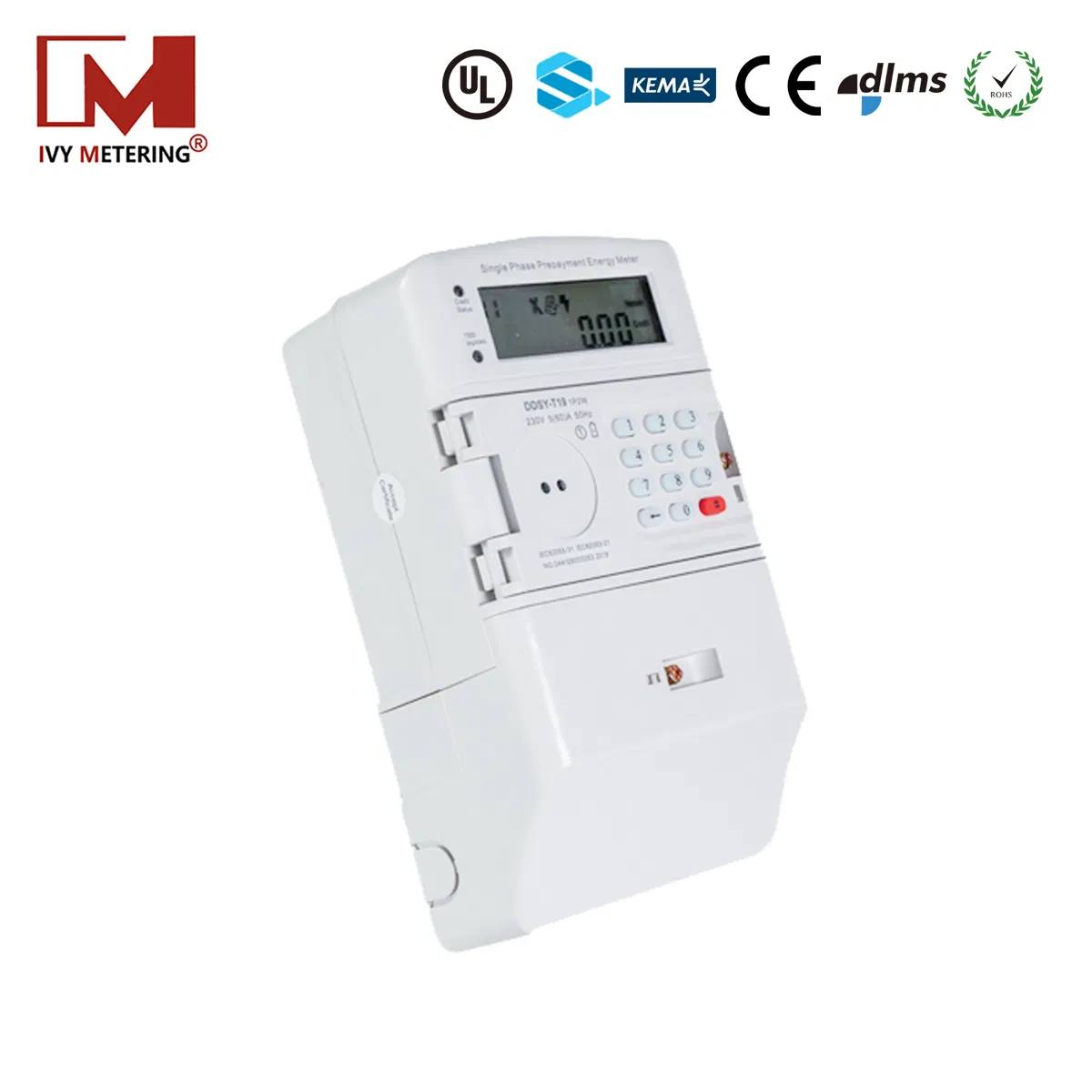

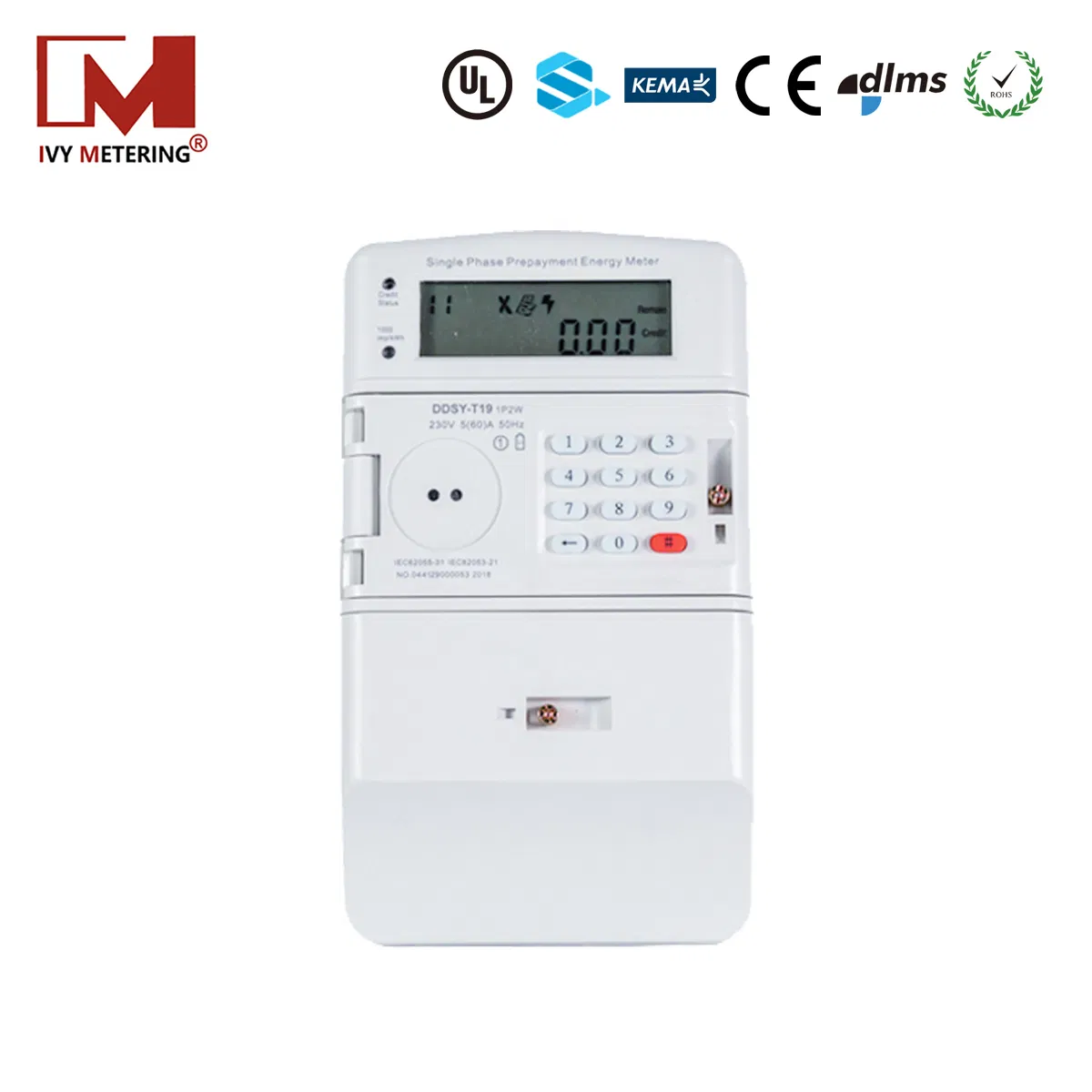

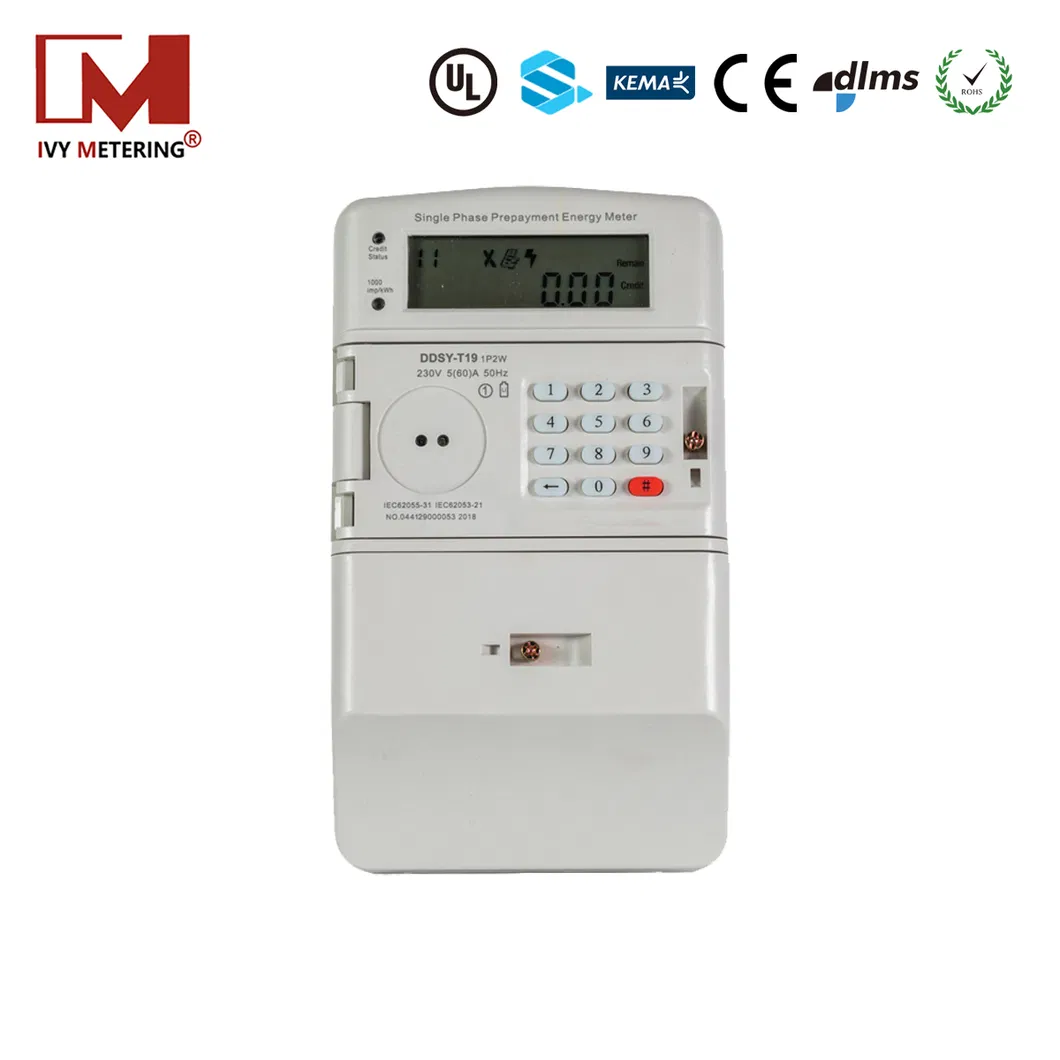

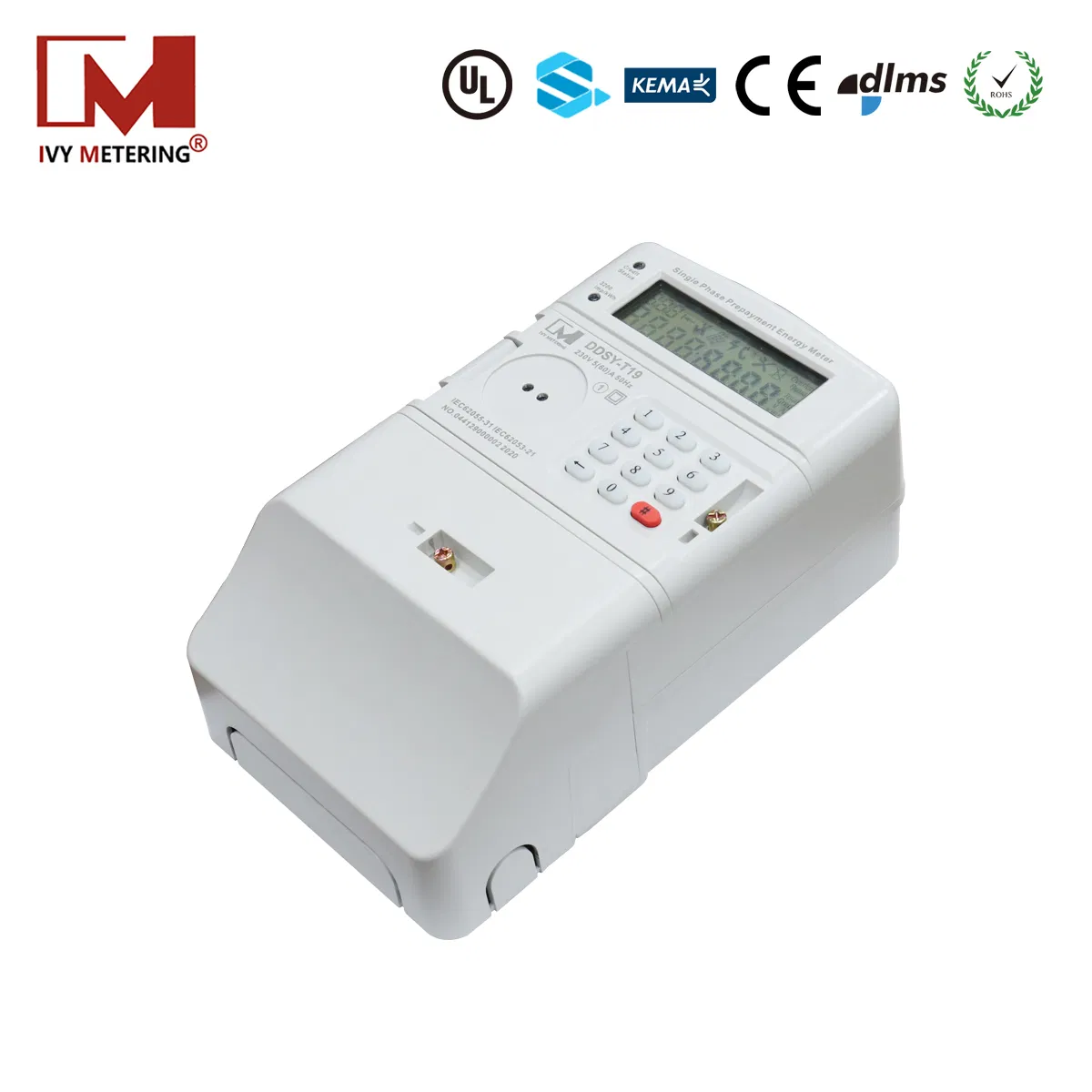

IEC 62053-21 Good Price Maximum Demand Insulating-Encased Meter

Specification	Type	1 Phase 2 Wires Energy Meter
	Voltage	230V
	Current	5(100)A
	Class Accuracy	Active Cl.1, Reactive Cl.2
	Reference Standard	IEC62052-11/IEC62053-21,IEC62056-21,IEC62055-41, IEC62055-51
	Rated Frequency	50 Hz (± 5%)
	Pulse Constant	1000imp/kWh
	Display	LCD 6 + 2
	Power Consumption	<10VA / 2W
	Current Circuit Loss	<4V
	Starting Current	20 mA (0.4% Ib)
	Temperature Range	-40~+70ºC
	Average Annual Humidity	75%
	Maximum Humidity	95%
	Load Control	Built in 120A Relay
	Communication	IR & RS485 & GPRS-2G
	Communication Protocol	EN62056(IEC1107) Protocol

Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.

2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or contact with our sales team.

3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support.
