Product Description

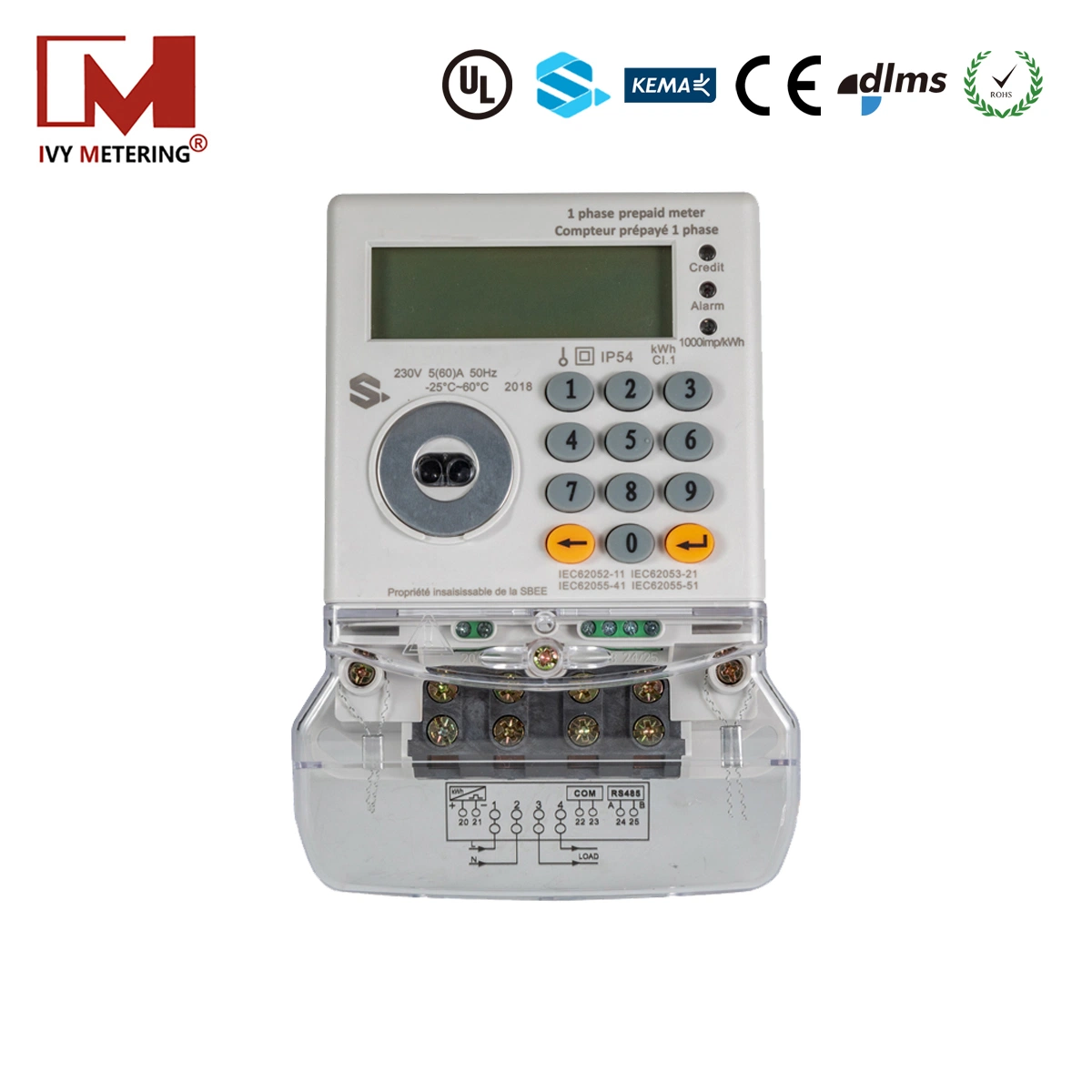

95% Maximum Humidity Bluetooth Meter for School Building

Specification	Type	Single Phase STS Meter with IHD/CIU
	Voltage	230V(60%~120%Un)
	Current	10(80)A
	Frequency	50Hz
	Impulse Constant	1000imp/kWh
	Starting Current	20mA
	Accuracy	Cl.1
	LCD	LCD6+2=999999.99kW
	Power Consumption	<10VA/2W
	Operation Temp.	-20~55ºC
	Maximum Humidity	95%
	Standard	IEC62052-11, IEC62053-21,IEC62055-41, IEC62055-51
	Protection Degree	IP54

Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.

2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or contact with our sales team.

3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support.
