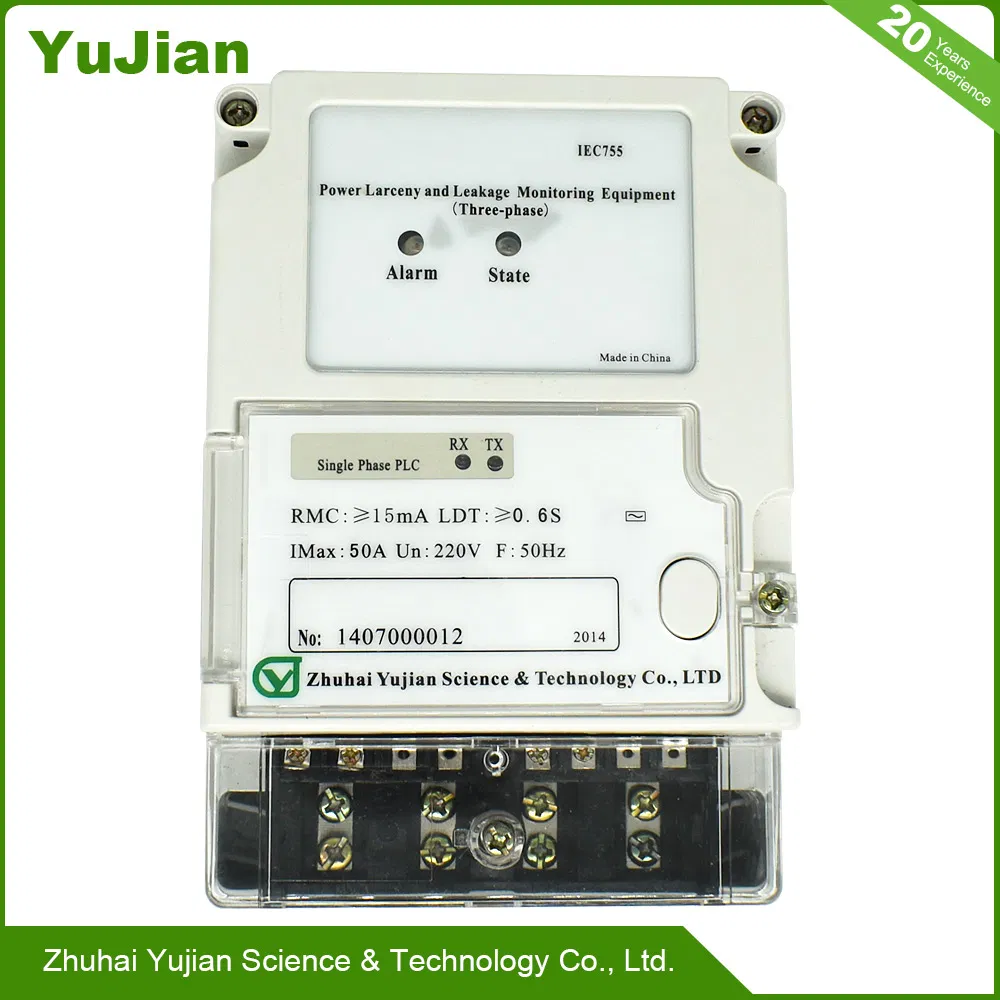

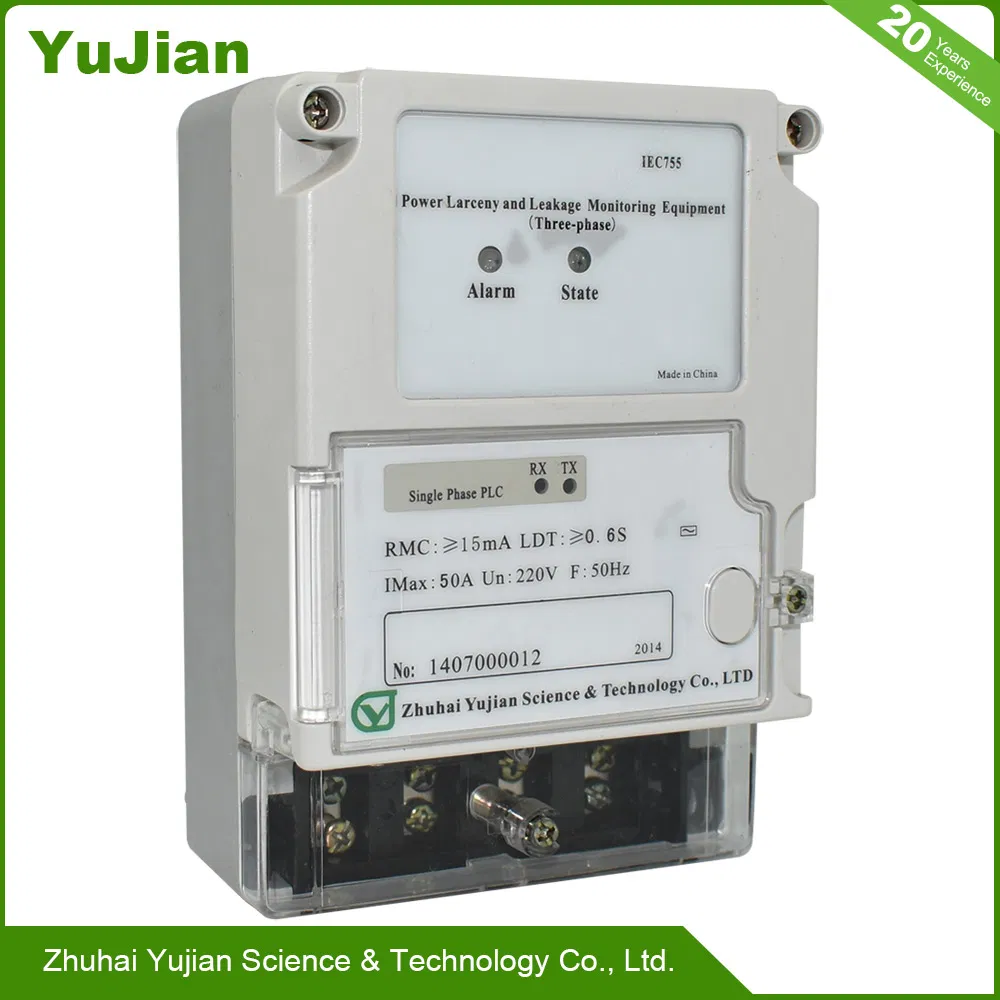

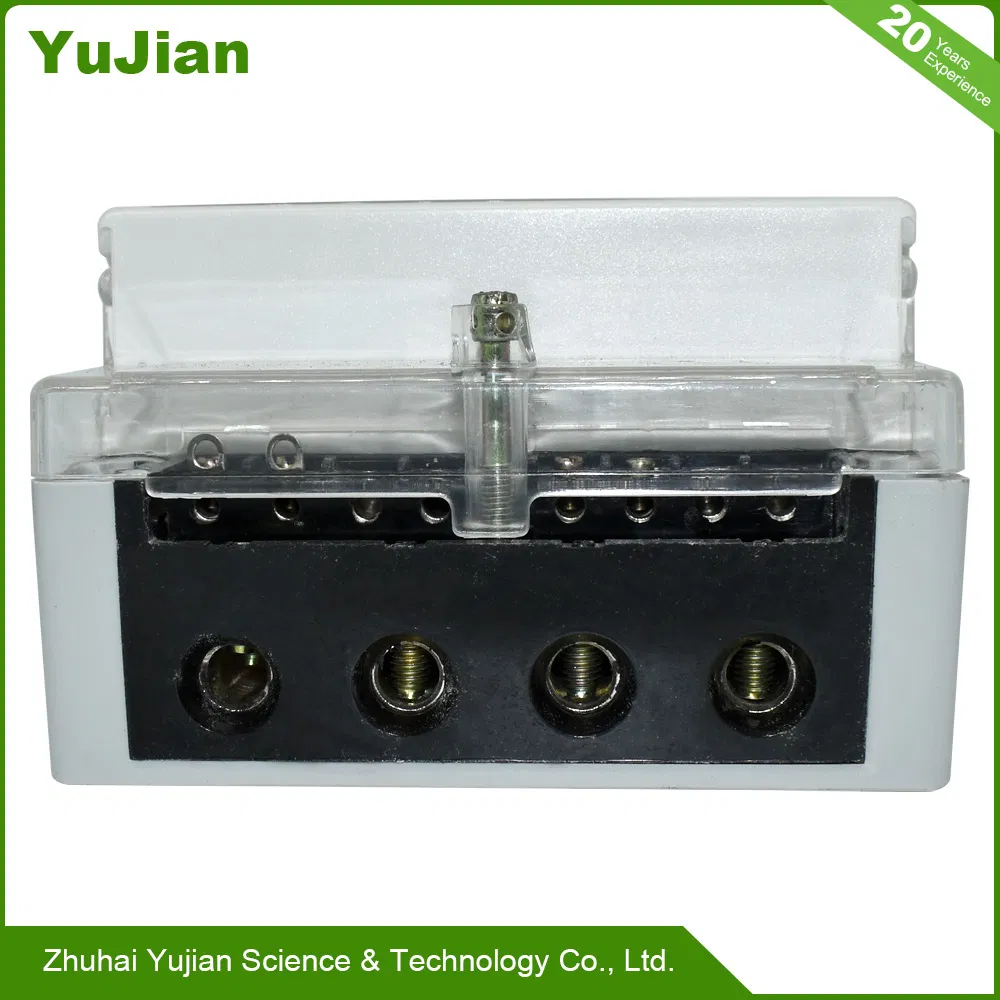

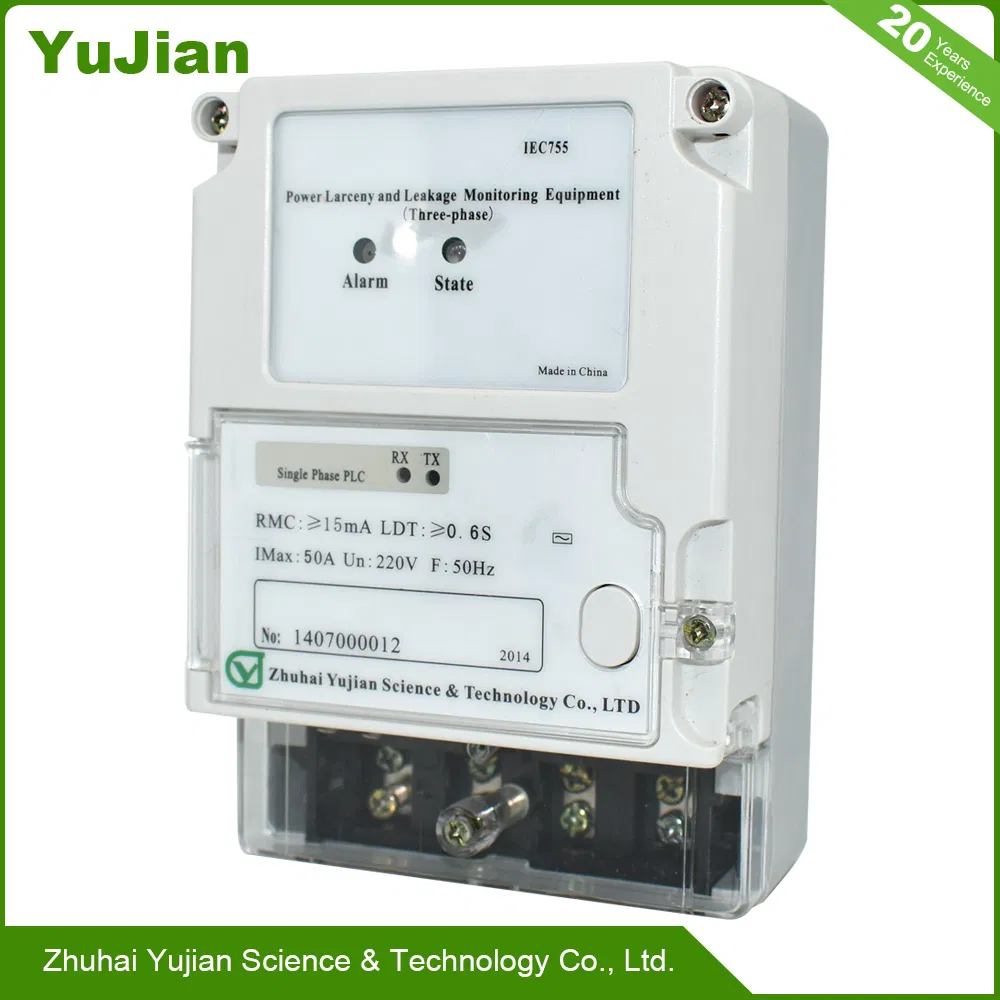

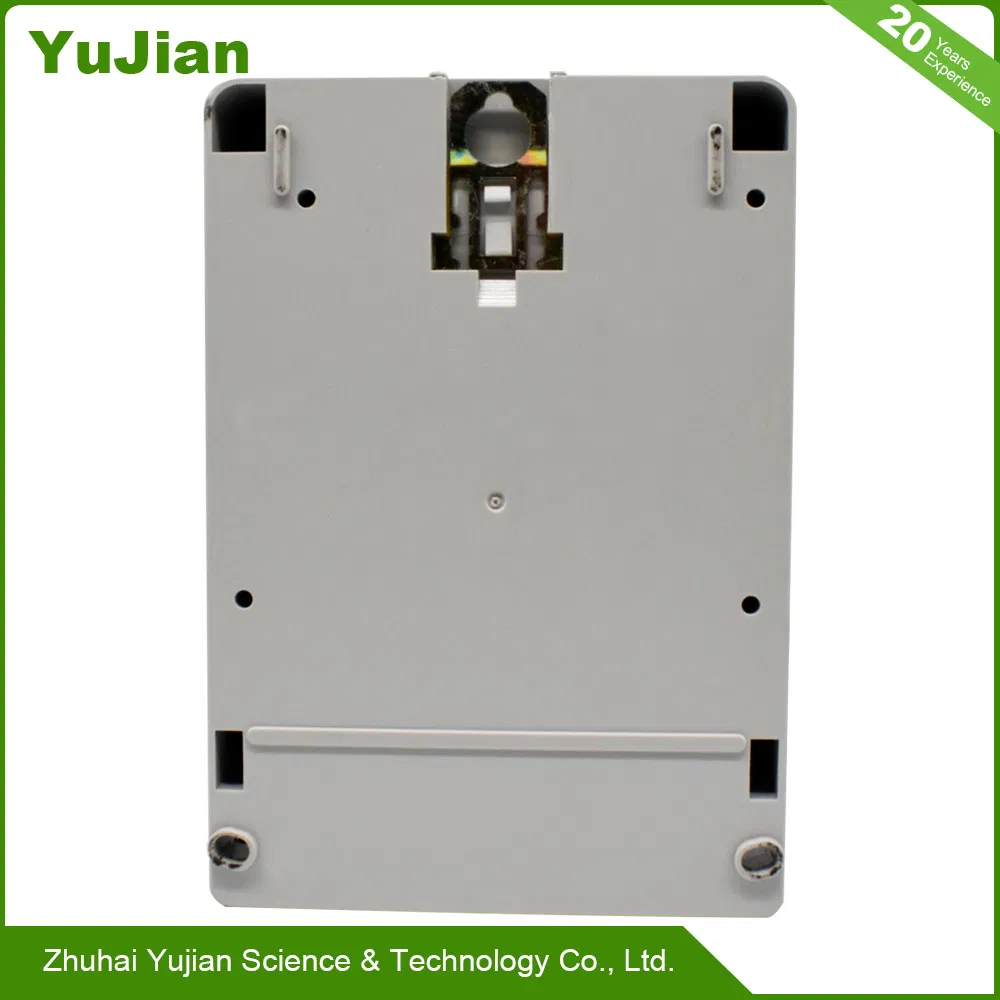

Power Larceny and Leakage Monitoring Equipment Multi Functional Meters

Main parameter:
1.Accuracy level 1 class
2.Reference voltage 220,230 or 240V
3.Range of operation voltage 0.8Un-1.3Un
4.Current specification 5(20)A , 5(40)A, 5(60)A,10(40)A, 20(80)A, 10(100)A,20(120)A,
5.Frequency 50/60HZ
6.Power consumption VC:≤1.5W/10VA CC:<1VA
7.Range of Store and Operating Humidity≤95%
8.Range of Normal Operating Temperature-25ºC-+60ºC
9.Range of Limit Operating Temperature -40ºC-+70ºC

Basic Function:
1.Metering function:The metering sampling current througn L line(live line)&N line Neutral line) and have the function of tamper and leakage monitoring
2.Display:LCD
3.Communication function:achieve remote communication and infrared communication through modules.

Application range:
It is suitable for the broad masses of urban and rural residents-power users
