PMC-592 AC Multi-Circuit 2 Mains and 84 Branch Circuits Power Monitor with Modbus TCP HTTP Ethernet

Product Description

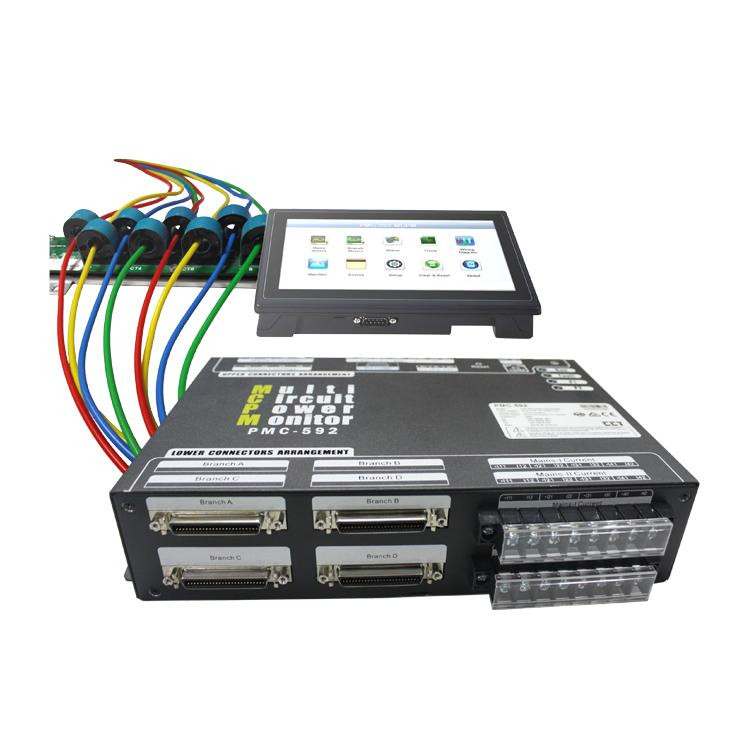

CET PMC-592 Multi-Circuit High Accuracy Power Monitor with Two Mains Inputs and up to 84 Branch Circuit Inputs

PMC-592 AC Multi-Circuit 2 Mains and 84 Branch Circuits Power Monitor with Modbus TCP HTTP Ethernet

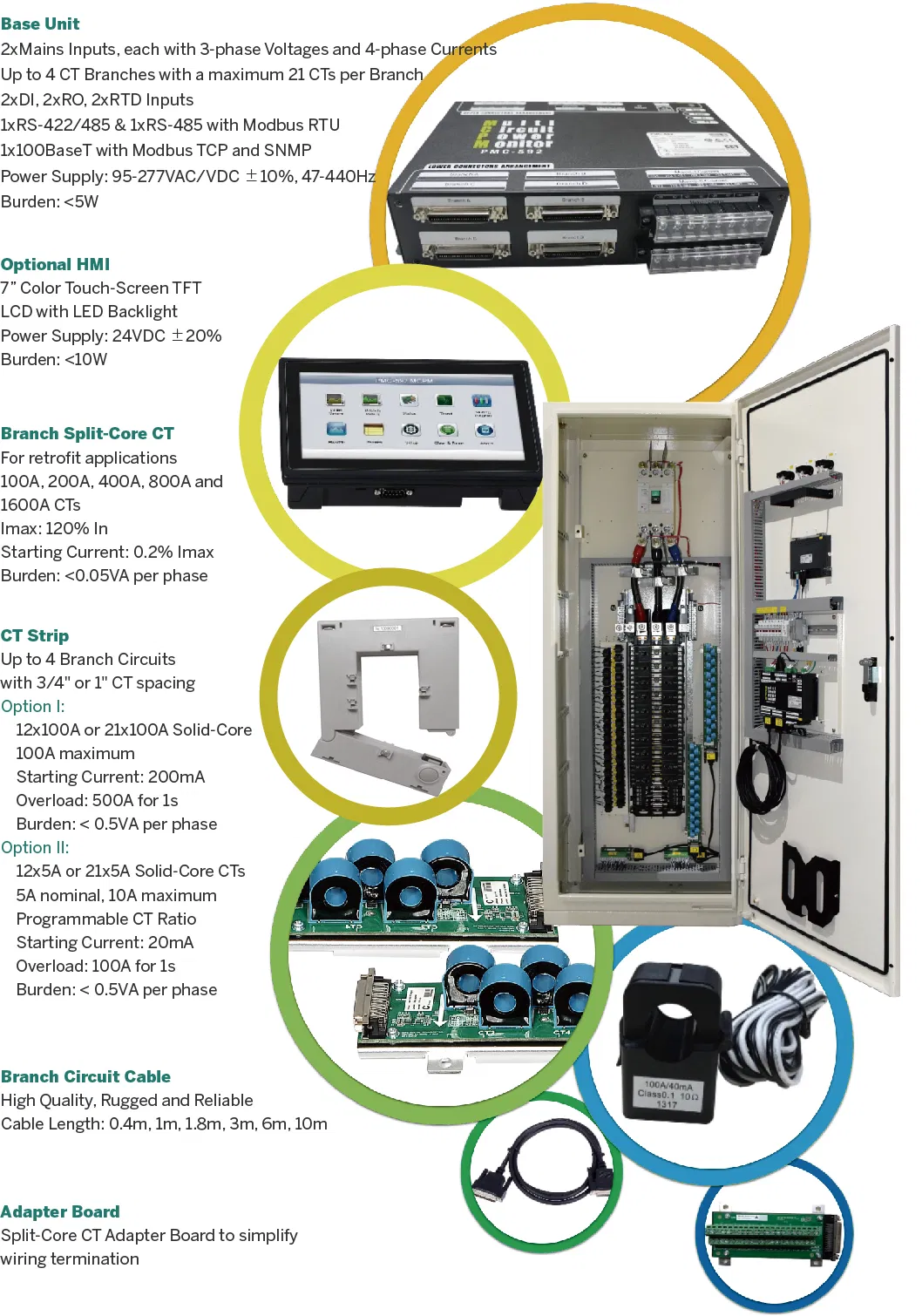

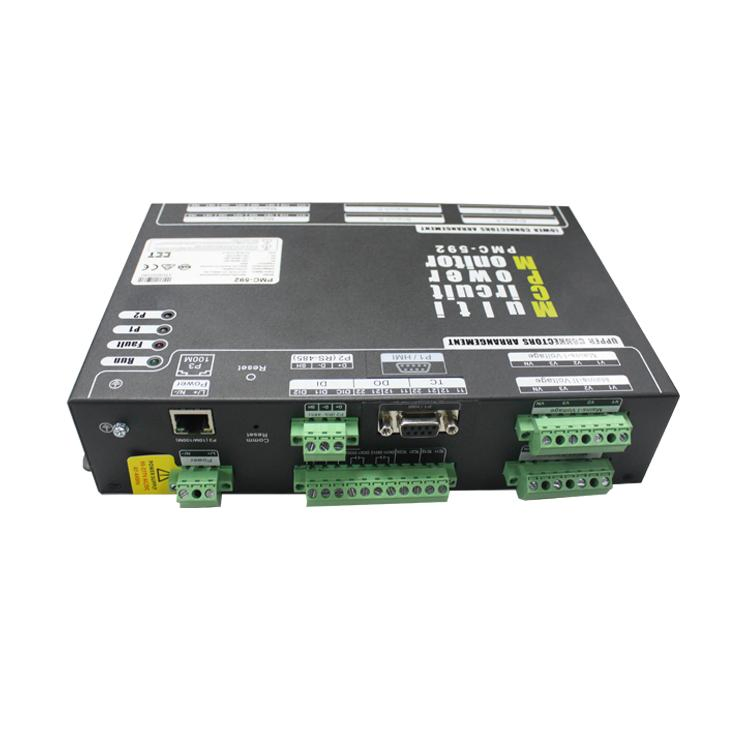

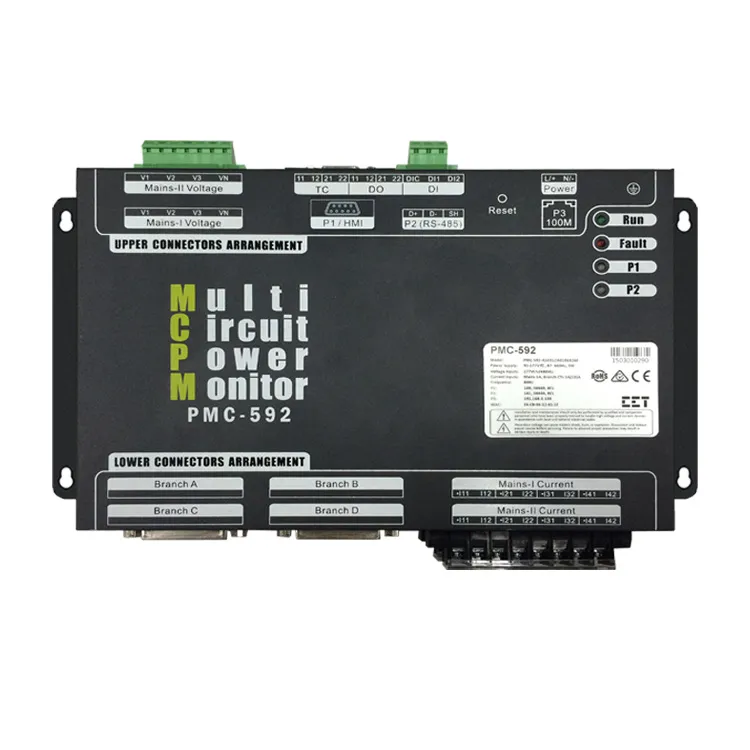

The 592 MCPM is CET's latest offer for PDU, LVDB and Load Center applications that require multi circuit monitoring . Housed in compact metal enclosure , the PMC 592 is perfectly suited for applications that have high density metering requirements . The PMC 592 features quality construction with multifunction and high accuracy measurements , two Mains Inputs, u p to 84 Branch Circuit Inputs and an optional touch screen HMI . The PMC 592 comes standard with two D igital I nputs for status monitoring t wo Relay O utputs for control or alarm ing as well as two RTD Input s for temperature measurement s . The standard SOE Log records all setup changes, Setpoint alarms and DI/ D O operations in 1ms resolution. With Ethernet and dual RS 485 as standard feature supporting Modbus RTU TCP , HTTP, SMTP as well as SNMP the PMC 592 becomes a vital component of an intelligent, multi circuit monitoring solution

Typical Application

• Data Centers' PDUs

• LV S ubstation M ulti C ircuit monitoring

• Load Center Monitoring
• Ring Main Unit Metering
• Motor Control Center metering

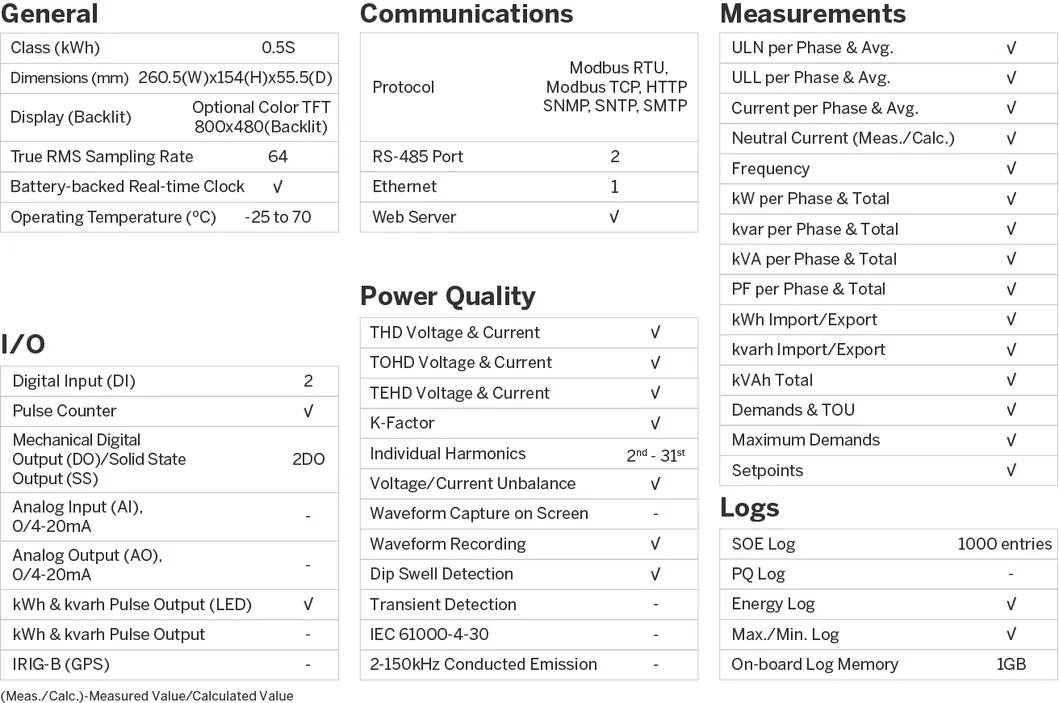

Feature Summary

Ordering Information

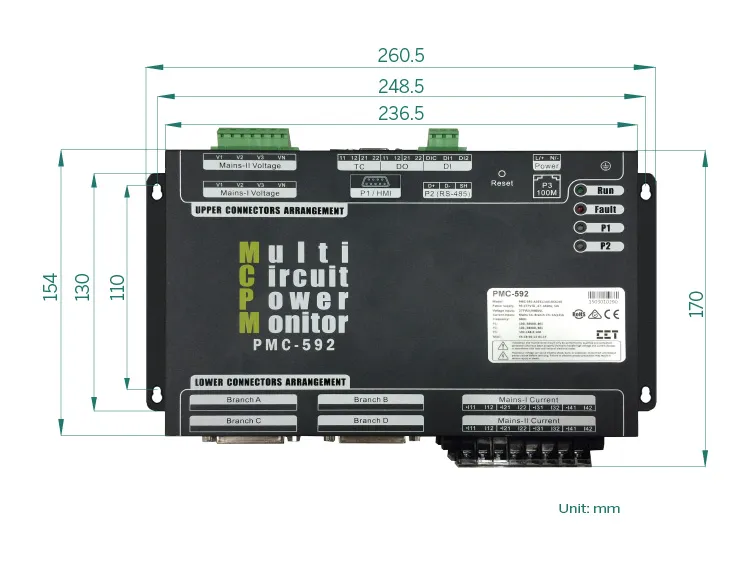

Dimensions

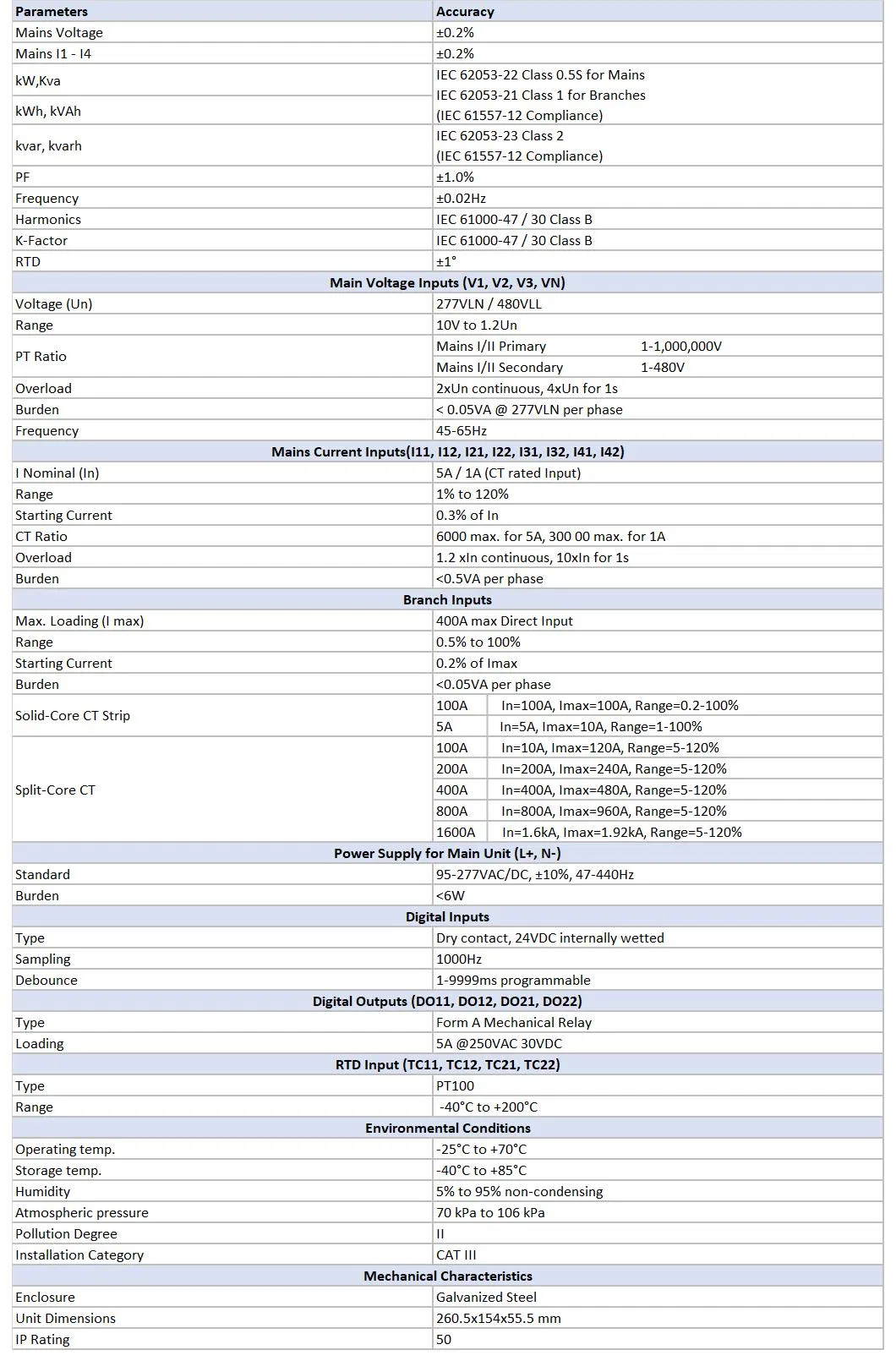

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m² R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.

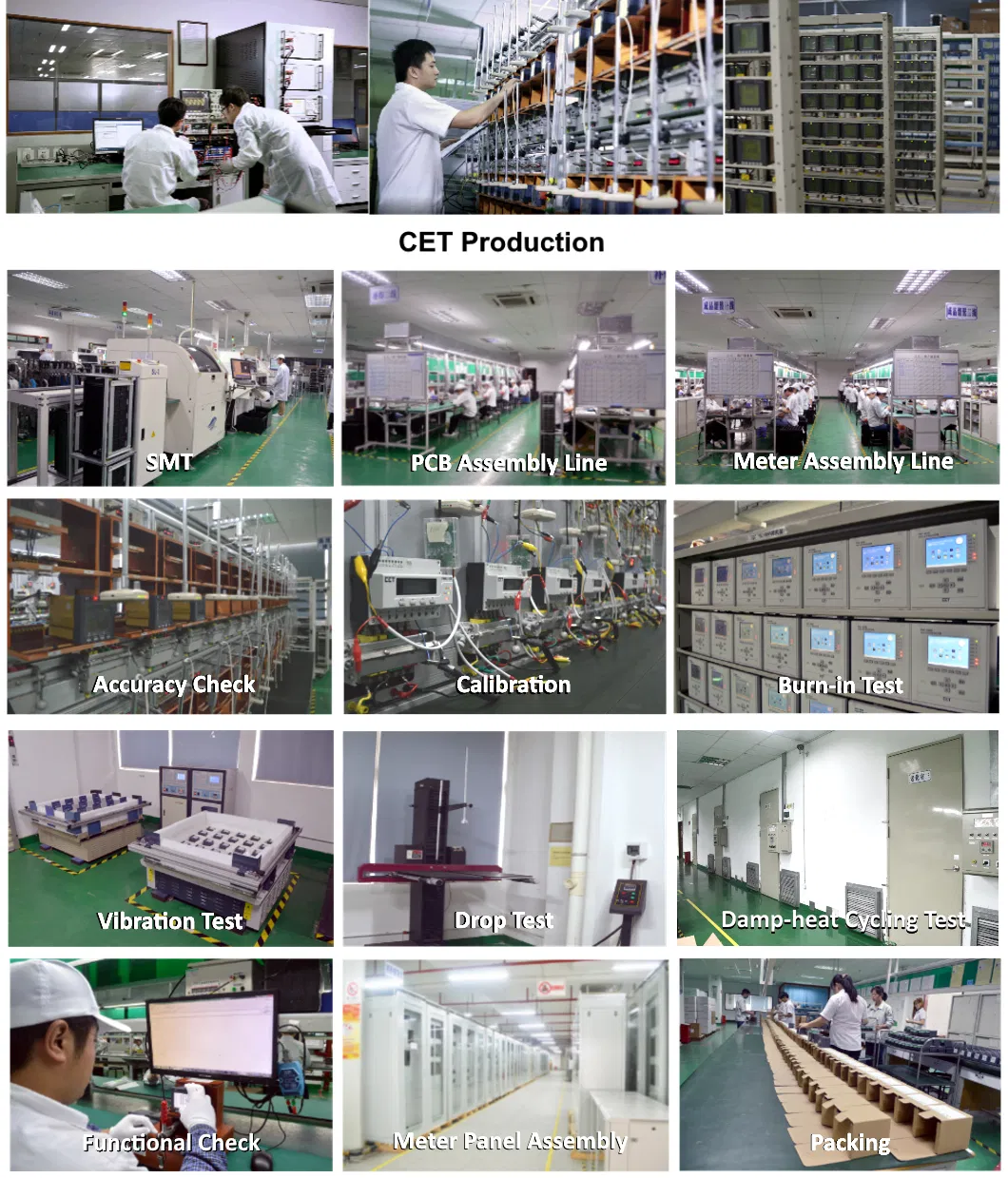

CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
