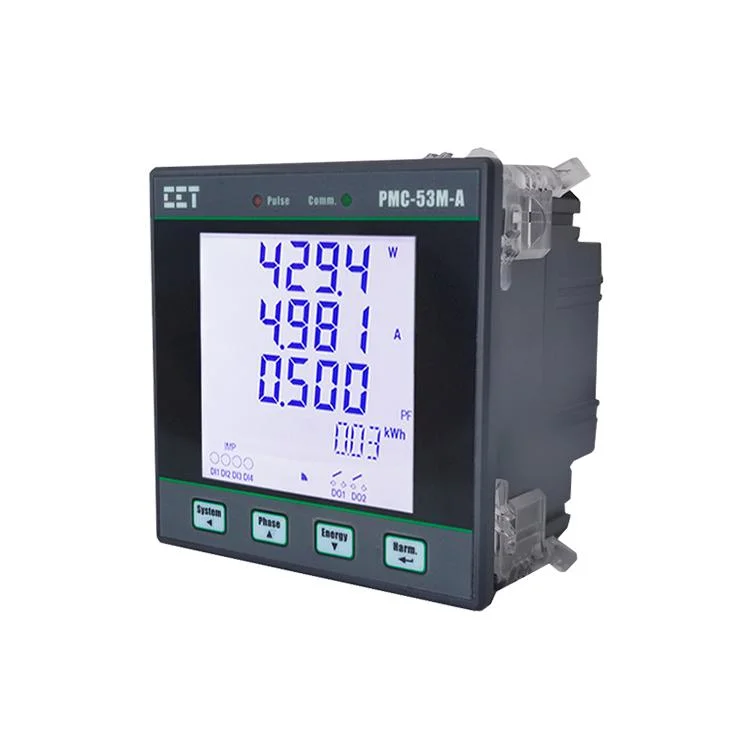

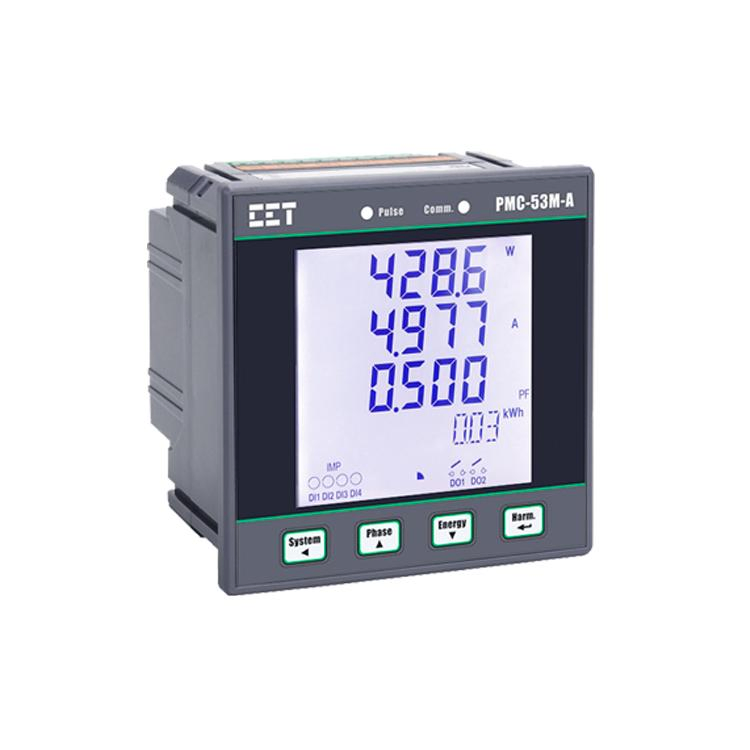

China PMC-53M-A DIN96 Class 0.5S Low-Cost Three-Phase Multifunction Panel Meter with LCD RS-485 Optional I/O

Product Description

CET PMC-53M-A 3 Phase LCD RS-485 with Modbus RTU Support Digital Multifunction Meter

PMC-53M-A DIN96 Class 0.5S Low-Cost Three-Phase Multifunction Panel Meter with LCD RS-485 Optional I/O

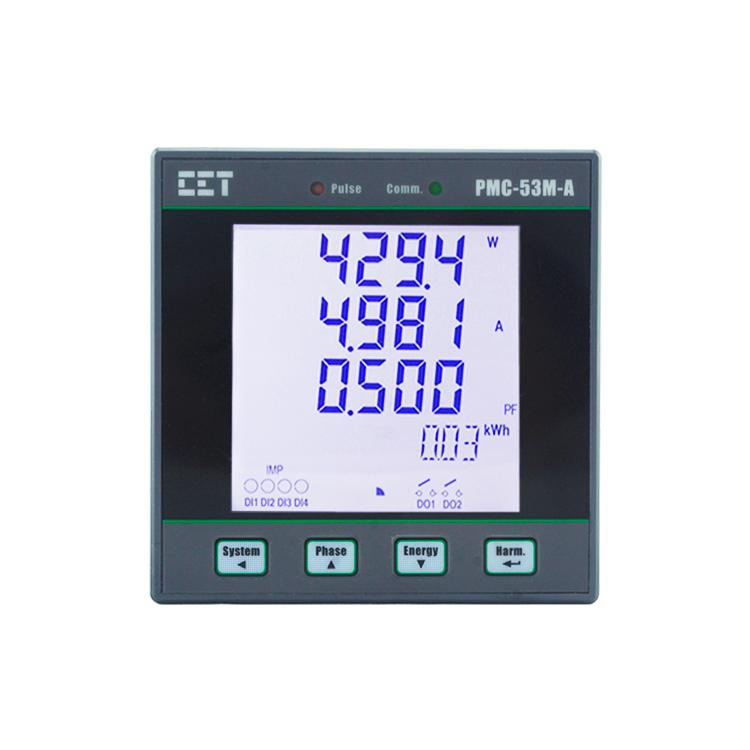

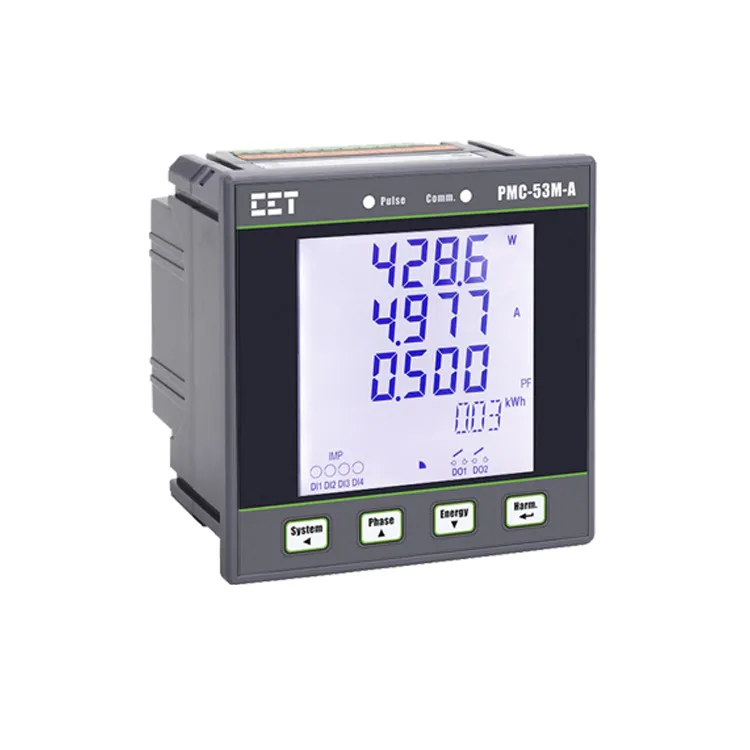

The PMC-53M-A Digital Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x88mm, it is perfectly suited for industrial, commercial and utility applications. The PMC-53M-A features quality construction, multifunction true RMS measurements and a large, backlit, 7-segmant LCD. Compliance with the IEC 62053-22 Class 0.5S Standard, it is a cost effective replacement for analog instrumentation that is capable of displaying 3-phase measurements at once. It optionally provides four Digital Inputs for status monitoring, two Relay Outputs for control and alarm applications. The standard RS-485 port and Modbus RTU protocol support makes the PMC-53M-A a smart metering component of an intelligent, multifunction monitoring solution for any Energy Management System.

Typical Application

• Industrial, Commercial and Utility Substation Metering

• Building, Factory and Process Automation

• Sub-metering and Cost Allocation

• Energy Management and Power Quality Monitoring

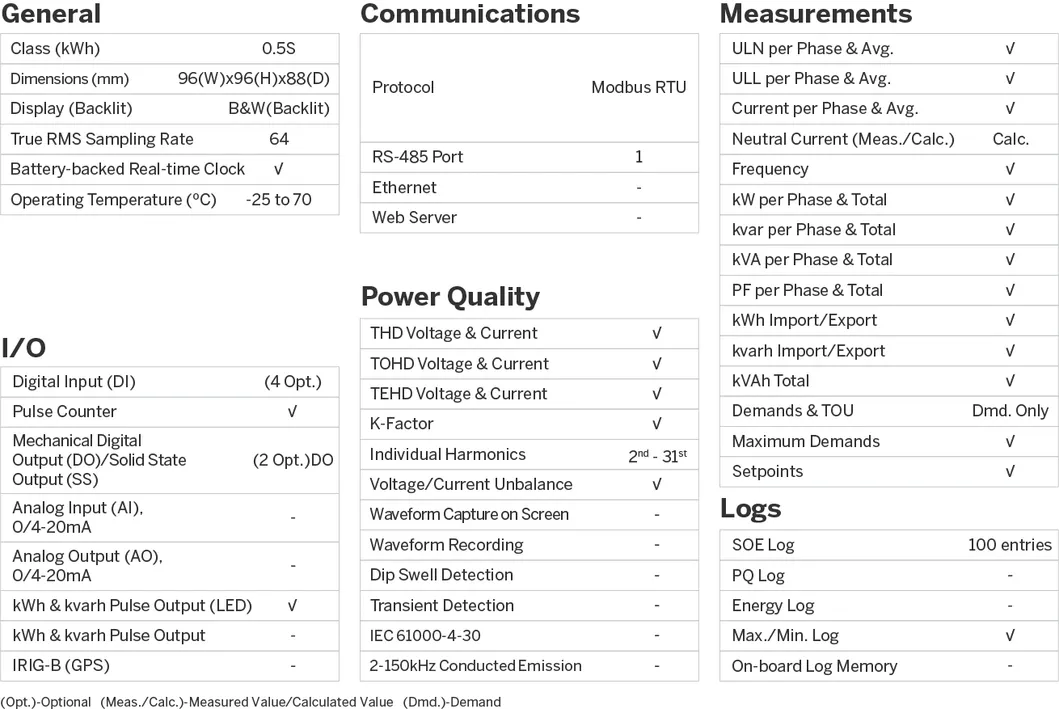

Feature Summary

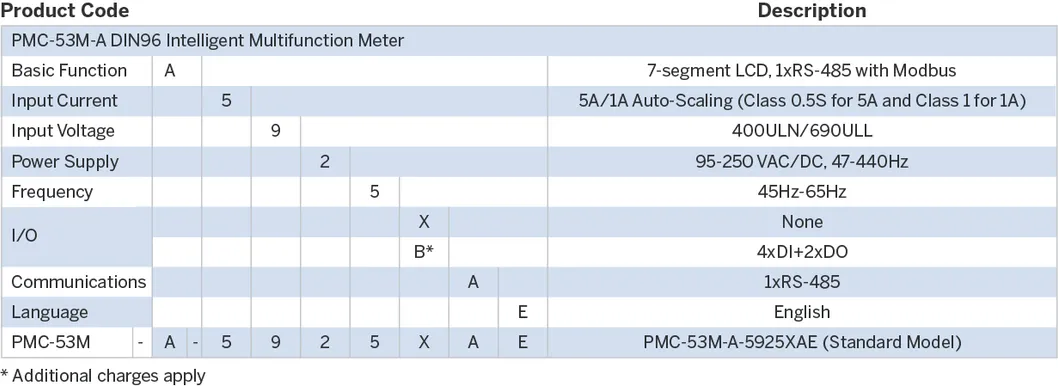

Ordering Information

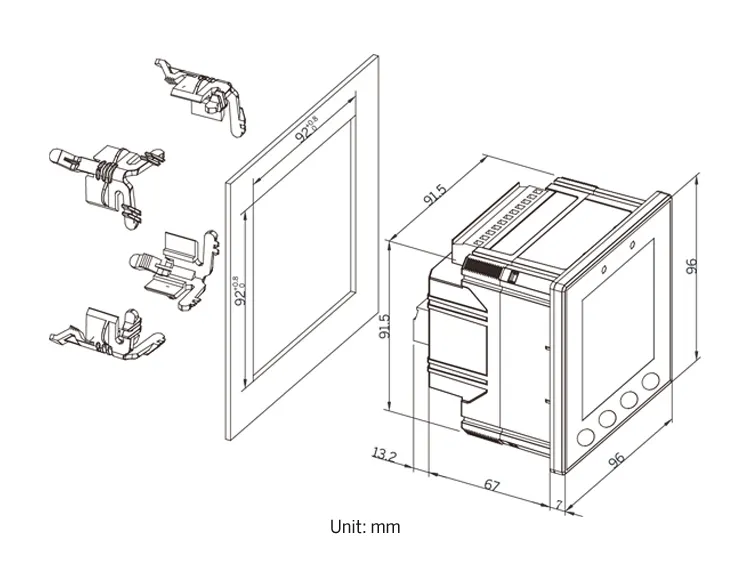

Dimensions

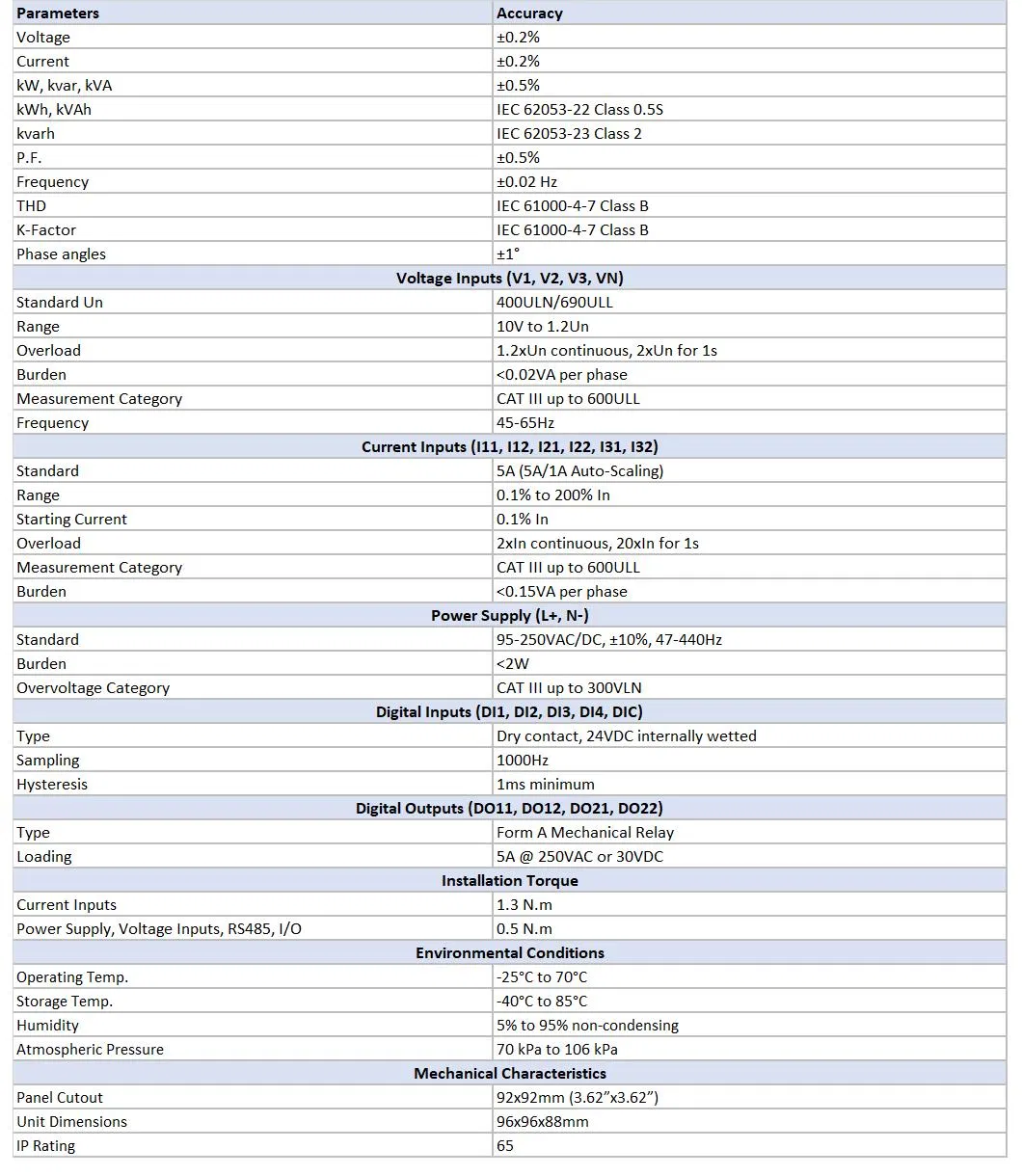

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m² R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.

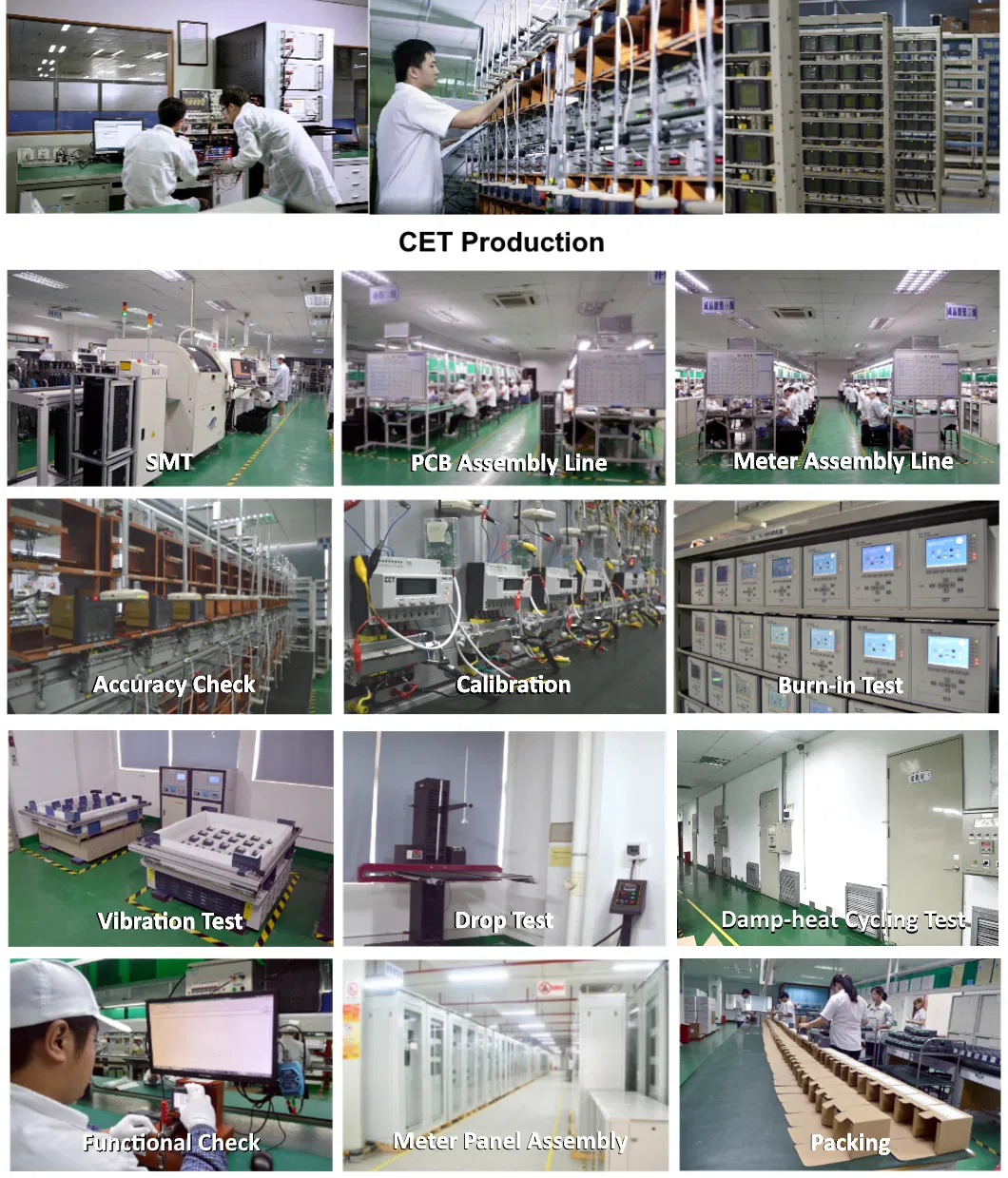

CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
