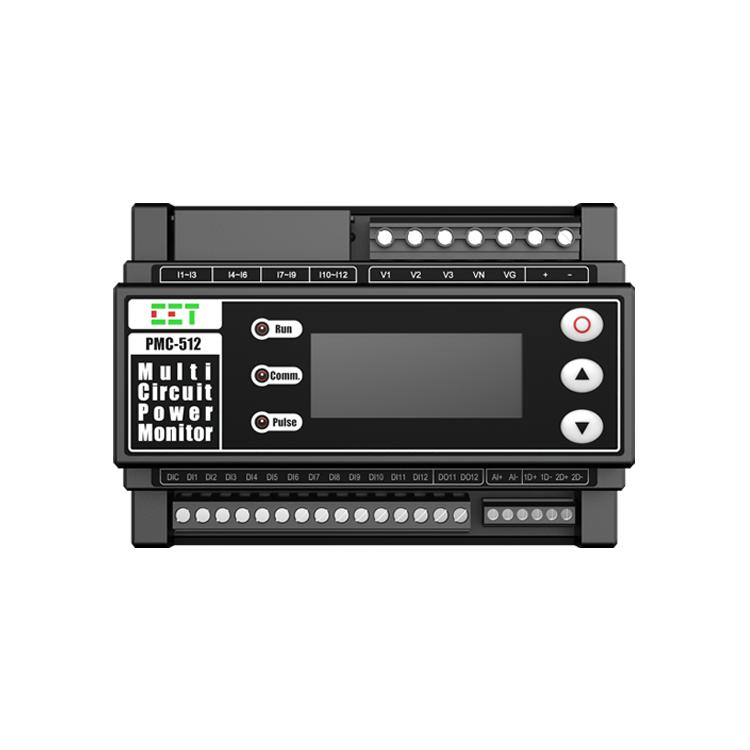

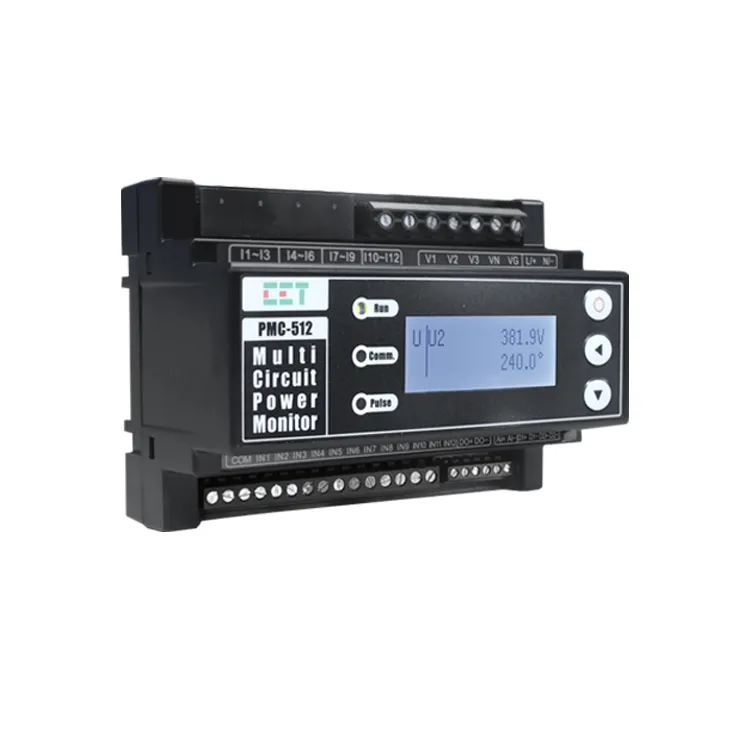

PMC-512-A 35mm DIN Rail Class 1 AC Multi-Circuit 12 Channels Power Monitor RS-485 and Analog Input

Product Description

CET PMC-512-A 35mm DIN Rail Class 1 AC Multi-Circuit 12 Channels Power Monitor with Standard I/O and 2x RS-485 Ports

PMC-512-A 35mm DIN Rail Class 1 AC Multi-Circuit 12 Channels Power Monitor RS-485 and Analog Input

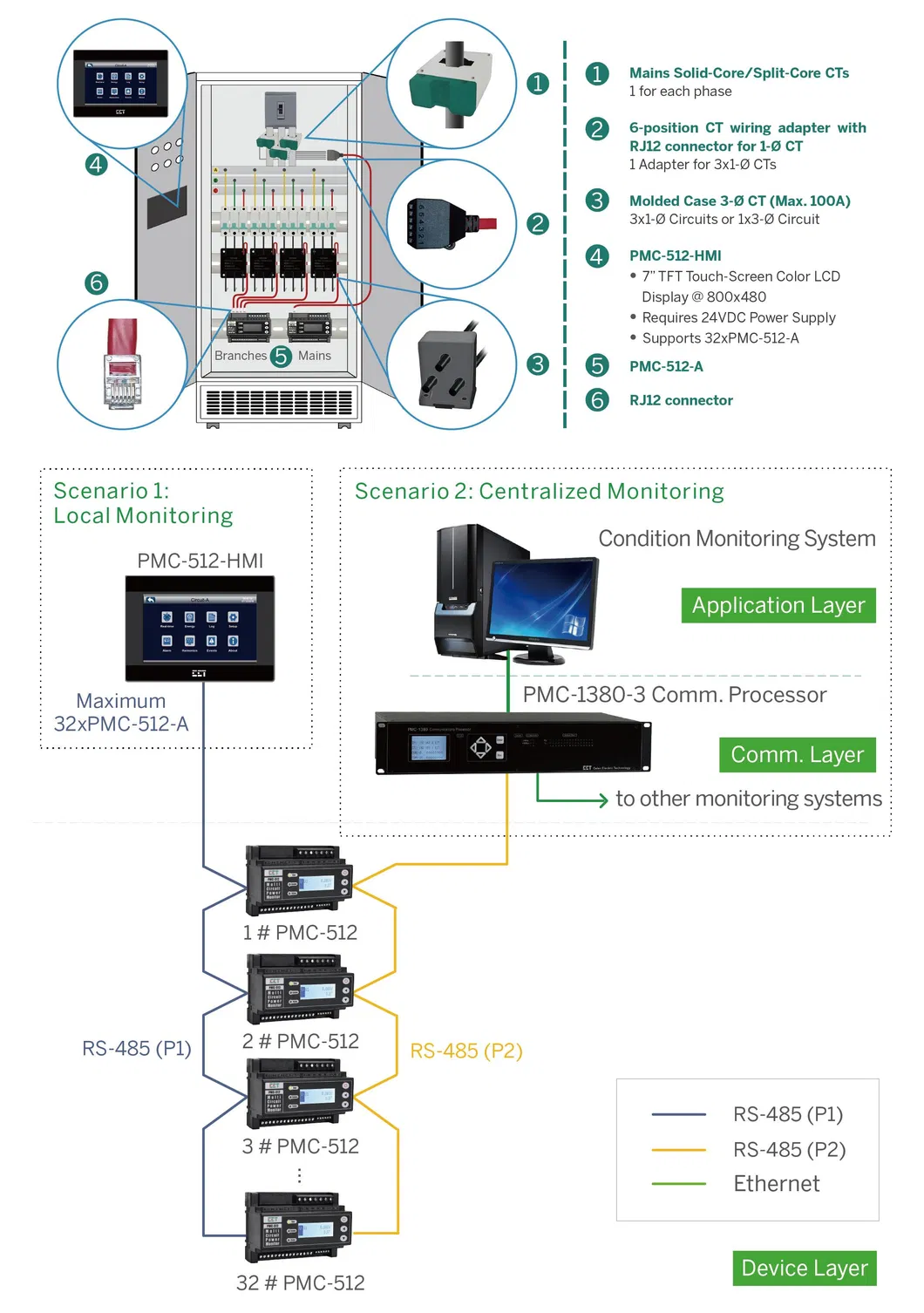

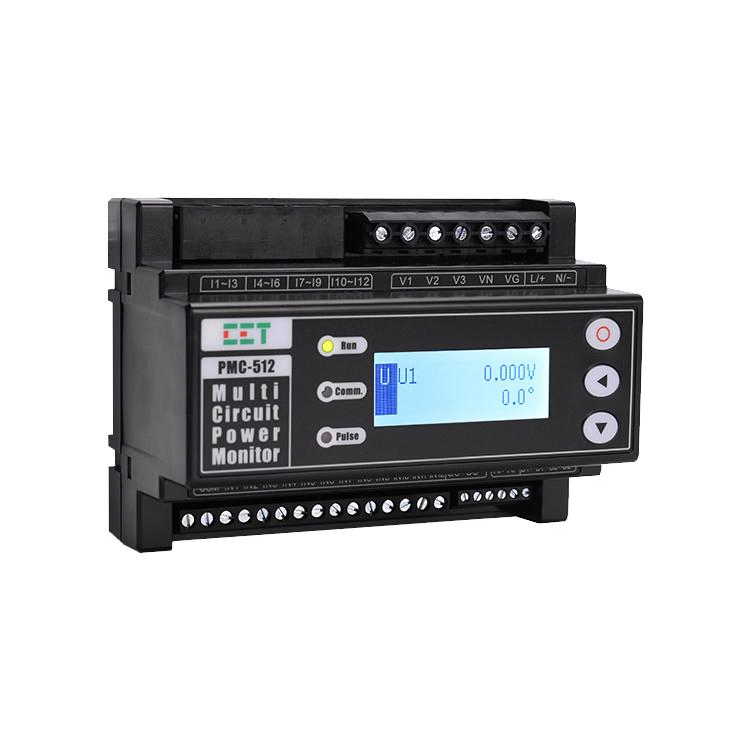

PMC-512-A is CET's latest offer for the economical multi-circuit monitoring of Data Centers, Telecom Base Stations, Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-A is perfectly suited for high-density metering applications. The PMC-512-A features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-A comes standard with a built-in LCD display, 12xDIs for status monitoring, 1xDO for control or alarming and 1xAI for temperature measurement or other analogue input applications. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU, the PMC-512-A can easily be deployed in a stand-alone system with an optional 7" touch-screen HMI that supports up to 32 devices over a RS-485 network, or simultaneously with a centralized monitoring and control system for an AC power distribution network.

Typical Application

• Data Center and Telecom Base Station PDUs

• Industrial and Commercial Distribution Boards

• Other High-Density, Multi-Circuit Monitoring Applications

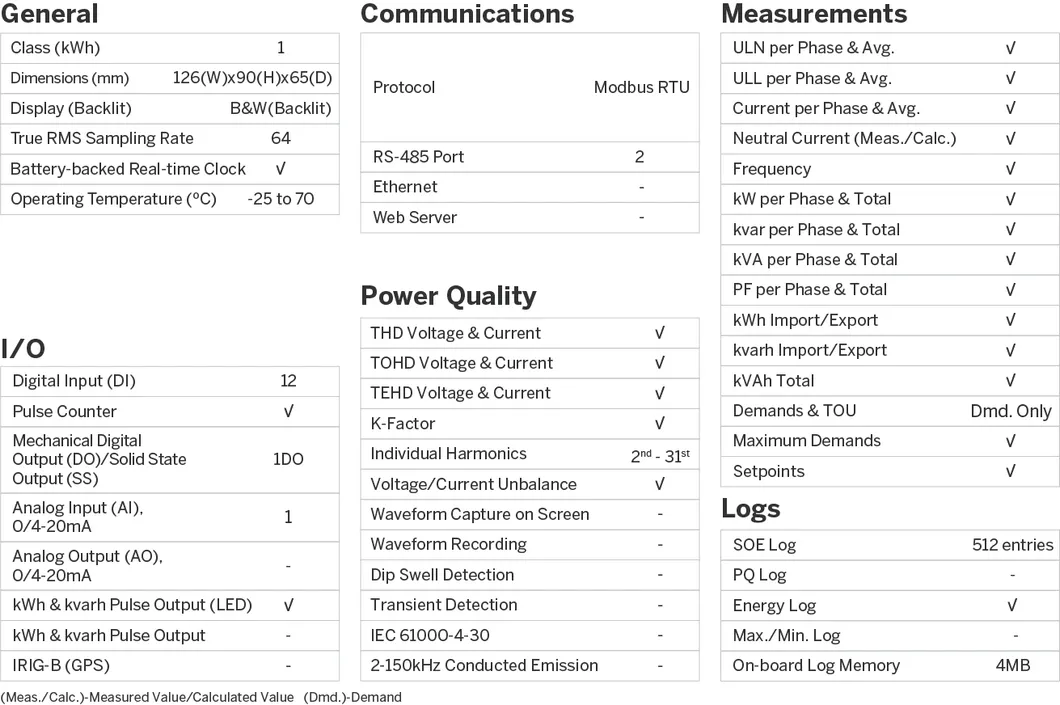

Feature Summary

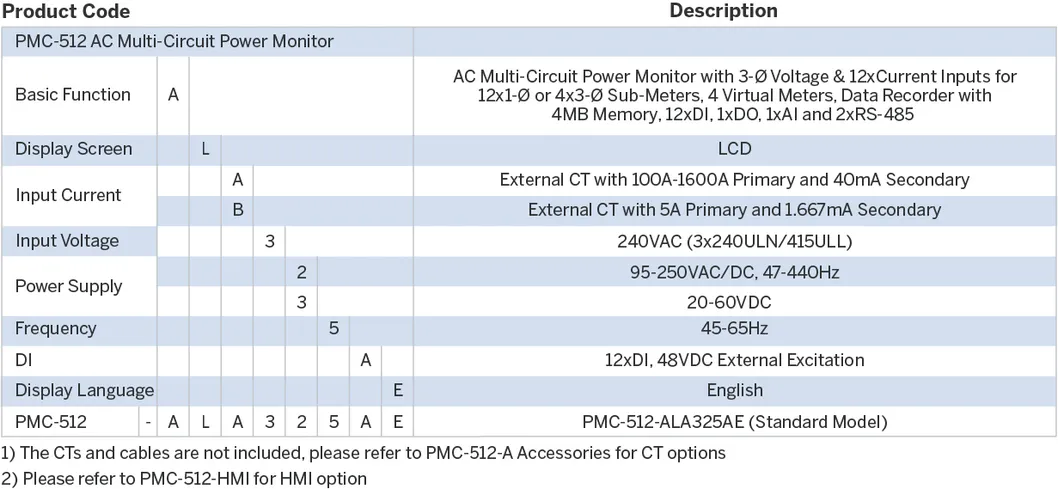

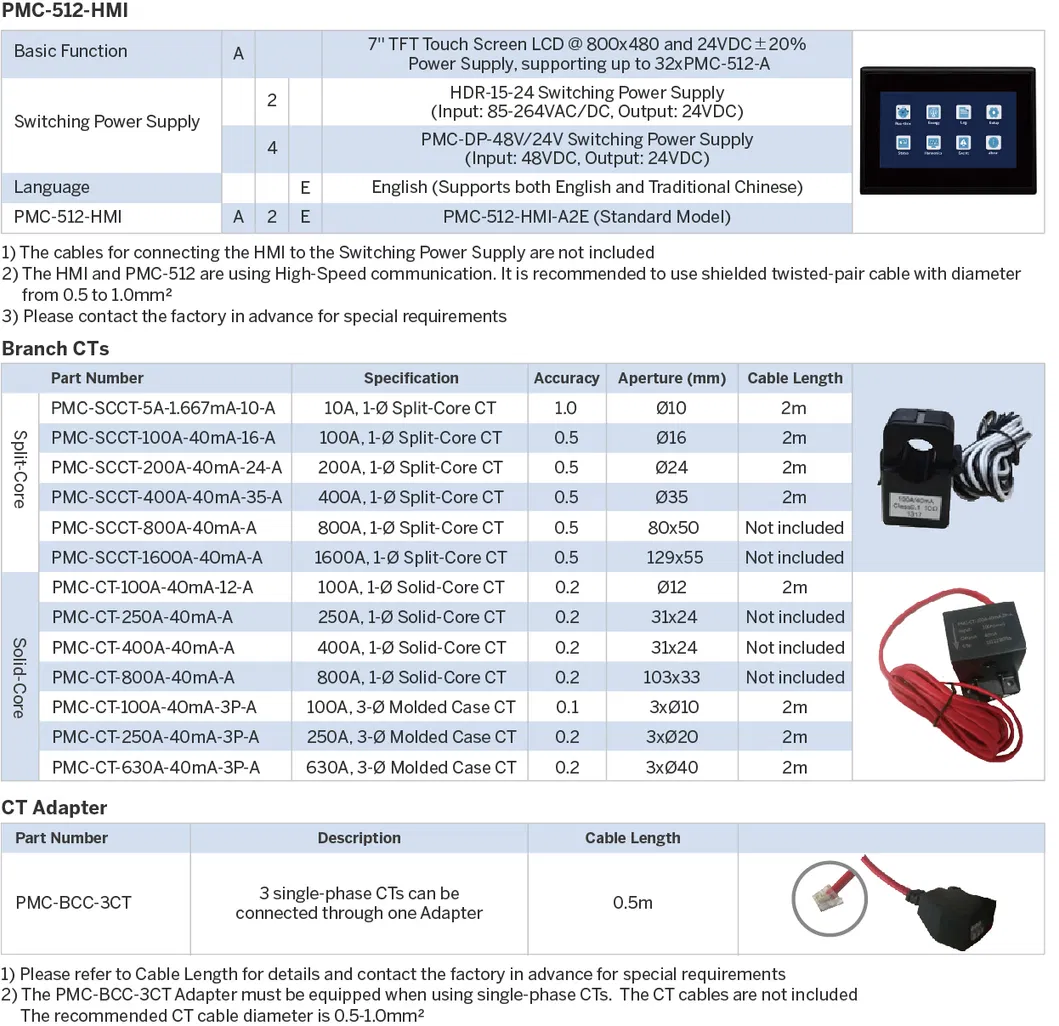

Ordering Information

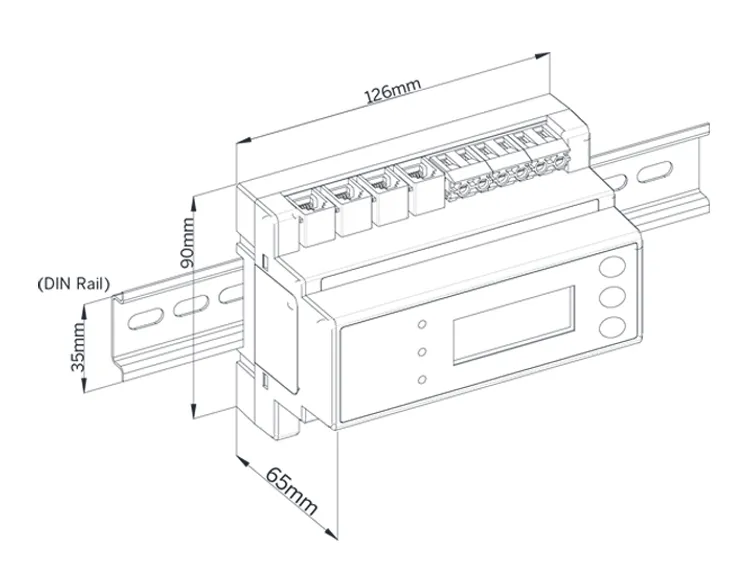

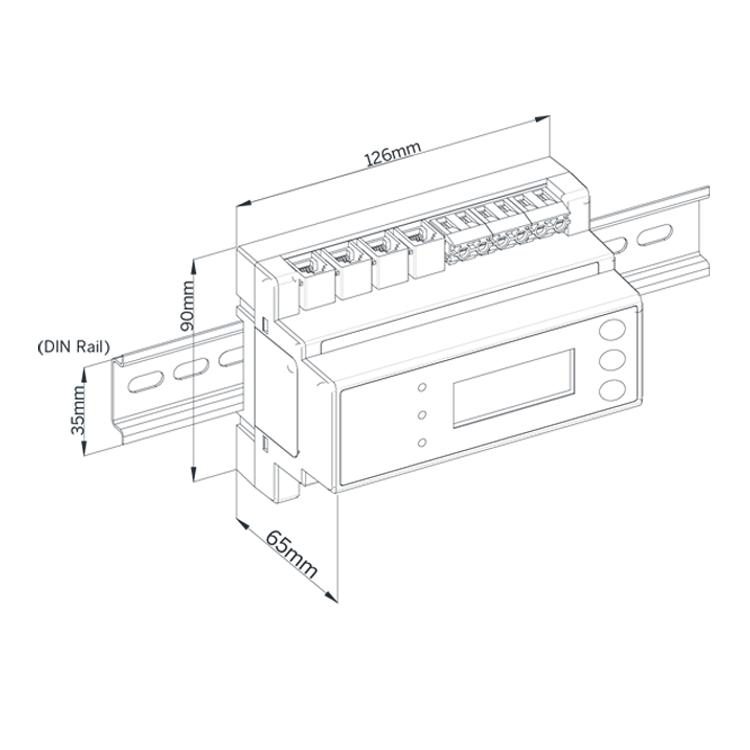

Dimensions

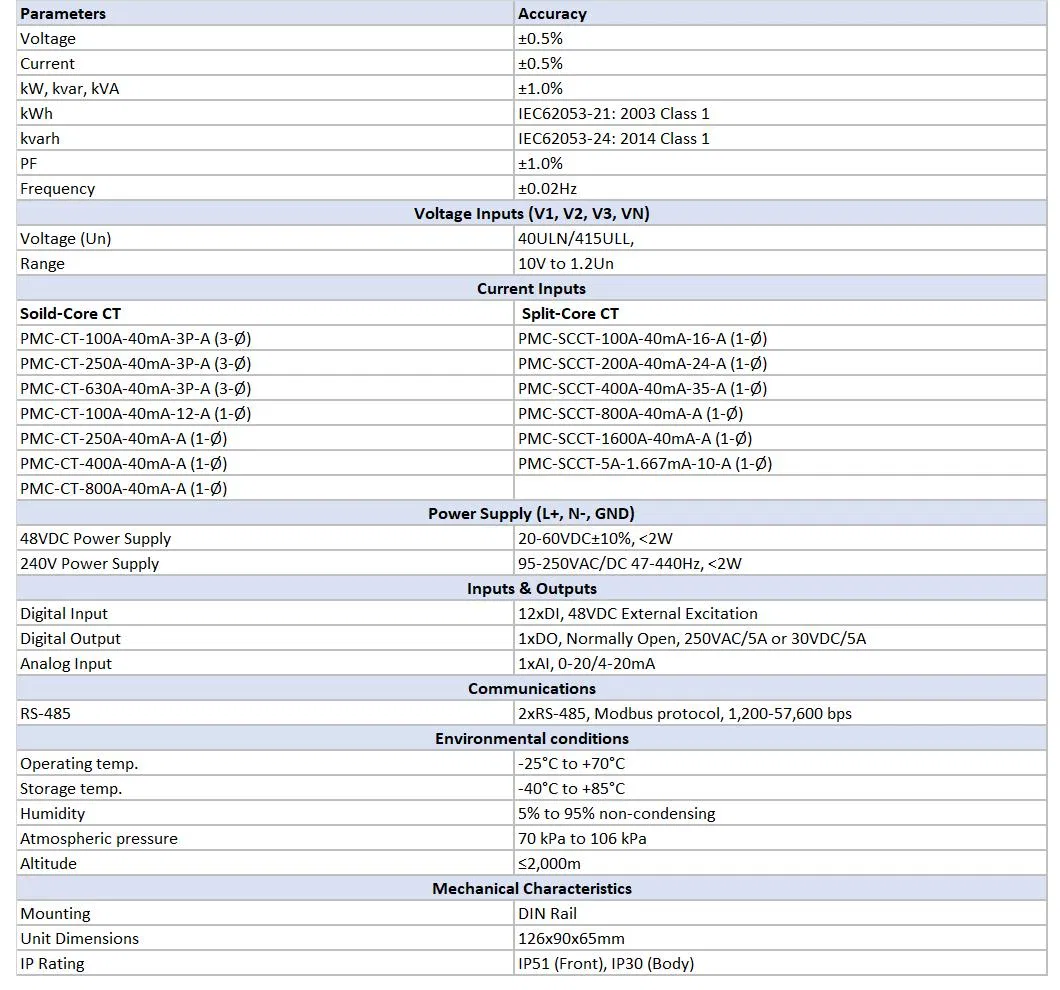

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m² R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.

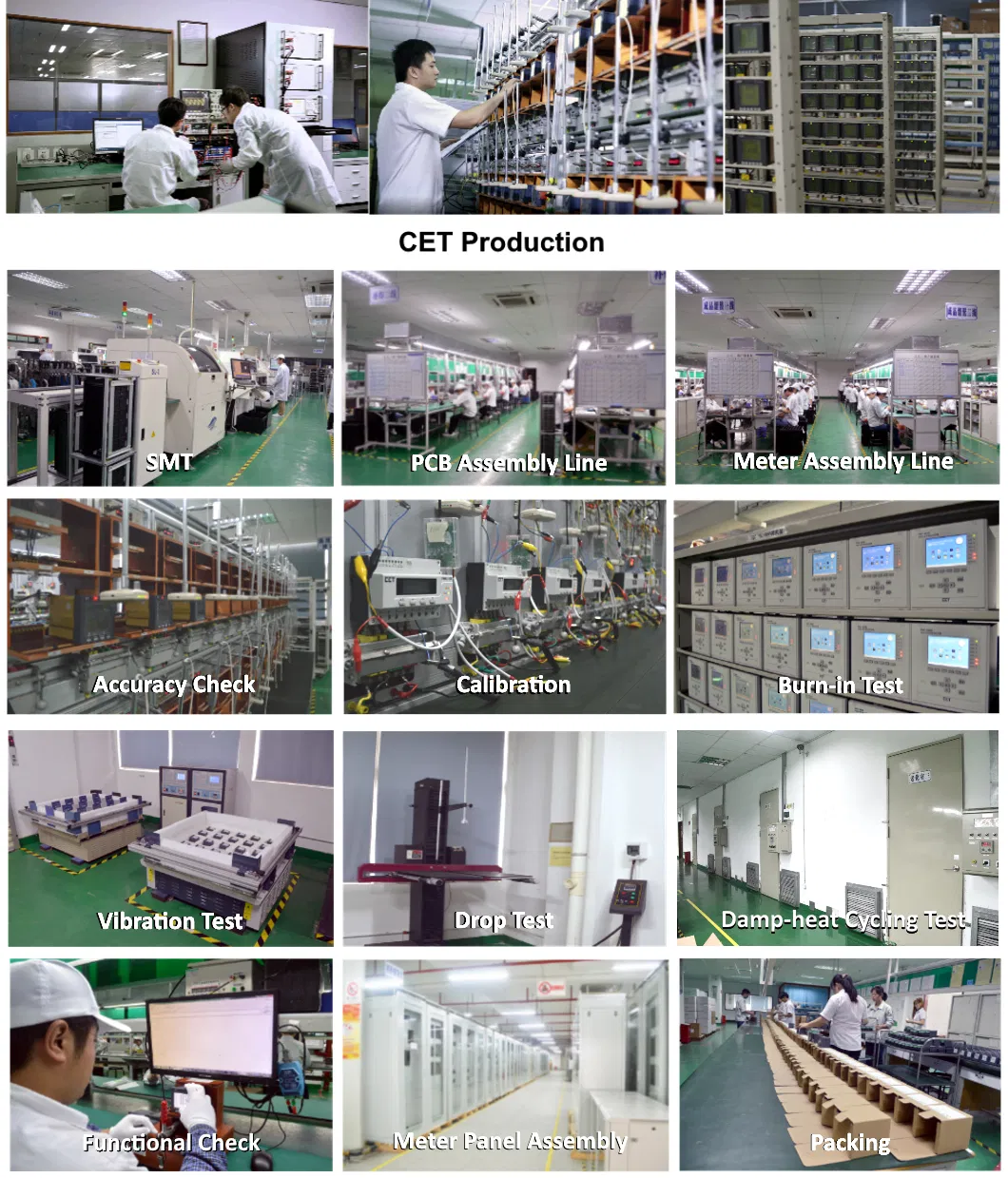

CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
