Product Description

CET PMC-220 35mm DIN Rail Single Phase LCD RS-485 Smart Multifunction Electricity Meter with Modbus RTU

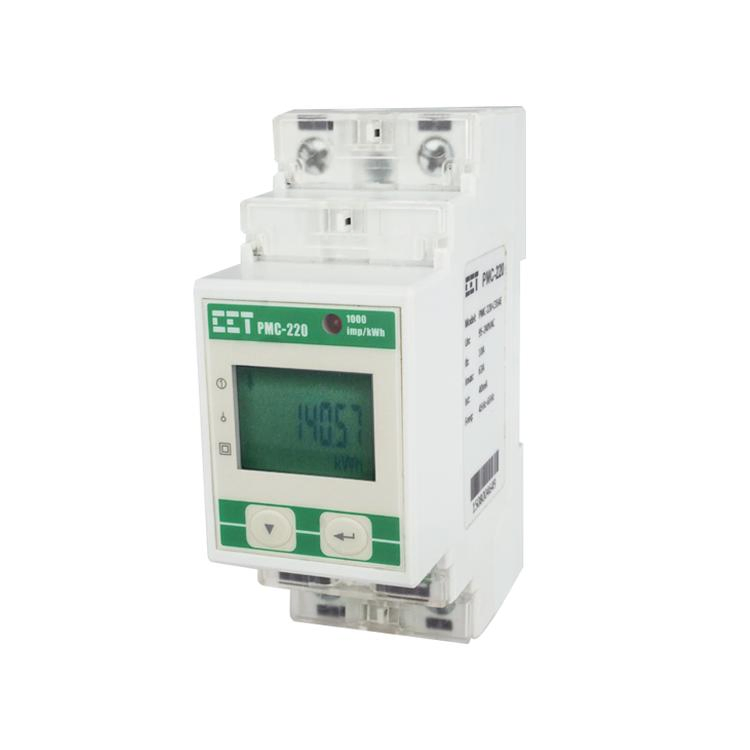

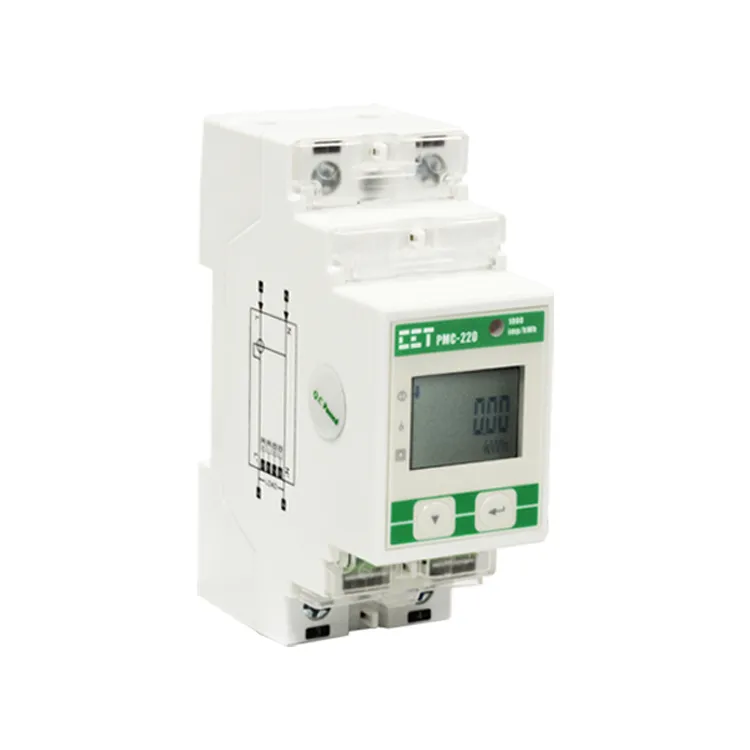

PMC-220 35mm DIN Rail Self-Powered Single-Phase Multifunction Meter for Electric Energy Measurement with RS-485 Modbus RTU

The PMC-220 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN rail mount, compact construction, 63A direct current input and high accuracy measurements. The PMC-220 complies with the IEC 62053-21 Class 1 kWh Accuracy Standard. With the standard RS485 port and Modbus RTU protocol, the PMC-220 becomes a vital component of an intelligent, multifunction monitoring solution for any Energy Management Systems.

Typical Application

• DIN rail mount energy metering

• Industrial, Commercial and Utility Substation Metering

• Building, Factory and Process Automation

• Sub-metering and Cost Allocation

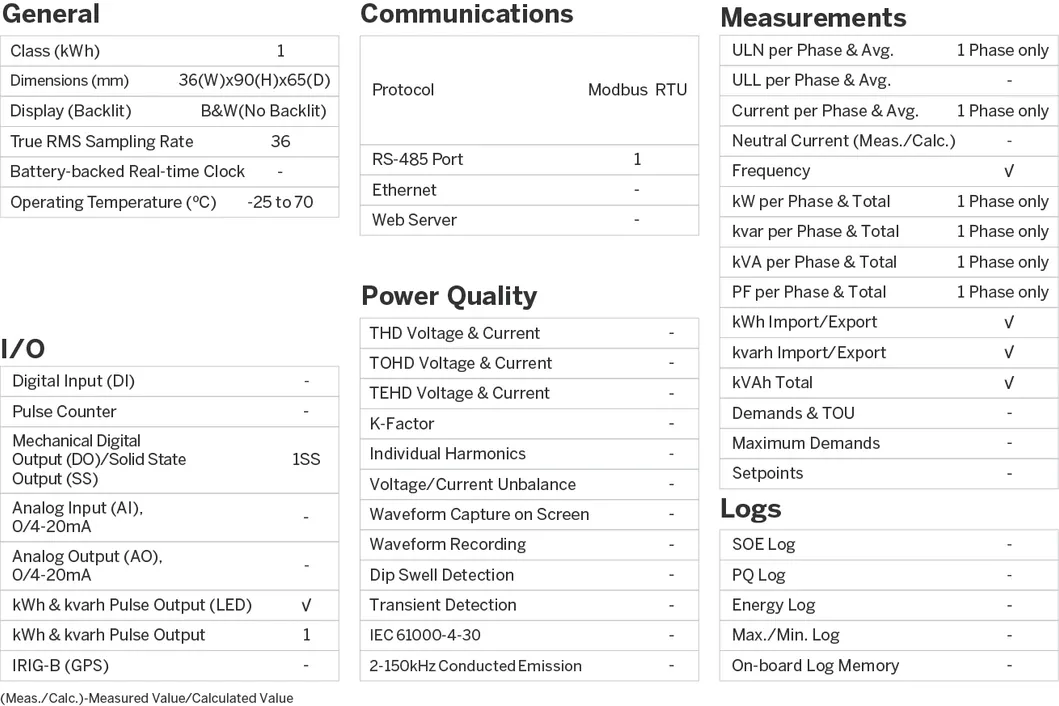

Feature Summary

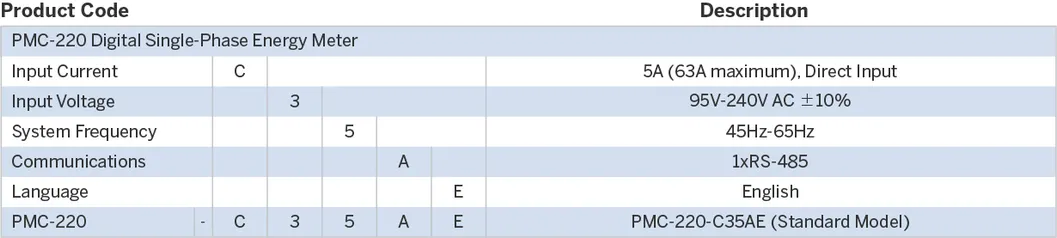

Ordering Information

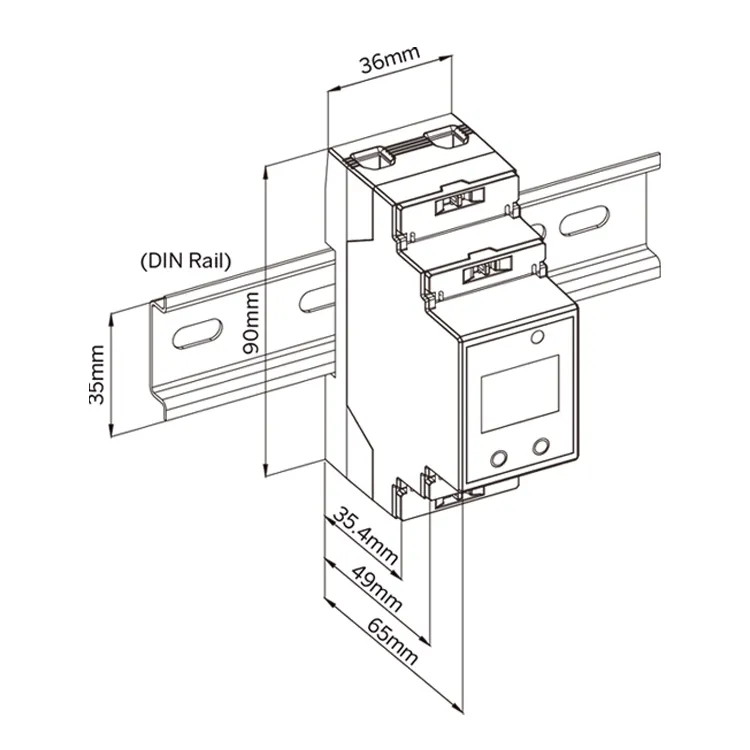

Dimensions

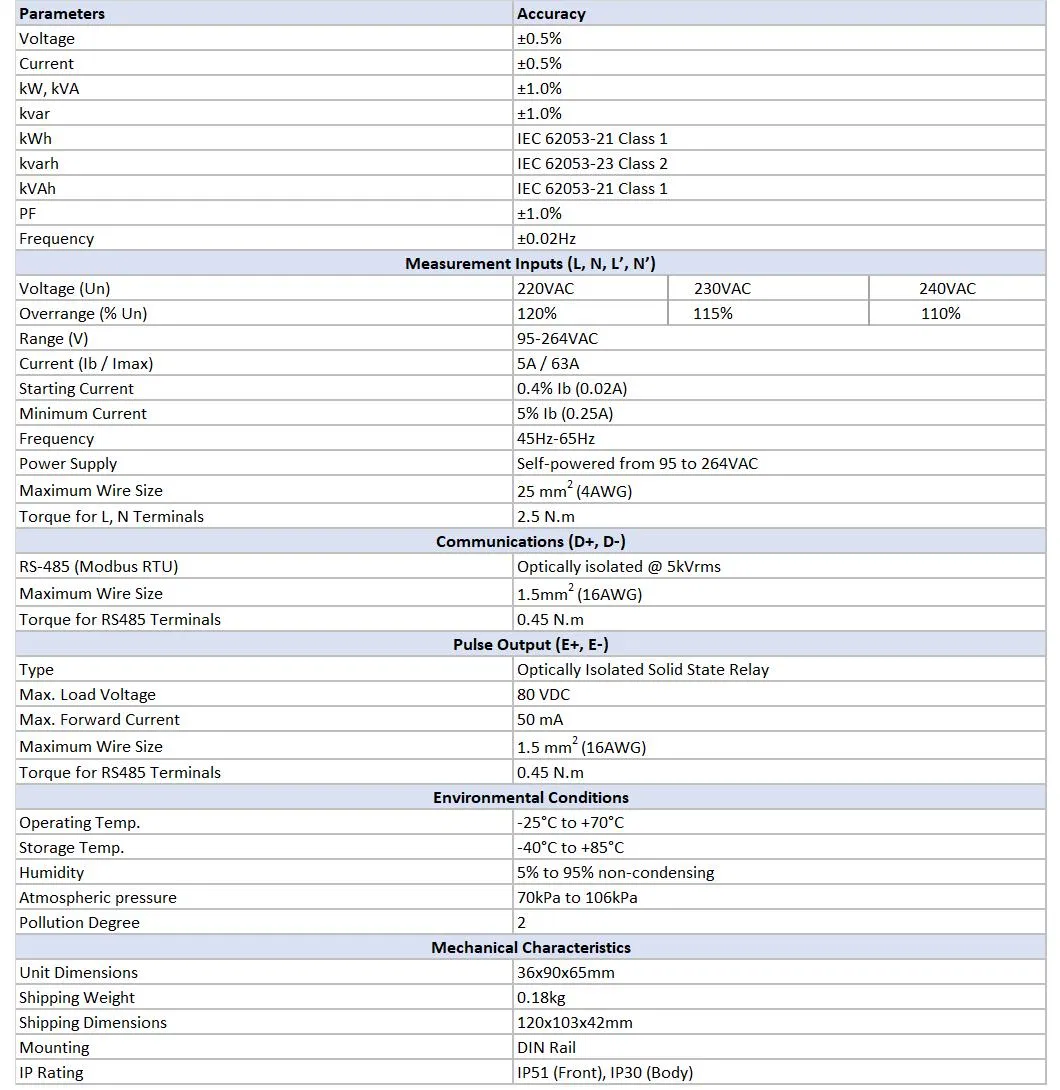

Technical Specifications

Company Profile

CET has approximately 300 R&D Engineers and a 8000 m² R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.

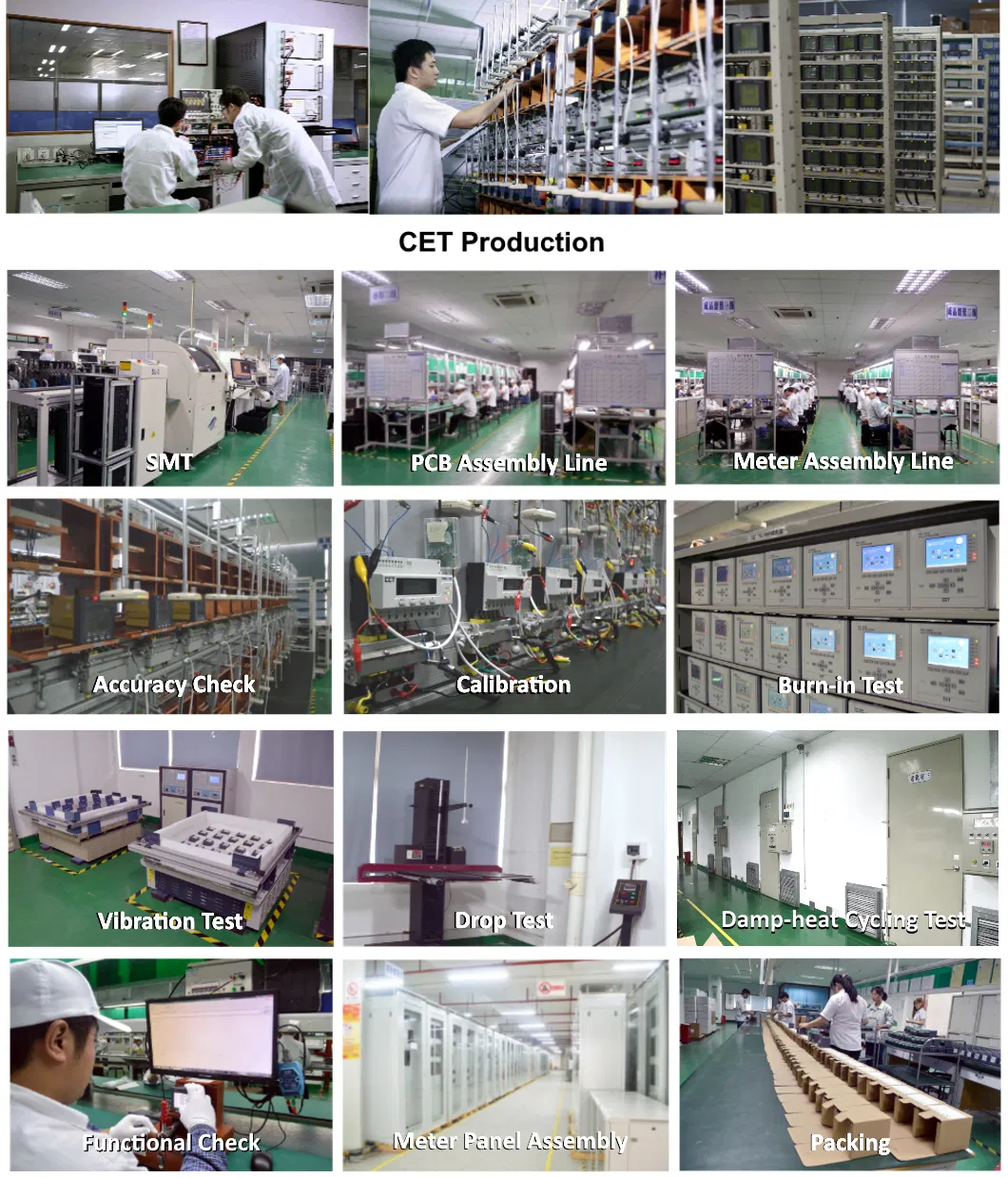

CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
