Ital Intelligent Pm500e RS485 Power Meter

Product Description

1.96x96mm
2. Digital intellignet panel meter
3. Green back light
4. RS485, modbus RTU

Multi-function Power Analyzer PM500E, with its RS485 communication module ME2-485, measures all the electric quantities of single- and three- phase electric network:

Phase current, average phase current
Phase(line) voltage, average phase(line) voltage
Frequency
Phase active power, total active power
Phase reactive power, total reactive power
Phase real power, total real power
Phase power factor, average power factor
Phase current, total active power, total reactive power, total real power maximum at certain duration
Phase current, voltage harmonics at certain duration
Import/export active(reactive) energy

Ital Intelligent Pm500e RS485 Power Meter

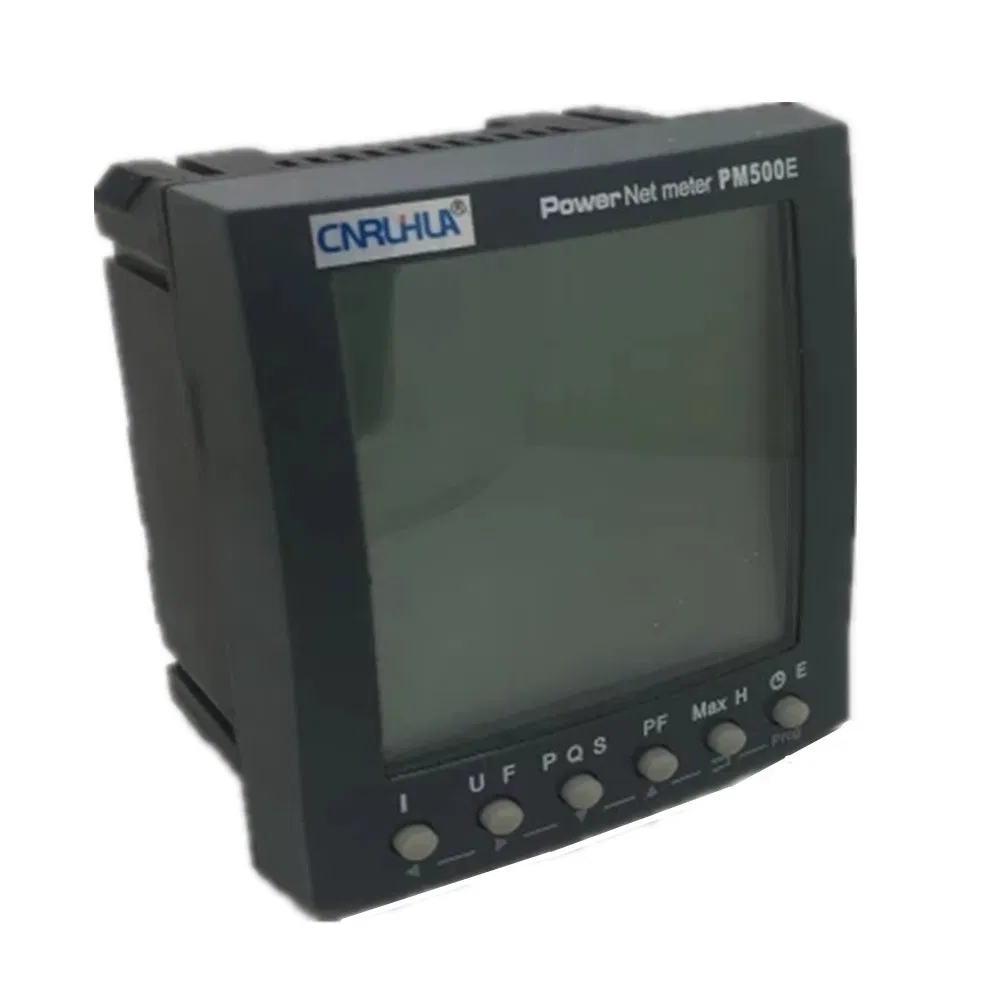

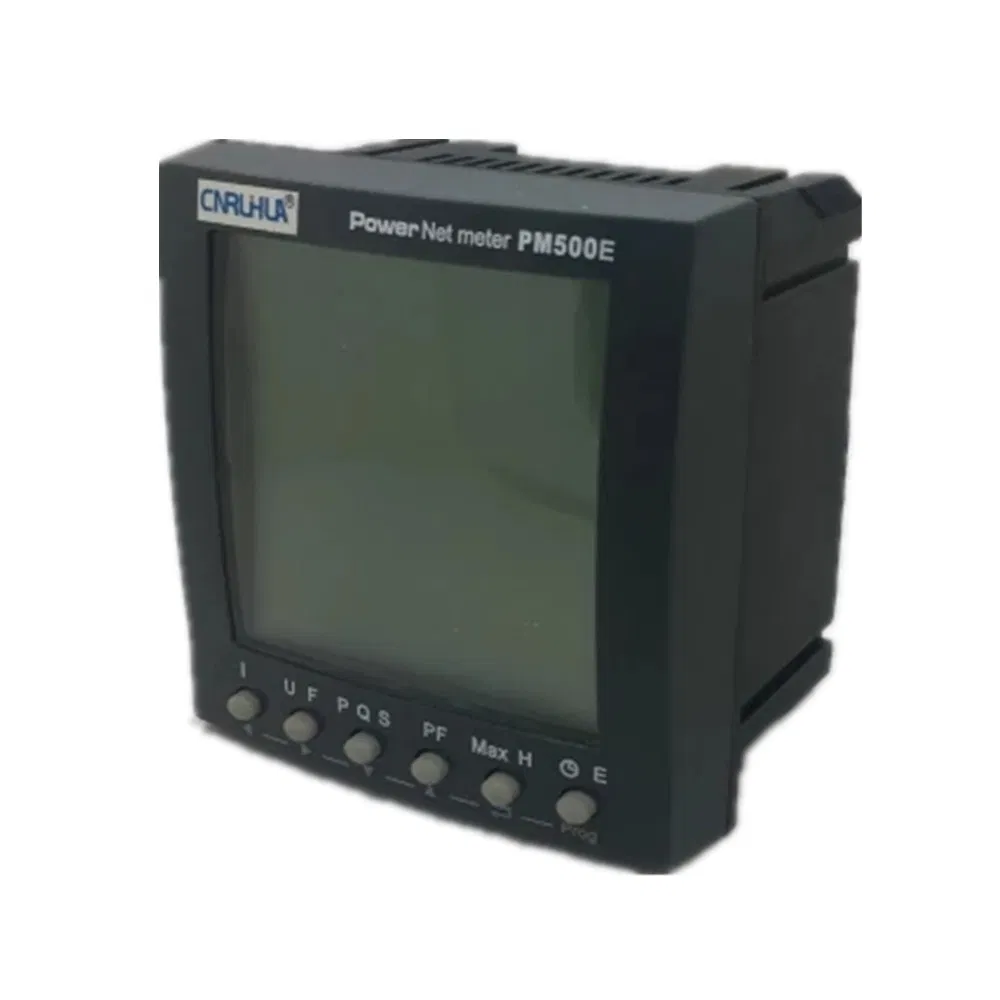

Power meter - PM500E series

96x96mm Power Logic power-monitoring unit for HV and LV networks
The Power Logic PM500E Power Meter provides all measurement capabilities required to monitor an electrical installation in single 96x96 mm unit. Ideal for metering and monitoring applications, it can be integrated in a Power Logic system to increase the reliability of your installation while cutting costs.

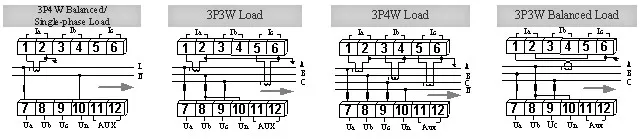

Connection: Three phase 4 wires or 3 phase 3 wires, 2 phase 3 wires.
Single phase 2 wires

Voltage:
Range: 30-600V wire voltage
20-400V phase voltage
PT change: 1-10000
45-65Hz
Ital Intelligent Pm500e RS485 Power Meter

Communication:
RS485, modbus RTU, address 1-247, Baud rate: 1200-19200
Modular and upgradeable
Compact (96x96x62mm)

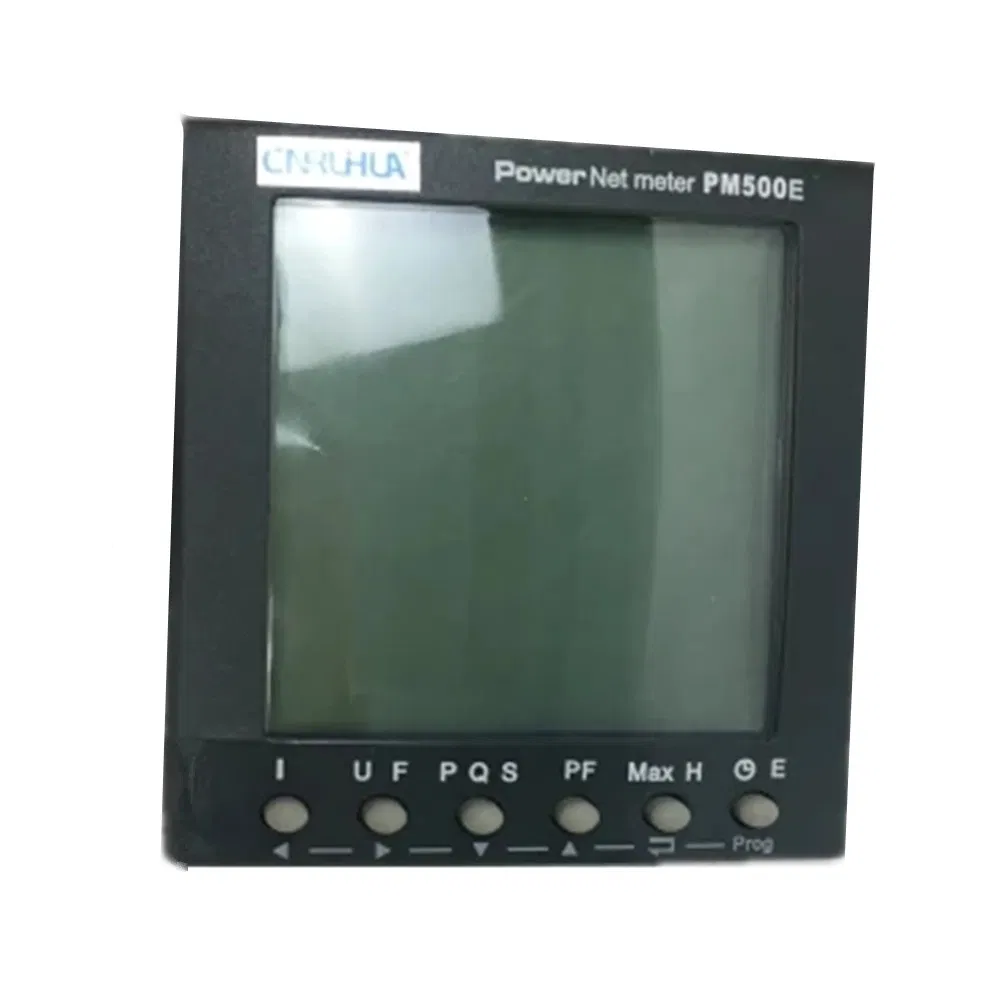

Large back lit display with integrated bar charts
Power and current demand plus THD included in basic version E

Energy Class 1 definded by IEC 61036 (4 quadrants)

Panel instrumentation.
Sub-billing / cost allocation.
Remote monitoring of an electrical installation.
Monitoring of harmonics(THD).
Make sure you don't miss anything.
The Power Logic Power Meter PM500E help you:
Reduce energy costs
Improve power quality
Improve continuity of service for optimal management of electrical installation and a better productivity.

About Us:
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China. Our company is committed to design, production and sale of a serises of ozone generator, air pump, PLC, rotary encoder, HMI, sensor, switches, lights, meter and much more other electrical components. And exports various type of electrical appliances to different countries.

FAQ:

1. Q: Are you a factory or trading company?
A: We are a factory.

2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.

3. Q: How can I get some samples?
A: We are honored to offer you samples.

4. Q: How does your factory do regarding quality control?
A: Quality is priority. CNRUIHUA people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gotten through CE, RoHs standard.

2000 Pairs Sells per Month
5 pairs MOQ
48-72 hours delivery after received money

External:	96 mm×96 mm×61mm
Dimension for the installing hold	92 mm×92 mm
Module	22 mm×49 mm×65mm
Display	LCD
Phase/wire connection	Single-phase network;3P4W;3P3W; 1P3W(balanced & unbalanced loads)
Net Weight:	360g
Communication Interface
