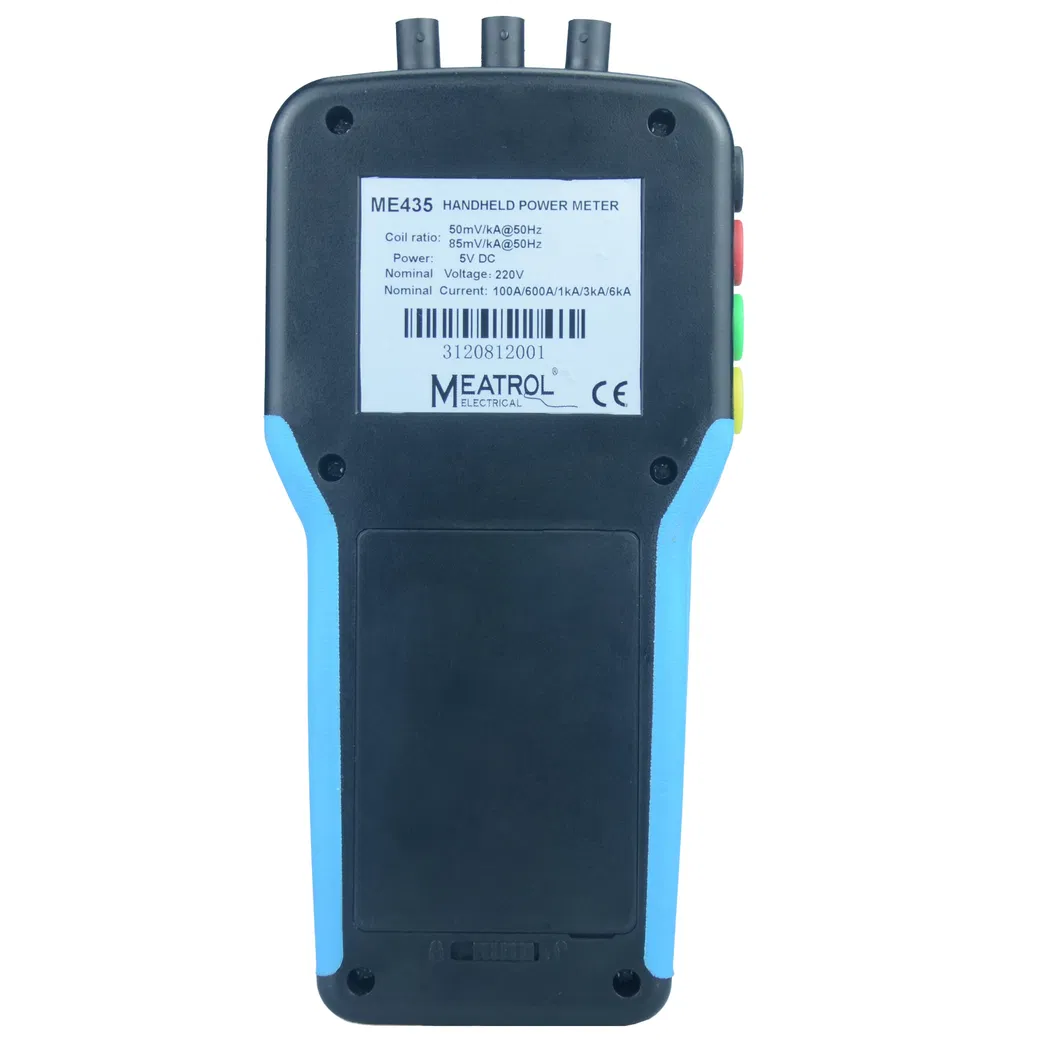

Digital 7.62*7.62 LCD Handheld Energy Power Meter AC Data Recorder
Product DescriptionME435 Poly-phase Handheld Power MeterThe power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more. Connectivity advantagesModelME435Support Ex......
Send Inquiry
Product Description
| Product Description |
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.
| Connectivity advantages | |
| Model | ME435 |

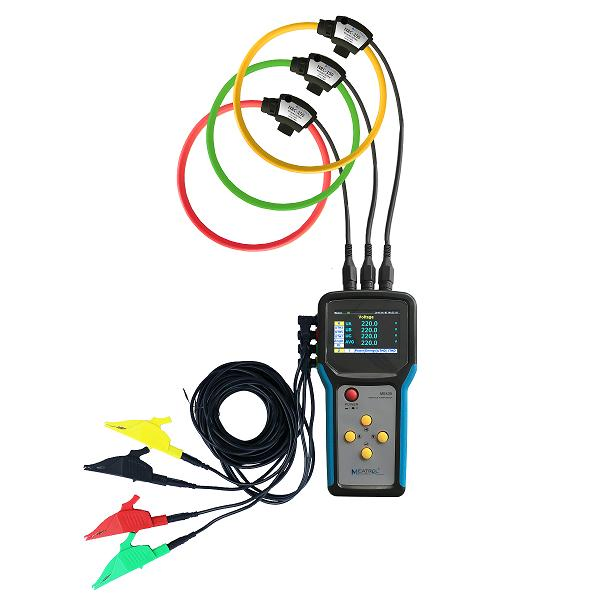

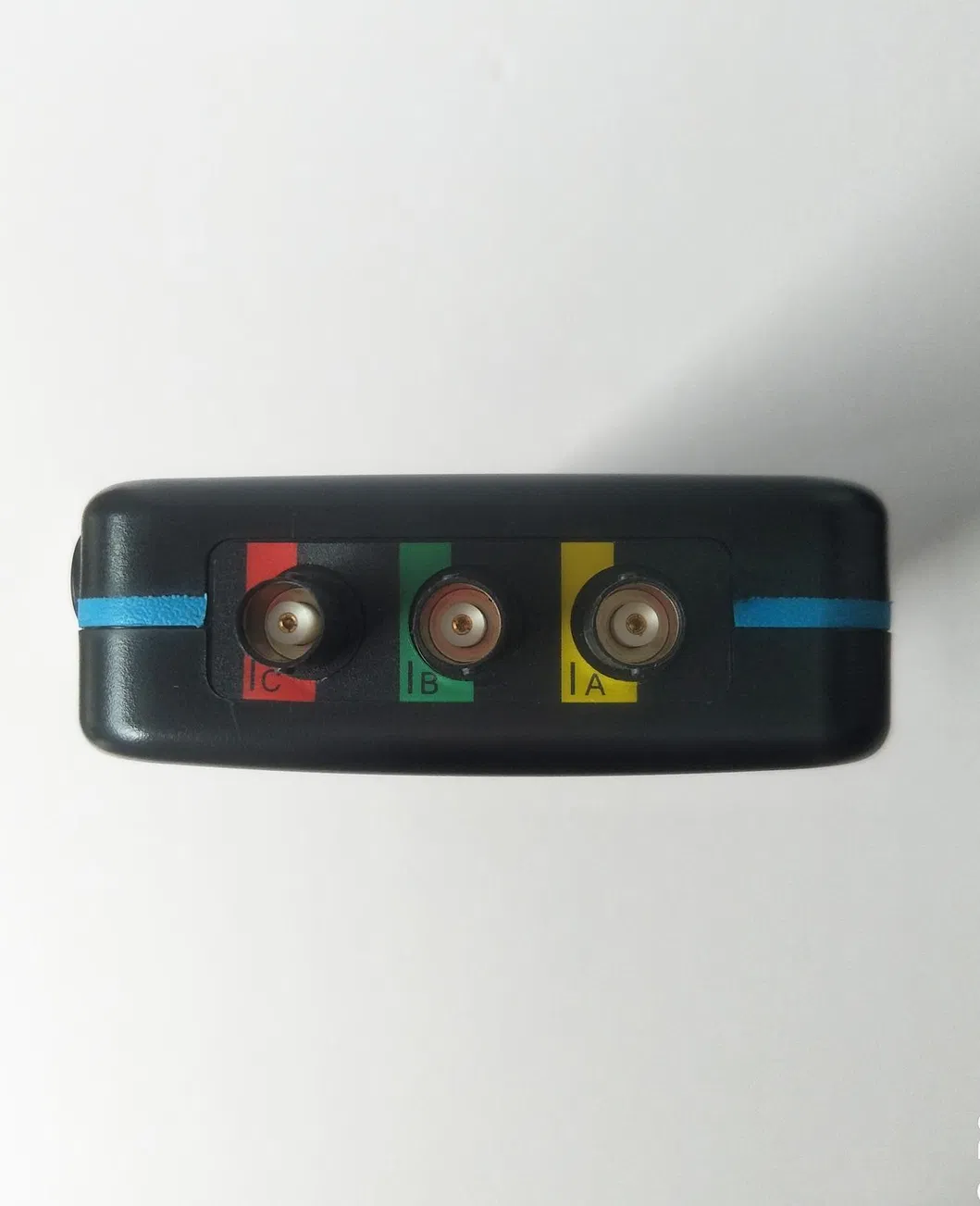

| Support Extra sensor | 3pcs BNC terminal 333mV CT 3pcs BNC terminal 320mV current clamp 3pcs BNC terminal Rogowski coil |
| Storage | 1GB SD card(Max 4GB) (save intervals 1mins default) |
| Power | 4*AA battery(wroking time: approx 7 hours) Or USB Type-C |
Feature
| Specification | |||
| Model | ME435 | ||
| Product component type | Handhold poly-phase power meter | ||
| Poles description | 3PH4W 3PH3W 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N) | ||
| Device application | Power analysis Energy meter | ||
| Input type | External Rogowski coil External CT(333mV only) | ||

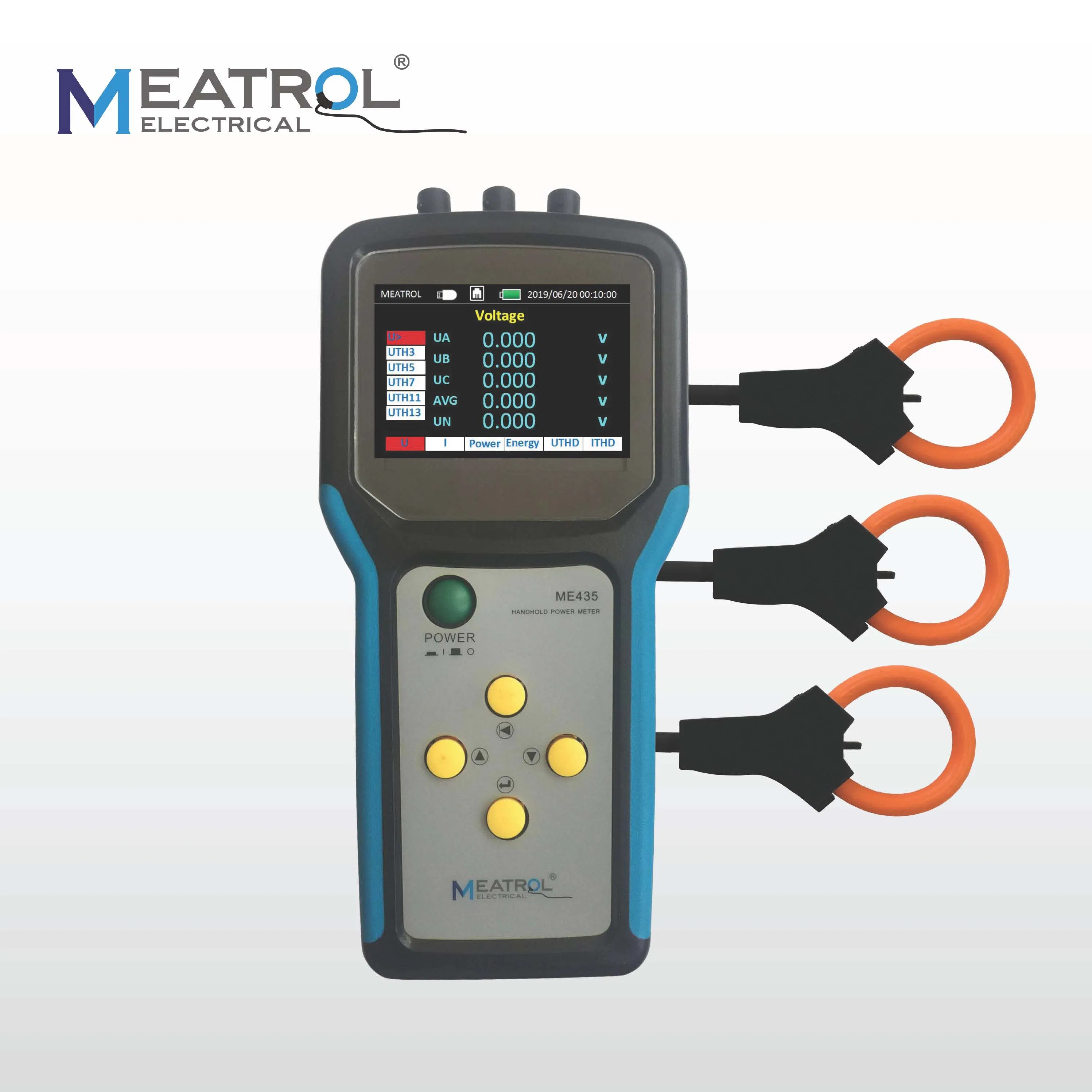

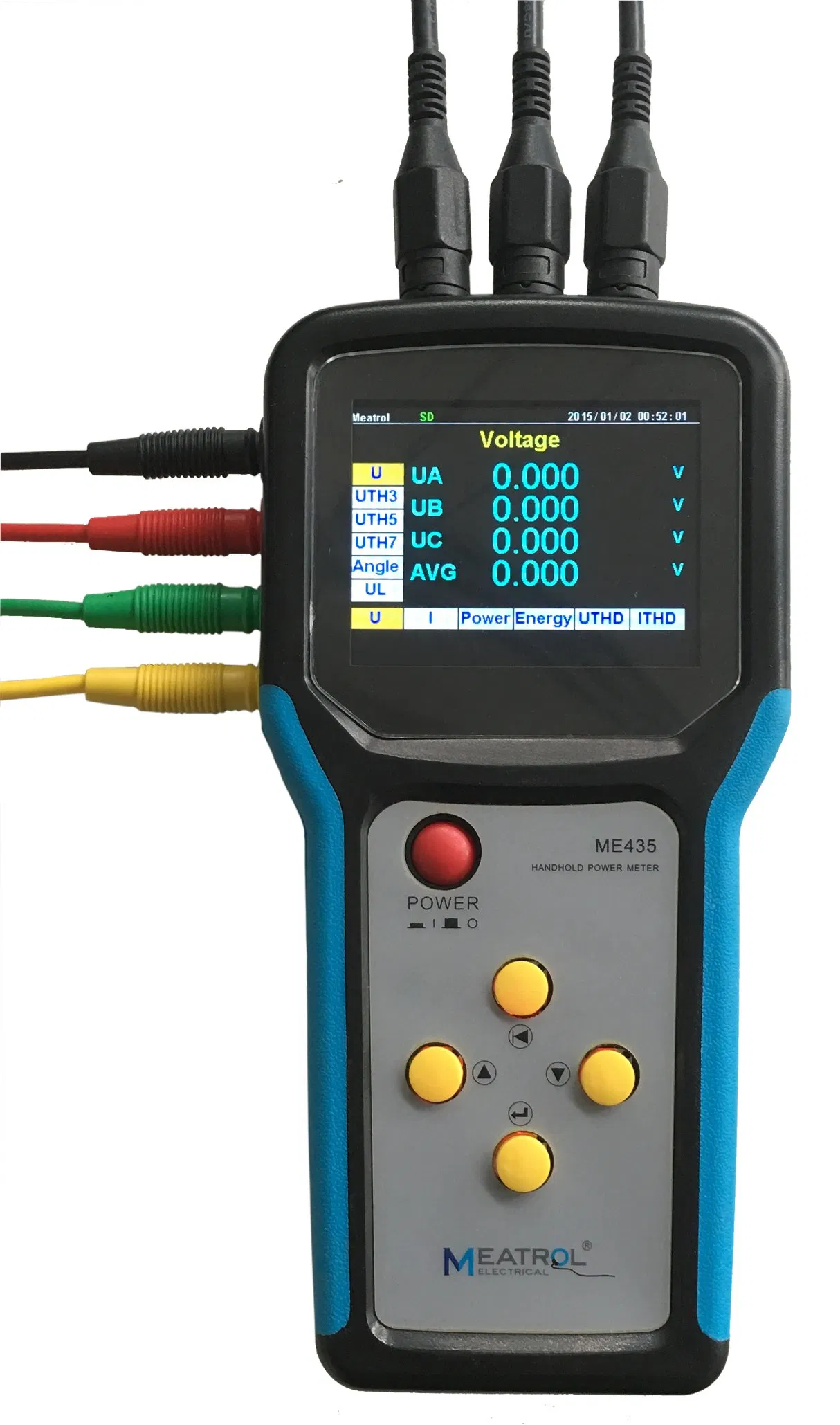

| Display | 3.5 inch TFT screen display | ||
| Sampling rate | 8k samples per second | ||
| Harmonic | 52th Max | ||
| Mechanical characteristics | |||
| Weight | 350g | ||
| Dimension | L*W*D:21.5*10*3.5CM | ||
Power Meter Characteristics
The power meter measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, the power meter calculates power factor, realpower, reactive power, and more.
The following sections list the metering characteristics of the power meter.
Real-Time Measuring
The following table lists the metering characteristics of the power meter for the real-time
measurement:
| Characteristics | Description |
| Current | Per phase, neutral, and average of 3 phases |
| Voltage | L-L, L-N, and average of 3 phases |
| Frequency | 45...65 Hz |
| Active power | Total and per phase (signed) |
| Reactive power | Total and per phase (signed) |
| Apparent power | Total and per phase(signed) |
| Power factor (True) | Total and per phase 0.000 to 1 (signed) |
| Angle | Voltage angle,Current angle |
| Current unbalance | Per phase, most unbalanced of 3 phases |
| Voltage unbalance | most unbalanced of 3 phases |
| Packing& Shipping |
current transformer,1 pc of /pp bag, 100 pcs/cartoon.
Shipping:
Express, Sea, Land, Air , as customers' needs
| After Sale Service |
In order to guarantee safe operation of rogowski coil/ current transducer/Rogowski coil/ current transformer and to be able to make proper use of all features and functions,please read these instructions thoroughly!Safe operation can only be guaranteed ifthe transducer is used for the purpose it has been designed for and within the limits of the technical specifications.Ensure youget up-to-date technical information that can be found in the latest associated datasheet under www.rogowski.cn.
| FAQ |
A:We are the No.1 manufacturer of rogowski coil with meters in China over 12years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q:Do you support customization?
A:Any R&D requirement relate to Rogowski could be realized.
