Acrel Adl400/Adl3000-E/Adl3000-E/CT LCD Three Phase Multi-Function DIN Rail Electric Energy Meter Optional RS485 Modbus RTU/Di Do/Multi Tariff
Product DescriptionADL400/ADL3000-E/ADL3000-E/CT Three Phase Multi-Function Energy MeterGeneralADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity......
Send Inquiry
Product Description
Product Description

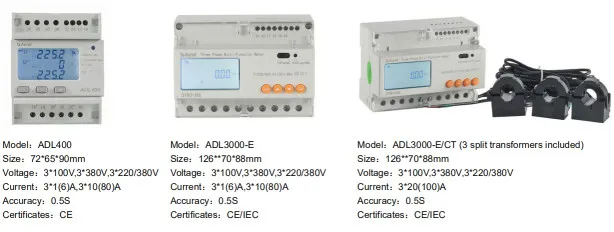

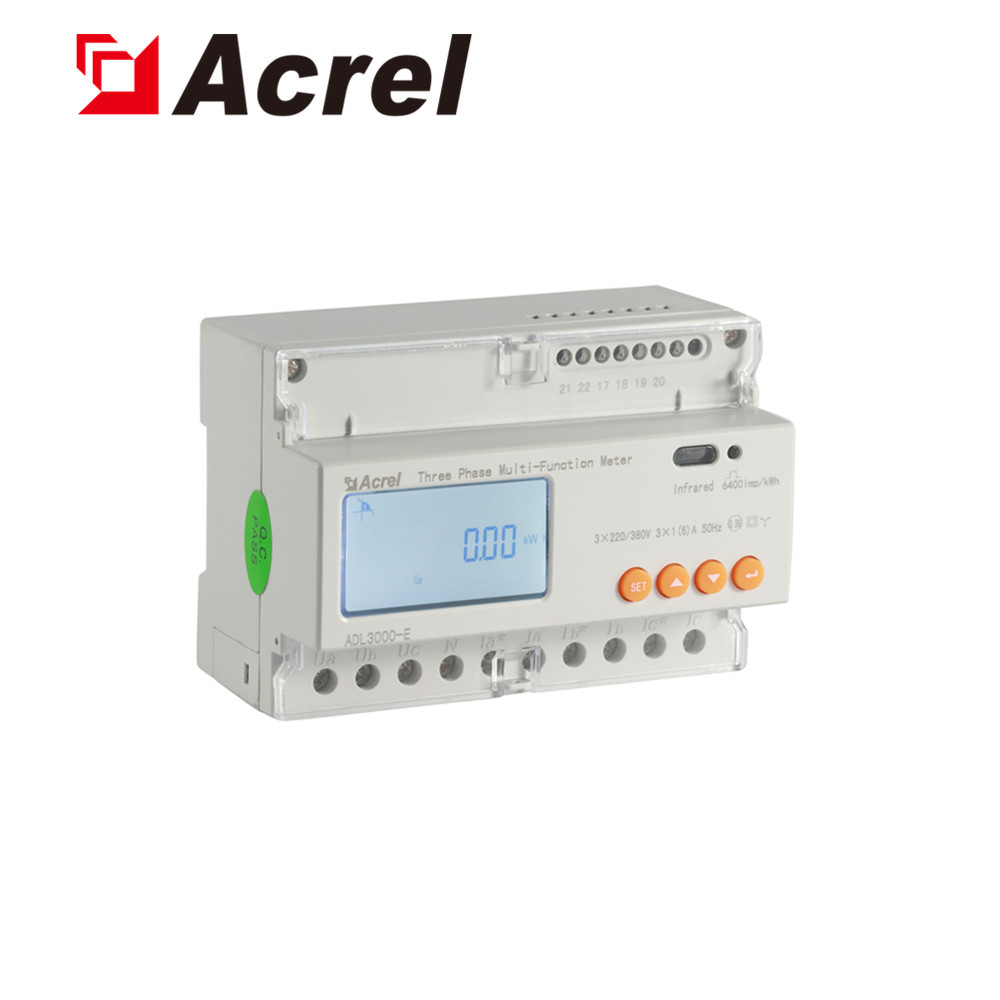

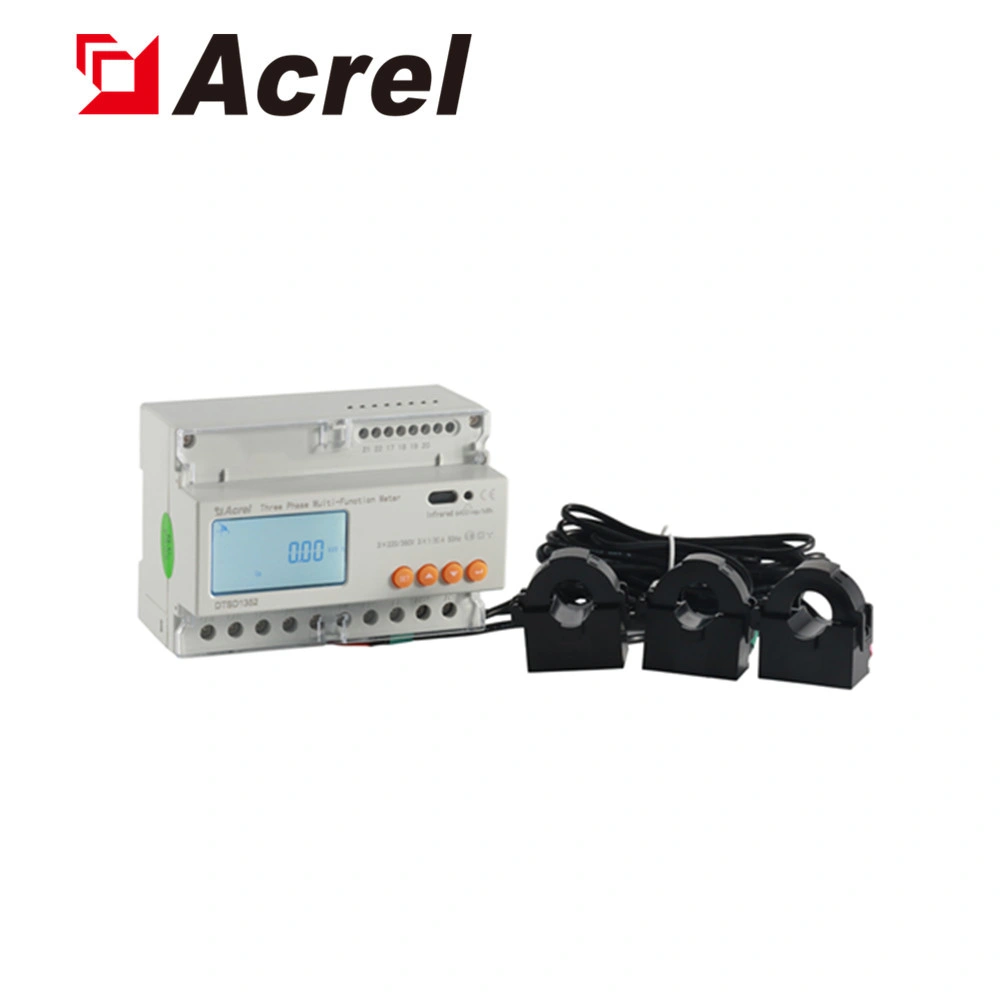

ADL400/ADL3000-E/ADL3000-E/CT Three Phase Multi-Function Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
AC220V
3×1(6)A,3×10(80)A,3×20(100)A
RS485(MODBUS-RTU)
Set parameters
LCD display
kWh Class 0.5
DIN 35 mm
Technical Parameters

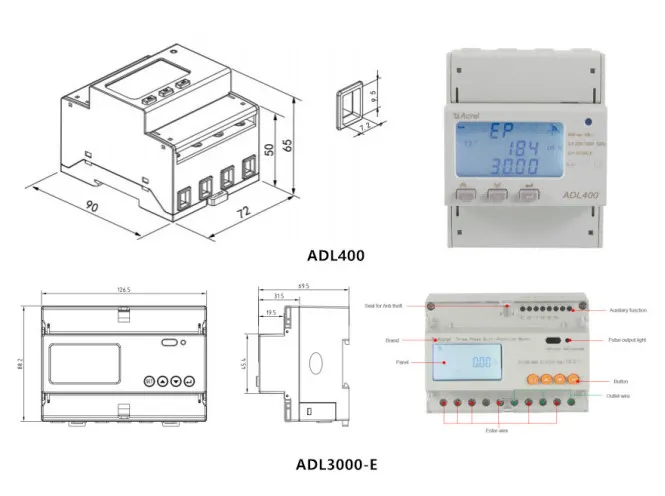

Dimension(Unit:mm)
Wiring

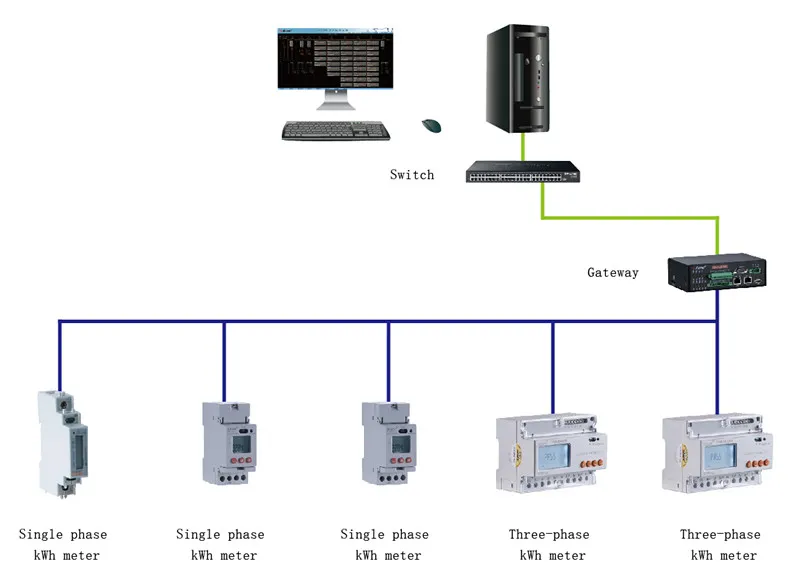

Typical connection

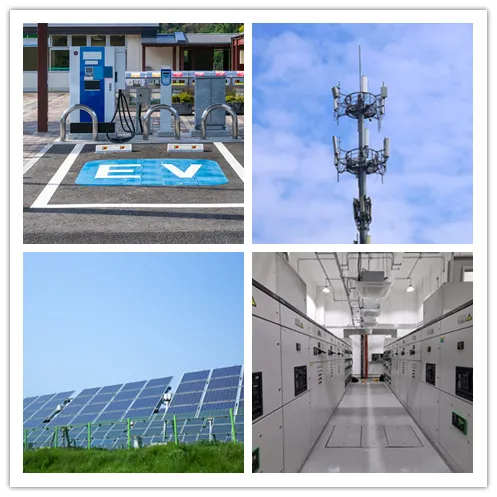

Application
ADL400/ADL3000-E/ADL3000-E/CT Three Phase Multi-Function Energy Meter
General
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
AC220V
3×1(6)A,3×10(80)A,3×20(100)A
RS485(MODBUS-RTU)
Set parameters
LCD display
kWh Class 0.5
DIN 35 mm
Technical Parameters
| Specification | ADL400 | ADL3000-E | ADL3000-E/CT | ||
| Voltage | Reference voltage | 3×100V, 3×380V,3×57.7/100V, 3×220/380V | |||
| Consumption | <10VA | ||||
| Impedance | >2MΩ | ||||
| Accuracy | Error±0.2% | ||||
| Current | Reference current | 3×1(6)A,3×10(80)A | 3×1(6)A,3×10(80)A | 3×1(6)A,3×20(100)A | |
| Accuracy class | Error±0.2% | ||||
| Consumption | <1VA | ||||
| Power | Active, reactive, apparent power, error±0.5℅ | ||||
| Display | LCD | ||||
| Frequency | 45~65Hz,Error±0.2% | ||||
| Option Function | Communication | RS485, Modbus-RTU compatible protocol | |||
| Multi tariff energies | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | ||||
| Harmonic | No | 2-31st harmonic. | |||
| Switching | No | 1 Switching output | |||
| NO | 1 optocoupler input | ||||
| Operation Temperature | -25 ºC~+55 ºC | ||||
| Storage Temperature | -25 ºC ~+70 ºC | ||||
| Altitude | ≤ 2500m | ||||
| Relative humidity | ≤95%RH, no condensation, without corrosive gas | ||||
Wiring
Typical connectionApplication
