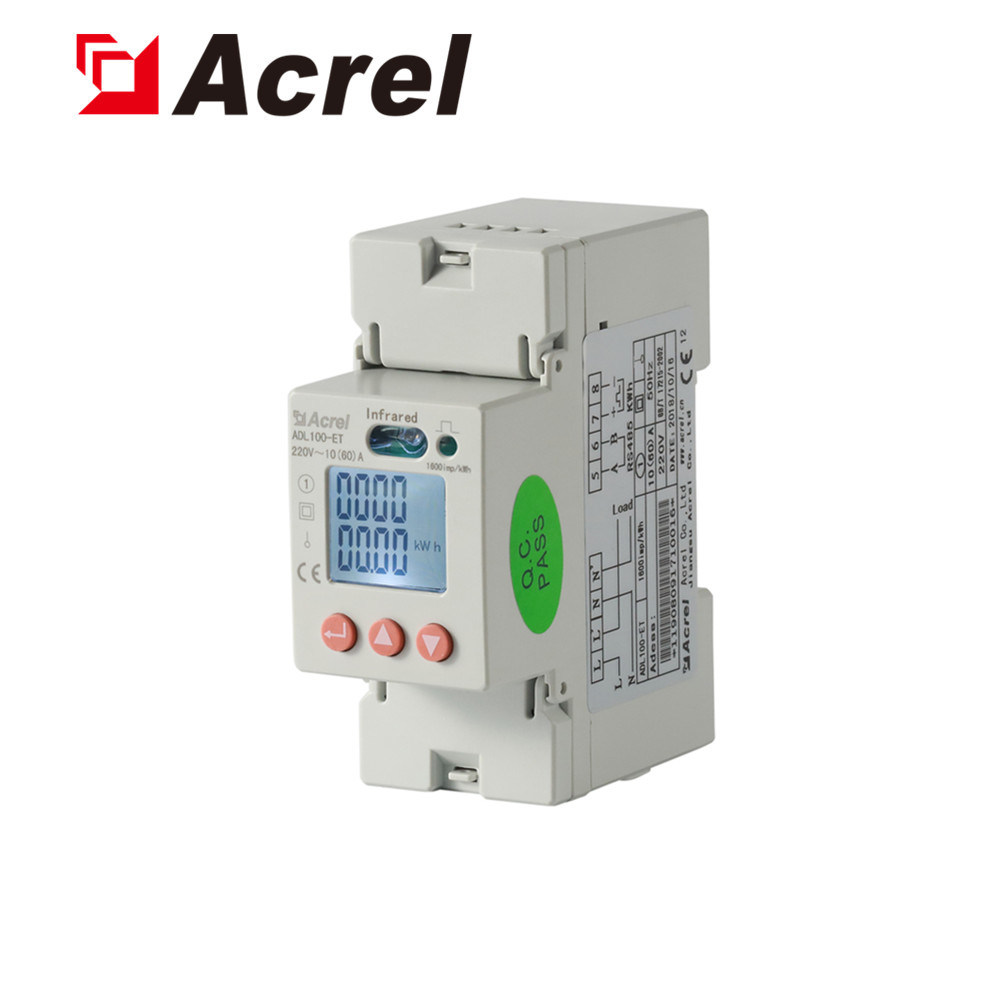

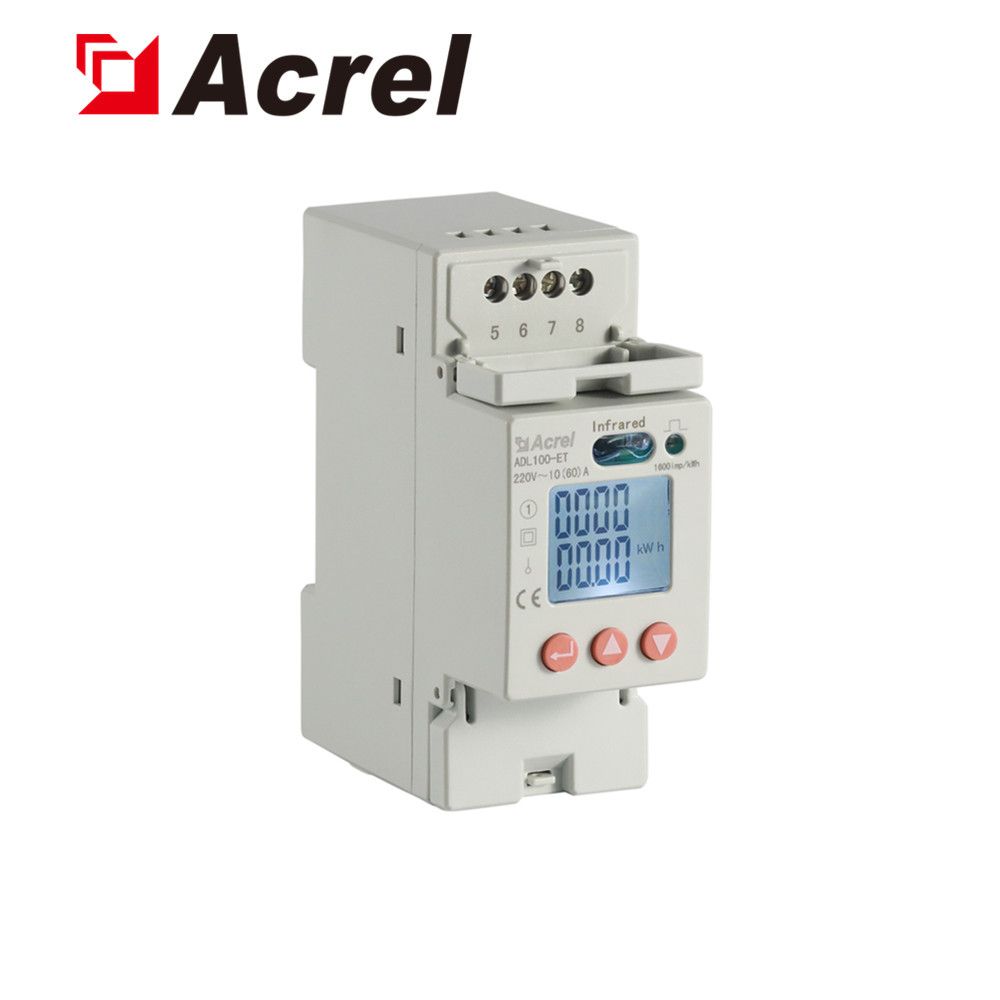

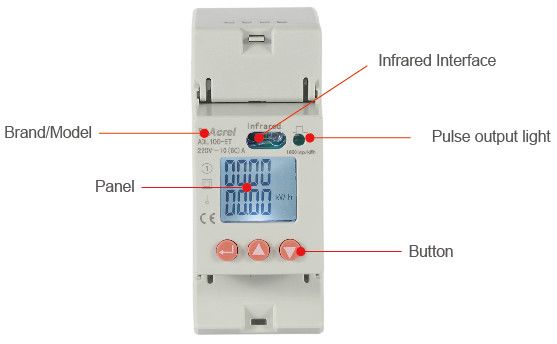

ADL100-ET Single Phase Din Rail Electric Energy Meter
Acrel Adl100-Et/F Low Power Consumption Rail Type Bidirectional Digital Single Phase DIN Rail Smart Electric Multi Tariff Energy Meter Power Meter

Acrel Adl100-Et/F Low Power Consumption Rail Type Bidirectional Digital Single Phase DIN Rail Smart Electric Multi Tariff Energy Meter Power Meter

General

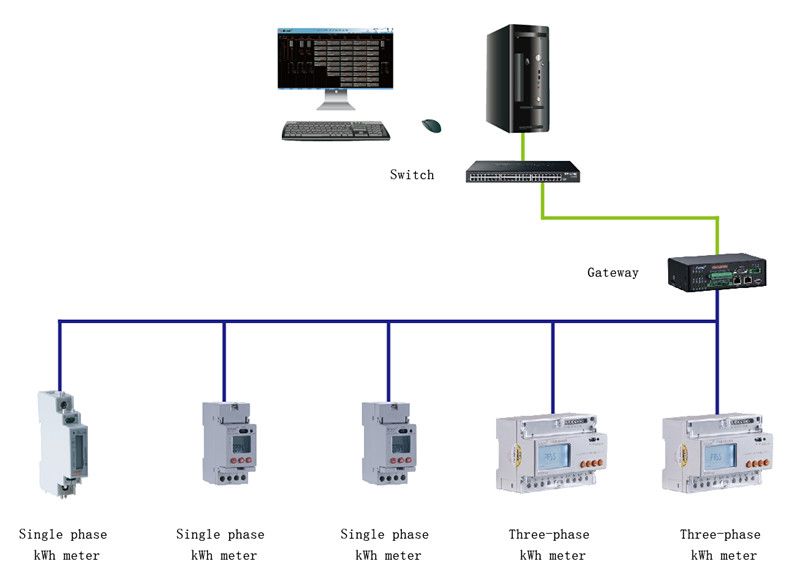

ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standard.
Features
AC220V
10(60)A,20(100)A
RS485(MODBUS-RTU)
Set parameters

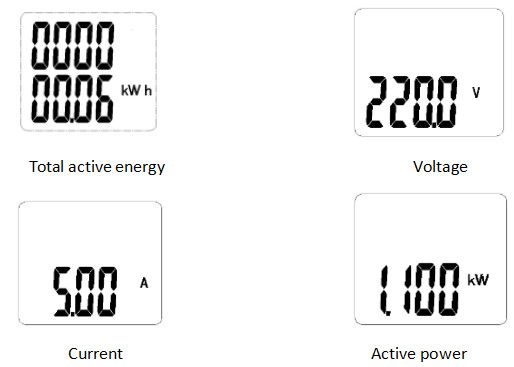

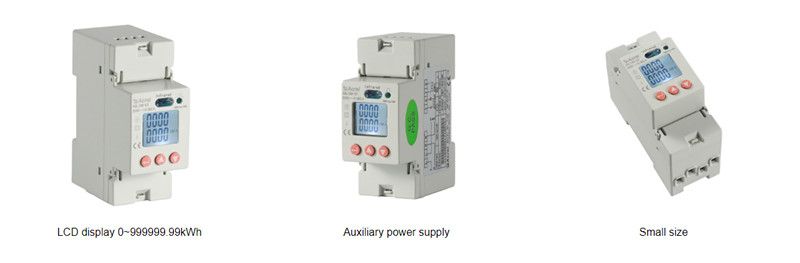

LCD display
kWh Class 1

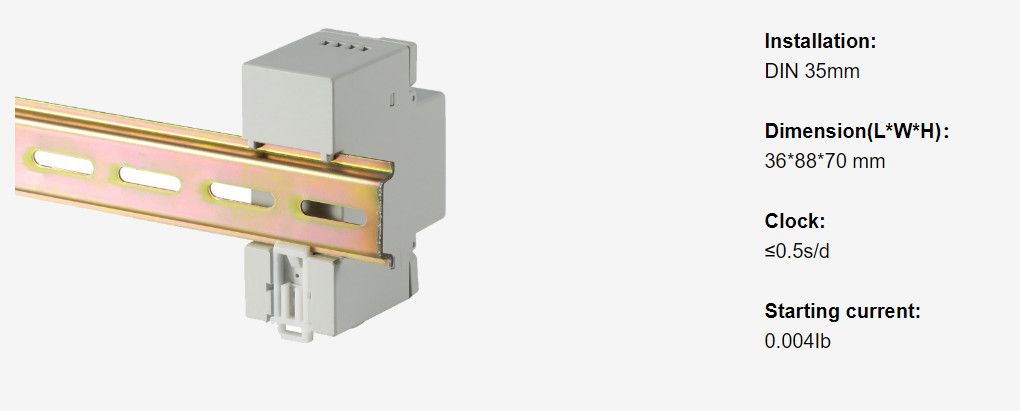

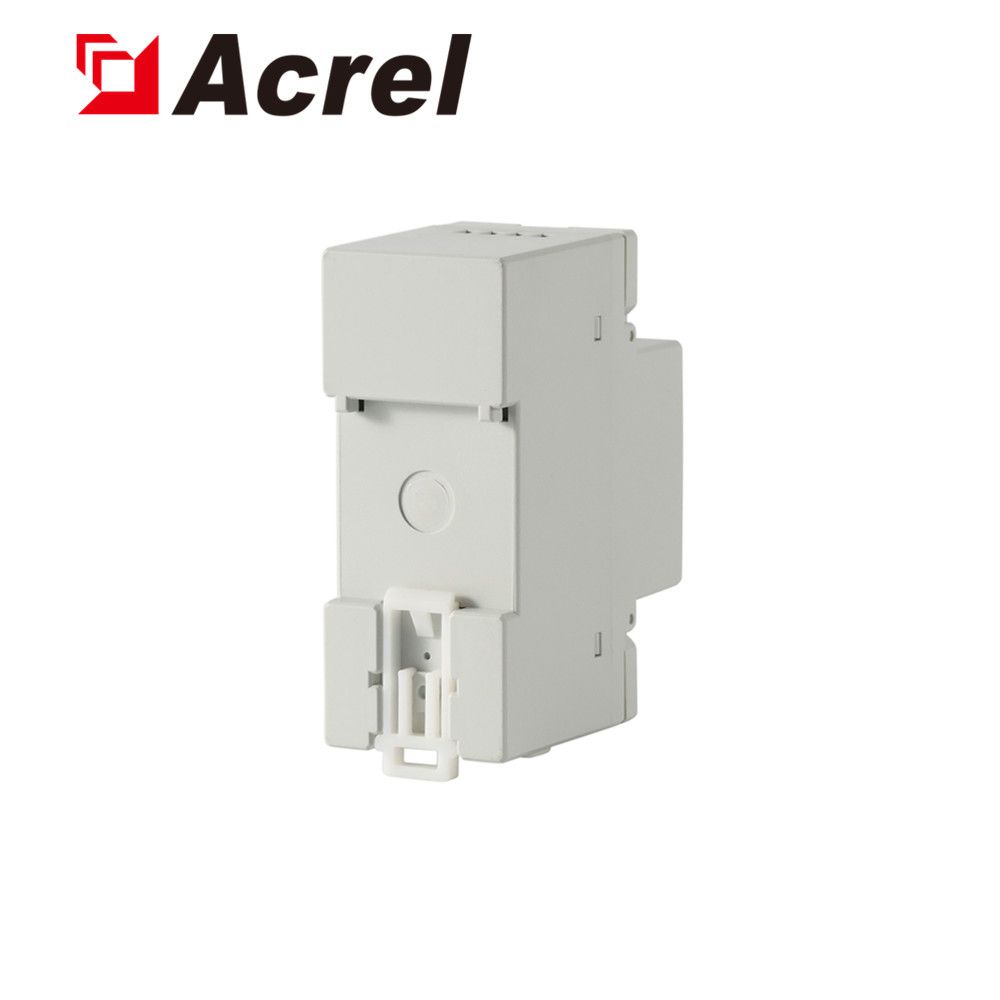

DIN 35 mm

Technical Parameters

Voltage	Reference voltage	AC 220V
	Reference frequency	45-65 Hz
	Consumption	<10VA( Single phase)
Current	Maximum	60A
	Starting current	0.004 Ib
	Consumption	<4VA(Maximum current)
Measurement performance	Accuracy of active kWH	Class 1
Measurement performance	Standards complicant	IEC 62053-21:2003
Pulse	Pulse width	80+20 ms
Pulse	Pulse constant	3200 imp/kWH
Communication	Interface	RS485
Communication	Protocol	Modbus-RTU
Outling	LWH(mm)	368870
Environment	Temperature	Operating:-25ºC~55ºC;Storage:-40ºC~70ºC
	Humidity	<=95% (No condensation)
	Altitude	<2000m
