Product Description

3 Phase Energy Meter Modbus RTU

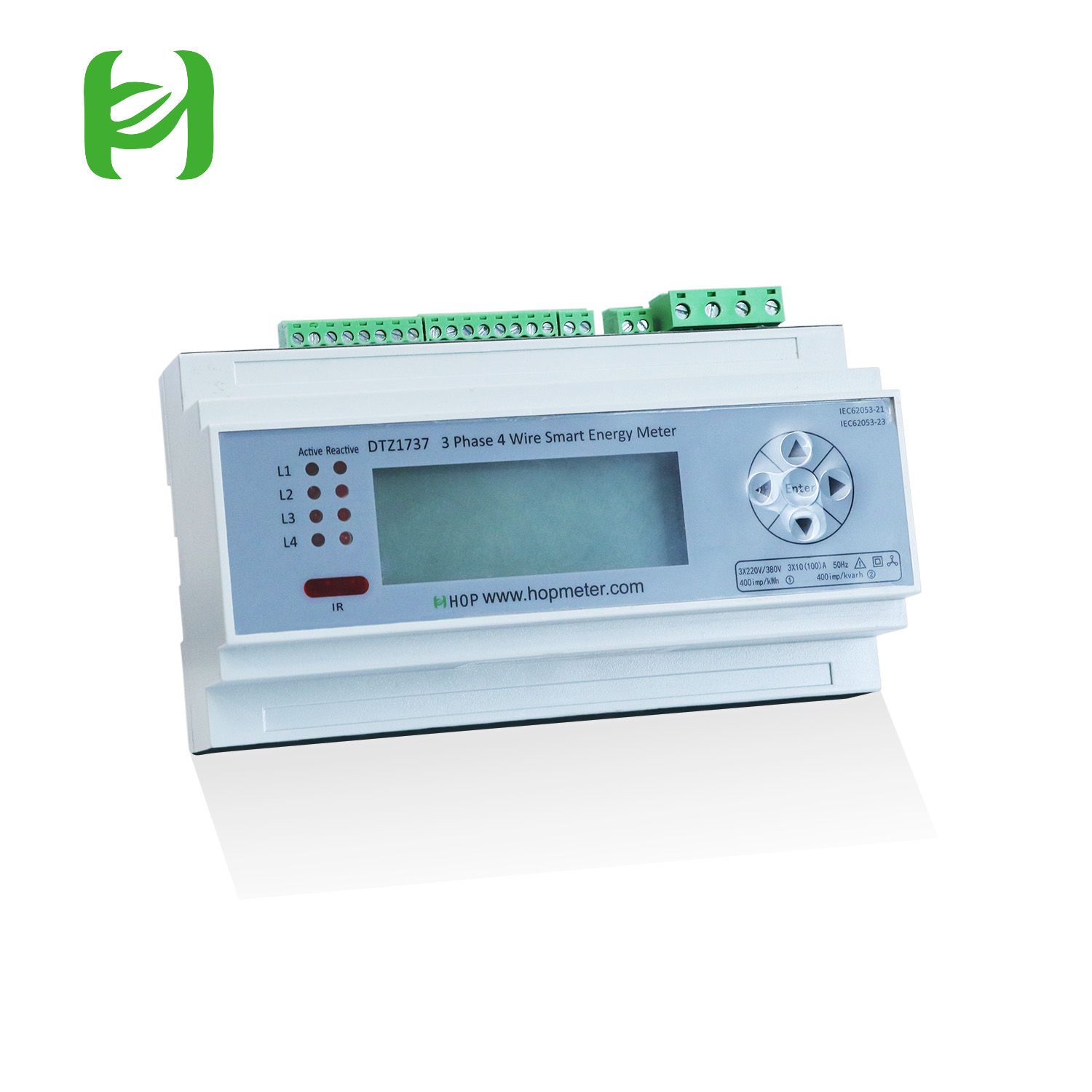

Din rail 3 phase 4 wire smart energy meter with backlight LCD display. The meter can respectively measure parameters of 1~4 channel.
The meter can communicate with the computer or collector (DTU) for data reading with RS485 port. The meter can be widely applied in
industrial and commercial field. The meter can be used with CT of different ranges to meet the measurement needs of different current.

Reference Voltage	3×220/380V
Rated Current	3×1.5(6)A	6400imp/kWh 6400imp/kvarh
	3×10(100)A	400imp/kWh 400imp/kvarh
	3×100(400)A	400imp/kWh 400imp/kvarh
Specified Working Voltage	0.3Un~1.1Un
Extended Working Voltage	0.15Un~1.15Un
Limit Working Voltage	0.0Un~1.15Un
Current	<10A	≥10A
Voltage Circuit of Each Phase	≤1.5W, 6VA	≤1.5W, 6VA
Current Circuit of Each Phase	≤0.2VA	≤0.4VA
Reference Temperature	23ºC±2ºC
Reference Humidity	40% ~ 60%
Normal Working Temperature	-10ºC~+45ºC
Limit Working Temperature	-25ºC~+55ºC
Transport & Storage Temperature	-25ºC~+70ºC
Weight	350g
Dimension	158mm×58mm×87mm

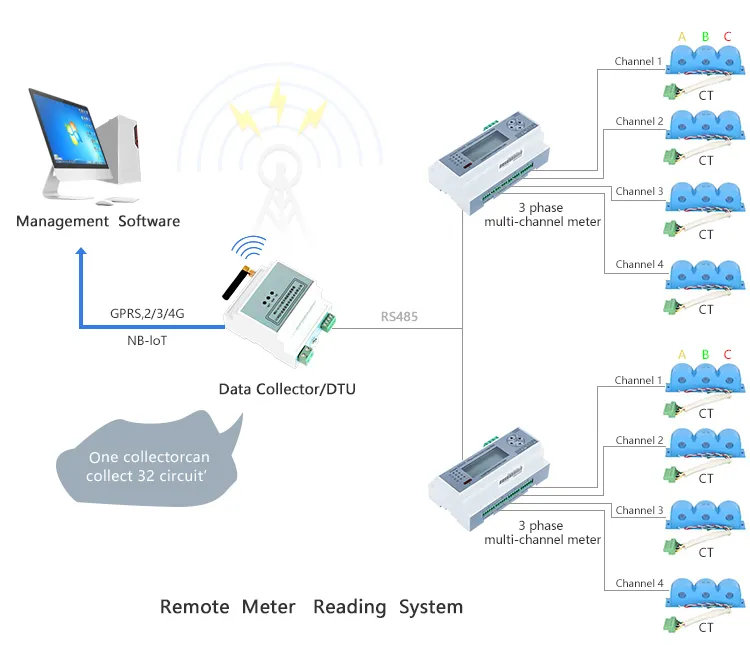

With RS485 port, the multi-channel din rail three phase energy meter can be connected to one data collector/RTU/DTU to
transmit data to management software. The DTU is with built-in communication modem such as Ethernet, NB-IoT, GPRS, 3/4G,
Lora. Etc. and one DTU can manage up to 32 circuits load.

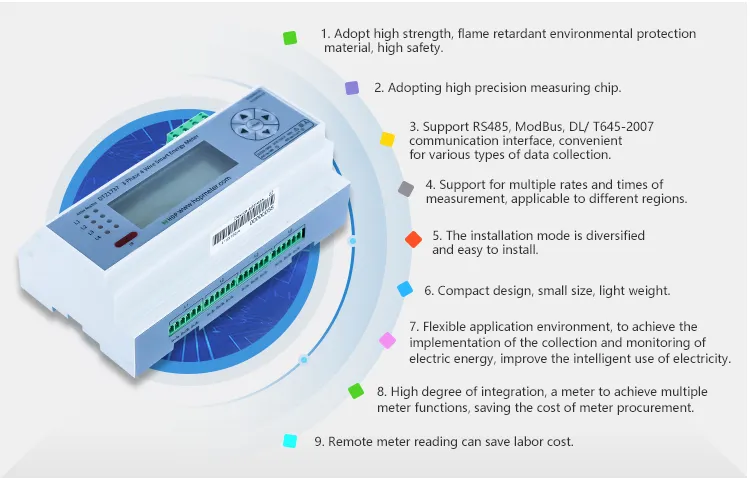

Functions

3 Phase Energy Meter Modbus RTU

Q: Do you have APP for the energy meter?
A: Since different areas' clients have different using habit, so APP is always customized for clients according to the developing instructions clients give.
Q: Can the smart energy meter support wireless communication?
A: Yes, our wall mounted energy meter is with built-in communication modem; and din rail energy meter need to be connected to an external data collector/DTU with communication modem.
Q: Can you put our logo on the smart energy meter, DTU and software?
A: Yes, we can put your logo on the meter, data collector(concentrator) and system software.
Q: Can I confirm whether the communication is successful through the indicators light on the meter?
A: Yes. From the two status indicators of the meter, you can identify the communication status of the meter network; When the green light flashes, the communication module works normally.
Q: If the load of 100A needs to be switched off, can you achieve it with your electricity meter?
A: 100A load can be pulled, but the circuit breaker (outer pull) needs to be configured, and the 60A meter can be pulled by the internal relay breaker.
