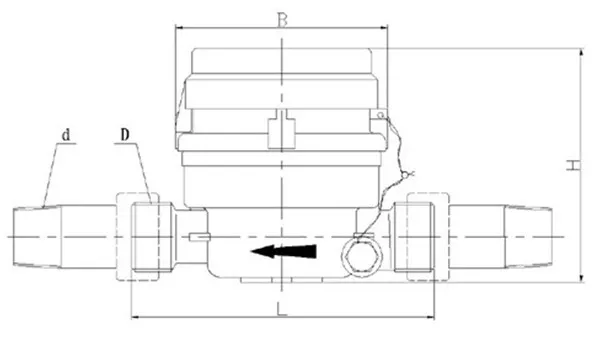

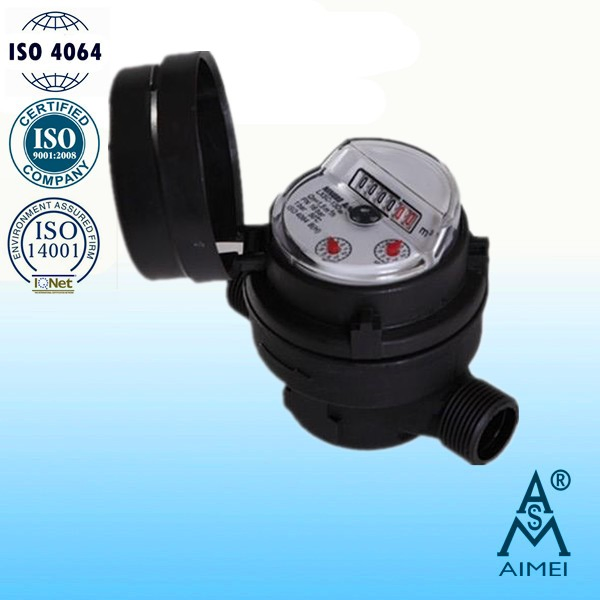

Single Jet Dry Type Vane Wheel Water Meter (LXSC- 13D8bs )

APPLICATION:
Measuring the volume of cold potable water passing through the pipeline.

FEATURES:
Single jet, dry dial;
45° register;
Hot wire tamper proof;
Magnetic drive, magnet resistance;
Optimum accuracy and performance at all times;
Accurate measurement, easy and long term clear reading, etc.
Measuring accuracy is up to ISO4064, Class C

WORKING CONDITION:
Water temperature: Cold Water Meter 50  Hot Water Meter 90
Water pressure: ≤1.6Mpa (16bar)

MAXIMUM PERMISSIBLE ERROR:
In the lower zone from q_min inclusive up to but excluding q_t is ±5%
In the upper zone from q_t inclusive up to and including q_s is ±2%
