MID Certificated Single Jet Dry Type Water Meter
Single Jet Dry Type Vane Wheel Water Meter· It is a single jet super dry water meter for residential application in sizes 15mm-20mm for cold water.Features· Magnetic drive, lower transmission resistance· Magnetic shield, for external magnetic field protection&m......
Send Inquiry
Product Description

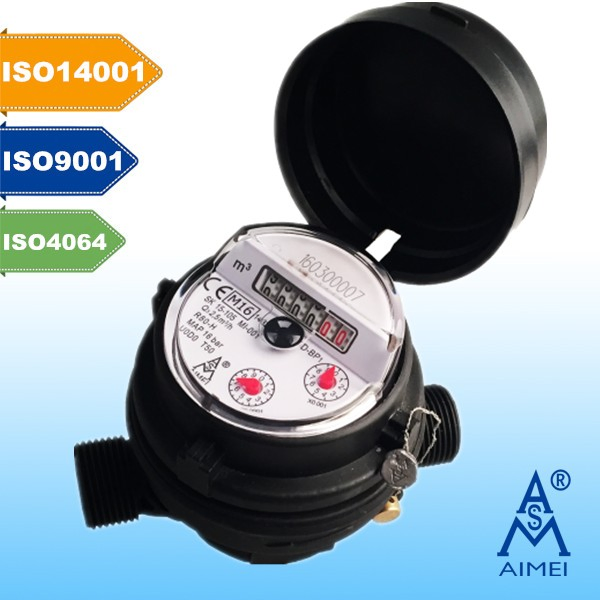

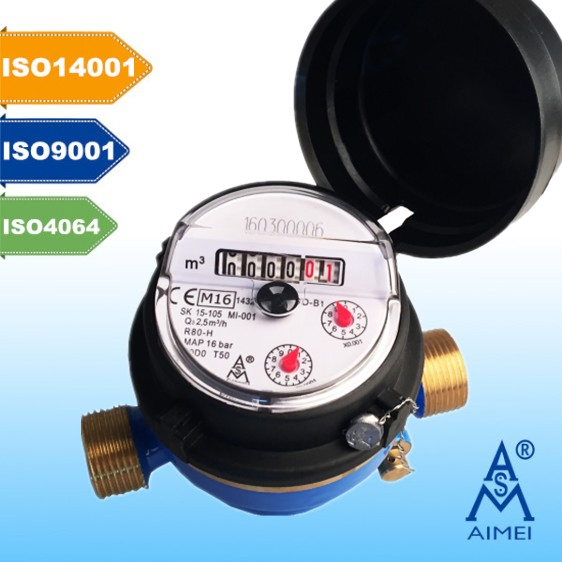

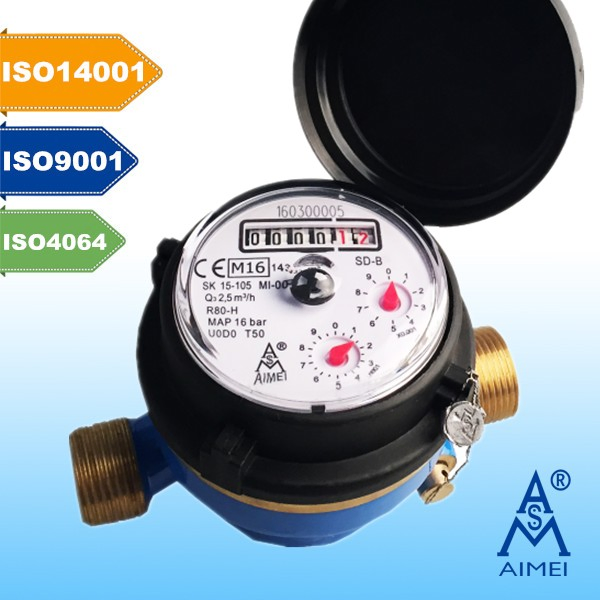

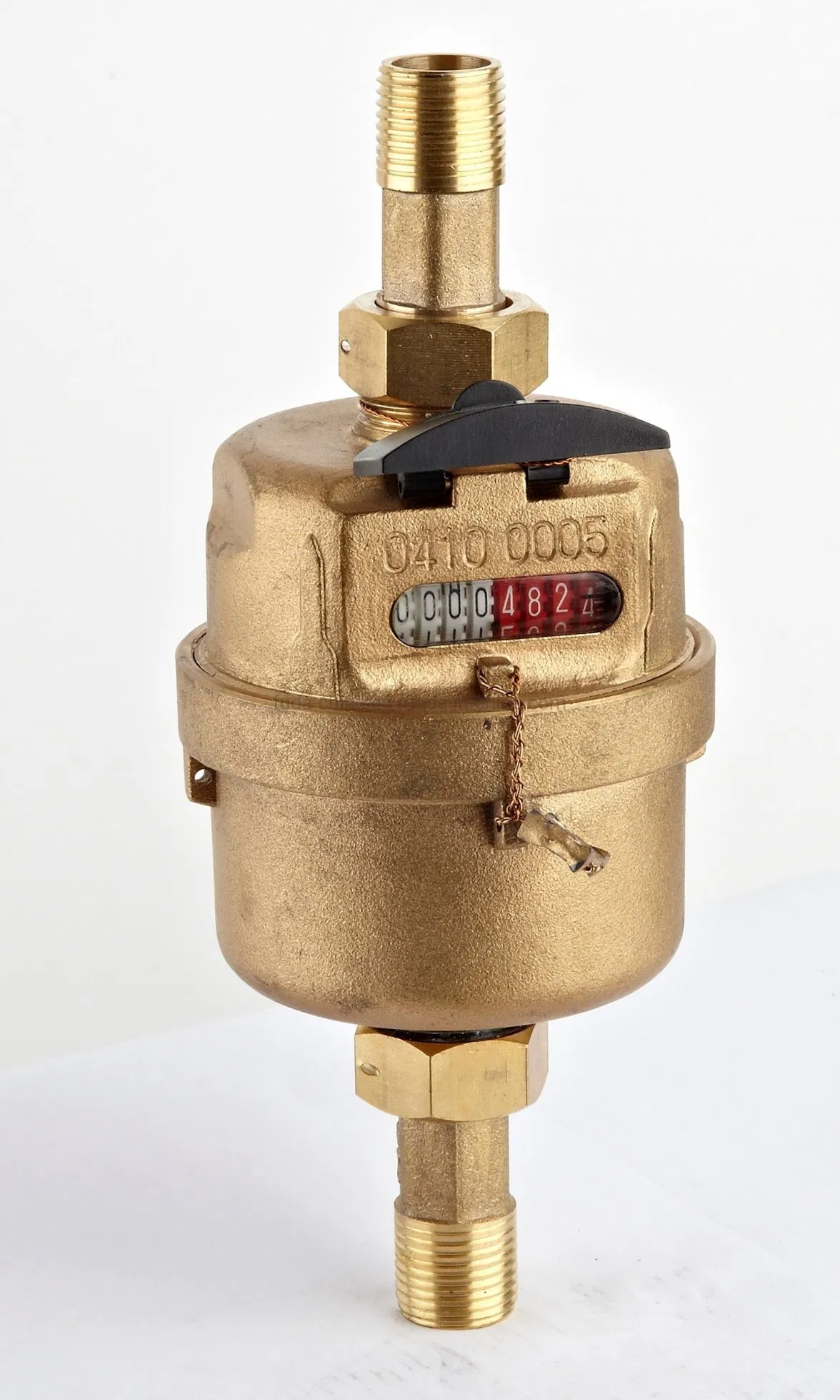

Single Jet Dry Type Vane Wheel Water Meter
· It is a single jet super dry water meter for residential application in
sizes 15mm-20mm for cold water.

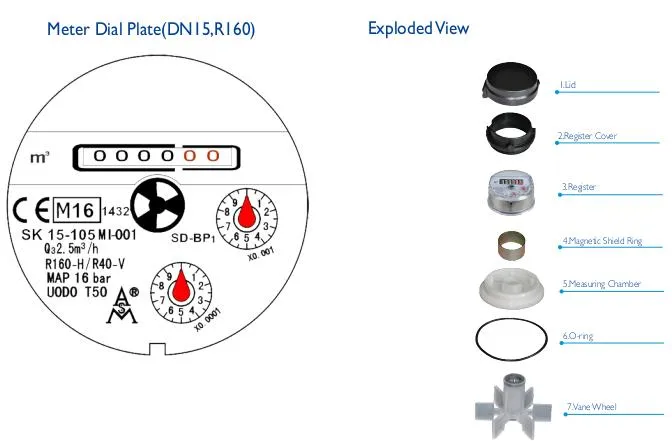

Features
· Magnetic drive, lower transmission resistance
· Magnetic shield, for external magnetic field protection
· 45º inclined register, hot wire tamper proof
· External regulating device
Standards Compliance
· Directive 2014/32/EU on measuring instruments;
· the European Standard EN14154+A1+A2: Water Meter ;
· the International Organization of Legal Metrology OIML R-49: 2013(E)
Optional Features
· Several lengths and connections available on request
· Non return Valve

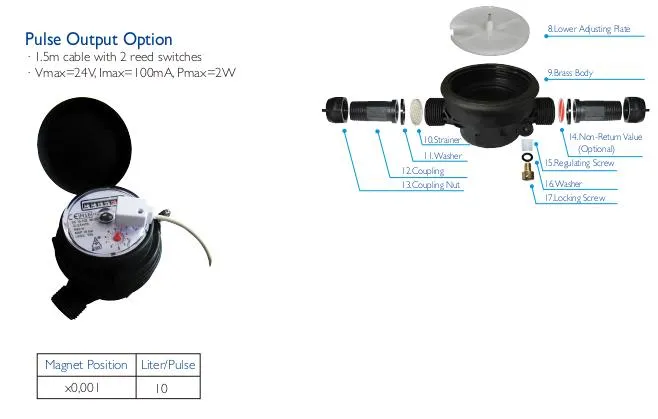

· Reed switch option

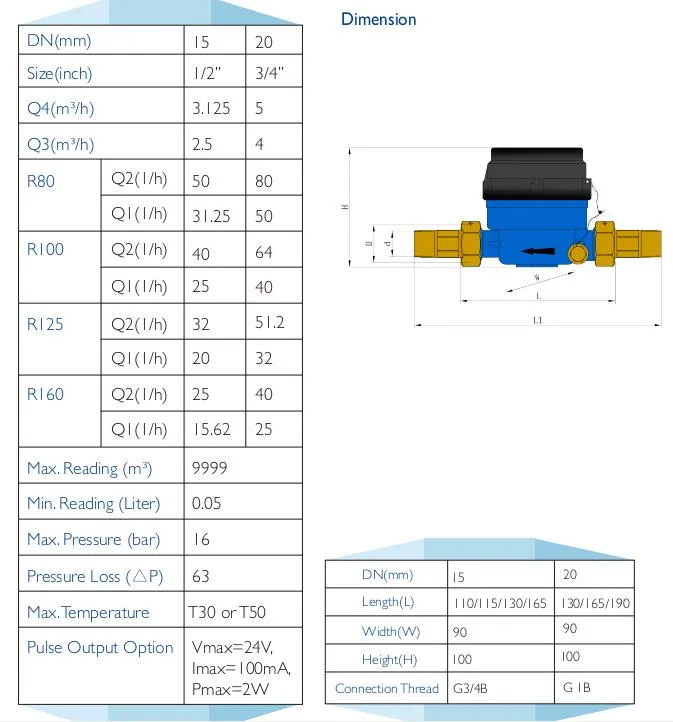

Working Conditions
· Water temperature: ≤50ºC for cold water meter
· Water pressure: ≤1.6MPa(16bars)
Accessories
· 2pcs couplings, 2pcs coupling nuts and 2pcs washers.

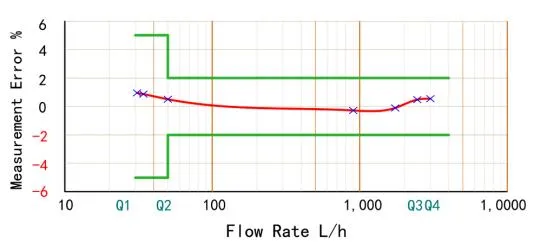

Maximum Permissible Error
· In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%.
· In the upper zone from Q2 inclusive up to and including Q4 is ±2%.
· It is a single jet super dry water meter for residential application in
sizes 15mm-20mm for cold water.
Features
· Magnetic drive, lower transmission resistance
· Magnetic shield, for external magnetic field protection
· 45º inclined register, hot wire tamper proof
· External regulating device
Standards Compliance
· Directive 2014/32/EU on measuring instruments;
· the European Standard EN14154+A1+A2: Water Meter ;
· the International Organization of Legal Metrology OIML R-49: 2013(E)
Optional Features
· Several lengths and connections available on request
· Non return Valve
· Reed switch option
Working Conditions
· Water temperature: ≤50ºC for cold water meter
· Water pressure: ≤1.6MPa(16bars)
Accessories
· 2pcs couplings, 2pcs coupling nuts and 2pcs washers.
Maximum Permissible Error
· In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%.
· In the upper zone from Q2 inclusive up to and including Q4 is ±2%.
