Product Description

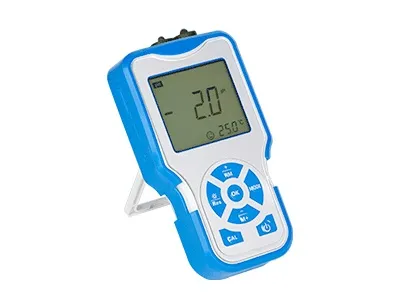

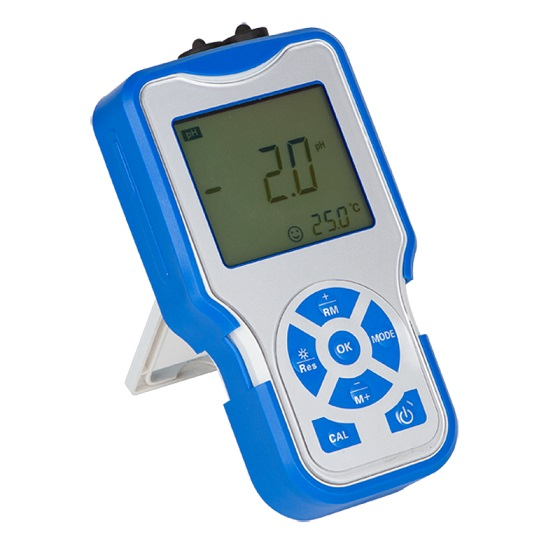

P613 pH/Conductivity Meter

Features:
1. Large LCD screen with controllable white backlight
2. Built-in microprocessor chip has intelligent functions such as automatic calibration, ATC, data storage, function setting, auto-diagnosis, auto power off, and undervoltage prompt, etc.
3. Auto recognition of 13 buffers with three kinds of options: Europe & USA, NIST and China
4. Can setup pH measurement modes of high purity water and ammonia added pure water
5. Automatic recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
6. Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5uS/cm-200mS/cm.
7. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision fo the full range.
8. Conductivity mode has the function of non-linear temperature compensation for high purity water
9. Grade IP57 and equipped with suitcase for outdoor purpose.

Specifications:

PH	Measuring range	(-2.00~19.99)pH
	Resolution	0.1/0.01 pH
	Accuracy	Meter:±0.01pH; Overall: ±0.02pH
	Input impendance	≥1×1012 Ω
	Stability	±0.01 pH/3h
	Temp. compensation range	(0~100)ºC (Auto/manual)
mV	Measuring range (mV/ORP/EH)	-1999mV ~ 0 ~ 1999mV
	Resolution	1mV
	Accuracy	±0.1% FS
Conductivity	Measuring range	Conductivity:
		(0.00~19.99)μS/cm
		(20.0~199.9)μS/cm
		(200~1999)S/cm
		(2.00~19.99)mS/cm
		(20.0~199.9)mS/cm
		TDS:(0~100)g/L
		Salinity:(0~100)ppt
		Resistivity:(0~100)MΩ·cm
	Resolution	0.01/0.1/1μS/cm; 0.01/0.1 mS/cm
	Accuracy	±1.0% FS, Overall:±1.5% FS
	Temp. compensation range	(0~100)ºC(Auto/manual)
	Electrode constant	0.1 / 1 / 10 cm-1
Other Technical Parameters	Data storage	200 sets
	Power	Two AA batteries (1.5V x2)
	Shipping size/G.W.	(380×100×300)mm/1Kg
Working Condition	Ambient temperature	5~35 ºC(0.01grade)
	Ambient humidity	≤85%
	IP grade	IP57 Dustproof and waterproof
Meter Kits	1) pH & Conductivity meter
	2) pH composite electrode
	3) Temperature electrode
	4) Conductivity electrode (K=1)
	5) pH buffer solution
	6) Suitcase

Portable Multi-Parameter Water Quality Analyzer pH/Conductivity Meter TDS Resistivity

Full Product Range

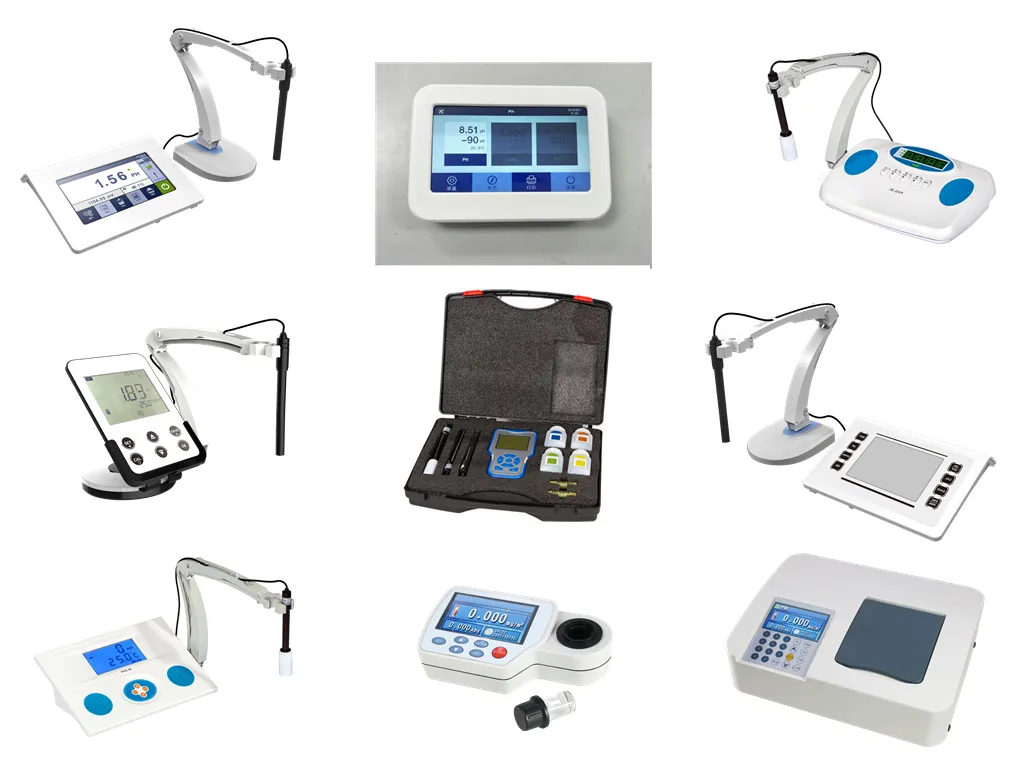

PH/EC/DO/Ion Meter, Turbidity Meter & Colorimeter
