Dn50mm , Stainless Steel Flange Pulse Water Meter

Product Description

large caliber stainless steel detachable water meter DN50-DN300!

Application:
--Measuring the volume of cold (hot) water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance;
--Dry-dial, Magnetic drive;
--Large flow capacity, small pressure loss;
--Resist water hummer and pollution;
--Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
--Selected high quality materials for steady and reliable characteristic;
--Technical data conform to international standard ISO 4064.Class B

The meters can be equipped with a kind of remote transmission device, the pulse generating volume could be 10,1000 or 10000 L/pulse.

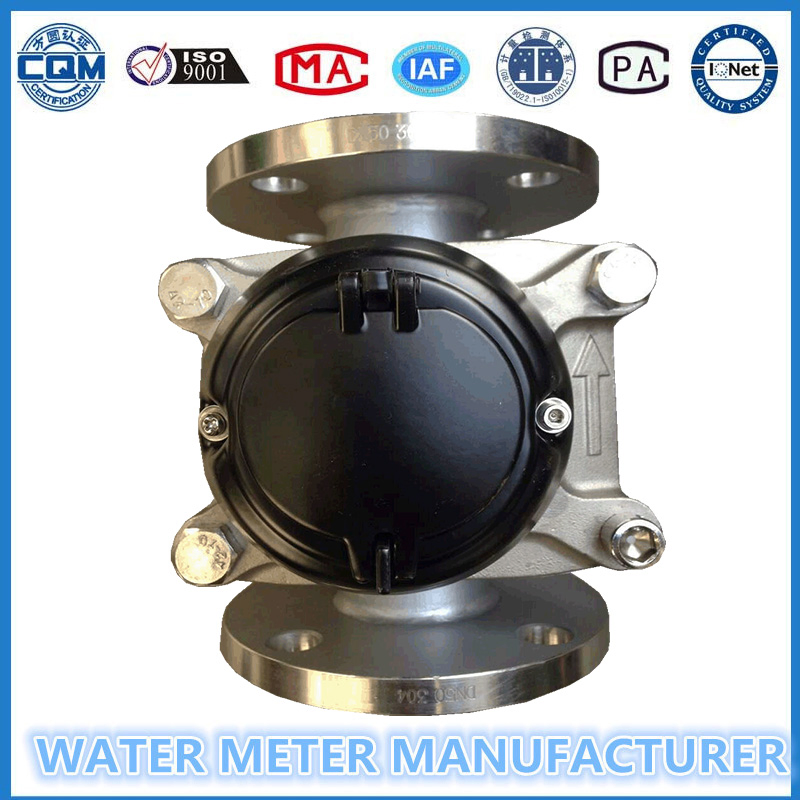

Dn50mm, Stainless Steel Flange Pulse Water Meter

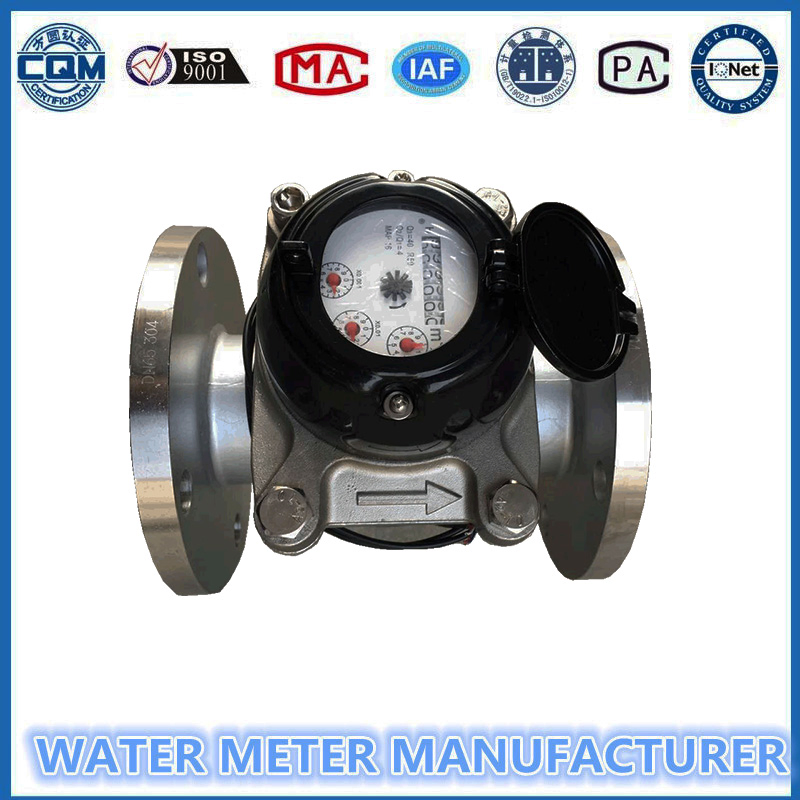

Dn50mm, Stainless Steel Flange Pulse Water Meter

Working condition:
Water temperature: 0.1ºC~50ºC (0.1ºC~90ºC for hot water meter)
Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum permissible errors:
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS:

Type	Size (mm)	Class	qs Overload Flow	qp Permanent Flow	qt Transitional Flow	qmin Min. Flow	Min. Reading	Max. Reading
Type	Size (mm)	Class	m3/h				m3
DN50	50	B	31.25	25	0.8	0.5	0.001	999,999
DN65	65	B	50	40	1.28	0.8	0.001	999,999
DN80	80	B	78.75	63	2.016	1.26	0.001	999,999
DN100	100	B	125	100	3.2	2.0	0.001	999,999
DN125	125	B	200	160	5.12	3.2	0.01	999,999
DN150	150	B	312.5	250	8	5	0.01	999,999
DN200	200	B	500	400	12.8	8	0.01	999,999
DN250	250	B	787.5	630	20.16	12.6	0.01	999,999
DN300	300	B	1250	1000	32	20	0.01	9,999,999
DN400	400	B	2000	1000	200	30	0.02	9,999,999
DN500	500	B	3000	1500	300	45	0.02	9,999,999

DIMENSIONS:

Size (DN)		L Length		H Height	Connecting flange
					φD1 Outside diameter	φD2 Bolt circle diameter	Connecting Bolts (n-M)
mm
50	200		261		165	125	4-M16
65	200		271		185	145	4-M16
80	225		279		200	160	8-M16
100	250		289		220	180	8-M16
125	250		299		250	210	8-M16
150	300		319		285	240	8-M20
200	350		346		340	295	8-M20(1.0MPa)
							12-M20(1.6MPa)
250	400		434		395	350	12-M20(1.0MPa)
	450		434		405	355	12-M24(1.6MPa)
300	450		459		445	400	12-M20(1.0MPa)
	500		459		460	410	12-M24(1.6MPa)
400	600		630		565	515	16-M24
500	800		738		620	570	20-M24

MOQ:
We will accept your trial order or sample order.

Logo:
Customers could customize their logo or lable on the water meter.

Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7 days after we come to an agreement.

Delivery time:
Start shipping within 10--20 days after signing the contract.

Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.

Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.

List Of Competitive Advantage:
We are factory, can provide you high quality, best price

Professional employee and effective management

Professional trading service

Prompt delivery

Good service & reputation

Large production line

After Service:
We will make compensate for you if the accident made by us.
