Product Description

What is the details for Stepped Tariff Wet Type Prepaid Water Flow Meter(LXSIC-20)
Class B Prepaid Water Meter

Noncontact System Management Radio Frequency Prepaid Water Meter 15mm-25mm?
Class B Prepaid Water Meter

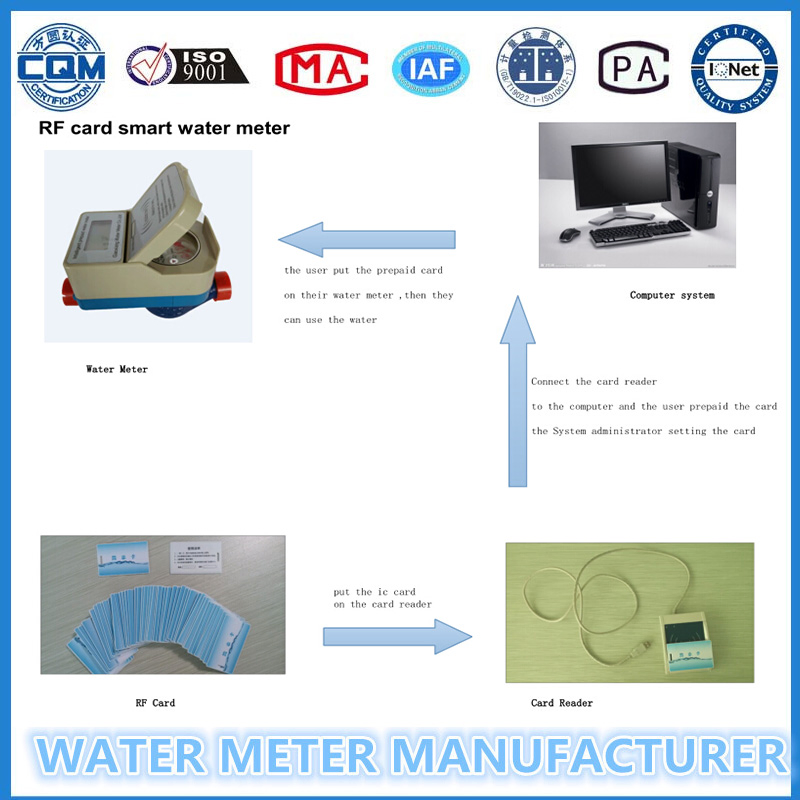

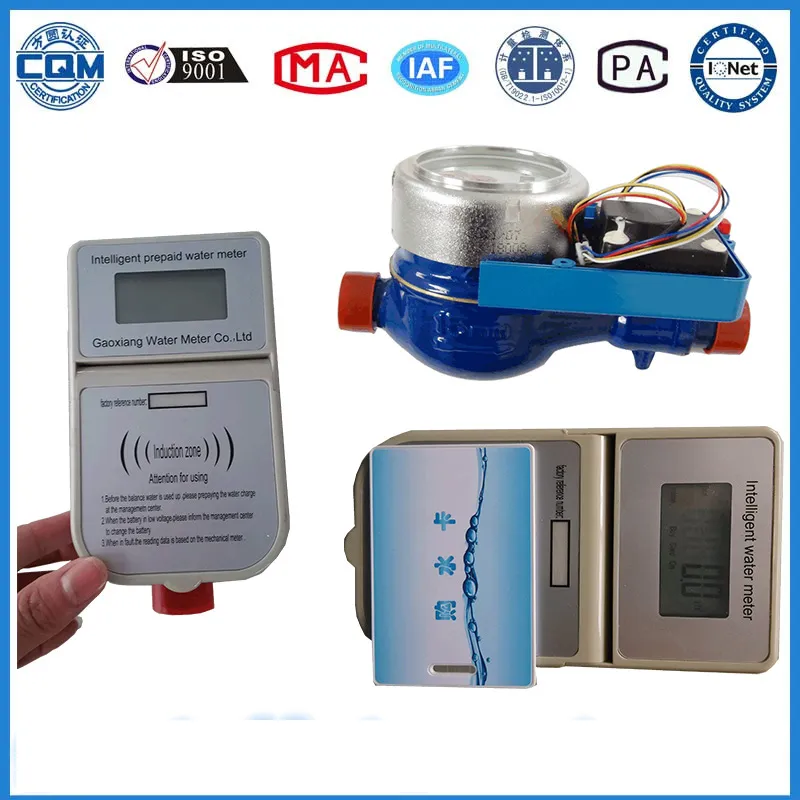

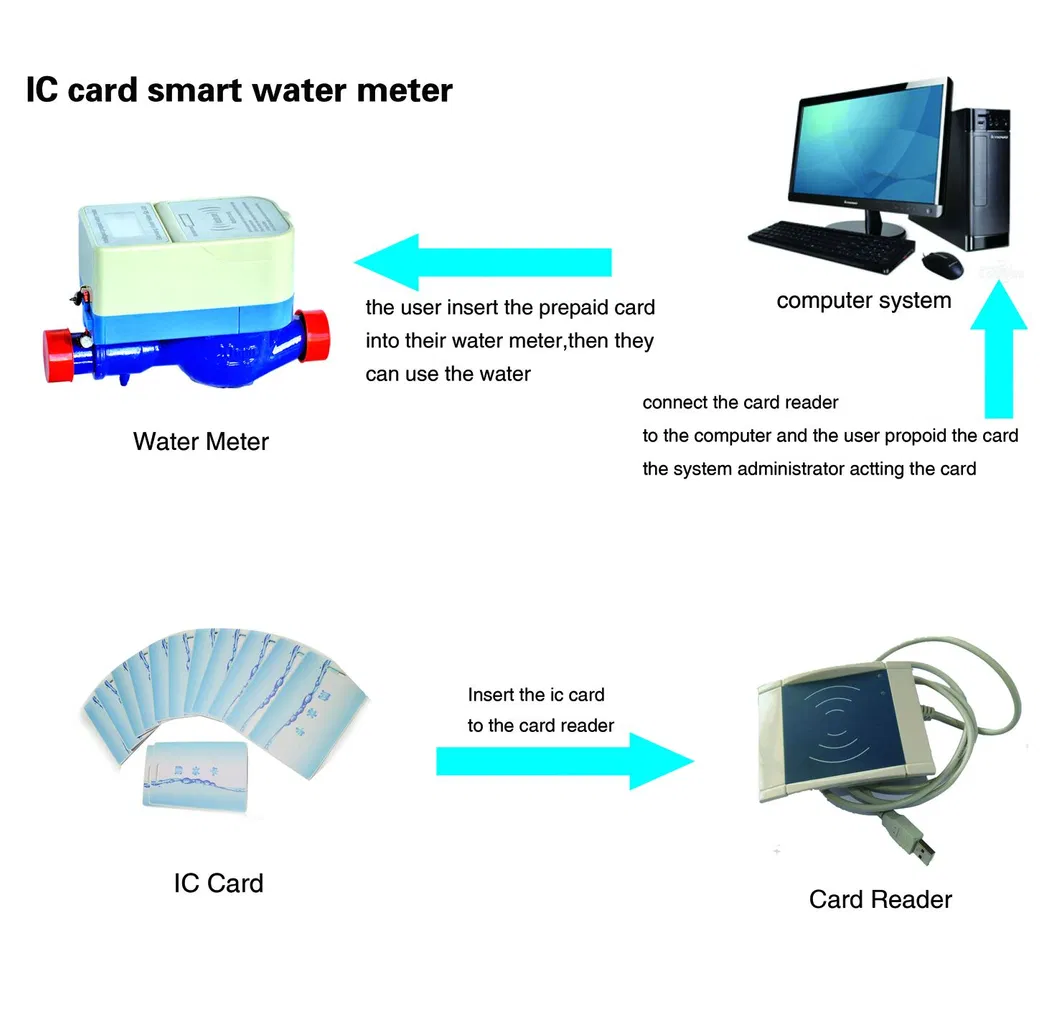

Our prepaid water meter has two type ,ic card type and RF card type.
The IC card type ,you can insert thr IC card  to the slot ,and RF type ,you can swiping the IF card.

Brief introduction :

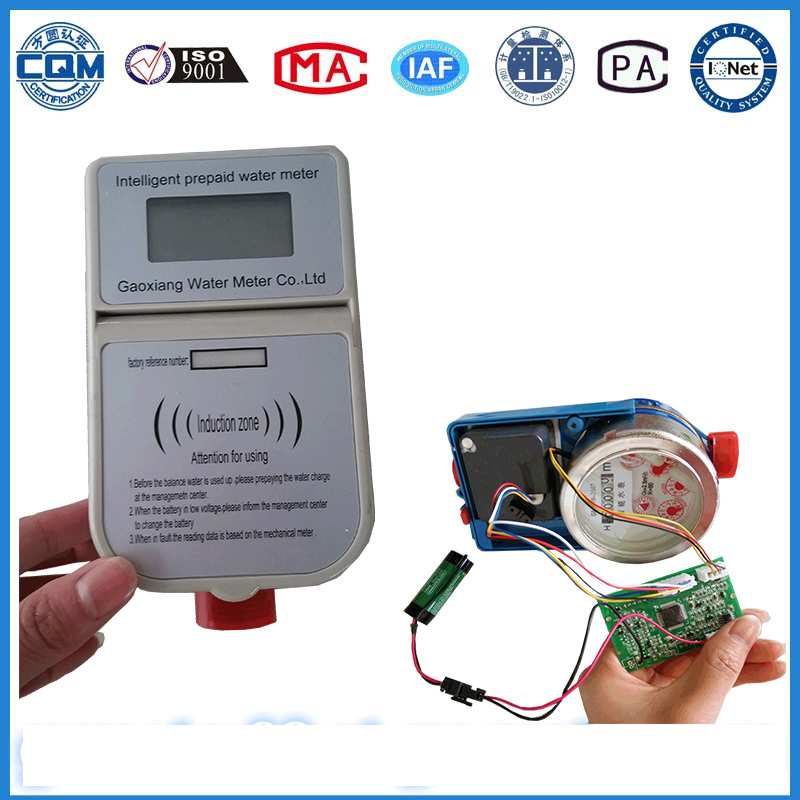

This Water meter  IC smart prepaid water meter is developed from wet-type basic water meter ,composed of microchip module,controlling valves, LED display ,card & card reader and accounting management systerm. The figure of water volume is displayed directly on the screen and the water using could be controlled as prepaid method.

Specification for  Prepaid Water Meter

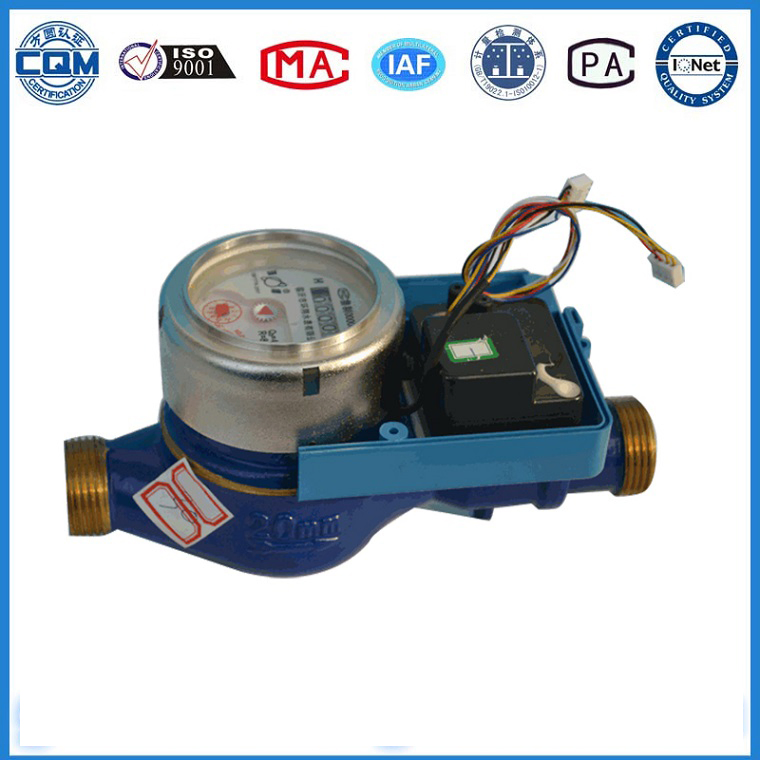

1.the basic meter is made of brass materials and the plastic part is Environment Friendly
2.Multi -jet ,wet dial
3.the battery has 6 years service life
4..warranty: 2 years
6.Supply ability:100000 pcs per month
7.Free sample one piece is avaible ( but you need pay to us the sample fee and freight charge first to show the sincerity to coopertae with each other and we will return back the sample fee to you when we order to us
8. .using pre-paid way to achieve the new management mode of "purchase first, then use"
9.double reading display: mechanical and digital meter reading
10 stable performance, wide application.
Technical Data for  Prepaid Water Meter

Model (DN)	15D	20D	25D
Overload Flow Qmax(m3/h)	3	5	7
Normal Flow Qn(m3/h)	1.5	2.5	3.5
Transitional Flow Qt(m3/h)	0.12	0.2	0.28
Min.Flow Qmin(m3/h)	0.03	0.05	0.07
Technical Standards	ISO4064, GB/T778, JB/T8802, JJG686, CJ/T133
Valve Life	≥5,000 times
IC Card Life	≥100,000 times
Min.Reading	0.0001 m3
Max.Reading	99999 m3
Power Supply	3.6V lithium battery, life≥6 years
Security	Unique Card/Meter
IC Card Life	≥ 100000 times
Static Working Current(uA)	≤6
Error Qmin to Qt	≤±5%
Error Qt to Qmax	≤±2%
Working Condition	Indoor using, relative humidity ≤93%, Cold water Meter ≤40ºC,Hot water meter≤90ºC, Water quality conforms to the National tap water standardf

How about the features of our Prepaid Water Meter ?

1.Multi-jet ,wet dial electronic water meter

2.Brass material

3.Lithium battery ,the battery lifespan is more than 6 years based on the lowpower consumption design.

4.Low battery alarm, auto close the valve when battery is low ,prompt to change the battery.

5.Auto colse the valve when the water volum is little,and will re-open when insert a new prepaid card.

6.When strong magnetic close to the meter ,the valve will close autometically need inserting card too reopen the meter.

7.Remove all info. in the meter by using the initialization card, and set the starting line of water meter.

8.You can register a new card with original data if lost the user card .

9.Valve life more than 5,000 times

10.Card life more than 100,000 times

11.Power supply: 3.6 V lithum battery

12.Security: Unique card per meter ,uncopiable

Why you choose us - Gaoxiang Water Meter Co.,LTD ?

MOQ:
We could accept your trial order,then you can take this opportunity to check the quality of our products & service of our company
Logo:
Buyer's logo imprint accepted
Sample Policy:
We can supply you sample for checking quality,if you pay for the sample & sample freight. we will deliverto you in 1-3 days after we got your payment.
Lead time:
The normal Lead time is 15-30 days , which depends on your quantity.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
Please tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
List Of Competitive Advantage:
We are factory, can provide you high quality, best price
Professional employee and effective management
Professional trading service
Prompt delivery
Good service & reputation
Large production line

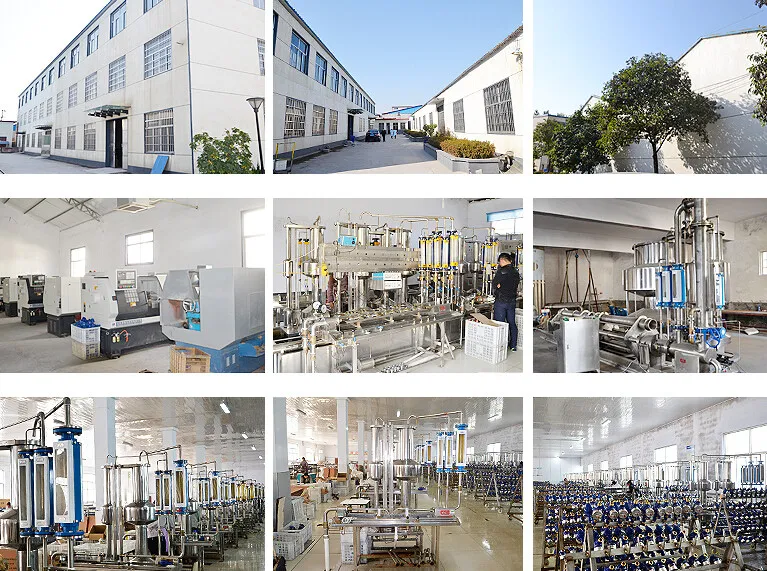

Welcome to visite our factory
