PT-D445- 265c Petroleum Products Kinematic Viscosity Tester/ Viscometer ASTM D 445
Purpose:PT-D445-265C Petroleum Products Kinematic Viscosity Tester is designed and made as per the National Standard GB/T265 "Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity", ASTM D 445, and the Industry Standard SY/T 5651 "Technical Co......
Send Inquiry
Product Description
Purpose:

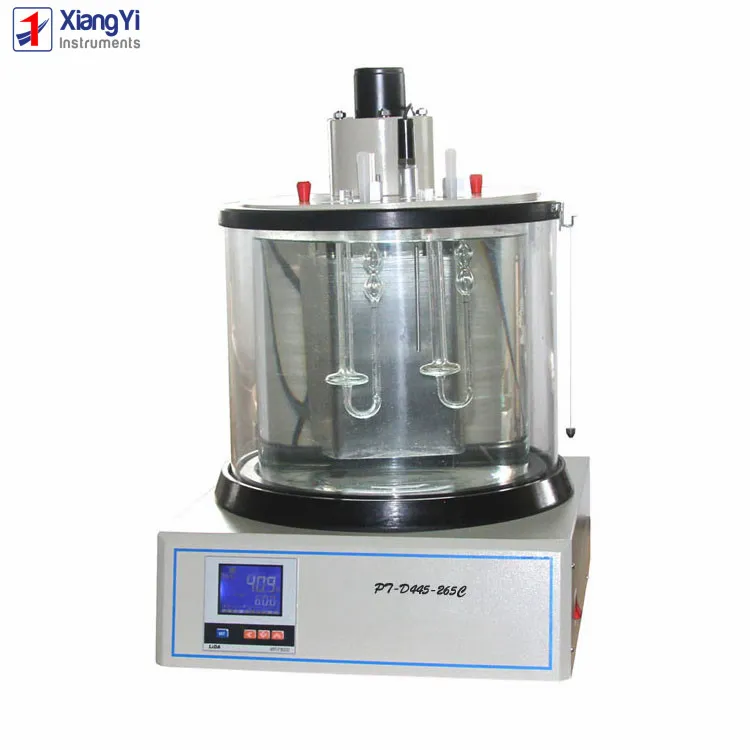

PT-D445-265C Petroleum Products Kinematic Viscosity Tester is designed and made as per the National Standard GB/T265 "Test Methods for Kinematic Viscosity of Petroleum Products and Calculation of Dynamic Viscosity", ASTM D 445, and the Industry Standard SY/T 5651 "Technical Condition for Petroleum Products Kinematic Viscosity Tester". It is suitable to determine kinematic viscosity of liquid petroleum products (Newton liquid) at a certain temperature.
I. Main technical features
1. This instrument adopts LCD temperature controller,having features of rapid temperature control,fast response,small overshoot.The temperature control accuracy can reach ±0.1ºC.
2. The instrument adopts hard glass bath and heat preservation shell(double shell structure).The heat preservation property is good. Easy to observe the sample.
3. The instrument adopts desktop and all-in-one design.The integrality is good.Convenient to operate.
4. The instrument adopts electric stirring device.The temperature in water bath is uniform.
II. Main technical specifications
1. Power supply: AC(220±10%)V,50Hz±5%
2. Heating power: 1600W
3. Stirring motor: 6W, 1200RPM
4. Temperature control range: Ambient to 100ºC
5. Temperature control accuracy: ±0.1ºC
6. Constant temperature bath: 20L,double shell structure
7. Working environment: Ambient temperature: room temperature~35ºC
Relative humidity: ≤85%
8. Temperature sensor: RTD, Pt100
9. Maximum power consumption: 1800W
10. Capillary viscometer tubes (Pinkevitch viscometer):7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
11. Dimension: 530mm×400mm×670mm
This instrument is equipped with 7 pieces of Pinkevitch viscometer tubes. We can customize instrument equipping with Cannon-Fenske Opaque(or Routine)Viscometer tubes according to customer's requirements.
III.Standard Accessories
| No. | Item | Unit | Qty |
| 1 | Capillary viscometer (a total of 7: 0.6, 0.8, 1, 1.2, 1.5, 2, 2.5 mm) | Piece | 7 |
| 2 | Rod type mercury thermometer(0 ~ 50 ºC, 50 ~ 100 ºC, scale division all 0.1 ºC) | Piece | 1for each |
| 3 | Plumb bob | Piece | 1 |
| 4 | Sensor | Root | 1 |
| 5 | Bakelite cover | Piece | 4 |
| 6 | Capillary holder | Piece | 4 |
| 7 | Silica gel plug (3#) | Piece | 2 |
| 8 | 10A fuse(Ф6×30) | Piece | 4 |
| 9 | Round glass | Piece | 1 |
| 10 | Stopping ring for thermometer (1#) | Piece | 4 |
