Ink Rotational Viscometer with Four Spindles 10~2, 000, 000MPa. S
Ink Rotational Viscometer with Four Spindles 10~2,000,000mPa.sRotational viscometers measure the resistance of fluids to torque. Different viscometers are perfectly suited for the determination of the viscosity of a wide range of different samples. It is widely used to determine the viscosity of liq......
Send Inquiry
Product Description

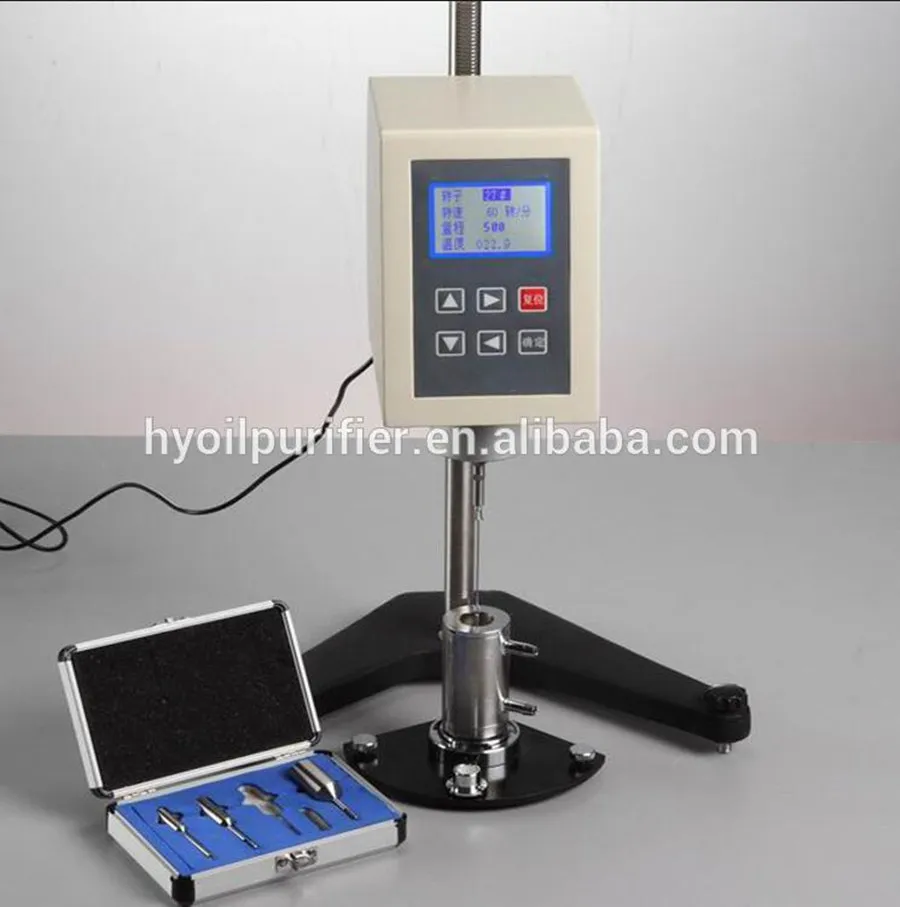

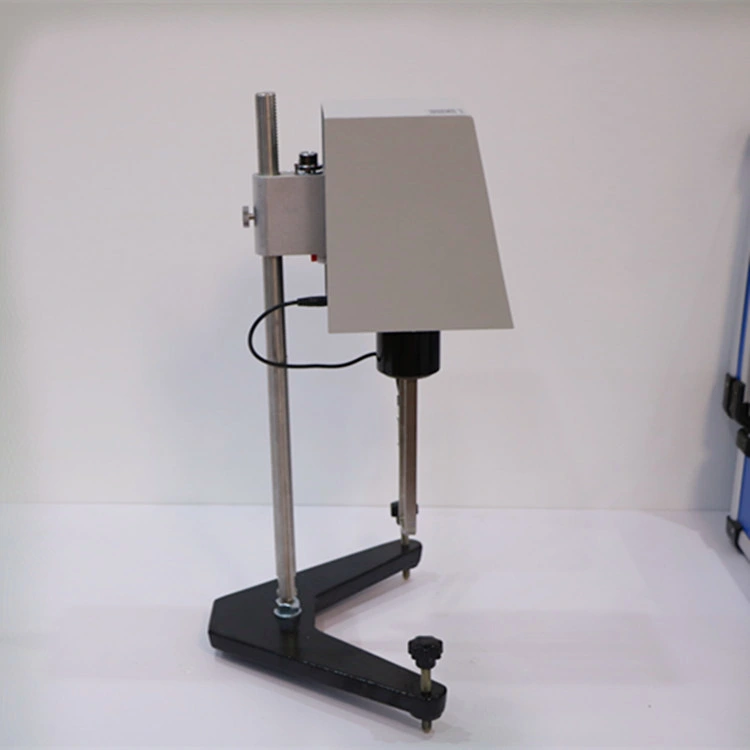

Ink Rotational Viscometer with Four Spindles 10~2,000,000mPa.s
Rotational viscometers measure the resistance of fluids to torque. Different viscometers are perfectly suited for the determination of the viscosity of a wide range of different samples. It is widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, washing solvents, and other fluids.
I.Summary

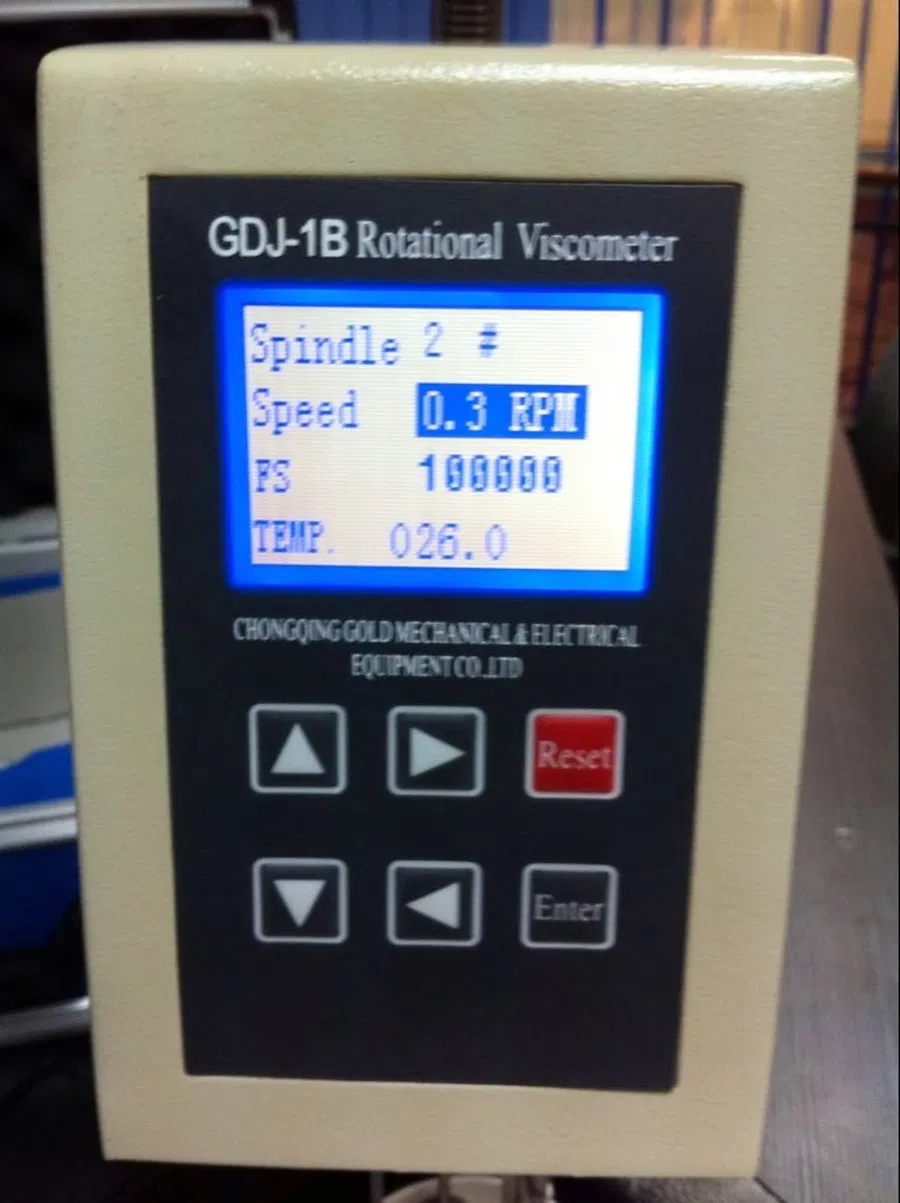

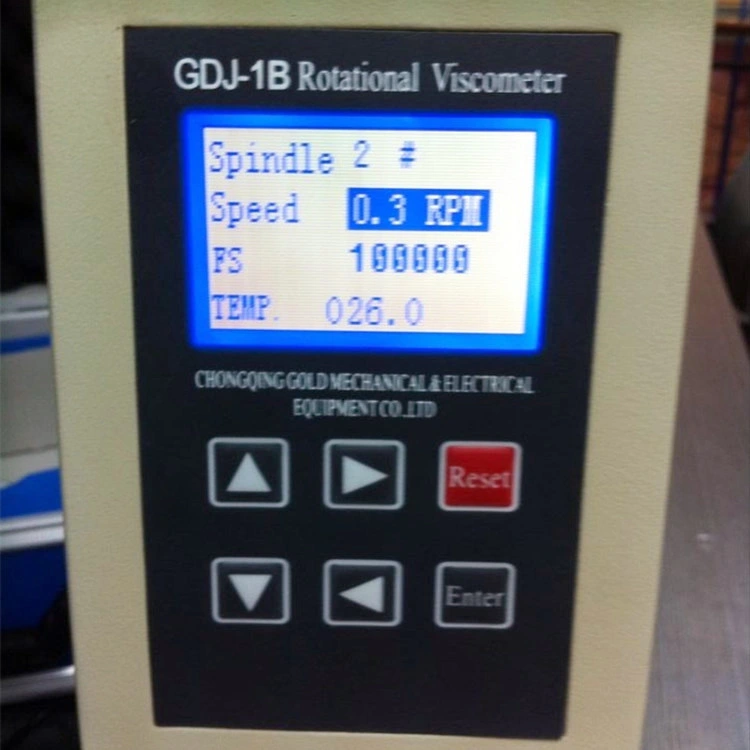

This rotational viscometer adopts advanced mechanical design technology, manufacture technique and microcomputer controlling technology. It can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly. Equipped with a special printer interface, it can print out measurement data through a printer.
II. Main technical specifications
| 1 | Measurement range | 10 mPa•s~2000000 mPa•s |

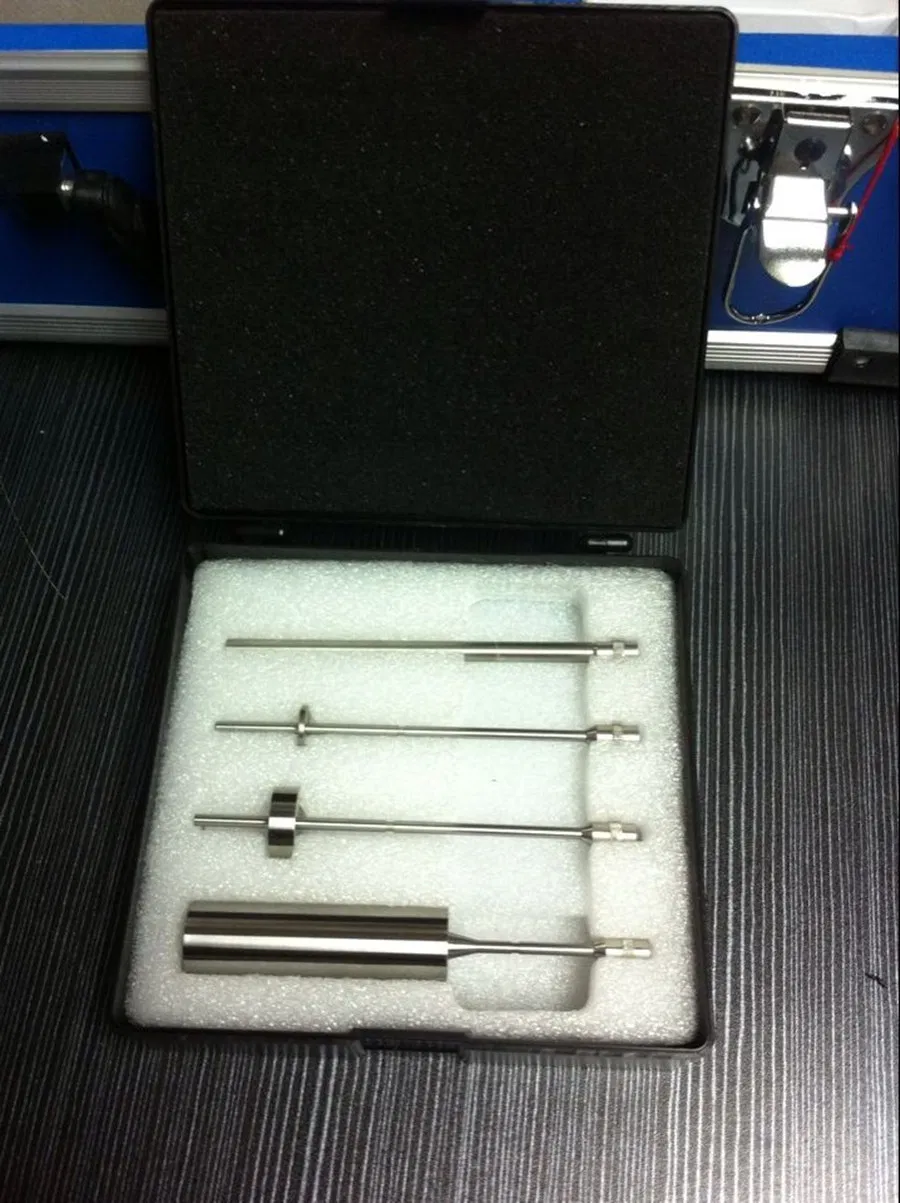

| 2 | Spindle: | No.1~No.4, four spindles |
| 3 | Rotation speed | 0.3 RPM, 0.6 RPM, 1.5 RPM, 3 RPM, 6 RPM, 12 RPM, 30 RPM, and 60 RPM; 8 grades in total |
| 4 | Measuring accuracy: | ±1% (F•S) |
| 5 | Power supply | AC 220 V±10%, 50 Hz±10% |
| 6 | Ambient temperature | 5 ºC~35 ºC |

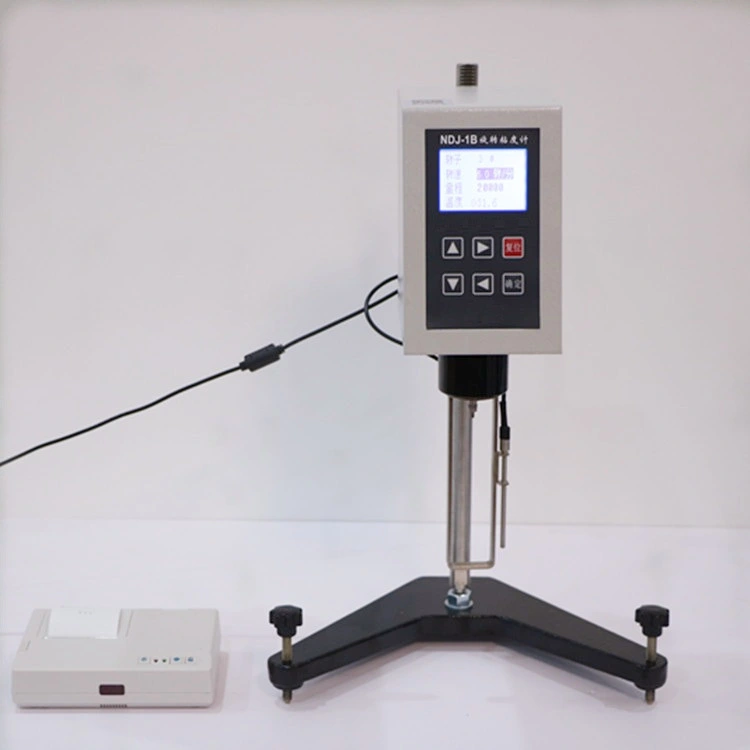

| 7 | Printing output | needle printer |
| 8 | Communication port | RS232 port |
| 9 | Optional parts |
|

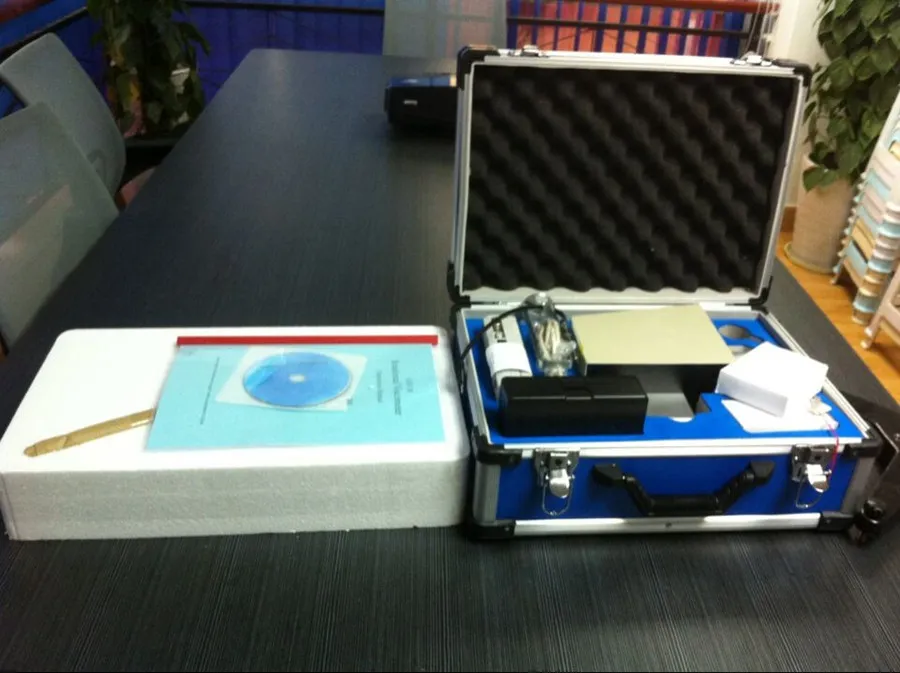

III. Detail Images
IV. Contact Us:
If you have interest, please feel free to contact with me:
Chongqing Gold Mechanical&Electrical Equipment Co., Ltd
website: chinainstrument.en.made-in-china.com
