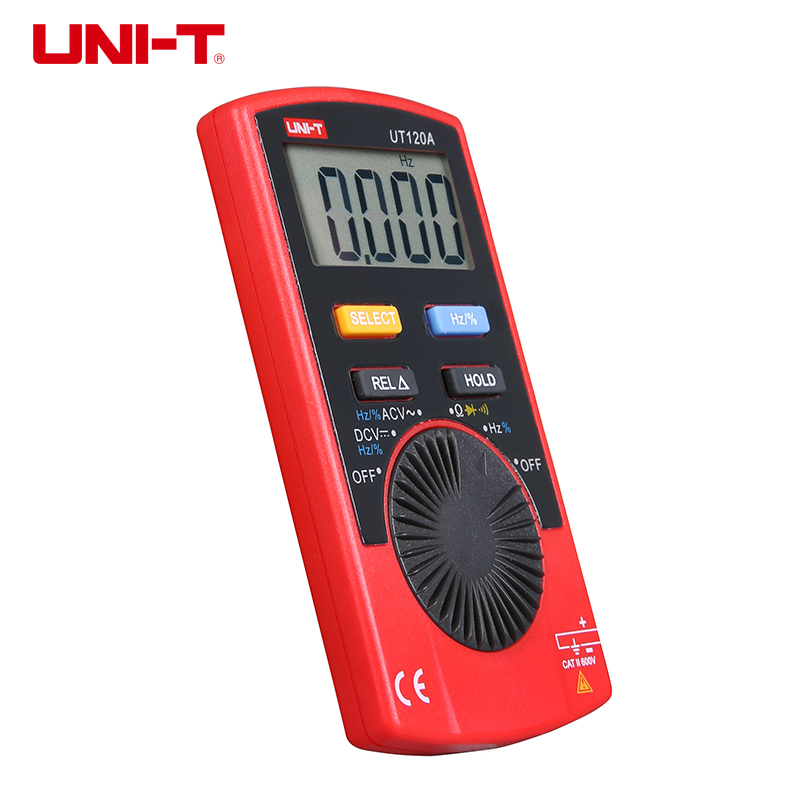

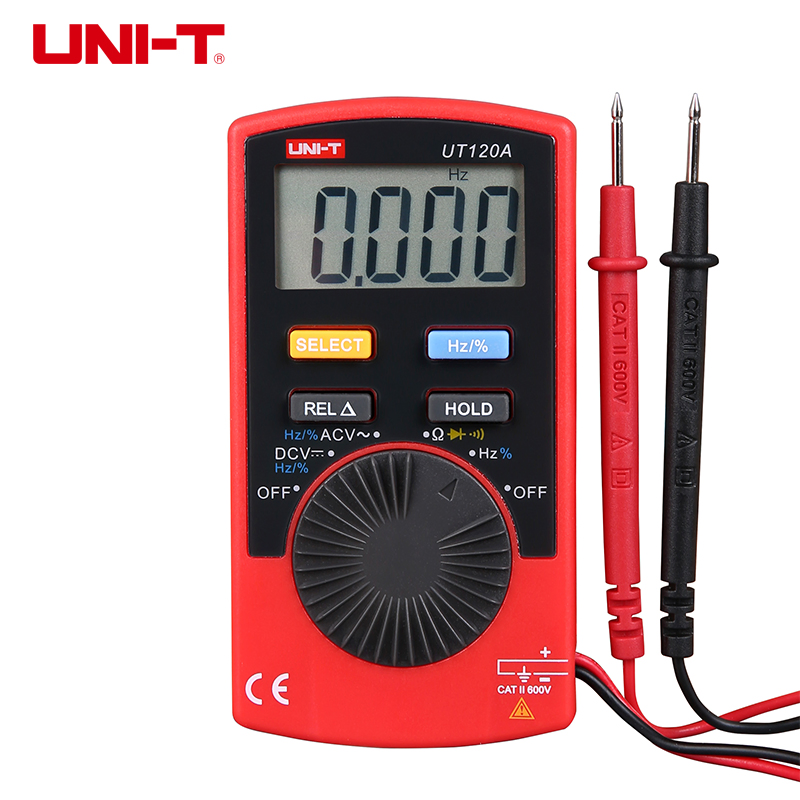

UNI-T Handheld Digital Multimeter UT120A Auto Range Continuity Buzzer Multimeter
UNI-T Handheld Digital Multimeter UT120A Auto Range Continuity Buzzer MultimeterProduct DescriptionUT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every ele......
Send Inquiry
Product Description
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
| Features of UT120A Pocket Size Digital Multimeter |
2. Auto range
3. 4000 display count
4. Data hold and relative mode1
5. Capacitance measurement (UT120B/C)
6. AC/DC current measurement (UT120C)

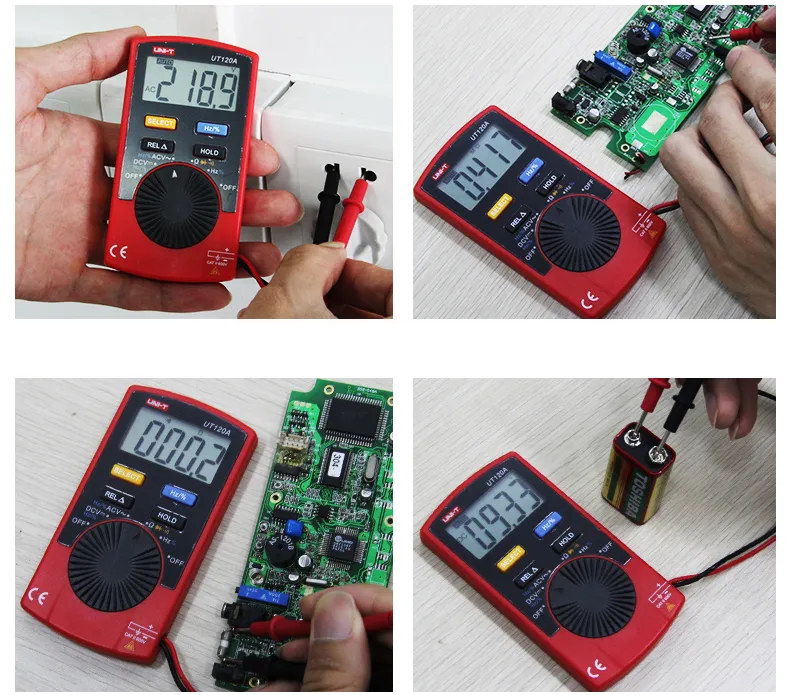

| Application of UT120A Pocket Size Digital Multimeter |
| Technical Specification of UT120A Pocket Size Digital Multimeter |
| Specifications | Range | UT120A | UT120B | UT120C |
| DC voltage (V) | 600V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| DC current (A) | 400mA | ±(1%+3) | ||
| AC current (A) | 400mA | ±(1.5%+5) | ||
| Resistance (Ω) | 40MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 100μF | ±(4%+3) | ±(4%+3) | |
| Frequency (Hz) | 10MHz | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| Features | ||||
| Display count | 4000 | 4000 | 4000 | |
| Auto range | √ | √ | √ | |
| Duty cycle | 0.1%~99.9% | √ | √ | √ |
| Diode | √ | √ | √ | |
| Auto power off | Around 30 minutes | √ | √ | √ |
| Continuity buzzer | √ | √ | √ | |
| Low battery indication | ≤2.4V | √ | √ | √ |
| Data hold | √ | √ | √ | |
| Relative mode | √ | √ | √ | |
| Input impedance for DCV | Around 10MΩ | √ | √ | √ |
| General Characteristics | ||||

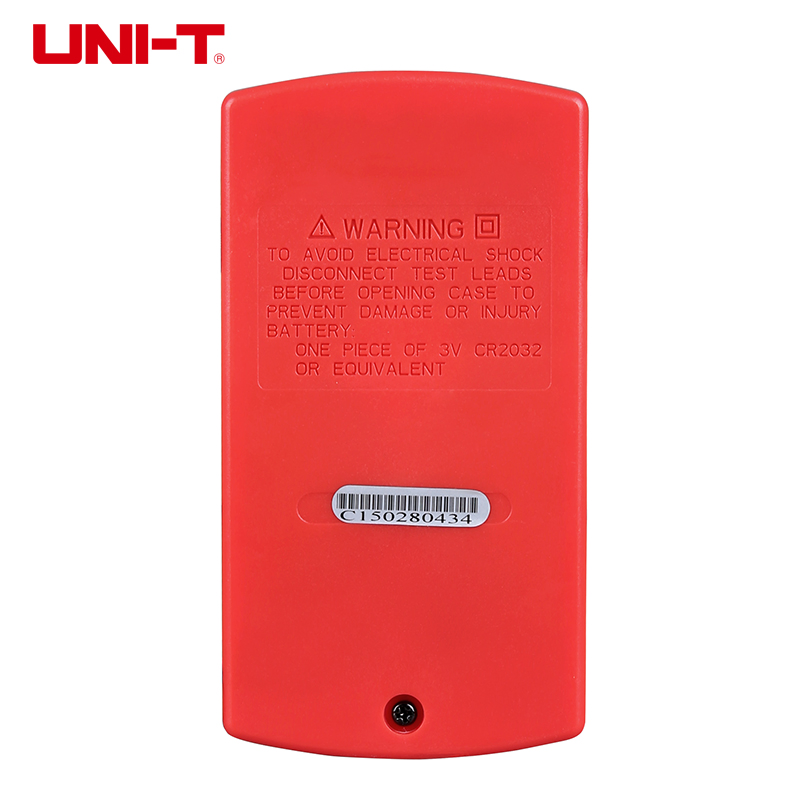

| Power | 3V battery (CR2032) | |||
| Display | 43mm x 22mm | |||
| Product color | Red and grey | |||
| Product net weight | 76g | |||
| Product size | 110mm x 58.2mm x 10.8mm | |||
| Standard accessories | Battery, carrying case | |||
| Standard individual packing | Blister, English manual | |||
| Standard quantity per carton | 100pcs | |||
| Standard carton measurement | 750mm x 275mm x 490mm (0.1CBM per export carton) | |||
| Standard carton gross weight | 20kg | |||
Uni-Trend Technology (China) Co., Ltd. is one of the well-known test and measurement solutions provider in Asia. Uni-Trend is an ISO9001 and ISO14001 certified company, with T&M products meeting certifications including CE, ETL, UL, GS, etc.
With R&D centers in Chengdu and Dongguan, Uni-Trend is capable of manufacturing innovative, reliable, safe to use, and user friendly T&M products. Uni-Trend has established collaborations with partners in over 80 countries for product distribution and services. With products meeting industry standards, Uni-Trend is able to fully satisfy product demands from around the world.
We believe that technology and innovation are important driving forces for the development of the new world. Innovation can create value.

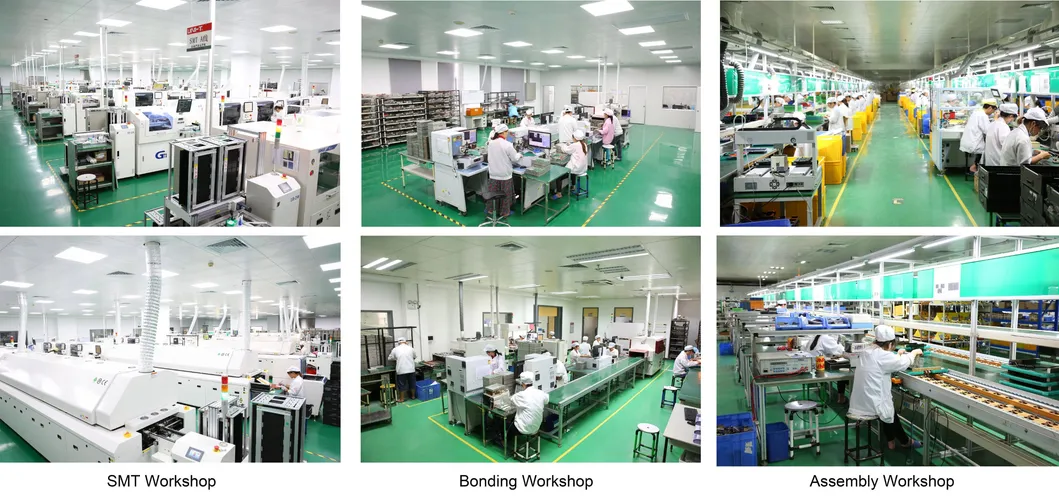

| Manufacture Environment |
| Company Certificates |
1. Wide product lines
Uni-trend have full range product of Test & Measurement Products: includes thermal imaging cameras, digital multimeters, clamp meters, infrared thermometers, environmental tester, layout & measurement tools, oscilloscopes, waveform generators, electrical power tools, electrical installation testers, fiber optic testers & process calibrators etc.
2. Rich experience
Uni-Trend was established in 1988, we have more than 30 years experiences in developing and manufacturing of test and measurement products, now UNIT is the well-known brand in Asia in this filed.
3. Professional team for customers support
Uni-Trend has more than 100 R&D engineers and 200 marketing& sales staff to provide our clients with professional technical support and service.
4. Outstanding researching and developing capability
Uni-trend has obtained more than 40 invention patent and more than 200 various types of patents, meanwhile, Uni-trend has been awarded National High-tech Enterprise and Guangdong well-known Trademark. We launches more than 100 new products each year.
5. Strictly quality control
All of our products will be made 15 rigorous reliability tests before delivery, and most of our products have the UL, ETL, GS, CE, FCC, ROHS certificates
6. Excellent production management
Uni-trend has excellent production management system, such as EPR, CRM, SRM, PLM, VMS, MES to make sure manufacture satisfied products and ship the goods on time.
