High Quality Clamp Meter AC/DC AMP Multimeter True RMS
HT206B- High Quality Clamp Meter AC/DC Amp meter true RMSfeature--Display:6000 counts--Data retention function all ranges--Low battery indicator--Overload protection--Out of range indication--Power: 9 volt battery--Clamp jaw opening:--Reading rate: 3 times / sec--Unit size:193*73*34mm--Weigh......
Send Inquiry
Product Description

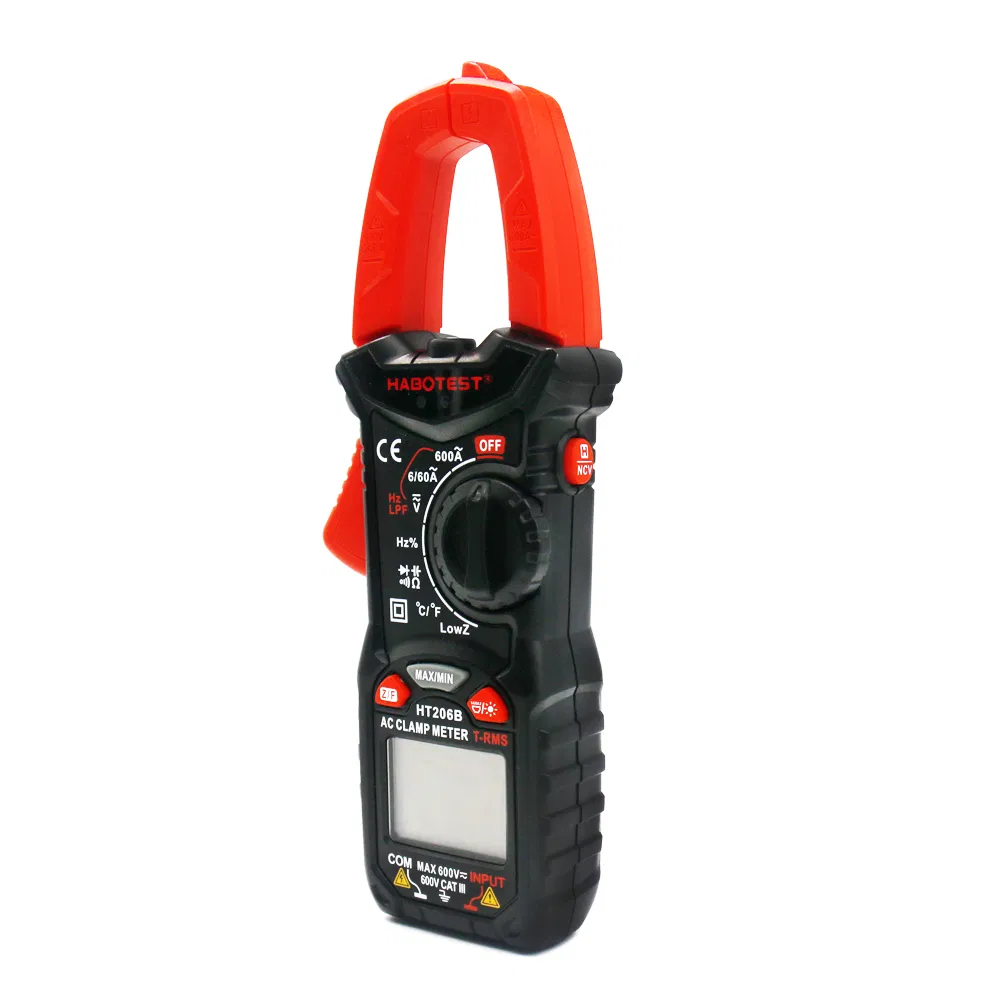

HT206B-
High Quality Clamp Meter AC/DC Amp meter true RMS
feature
--Display:6000 counts
--Data retention function all ranges
--Low battery indicator
--Overload protection
--Out of range indication
--Power: 9 volt battery
--Clamp jaw opening:
--Reading rate: 3 times / sec
--Unit size:193*73*34mm
--Weight: approx.260g
Functions
A portable instrument that can directly measure the AC current of a circuit without disconnecting the circuit.
High Quality Clamp Meter AC/DC Amp meter true RMS
High Quality Clamp Meter AC/DC Amp meter true RMS
specifications | range | accuracy | |
|
| HT206A | |
DC Voltage | 600V | ±(0.5%+3) | |
| 600mV/6V/60V/600V/600V |
| |
AC Voltage | 600V | ±(1.0%+5) | |
| 6V/60V/600V/600V |
| |
AC Current | 2A/20A/200A | ±(2.5%+5) | |
Resistance | 2KΩ/20KΩ | ±(1.0%+3) | |
| 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
| |
Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF |
| |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
| |
Duty | 1%~99% |
| |
Temperature(ºC/°F) | -40ºC~1000ºC |
| |
| -40°F~1832°F |
| |
Counters | 6000 counters | ||
Auto/manual range | Manual | ||
Continuity (sound and light alarm) | √ | ||
Diode test |
| ||
Data hold | √ | ||
NCV (sound and light alarm) |
| ||
Backlight | √ | ||
Flashlight | √ | ||
Low battery indication | √ | ||
Auto power off | √ | ||
True RMS |
| ||
LPF |
| ||
Max/MIN | √ | ||
LowZ | |||
High Quality Clamp Meter AC/DC Amp meter true RMS
Our Services
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
Packing & Delivery
What are our advantages?
(1)Factory Direct Sale ---Factory direct sale business model,excellent in quality & lower in price
(2)Professional Team---Professional technician team,skilled workers with exquisite workmanshop
(3)Duly Delivery Time---Dependable production capacity and large amount of output,guarantee duly delivery time
(4)High Quality---Product and materials has passed relevant quality test secure and environmental
(5)Customization Service---Providing full set of customization service,OEM or ODM are welcomed
