Product Description

HT-113C
Digital Multimeter With T-RMS/Autorange

product feature
-resistance measure up to 60mΩ with continuity detection
-large dual backlight diaplay with 4000 counts
-voltege measurement
-manual power off
-low battery indication
-backlight
-the data hold
-true RMS measrument

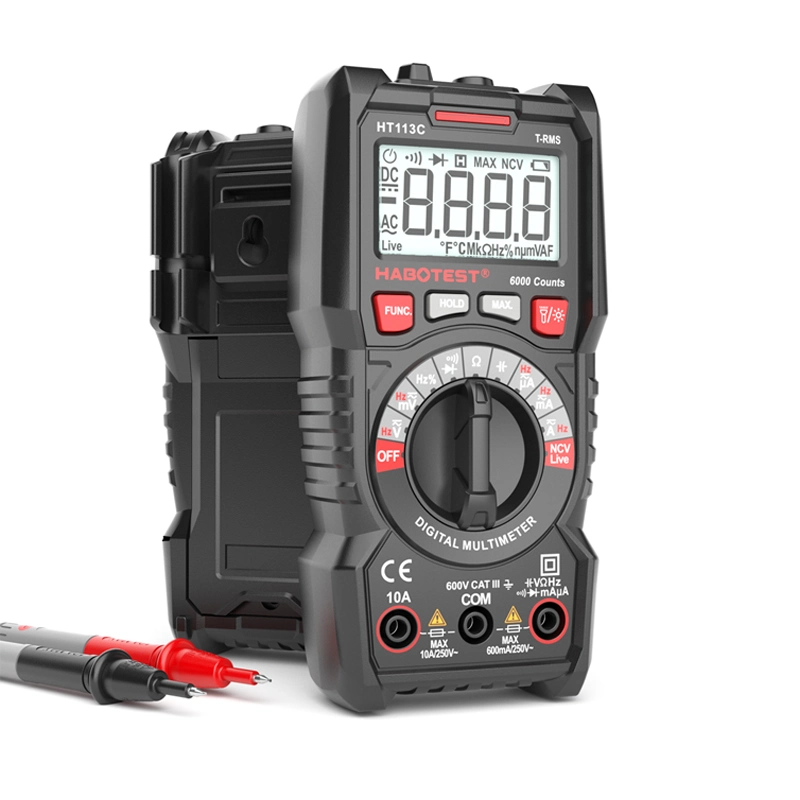

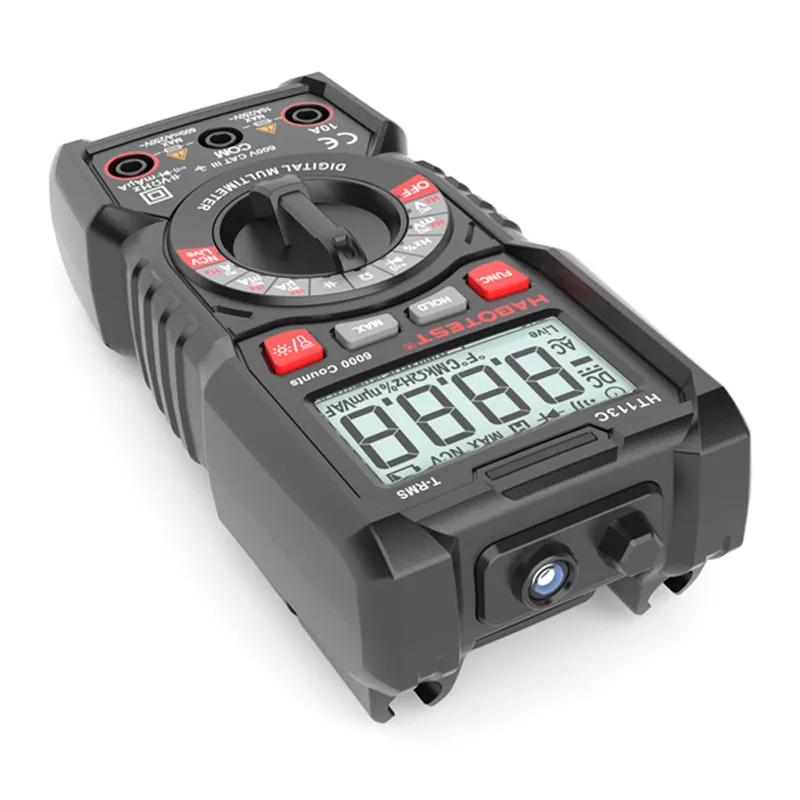

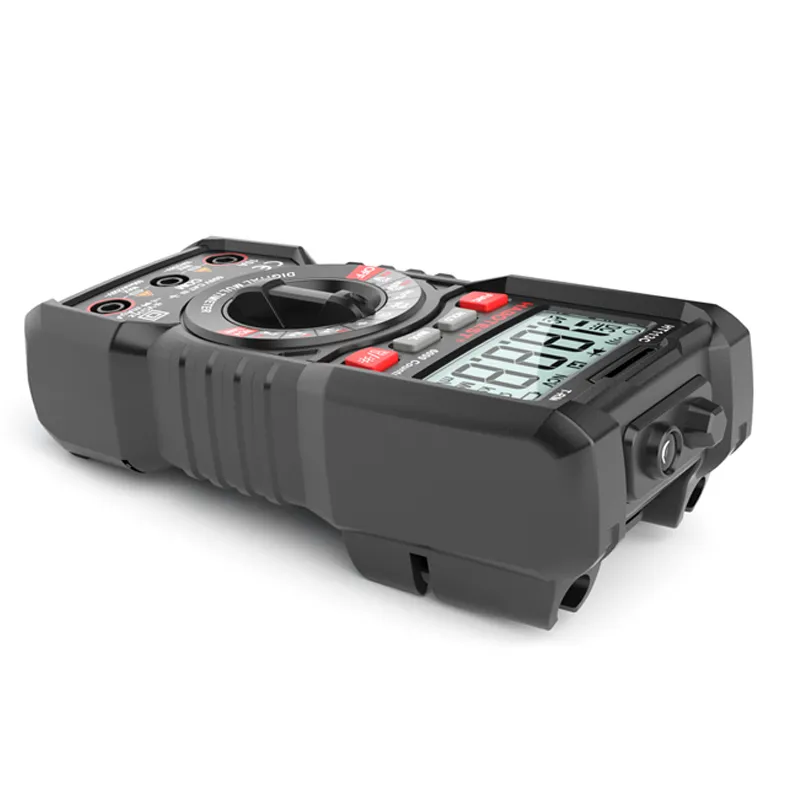

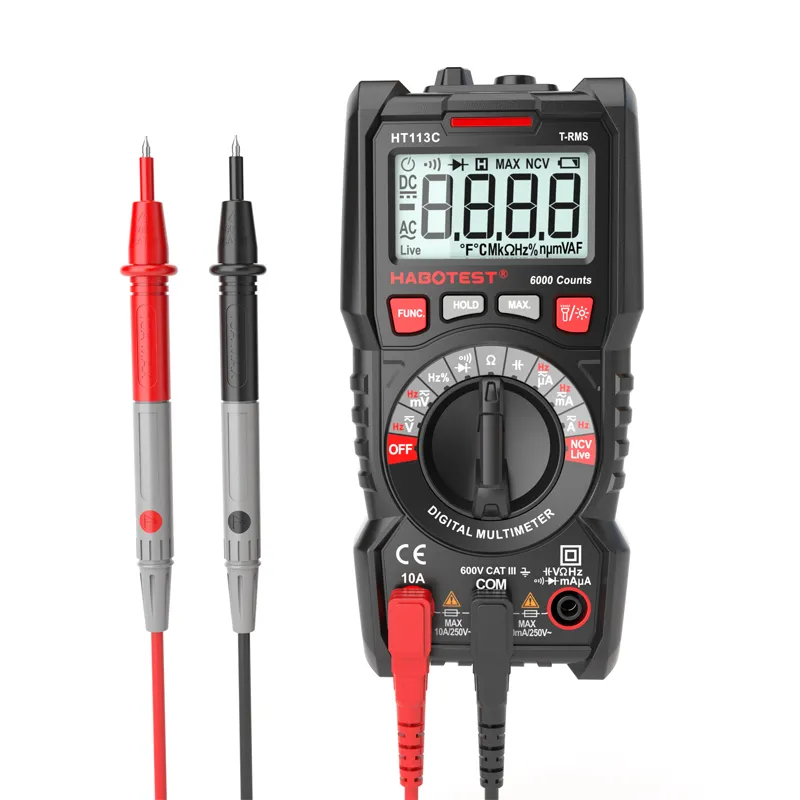

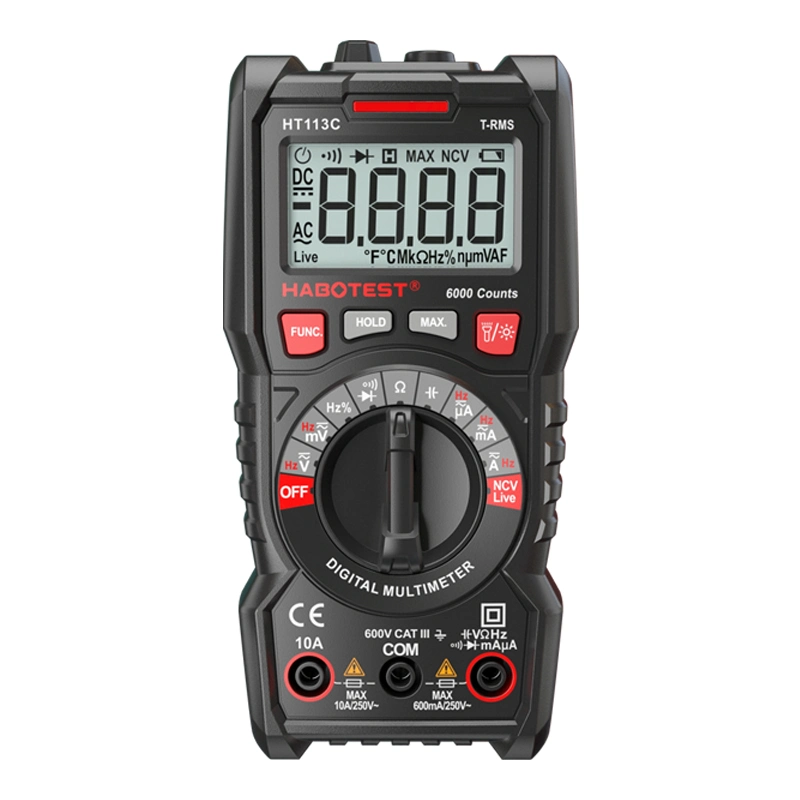

product image

Capacitance Tester Temperature Tester Mul-Funtion Resistance and Continuity Multimeter

Specifications

Specifications	Range	Accuracy
		HT113C
DC Voltage	400mV/4V/40V/400V/600V
	600mV/6V/60V/600V	±(0.5%+3)
AC Voltage	400mV/4V/40V/400V/600V
	600mV/6V/60V/600V	±(1.0%+3)
	400uA/4000uA/40mA/400mA
DC Current	600uA/600uA/60mA/600mA	±(1.2%+3)
	10A	±(2.0%+3)
AC Current	400uA/400uA/40mA/400mA
	600uA/6000uA/60mA/600mA	±(1.5%+3)
	10A	±(2.0%+3)
Resistance	400Ω/4KΩ/40kΩ/400kΩ/4MΩ/40MΩ
	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(1.0%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(4.0%+3)
	100mF	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(1.0%+3)
Duty	1%~99%	±(3.0%+3)
Display		6000 Counts
Auto/Manual range		Auto

General
Power supply:2x1.5V AAA batteries
Product size:151mm*75mm*48mm
Product weight:Approx.220g
Safety rating:EN61010-2-030
EN61010-2-033
CATIII 600V
