Product Description

tuf-2000h liquid ultrasonic flow meter

Description tuf-2000h liquid ultrasonic flow meter
portable ultrasonic flow meter ultrasonic flowmeter with CE approved with the capability of a full size flow meter. It is carefully designed for portability and ease of use.
The advanced circuit design, the integration of the latest semiconductors, the user-friendly software interface both in English and Chinese languages and small-sized PCB board, all these features combine to make the TUF-2000H ultrasonic flow meter the best and the biggest seller on the Chinese market. Moreover, it is gaining more and more recognition on the international flow meter market

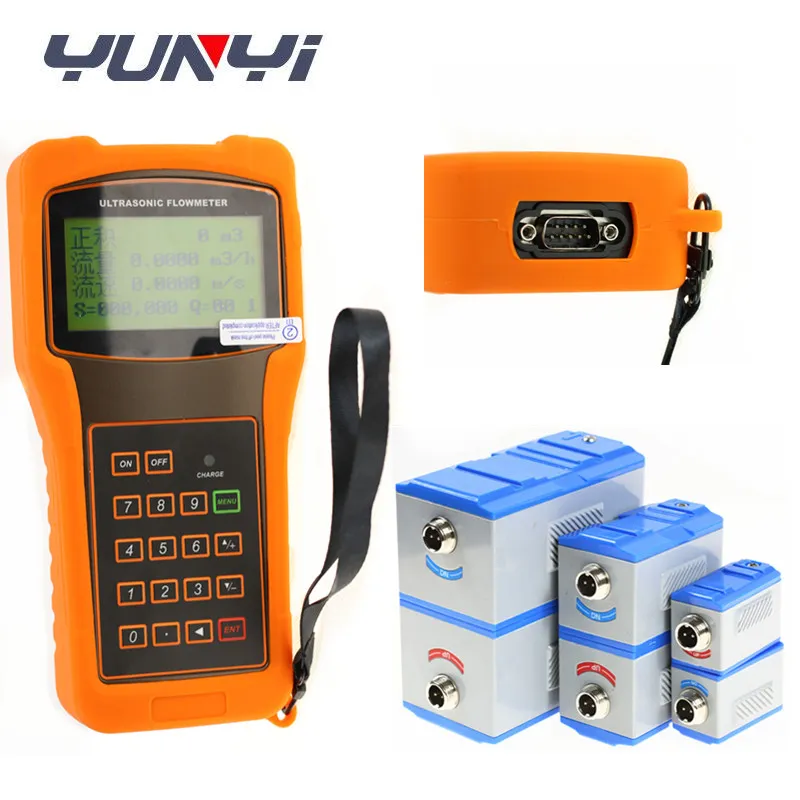

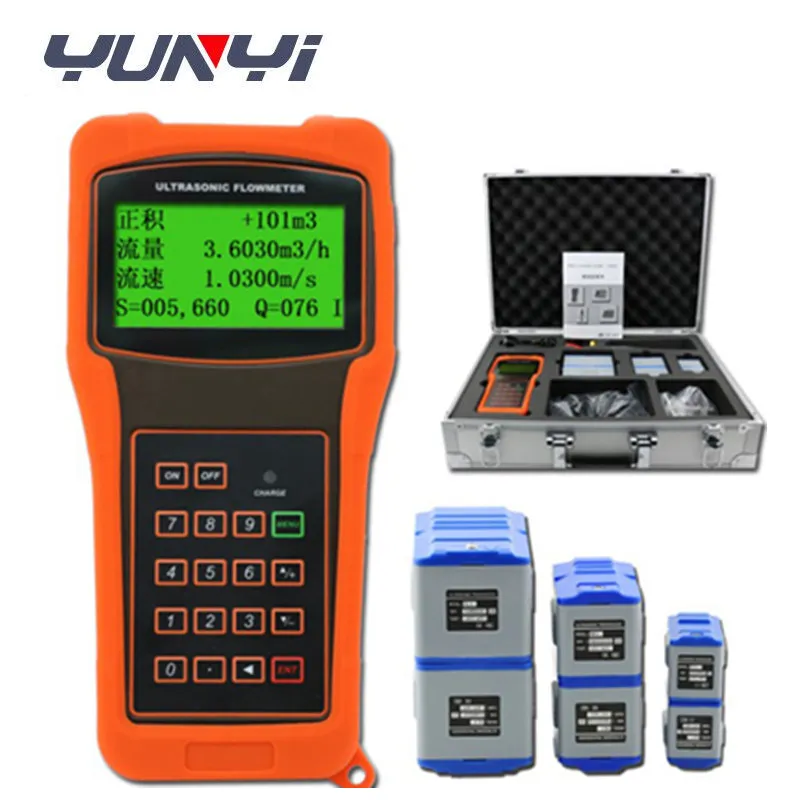

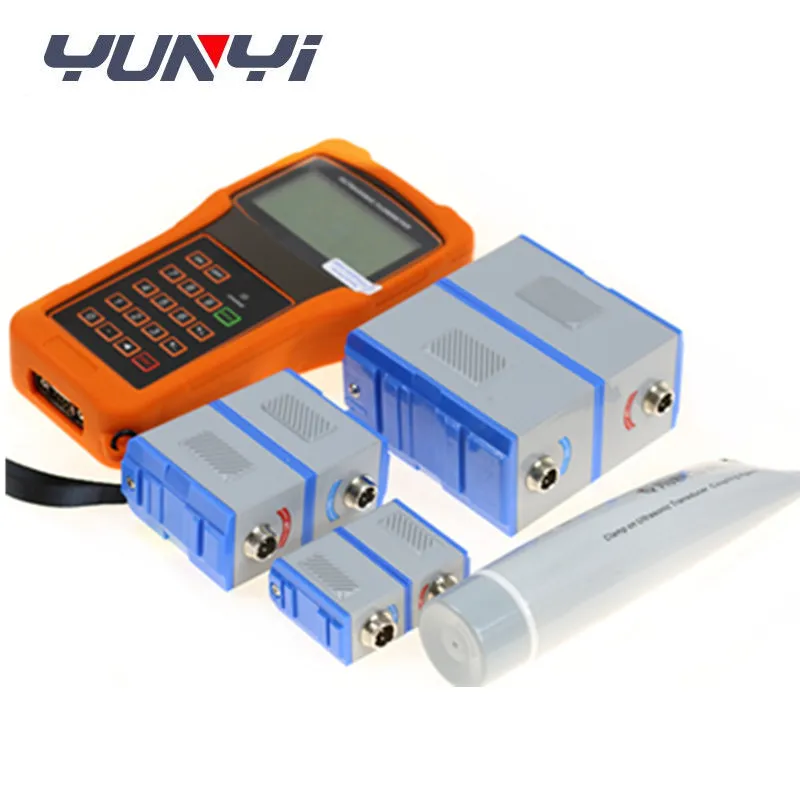

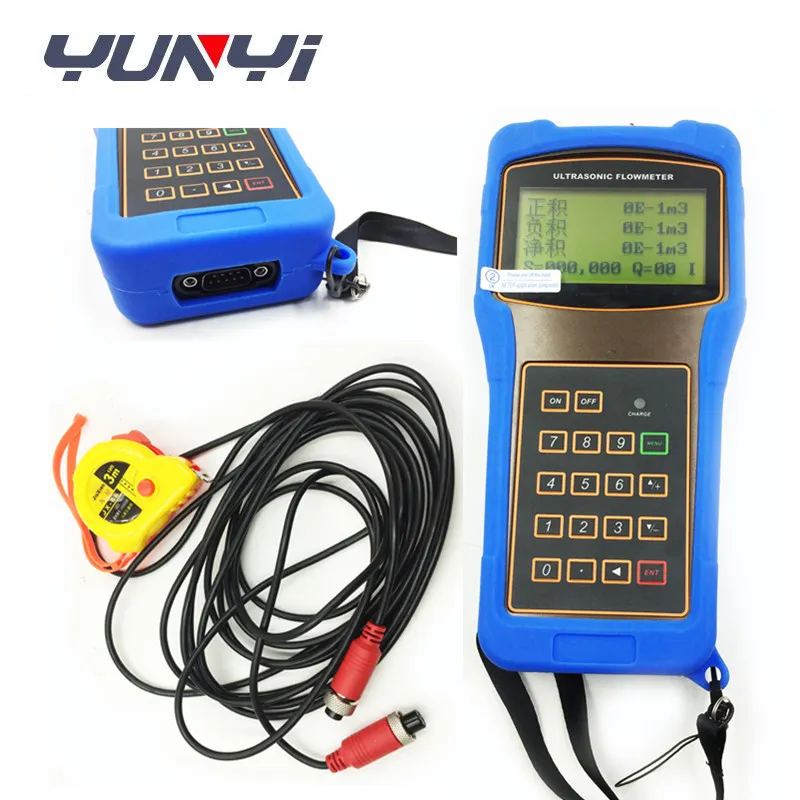

Detailed Images tuf-2000h liquid ultrasonic flow meter

Specification tuf-2000h liquid ultrasonic flow meter

  *   Better than 1% accuracy.
*   0.2% of repeatability.
*   Positive / negative / net flow totalise
*   4 line LCD display.
*   Operate with clamp-on transducers.
*   RS-232/OCT output
*   Ni-MH Battery life for up to 12 hours continuous operation.

Features tuf-2000h liquid ultrasonic flow meter

Linearity	0.5%
Repeatability	0.2%
Accuracy	±1% of reading at rates>0.2 mps
Response Time	0-999 seconds, user-configurable
Velocity	±32 m/s
Pipe Size	15mm-6000mm
Totalizer	7-digit totals for net, positive and negative flow respectively
Liquid Types	Virtually all liquids
Security	Setup values Modification Lockout. Access code needs unlocking
Display	4x8 Chinese characters or 4x16 English letters
Communication Interface	RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements
Transducer Cord Length	Standard 5m x 2, optional 10m x 2
Power Supply	3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger
Data Logger	Built-in data logger can store over 2000 lines of data
Manual Totalizer	7-digit press-key-to-go totalizer for calibration
Housing Material	ABS
Case Size	210x90x30mm
Main unit Weight	500g with batteries
