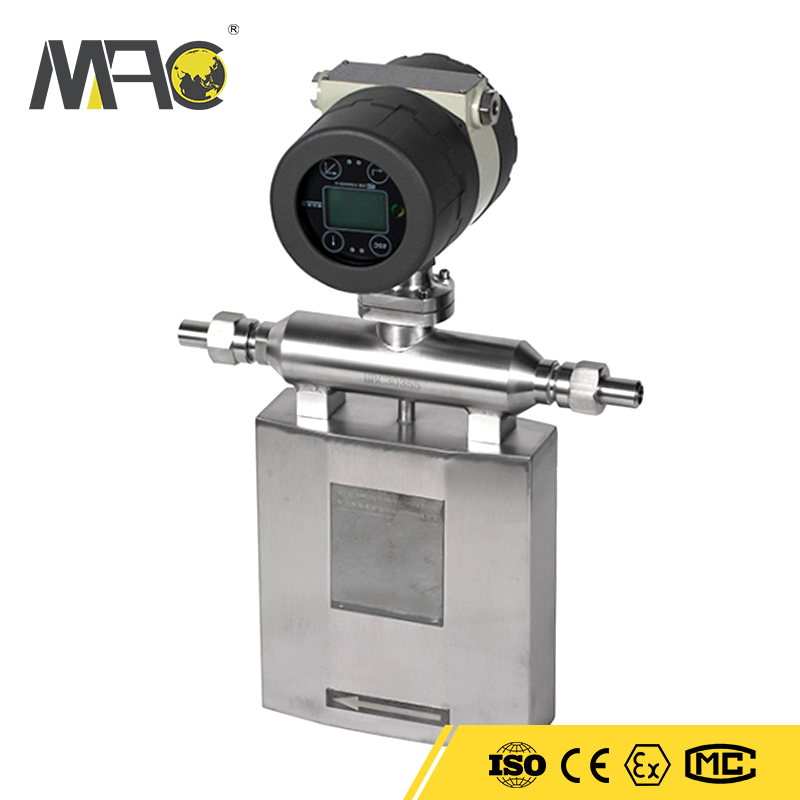

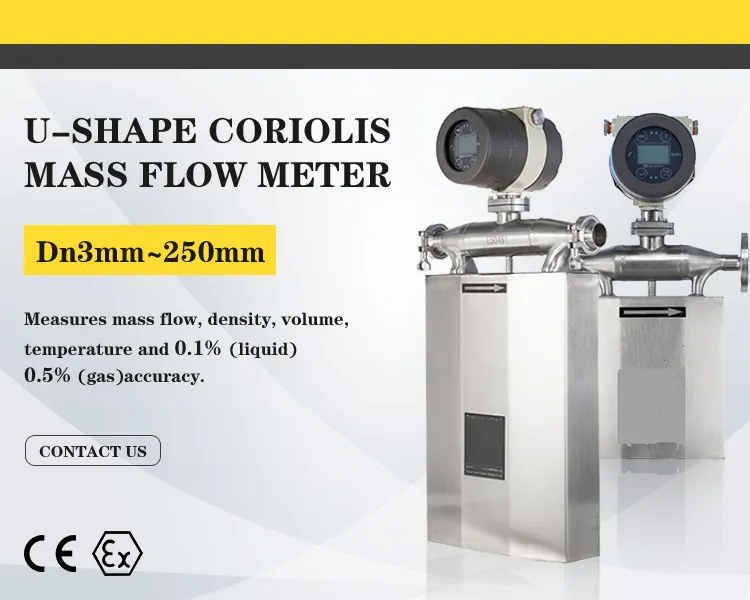

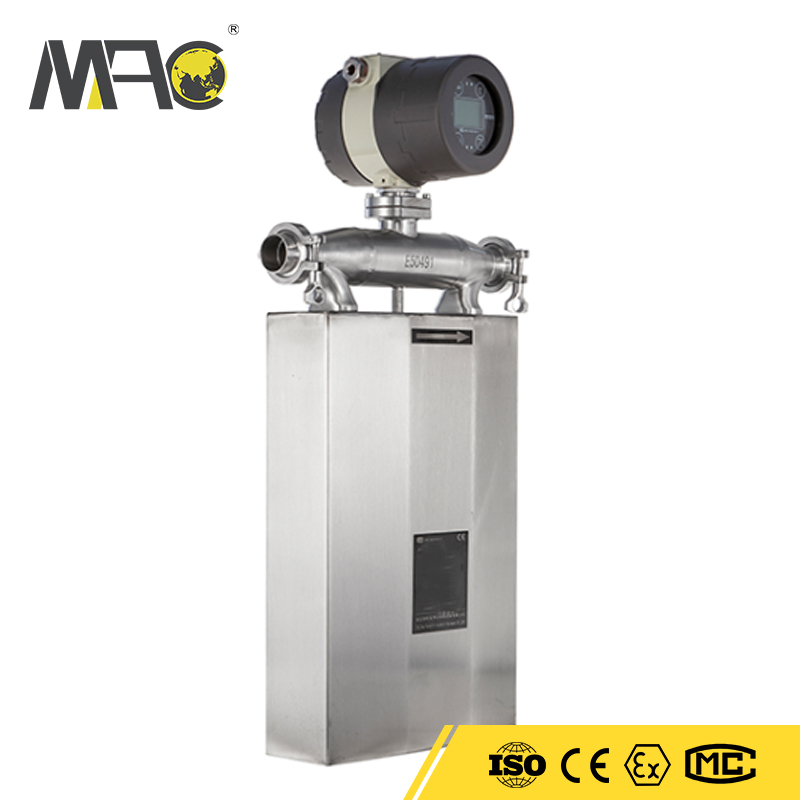

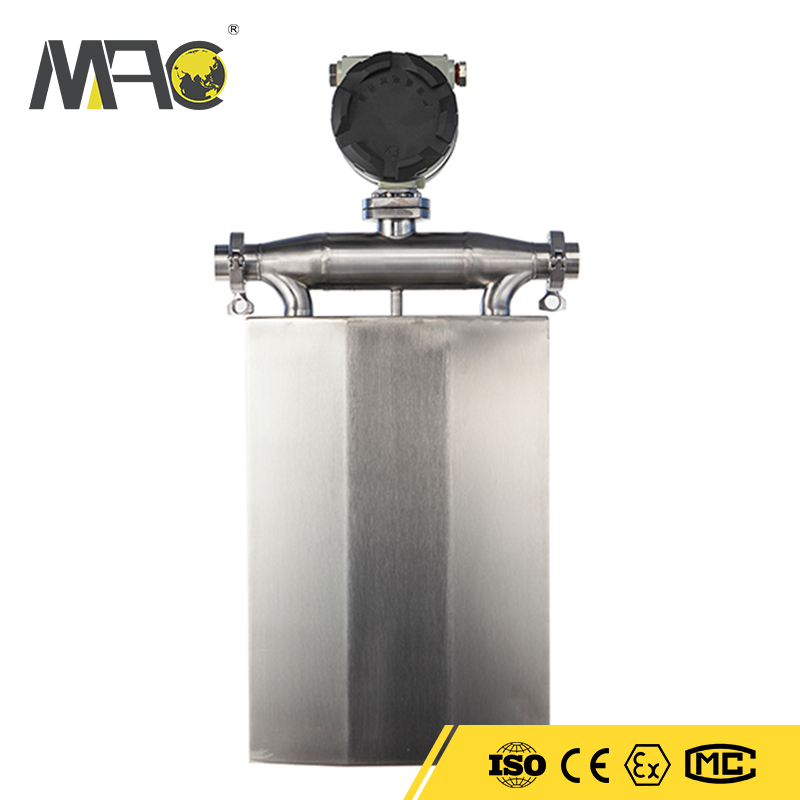

Macsensor 0.1 Precision Grade Competitive Price Diesel Working Principle Coriolis Mass Flow Meter
Introduction of Turbine flow meterHigh accuracy, low requirements for fluid state, low pressure lossParameter DiameterDN3mm-250mmMedium temperature-50ºC~+150ºC (-200ºC~+350ºC customizable)Environmental TemperatureSensor: -41ºC~+150ºC Transmitter:......
Send Inquiry
Product Description
Introduction of Turbine flow meter
- High accuracy, low requirements for fluid state, low pressure loss
Parameter Diameter DN3mm-250mm Medium temperature -50ºC~+150ºC (-200ºC~+350ºC customizable) Environmental Temperature Sensor: -41ºC~+150ºC
Transmitter:-41ºC~+80ºCAccuracy of flow rate measurement ±0.5%, ±0.2%,±0.1%±[(stability at zero point)/flow rate×100]% flow Accuracy of density measurement ±0.002g/cm2, ±0.001g/cm2 Repeatability ±0.10%, ±0.05% flow±[½(zero point stability/flow value)×flow Output signal 4~20mA load resistance <500 Ω(Instantaneous flow or density optional, 0~10kHz Instantaneous flow pulse signal);
485 (MODBUS-RTU)
HartElectrical Port 1/2"NPT Explosion-proof grade EX d ib II C T6 Gb Protection grade IP67 Work Temperature -25~75ºC Storage Temperature -40~85ºC Power supply 24V DC(220V AC or 24V DC and AC customizable )

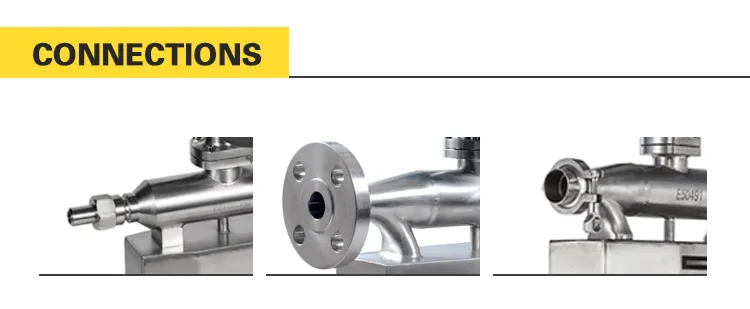

Connections can be specially customized based on your own requirements .GB Flange\ANsi\DIN\JIS Flanges\Thread connection\Tri-clamp connections.etc

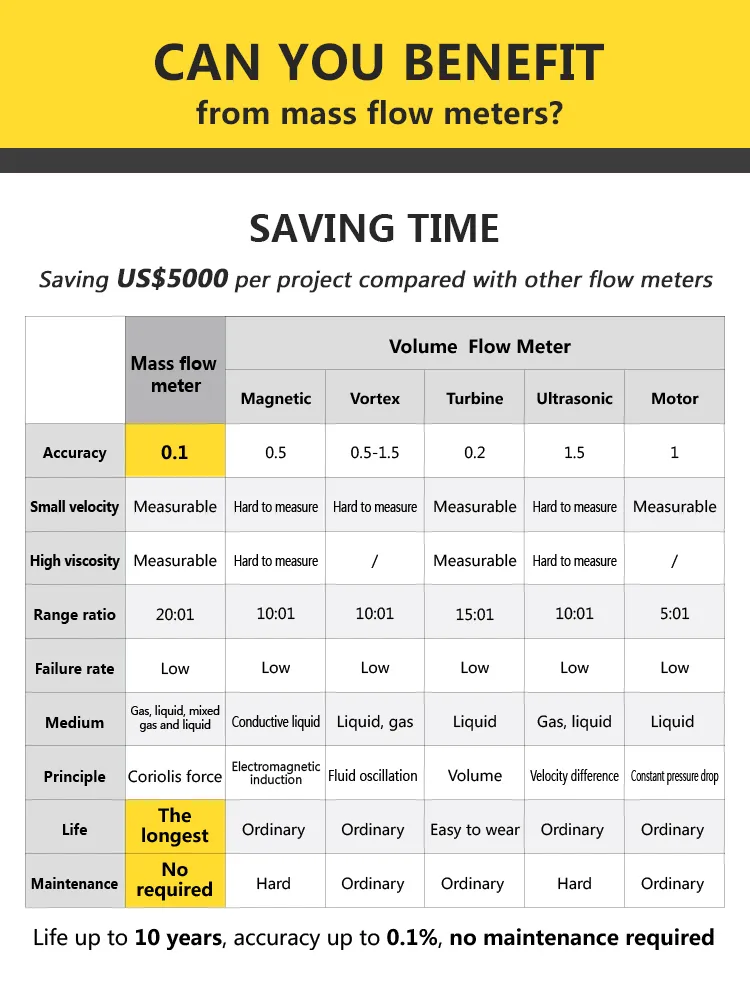

You will benefit from Macsensor magnetic flow meter?
- Saving money
- Saving labor
- Saving time
