Smith Pd Rotary Vane Flow Meter
Smith pd rotary vane flow meter 1. Features&data:Diameter:50mm/2"Flow Range:38-380L/MinVolume/Rev.:0.681LMax.Pressure:10BarAccuracy:±0.2%Repeatability:≤0.05%Viscosity:30SSU-1,500,000SSUMeasurement:Liter or GallonMeter Body:AluminumSeal & Gasket:Buna"N";Viton;......
Send Inquiry
Product Description

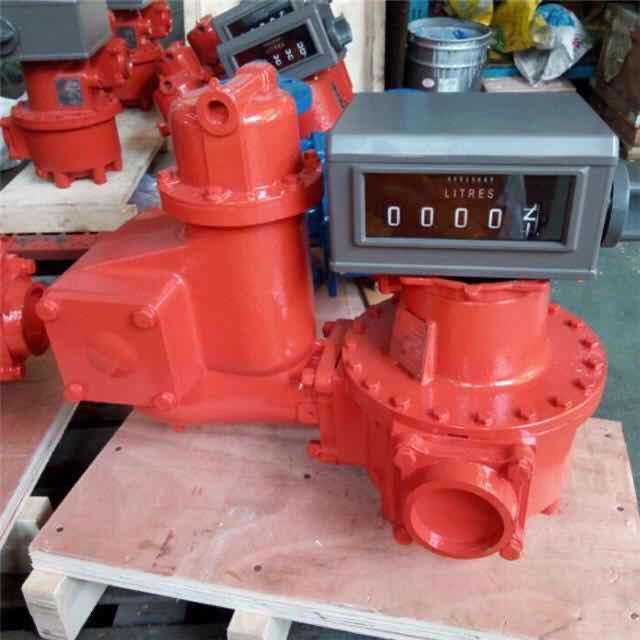

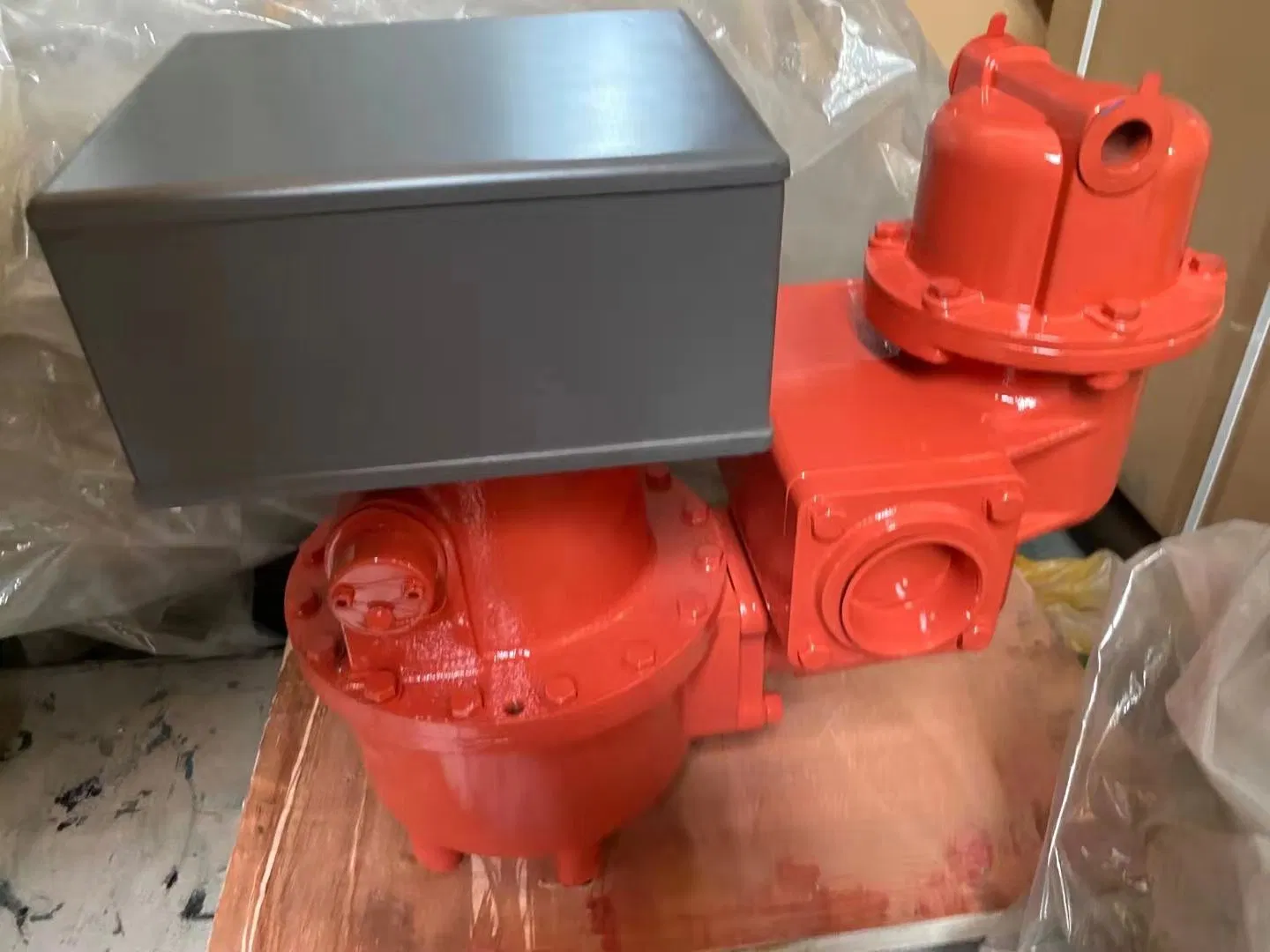

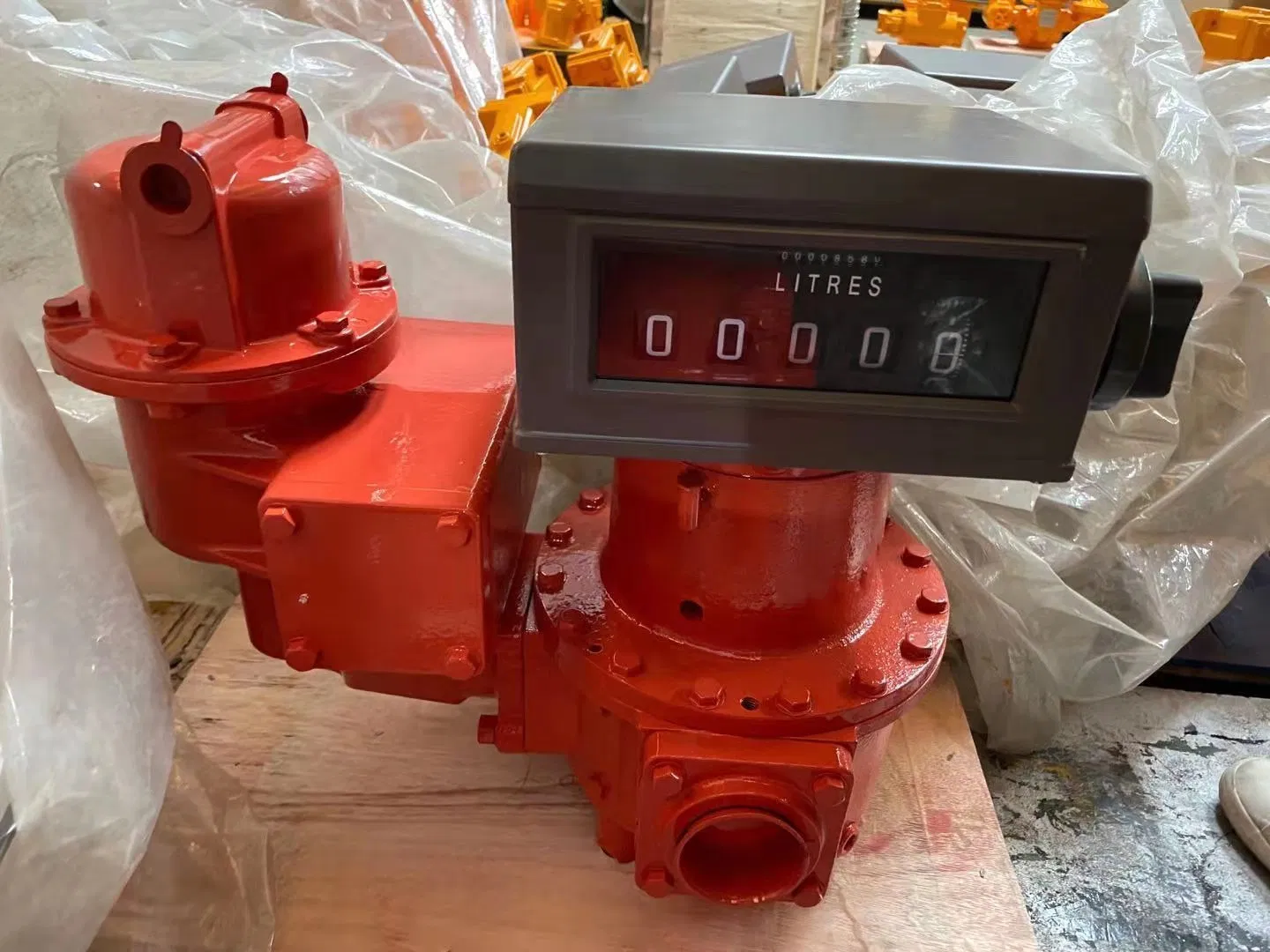

Smith pd rotary vane flow meter
1. Features&data:
Diameter:50mm/2"
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Seal & Gasket:Buna"N";Viton; Teflon for option
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm
1. Features&data:
Diameter:50mm/2"
Flow Range:38-380L/Min
Volume/Rev.:0.681L
Max.Pressure:10Bar
Accuracy:±0.2%
Repeatability:≤0.05%
Viscosity:30SSU-1,500,000SSU
Measurement:Liter or Gallon
Meter Body:Aluminum
Seal & Gasket:Buna"N";Viton; Teflon for option
Strainer Mesh: 60Mesh
End Connection:Flange, NPT or BSPT etc.
Built-in precision totalizer accumulating to
99,999,999 units,Delivery display 5 digital
Gross Weight:50Kgs
Packaging Size:53*58*53cm
Characteristics
• Excellent stepless adjusting mechanism allows a micro adjustment of the meter
• High accuracy and repeatability over the widest range of flow; Superior accuracy
at constant flow
at constant flow
• Low maintenance, no metal-to-metal contact in measuring chamber, long life service
• Low pressure loss, a true gravity flow meter
• Accuracy regardless of pressure fluctuations, temperature variation, viscosity
• Choice of aluminum, cast iron and stainless steel materials of construction

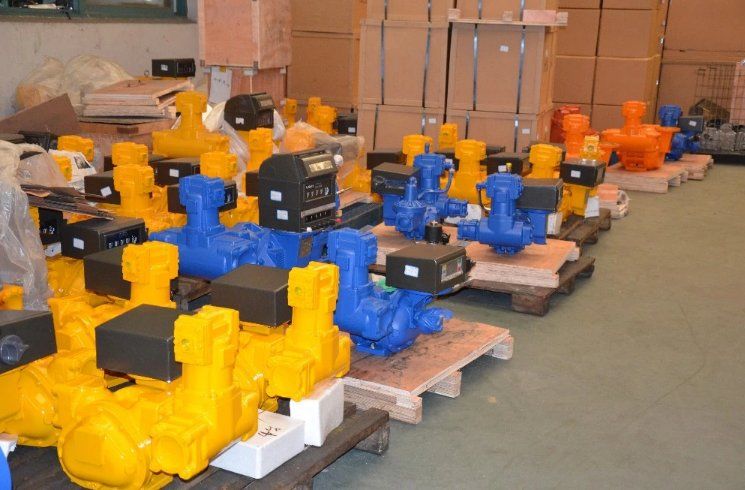

2. Our products
FAQ
1.What is MOQ?
usually one set,and we can delivery by fast air express which not occupy space and not heavy for transport
2.Can you also OEM OR ODM for us?
Yes,we customize logo and brand according to customer requirement.
3.How about your machine quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of flow meters.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our machines are running well in more than 30 countries
Technical Specification | |||||||||
Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
Size | 40mm / 1.5" | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " | 150mm / 6 " | ||||
Flow Range (L/Min) | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
Volume /Rev. | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
Max. Pressure | 10Bar/150PSI | 25Bar/350PSI | |||||||
Accuracy | ±0.2% | ||||||||
Repeatability | ≤0.05% | ||||||||
Standard Measurement | Liter / US Gallon/IMP Gallon | ||||||||
Viscosity | 30SSU~1,500,000SSU | ||||||||
2. Our products
FAQ
1.What is MOQ?
usually one set,and we can delivery by fast air express which not occupy space and not heavy for transport
2.Can you also OEM OR ODM for us?
Yes,we customize logo and brand according to customer requirement.
3.How about your machine quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of flow meters.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard.our machines are running well in more than 30 countries
