Product Description
Handheld Portable Ultrasonic Water Flow Meter with RS485 / 4-20mA / OCT Output

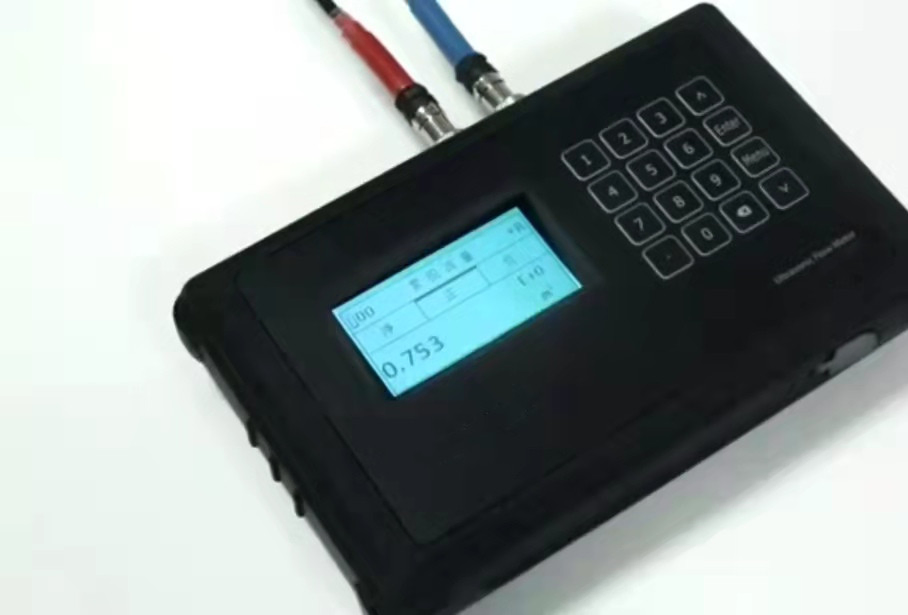

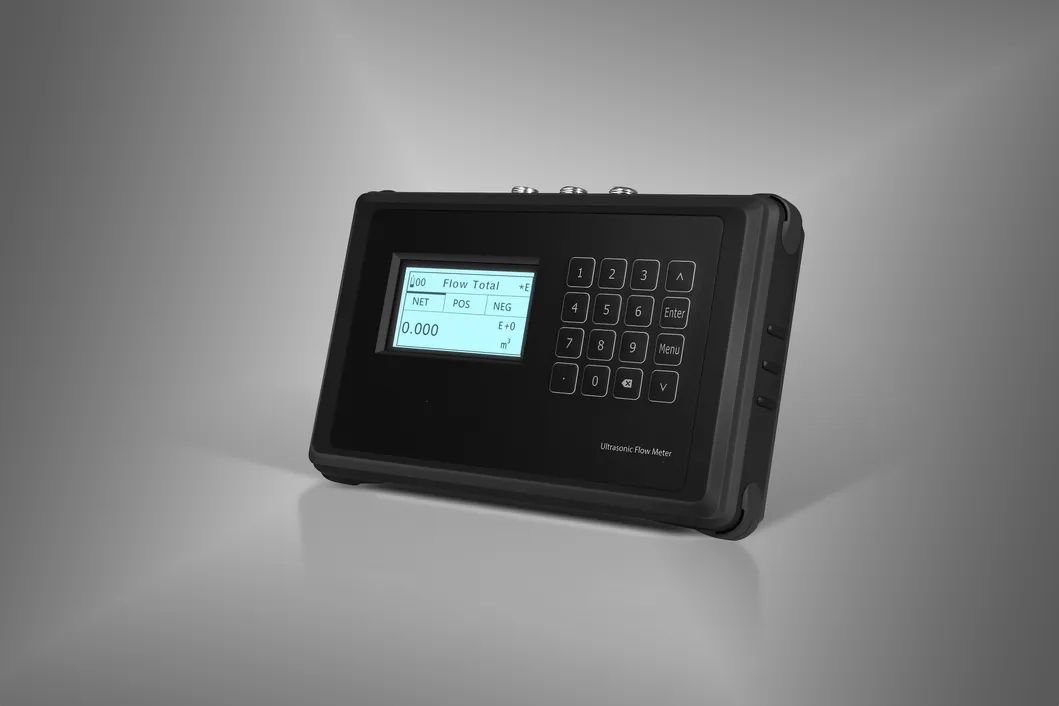

ML-6100P is a full function portable transit-time ultrasonic flow meter. No matter you want to quickly verify the flow reading of another meter or to data log flow system values over an extended time period, our company's 6100P is the suitable tool.

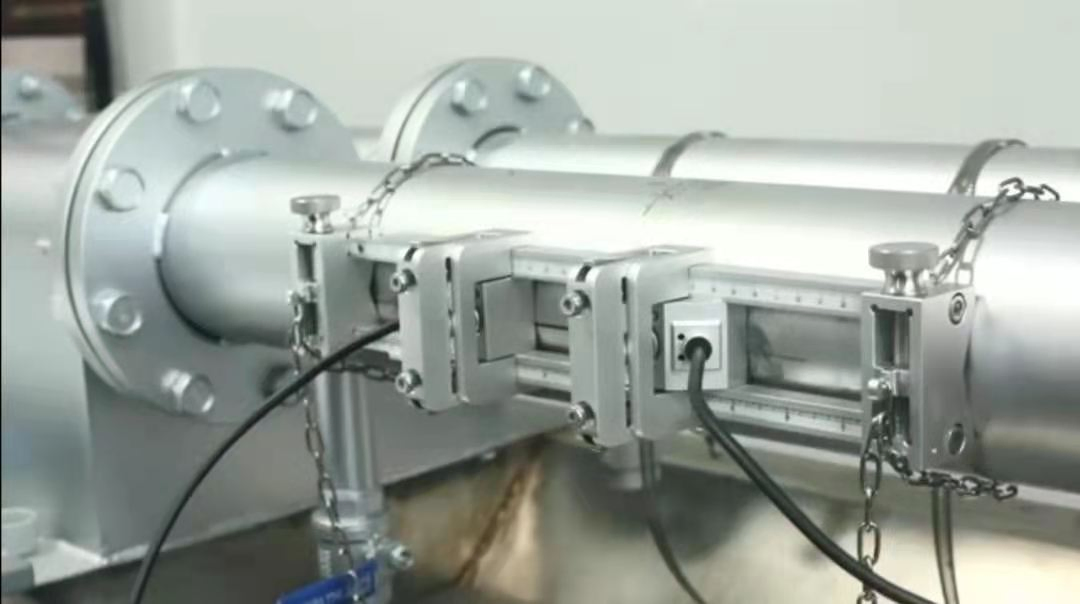

The external clamp type or pipe section type ultrasonic flow meter is based on the principle of "velocity difference method" to measure the liquid flow in the pipe. It adopts advanced multi pulse technology, digital signal processing technology and error correction technology, so that the flow meter can adapt to the environment of industrial field, and the measurement is more convenient, economical and accurate. The products have reached the advanced level at home and abroad, and can be widely used in the fields of petroleum, chemical industry, metallurgy, electric power, water supply and drainage, etc.
| Performance | |
| Velocity Range | ±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) |
| Accuracy | ±1% of measured value |
| Repeatability | 0.2% of measured value |
| Linearity | ±1% |
| Pipe Size | DN25~DN1200(A pair of sensors) |
| Function | |
| Output | Analog output: 4~20mA, max load 750Ω. |
| Pulse output: 0~10KHz | |
| Communication | RS485 Modbus |
| Power Supply | Rechargeable Lithium Battery Power,3000mAh |
| Display | 240*128 back lit LCD |
| Temperature | Transmitter: -14ºF~140ºF(-20ºC~60ºC) |
| Transducer:-40ºF~176ºF(-40ºC~80ºC,D1) | |
| Transducer:-40ºF~266ºF(-40ºC~130ºC,D1U) | |
| Humidity | Up to 99% RH,non-condensing |
| Physical | |
| Transmitter | NEMA13, IP54 |
| Transducer | Encapsulated design,IP68 |
| Double-shielded transducer cable | |
| Standard/maximum cable length:30ft/1000ft(9m/300m) | |
| Model | Transmitter |
| ML-6100P | PortableType |
| Velocity Range:±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s) | |
| Accuracy :±1% of the measure value | |
| Repeatability:0.2% of the measure value | |
| Display:240*128 back lit LCD | |
| Internal Lithium Power Supply: 3000mA | |
| Transmitter Enclosure: IP54 | |
| Output: OCT pulse output 0-10KHz, Relay output, 4-20mA for option | |
| Communication: RS485 | |
| Code | Type of Trnansmitter |
| 1 | Ultrasonic Flow Meter |
| 2 | Ultrasonic Energy / BTU Meter(RTD) |
| Code | Transducer |
| D1 | Clamp-on, IP68. Operating temperature:-40 ºF ~ +176 ºF(-40ºC ~ +80 ºC) |
| D1U | Clamp-on, IP68. Operating temperature:-40 ºF ~ +266ºF(-40ºC ~ +130 ºC) |
| Code | Type of Mounting Bracket |
ST | Single guide mounting type bracket |
| DT | Double guide mounting type bracket |
| Code | Transducer Cable Length |
| P5 | Standard length 16ft (5m) |
| PXX | XX is the length you need for cables, Maximum length is up to 30m. |
| Code | Temperature Transducer |
| PT1000 | PT1000 temperature transducer+RTD module(option) |

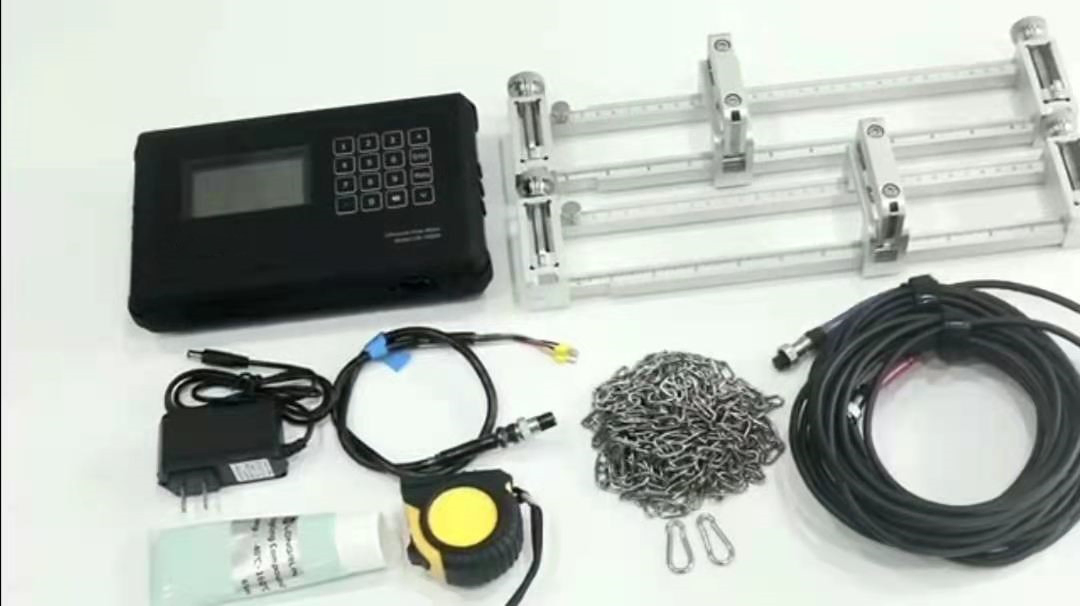

1. Carrying Case*1pc.
Melan Measurement & Control Instruments is located in Shanghai City. It is a high-tech manufacturer specialized in the design, development, manufacturing and sale of measurement and control instruments.
Our products are widely used in various fields, including electricity, chemical industry, metallurgy, brewing, oil and gas, textile, water conservancy, environmential protection, etc.
We own independent-courtyard modemized manufacturing workshops and an open office building. Melan has accumlated production and management experience in instruments from European and American and domestic famous companies.
We own first-class talent team, and all the products have reached advanced level at home and abroad. We provide our customers with complete and professional test control solutions and high-tech and high-quality products.
Melan is your reliable friend and partner. We are willing to try our best as dedication and perfection as motivation.
Company View
Meeting Room

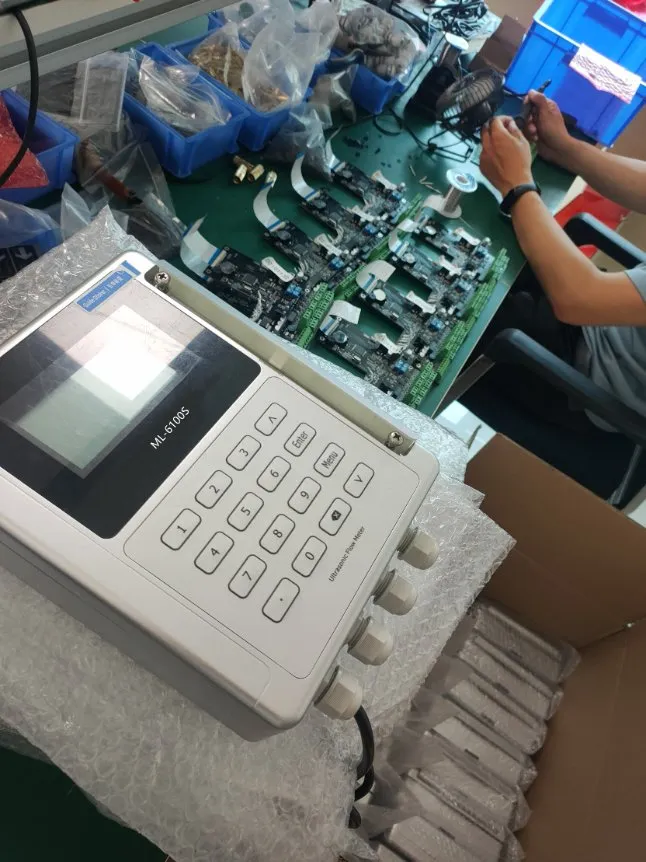

QC Team
OEM Products

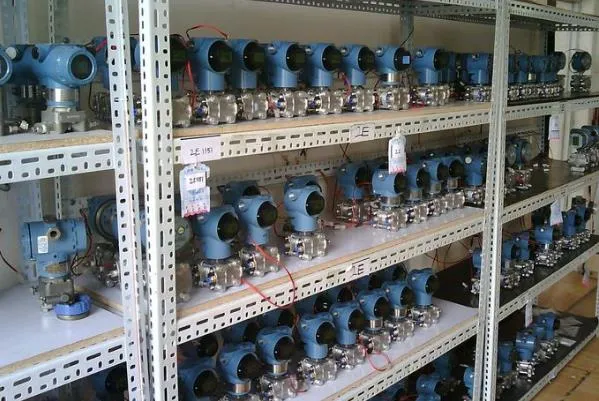

Warehouse
