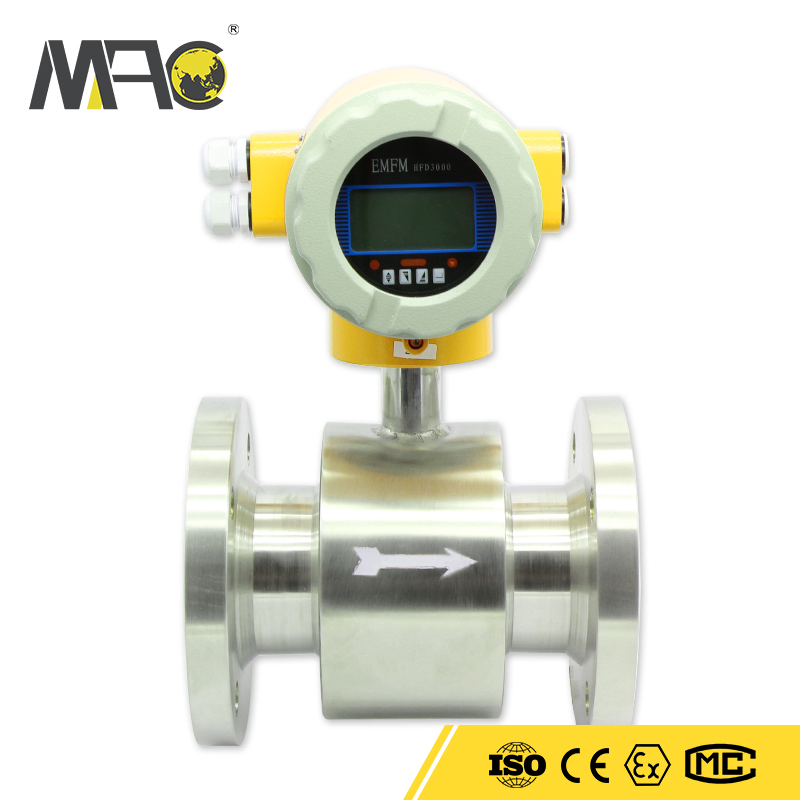

PTFE Wastewater Treatment 400 DN China Digital Flow Meter 15

Product Description

^Introduction
LD series of intelligent electromagnetic flow meter is a high performance, high reliability flow meter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries

Product Name	Electromagnetic flow meter
Diameter	DN10~DN2000mm
Flow range	0-9999 m3/H
Signal output	Pulse and 4~20mA and RS485 or Hart ; (if use lithium battery, without signal output)
Accuracy	±0.5% ±2mm/s (flowrate < 1m/s)
Power supply	220VAC/24VDC/lithium battery
Medium temperature	IP68:-25 - 180ºC IP65:-10 - 80ºC
Nominal pressure	1.0MPa	1.6MPa	2.5MPa	4.0MPa
	DN15-DN500	DN15-DN500	DN15-DN500	DN15-DN50

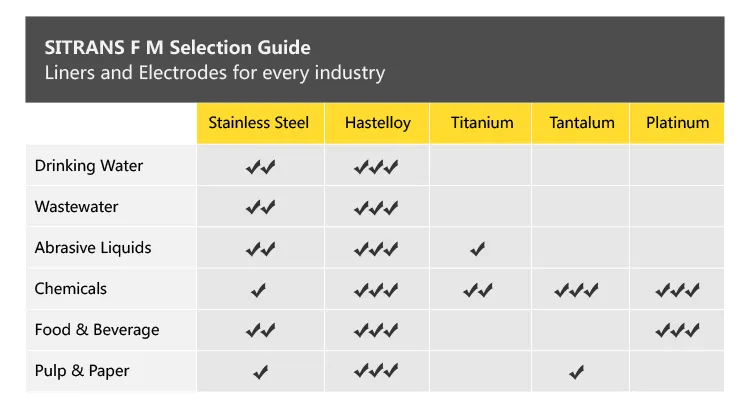

Lining Material	Chloroprene rubber (CR), Polytetrafluoroethylene (PTFE/F4), Fluorinated ethylene propylene (FEP/F46), Teflon(PFA)
Electrode Material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium	Conductive liquids, strong acids, strong alkali liquids, condensed water
Order information : Pipe size , measured medium, working pressure
