Product Description

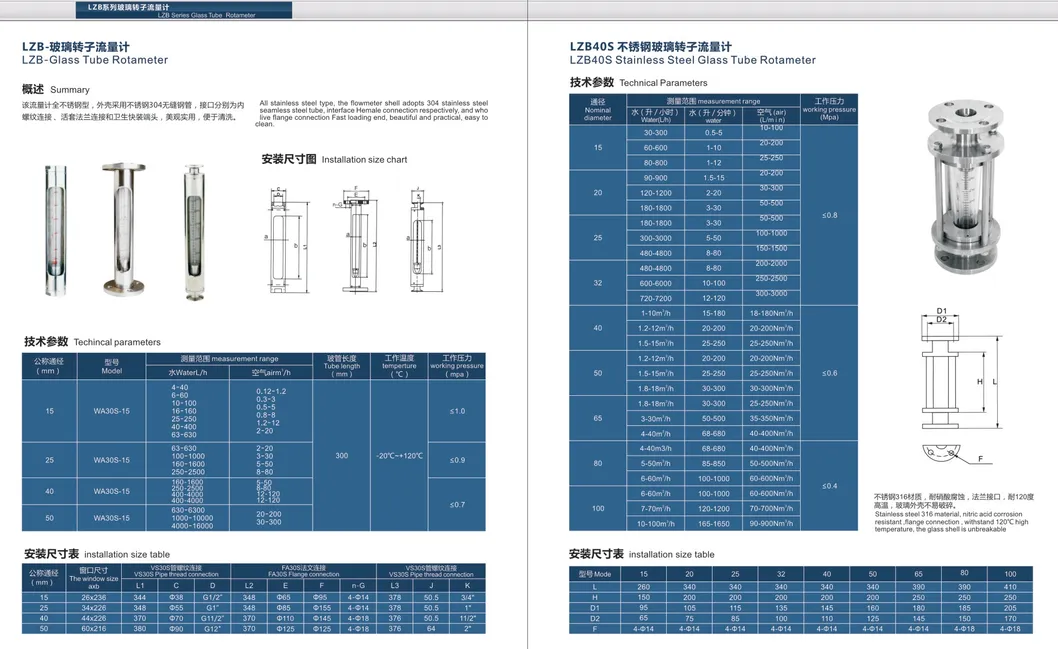

LZB-VA/FA30S glass rotameter
The series flowmeter its support tube connector for stainless steel, beautiful appearance.
Both flowmeter with our existing introduction of glass rotameter is about the same, no matter from its measurement range and work pressure, temperature and other parameters. But it has its own characteristics.
VA30S Although it is threaded connection, but we designed it to be internal thread.
FA30S it is flanged shape with the introduction of type the FA10-type flowmeter less differentiated, but his two movable flange does not touch the sliding together to reduce the appearance of damage. Although these changes are small, but makes the product more humane choice.

The main technical parameters of the LZB-VA/FA30S glass rotameter

Glass rotameter-flow meter
Float type flow meter
For liquid and gas

Low cost rotameter
Low flow rate flow meter

Visual flow meter

mm	Model	Range		mm	Temperature	Mpa
		Water L/h	Air M3/h
		300	-20ºC ~2 00ºC	≤1.0
15	VA30S-15 FA30S-15 WA30S-15				4-40 6.3-63 10-100 16-160 25-250 40-400 63-630	0.12-1.2 0.3-3 0.5-5 0.8-8 1.2-12
				2-20		≤1.0
25	VA30S-25 FA30S-25 WA30S-25			63-630 100-100 160-1600 250-2500	2-20 3-30
					5-50 8-80	≤0.9
40	VA30S-40 FA30S-40 FA30S-40			160-1600 250-2500 400-4000	5-50
					8-80 12-120	≤0.7
50	VA30S-50 FA30S-50 WA30S-50			400-4000 630-6300 1000-10000 4000-16000	12-120 20-200 30-300

ºC

mm	A×B	VA30S			FA30S				WA30S
mm	A×B	L1	C	D	L2	E	F	n-G	L3	J	K
15	26×236	344	Φ38	G1/2"	348	Φ65	Φ95	4-Φ14	376	50.5	3/4''
25	34×226	348	Φ55	G1 "	348	Φ85	Φ115	4-Φ14	376	50.5	1''
40	44×226	370	Φ70	G11/2"	370	Φ110	Φ145	4-Φ18	376	50.5	1 1/2'
50	60×216	380	Φ90	G2"	370	Φ125	Φ160	4-Φ18	376	64	2''
