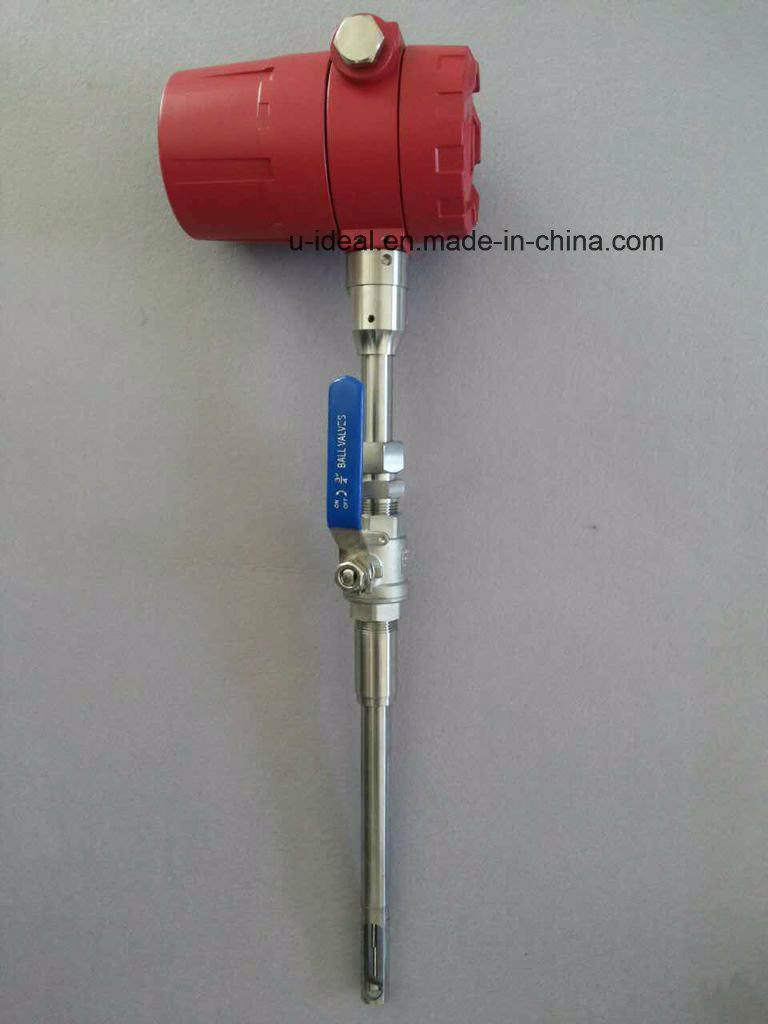

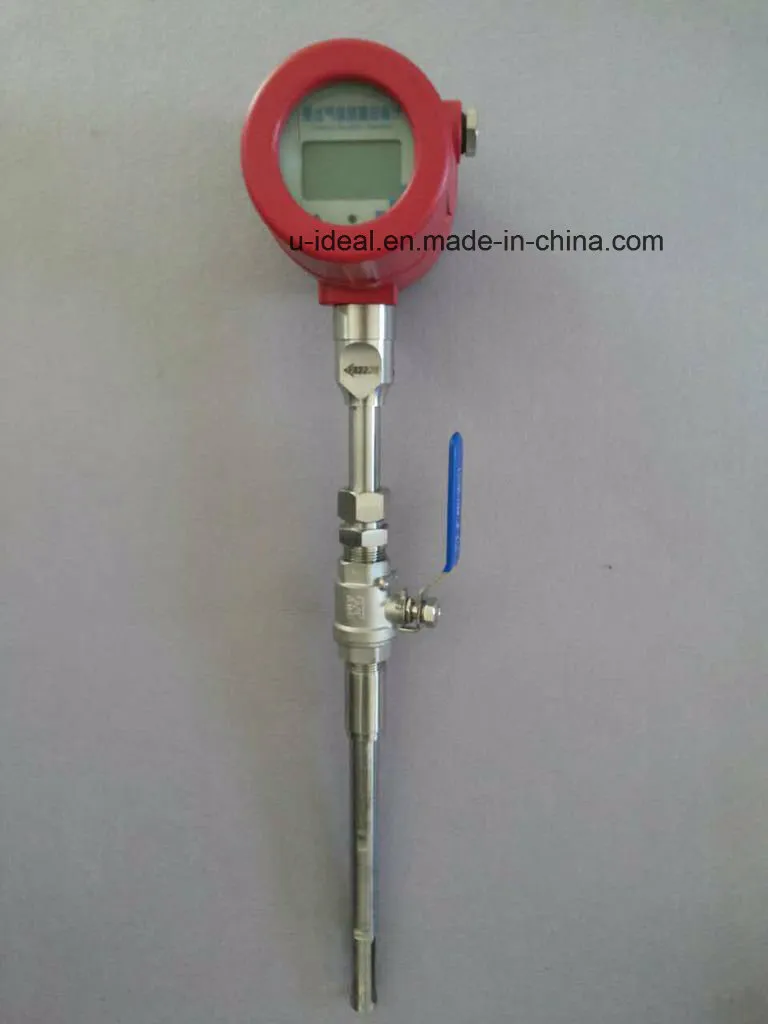

Insertion Type Thermal Mass Flow Meter for Air, Nitrogen

Product Description

Thermal mass gas flow meter
Introduction

Thermal gas mass flow meter is designed on the basis of thermal dispersion, and adopts method of constant differential temperature to measuring gas flow. It has advantages of small size, easy installation, high reliability and high accuracy, etc.
The meter contains two platinum resistance temperature sensors. The thermal principle operates by monitoring the cooling effect of a gas stream as it passes over a heated sensor.
Gas flowing through the sensing section passes over two sensors one of which is used conventionally as a temperature sensor, whilst the other is used as a heater.
The temperature sensor monitors the actual process values whilst the heater is maintained at a constant differential temperature above this by varying the power consumed by the sensor.
The greater the gas velocity, the greater the cooling effect and power required to maintain the differential temperature.
The measured heater power is therefore a measure of the gas mass flow rate.

Features

Measuring the mass flow or volume flow of gas
Do not need to do temperature and pressure compensation in principle with accurate measurement and easy operation.
Wide range: 0.5Nm/s~100Nm/s for gas. The meter also can be used for gas leak detection
Good vibration resistance and long service life. No moving parts and pressure sensor in transducer, no vibration influence on the measurement accuracy.
Easy installation and maintenance. If the conditions on site are permissible, the meter can achieve a hot-tapped installation and maintenance. (Special order of custom-made)
Digital design, high accuracy and stability
Configuring with RS485 or HART interface to realize factory automation and integration

Description	Specification
Medium	Gas(Except acetylene)
Pipe size	DN10-4000mm
Sensor type	Standard Insertion, Hot-tapped Insertion and Flanged

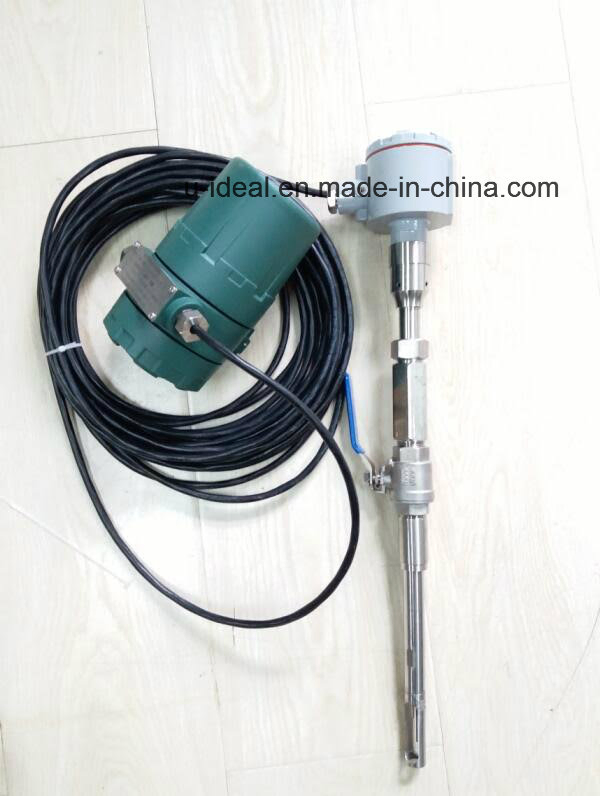

Construction	Compact and Remote
Sensor Housing Material	SS304 or SS 316
Pipe Material	Carbon steel, stainless steel, plastic, etc
Velocity	0.1-100N/ms
Medium temperature	Sensor: -30~+200ºC ;Max.350ºC Transmitter:-20-+45ºC
Working pressure	Medium pressure≤1.6MPa
Accuracy	±1.0~2.5%
Power supply	Compact type: 24VDC or 220VAC, Power consumption ≤18W Remote type: 220VAC, Power consumption ≤19W
Response time	1S

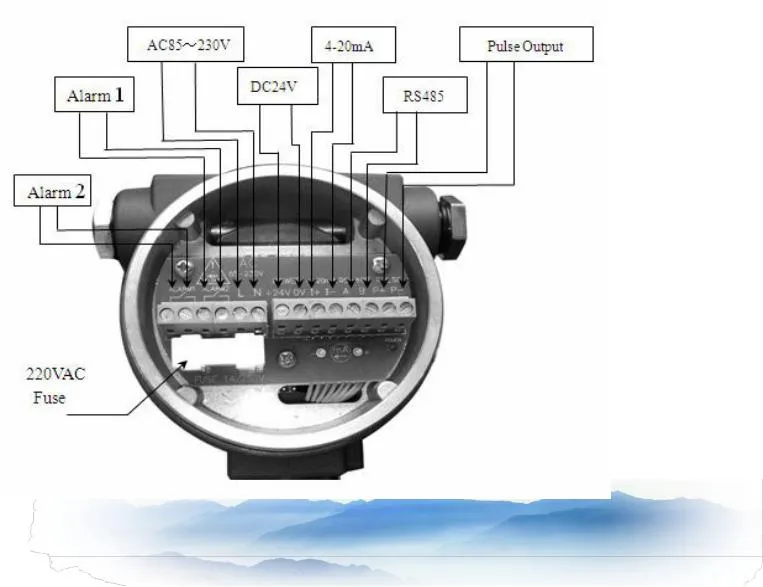

Output	4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse,RS485 (optoelectronic isolation) and HART
Alarm output	1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC

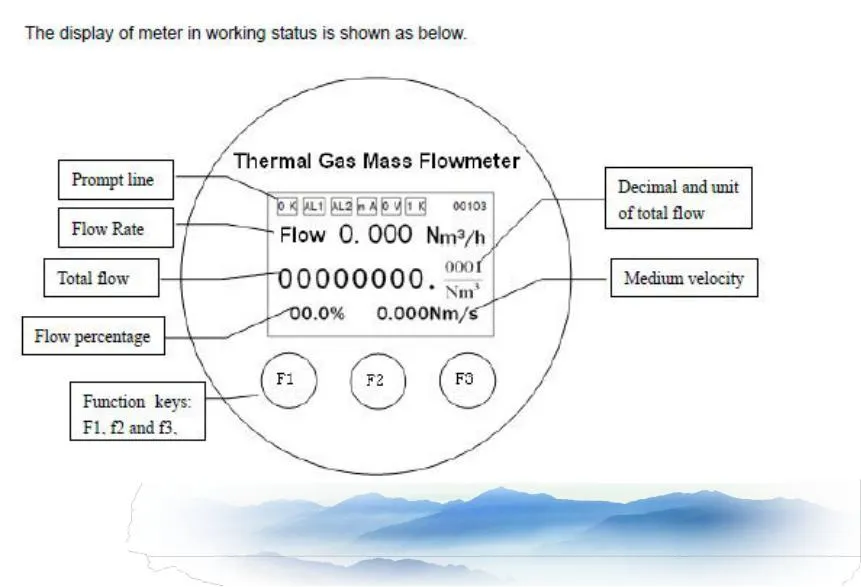

Display	4 lines LCD display Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.
Protection class	IP65

Upper Range Value of Common Gas
(Unit: Nm3/h. The follow table can be extended)
