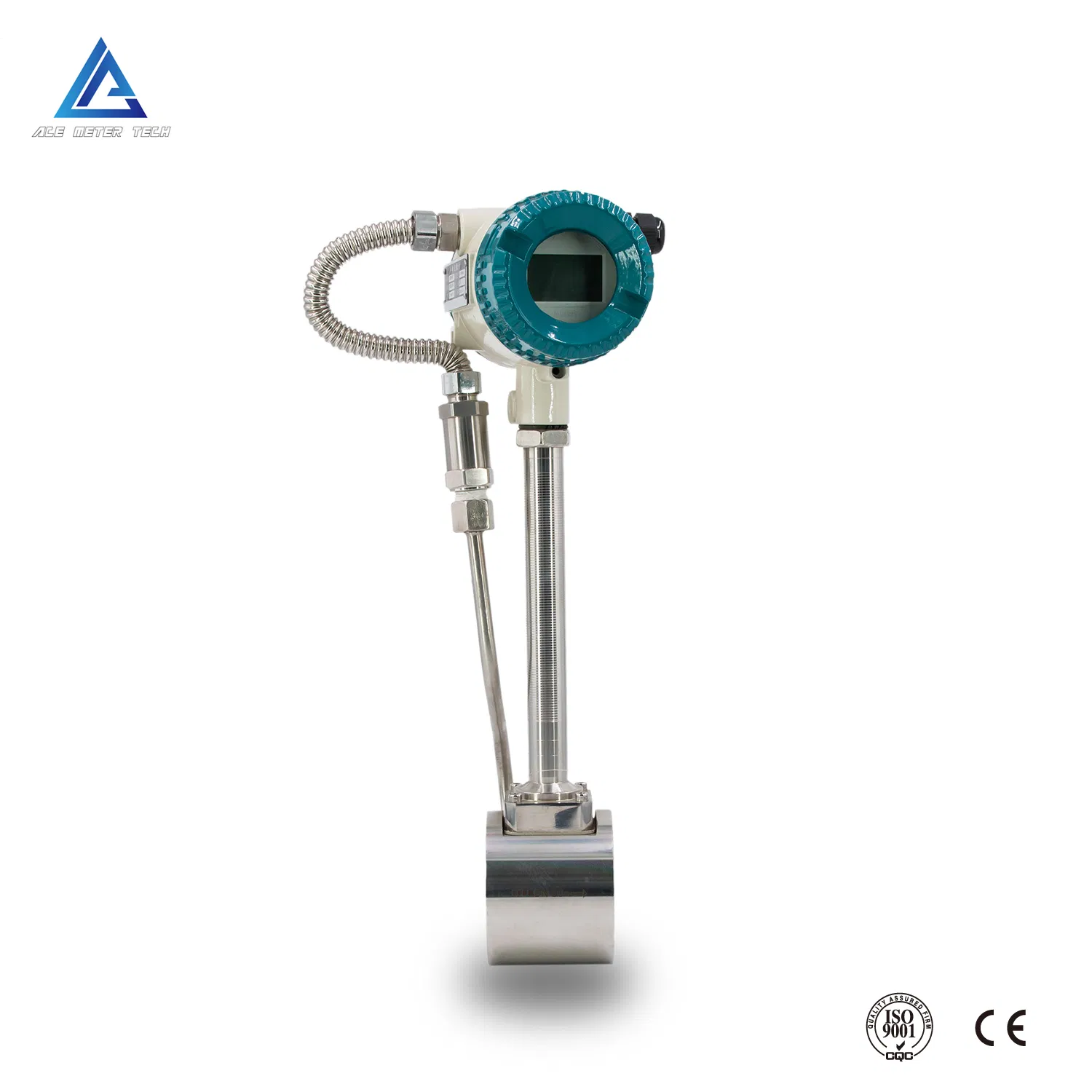

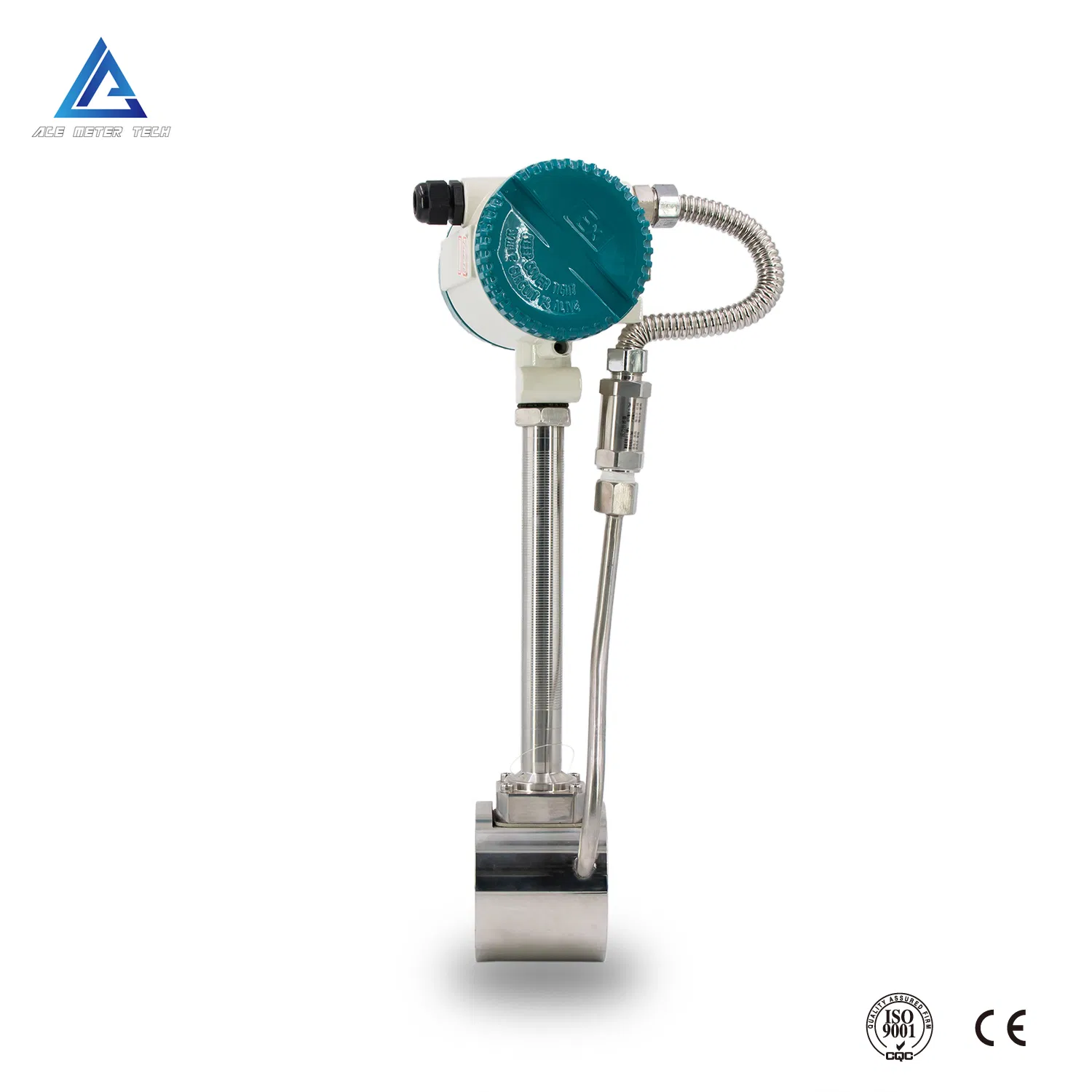

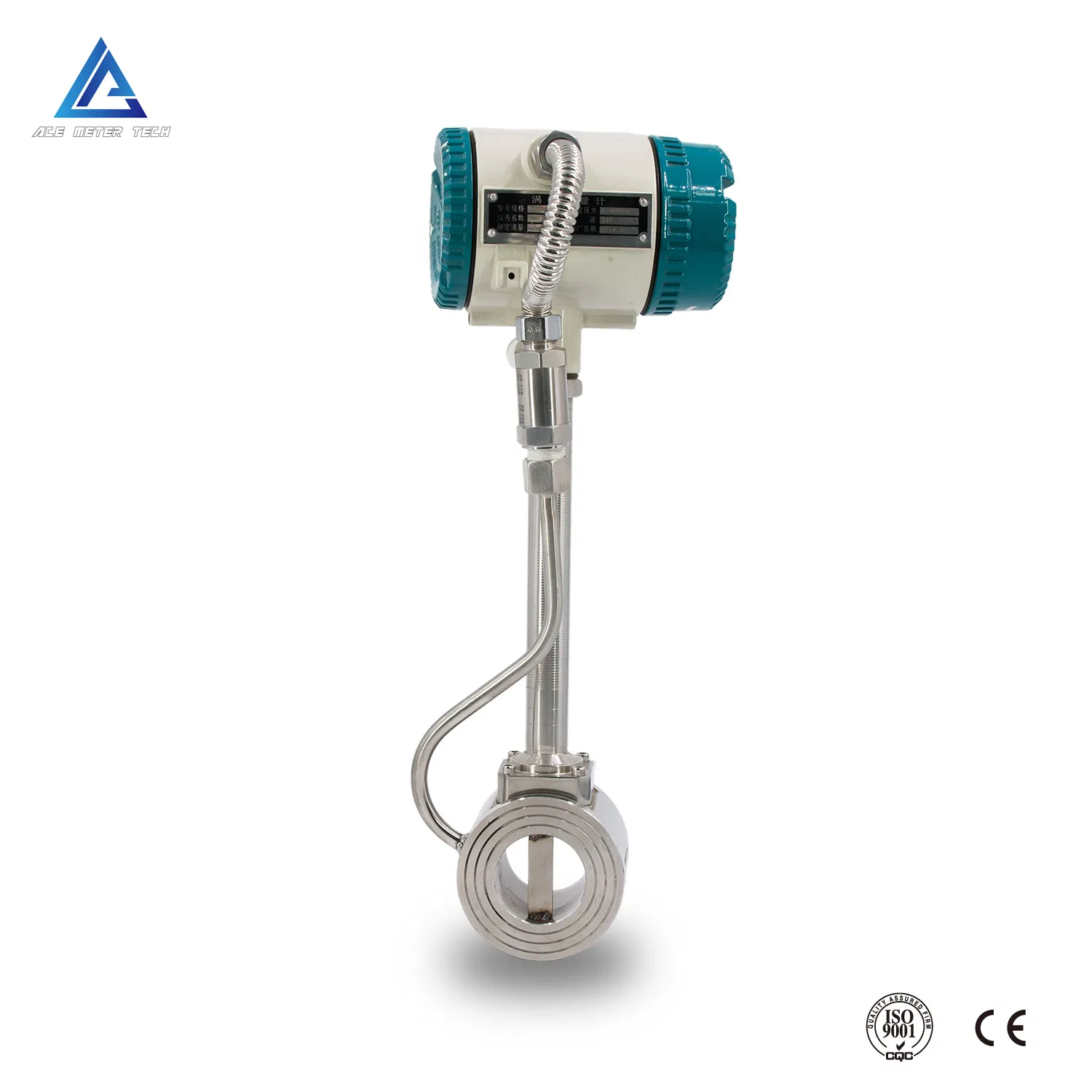

Hart Protocol Remote Control Vortex Flowmeter Gas Vortex Flow Meter for Steam, Air
HART Protocol Remote Control Vortex Flowmeter Gas Vortex Flow Meter For Steam,AirItemDescriptionTypeIntegrated TypeAvailable MediumNon Corrosive Liquid,Gas,SteamRange of DiameterDN15-DN300 1/2"-12"Accuracy1.50%Measure Range Ratio1:10Medium Temperature-20-250ºC250-350ºCRa......
Send Inquiry
Product Description
HART Protocol Remote Control Vortex Flowmeter Gas Vortex Flow Meter For Steam,Air
| Item | Description |
| Type | Integrated Type |
| Available Medium | Non Corrosive Liquid,Gas,Steam |
| Range of Diameter | DN15-DN300 1/2"-12" |
| Accuracy | 1.50% |
| Measure Range Ratio | 1:10 |
| Medium Temperature | -20-250ºC |
| 250-350ºC | |
| Rated Pressure Range | PN16(High Pressure Customize Available) |
| Body Material | Stainless Steel 304 |
| Stainless Steel 316/316L | |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Wafer Flange Clamp | |
| Thread(NPT,BSP,GB or Customize) | |
| Sanitary Tri-Clamp(DIN,3A,ISO Standard) | |
| Straight Pipe Section | 10*DN Upstream 5*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Volume Correction | Saturated Steam Mass Calculation |
| Overheated Steam Mass Calculation | |
| Gas Temperature and Pressure Compensation(@20ºC,1 ATM) | |
| Power Supply | 24VDC(8-36VDC) |
| 3.6V Lithium Battery(Life Time 2-3 Years) | |
| Signal Output | 4-20mA |
| Frequency/Pulse | |
| Communication Protocol | RS485 MODBUS |
| HART | |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Protection Grade | IP65 |
| Explosion Proof Grade | ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter) |
HART Protocol Remote Control Vortex Flowmeter Gas Vortex Flow Meter For Steam,Air
