China DN10 DN300 environment Protection Turbine Flange Vortex Flow meter

Product Description

Product Overview:

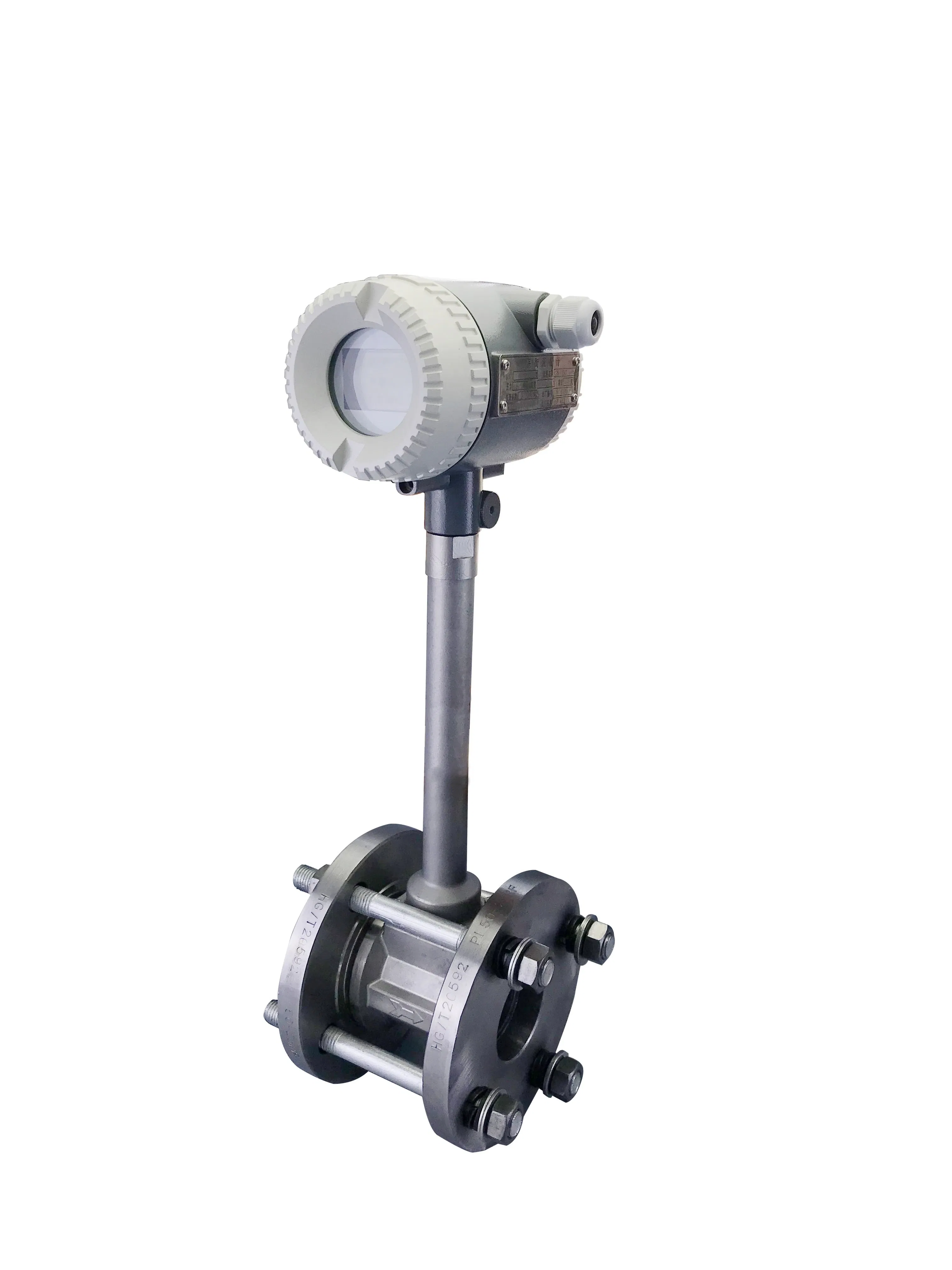

HFM200 Vortex Shedding Flowmeter is a new type stress detection vortex flowmeter, which adopts piezoelectric crystal as measuring element based on Karmann votex principle. It has lots of advantages such as wide range rate, high accuracy, small pressure losing, great medium versatility, with pulse signal output proportionate to flow, easy connection with computer. As the inspection probe is installed separately with vortex generator, and the heat-resisting piezoelectric crystal does not connect with medium, therefore the instrument has simple structure, great versatility and high stability features.

Features:

·Clear LCD display screen, display instantaneous flow and cumulative flow respectively
·High-strength piezoelectric crystal, integrated structure, impact resistance
·Optional temperature compensation, pressure temperature, to meet more field services
·The circuit board is processed through ageing before delivery, and it is with the real flow calibration for whole machine , more suitable for field use.
·No external power supply is required. It adopts 3.6V lithium batter for power supply, which can continuously work more than two years, especially suitable for use in the field where the power supply is difficult to access.

Parameters:

Aperture Diameter (mm)	15, 20, 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, (300~1000 plug in)
Nominal Pressure (MPa)	DN15-DN200 4.0(>4.0, negotiation ), DN250-DN300 1.6(>1.6,negotiation )
Medium Temperature (ºC)	Piezoelectric type: -40~150, -40~260, -40~330; capacitive type: -40~400, -40~500 (negotiation )
Body Material	1Cr18Ni9Ti, (other materials: negotiation )
Permissible Vibration Acceleration	Piezoelectric type:0.2g, capacitive type:1.0~2.0g
Accuracy	±1%,±1.5%; Plug in type: ±2.5%
Range Rate	1:6~1:30
Supply Voltage	Sensor: DC +12V, DC +24V; transmitter: DC +12V , DC +24V; battery powered; 3.6V battery
Output Signal	Square-wave pulse(excluding battery powered): high level≥5V, low level≤1V; current: 4~20mA
Pressure Loss Coefficient	Meet JB/T9249 standards Cd≤2.4
Explosion-proof Sign	Intrinsic safety type: Exd II ia CT2-T5 ; explosion type: Exd II CT2-T5
Ingress Protection	Normal: IP65 Diving: IP68
Environmental Conditions	Temperature: -20ºC~55ºC, Relative humidity: 5%~90%, Atmospheric pressure: 86~106kPa
Suitable Medium	Gas, liquid, steam
Transmission Distance	Three-wire pulse output≤300m, two-wire standard current output (4~20mA) ≤1500m, RS485/HART≤1200m.

Ordering Guide:

Item NO.

Code

Illustration

HFM200

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Vortex Shedding Flowmeter

Installment Way

F - - - - - - - - - - - -
D - - - - - - - - - - - -

Flange Type
Camping Type

Medium

G -   -   -   -   -   -   -   -   -    -   -
L -   -   -   -   -   -   -   -   -    -   -
S -   -   -   -   -   -   -   -   -    -   -

Gas Flow
Liquid Flow
Steam Flow

Inside Nominal Diameter

15 -   -   -   -   -   -   -   -   -    -
20 -   -   -   -   -   -   -   -   -    -
…
300-   -   -   -   -   -   -   -   -    -

DN15
DN20
…
DN300

Supply Voltage

0    -   -   -   -   -    -   -   -   -
1    -   -   -   -   -    -   -   -   -
2 -   -   -   -   -    -   -   -   -

3.6V Lithium Battery
24V DC
Duplicate Supply

Header

D - - - - - - -
N - - - - - - -

Digital Display Header
No Diaplay Header

Output Signal

P     -   -    -   -   -   -   -
A     -   -    -   -   -   -   -
R     -   -    -   -   -   -   -

Pulse
4~20mA
RS485

Sensor Material

S4     -   -    -   -   -   -
S6     -   -    -   -   -   -
OT     -   -    -   -   -   -

Stainless Steel 304
Stainless Steel 316L
Other Customization

Medium Temperature

E - - - - -
H - - - - -

(-40~250)ºC
(100~350)ºC

Rated Pressure

10  -    -   -    -
16  -     -   -   -
25  -     -   -   -
40 -     -   -   -

10bar
16bar
25bar
40bar

Explosion-proof Grade

0 - - - -
Exd - - -

Non-explosionproof
Explosion-proof Type

Reference Item:HFM200-F-G-20-1-D-A-S4-E-10-0
