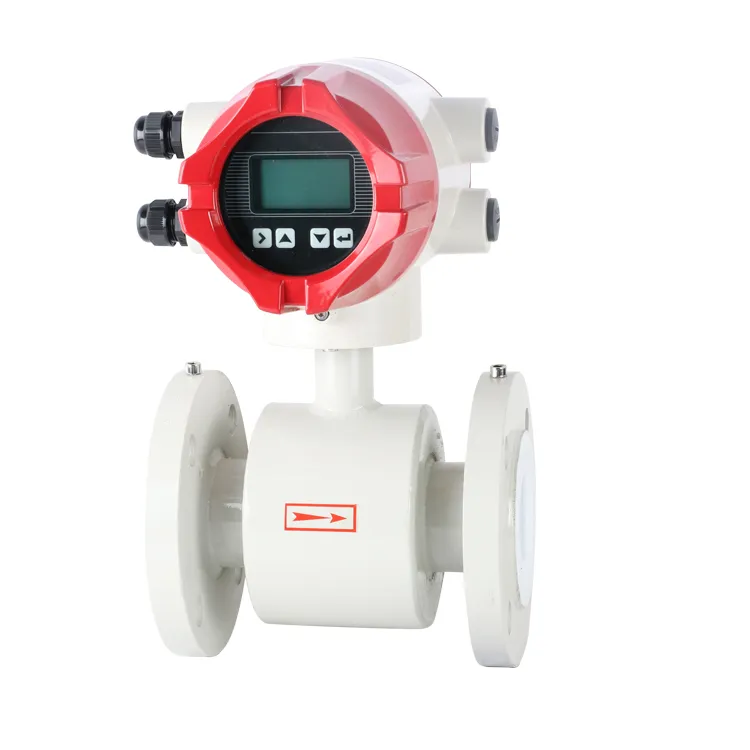

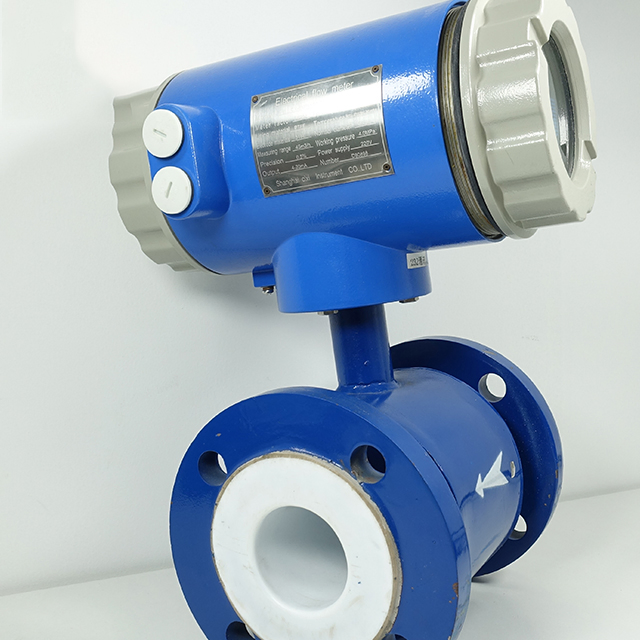

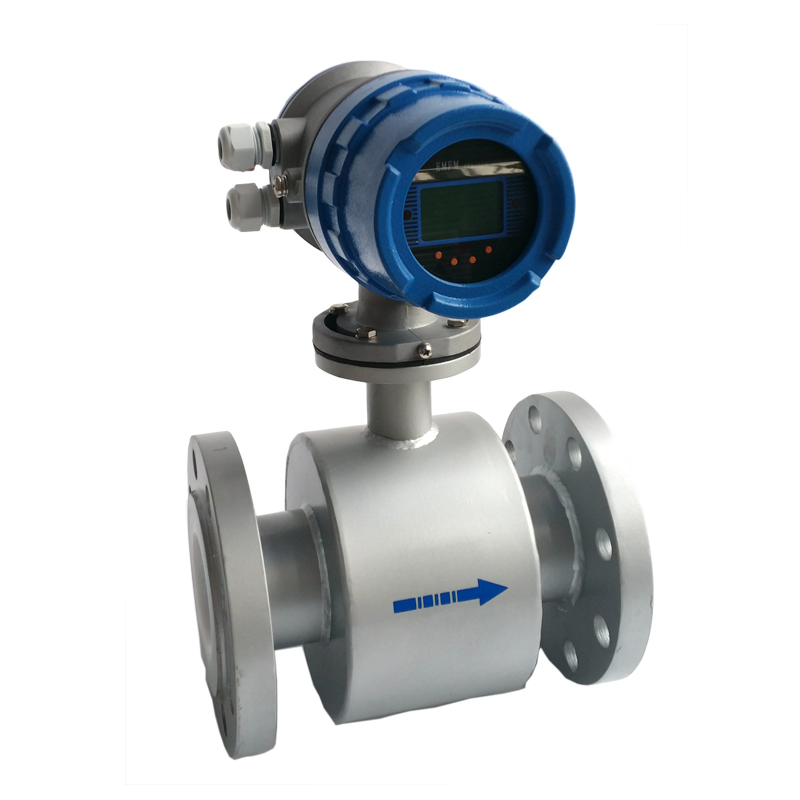

Digital Water Flowmeter Magnetic Flow Meter Water for Waste Water
Product Description SIZE DN10 DN100 DN200 DN800 Medium Liquid or solid-liquid Liquid or solid-liquid Liquid or solid-liquid Liquid or solid-liquid Output 4-20mA/RS485 4-20mA/RS485 4-20mA/RS485 4-20mA/RS485 Lining Rubber ,polyurethane rubber,chloroprene ,PTFE,FEP Rubber ,polyurethane rubber,c......
Send Inquiry
Product Description
Product Description
SIZE | DN10 | DN100 | DN200 | DN800 |
Medium | Liquid or solid-liquid | Liquid or solid-liquid | Liquid or solid-liquid | Liquid or solid-liquid |
Output | 4-20mA/RS485 | 4-20mA/RS485 | 4-20mA/RS485 | 4-20mA/RS485 |
Lining | Rubber ,polyurethane rubber,chloroprene ,PTFE,FEP | Rubber ,polyurethane rubber,chloroprene ,PTFE,FEP | Rubber ,polyurethane rubber,chloroprene ,PTFE,FEP | Rubber ,polyurethane rubber,chloroprene ,PTFE,FEP |
| voltage | 100-240VAC,50/60Hz |
| Power consumption | Max : 10W(20VA) |
| signal cable | For separate type only |
| Double shielded cable | Signal part, wire:0.5mm2Cu/AWG20 |
| Shielded cable | Magnetic field part, wire:0.7mm2Cu |
| Communication | |
| Serial communication | RS485 |
| Output | Current (4-20mA), pulse, frequency, state switching |
| Features | Air tube identification, electrode contamination |
| Display user interface | |
| Graphic display | Monochrome LCD display, white backlight, size: 128*64 pixels |
| Display function | 2 measured value screens (measurement, status, etc.) |
| Language | English |
| Operation button | 4 infrared touch buttons / mechanical buttons |
Q:Could I visit your factory?
A:Welcome!Our factories are located in Shanghai,China
Q:Tell me about your quality control?
A:Our company owns two factories,12 years' experience in this industry.It is quality and service keeping us stand still.Our QC
team check and examine every single instrument strictly before shipping.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality with moderate price.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models.Please tell me your detailed requirements,we will send to you as early as we can.
Q:How soon can you arrange the production?
A:Once getting your product confirmation and receiving your payment,we will arrange the production immediately.
Q:What is the warranty for your product?
A:Warranty:1 years;Lifetime maintenance.
Q:When should I expect your reply to my questions?
A:We provide 24*7 customer service,you can get reply via live chat or phone call at any time.
Q:How long it will take you to quote for my enquiries?
A:We'll try to be as fast as we can,normally within 2 hours.
