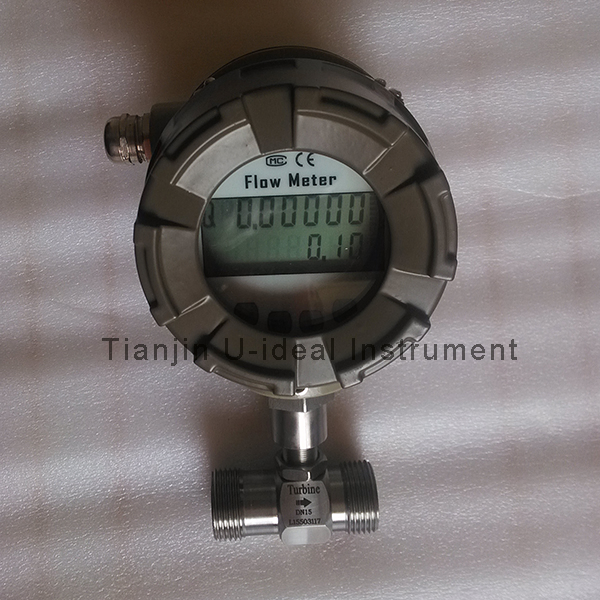

Diesel or Water Flow Measuring Turbine Flow Meter

Product Description

high accuracy Turbine air and water Flow meter can measure air, gas, water, oil..... flow measuring.

1. Product Features

Medium temperature: -20~+120º C
Ambient temperature: -20~+55º C

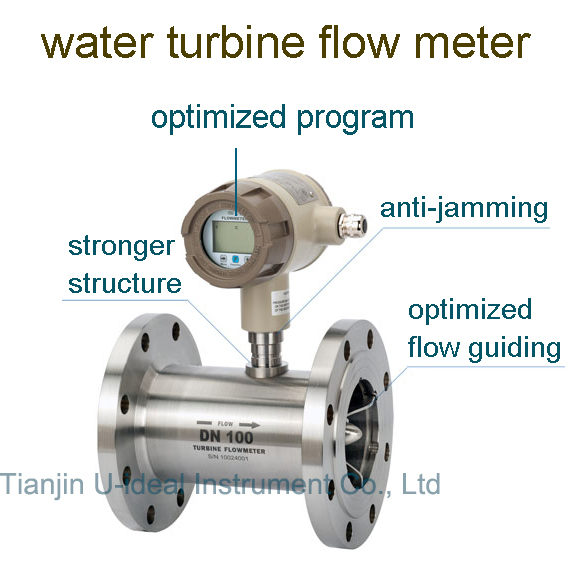

High quality turbine resulting in wider measurement range than conventional ones
Various types of transducers for different applications
The unique Multi-point intelligent non-linear correction to the instrument coefficient

Accuracy assurance due to the standard flow calibration facilities
100% pressure experiment, 100% products quality inspection
Power-Off Protection: The instrument coefficient and the accumulative flow value can be saved for ten years without power

2. Basic Parameters

Sensors of which diameter ranges from DN4 to DN40 are screw thread connection and the maximum pressure tolerance is 6.3Mpa
Sensors of which diameter ranges from DN50 to DN200 are flanged connection and the maximum pressure tolerance is 6.3Mpa
Sensors of which diameter ranges from DN4 to DN40 have straight pipes and filters upstream and downstream.
Our company supplies upstream and downstream straight pipes for the sensors with their diameters lager than DN15

Meter diameter and connection method	4,6,10,15,20,25,32,40 apply thread connection
Meter diameter and connection method	(15,20,25,32,40)50,65,80,100,125,150,200 apply flange connection
Accuracy class	± 1%R ,±0.5%
Measuring scale ratio	1:10;1:15;1:20
Material	304 stainless steel,316(L)stainless steel and others
Fluid temperature	-120~+ 12 0ºC
Environment	Temperature-10~+ 5 5ºC,relative humidity5%~90%,air pressure86~106Kpa
Output signal	Impulse signal,low leve l≤0.8V high level ≥8V
Power supply	+12VDC,+24VDC(selective)
Signal transmission line	STVPV30.3(Three line system)or 20.3(2-line system)
Transmission distant	≤ 1000m
Signal wire connection	Inner thread M20*1.5
Explosion proof class	ExdIIBT6
Protection class	IP65
