PMC-D726M DIN72 Three Phase 72*72 LED RS-485 Digital Voltage Energy Power Meter
CET PMC-D726M DIN72 3 Phase LED Display RS-485 with Modbus RTU Digital Multifunction MeterThe PMC-D726M Digital Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in an industry standard DIN form factor measuring 72mmx72mmx76.8mm, it is perfec......
Send Inquiry
Product Description

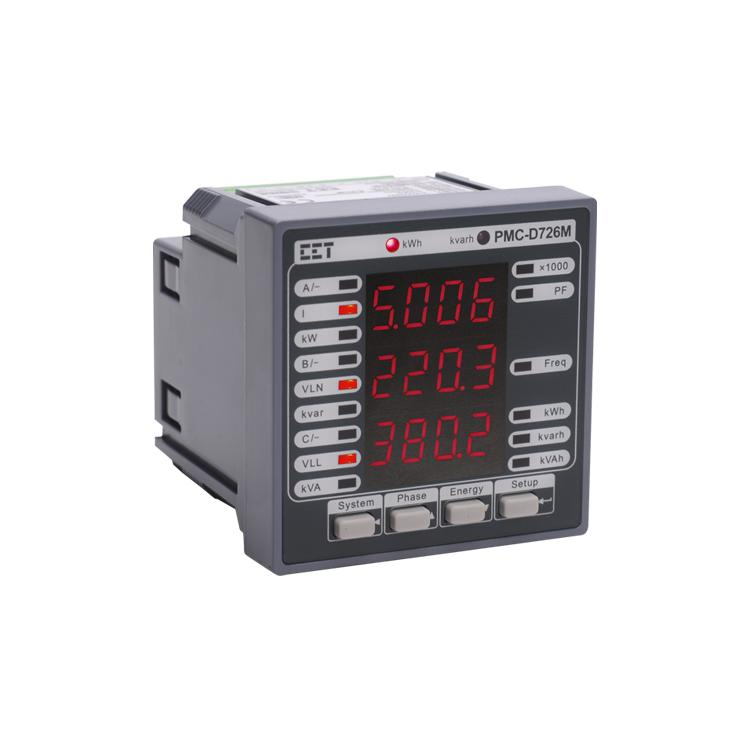

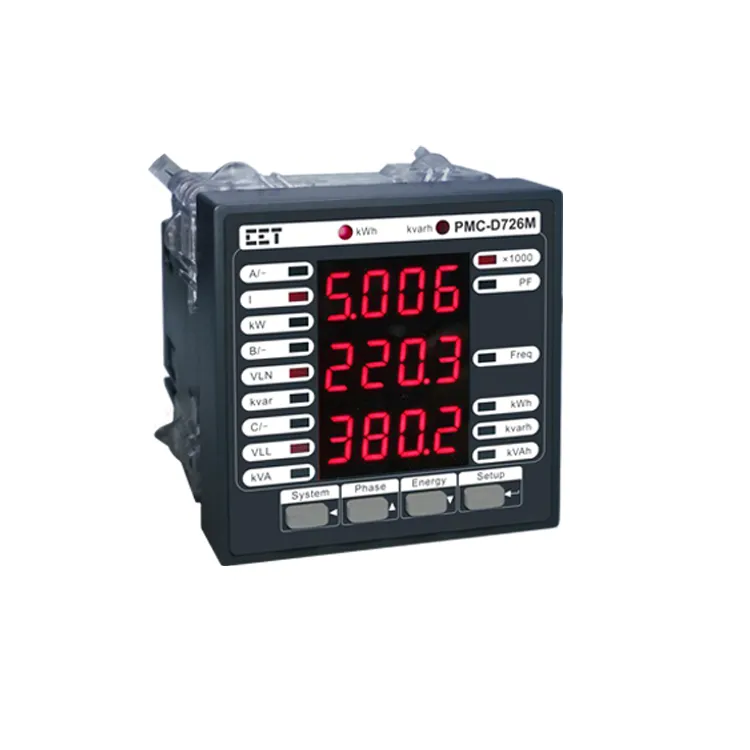

CET PMC-D726M DIN72 3 Phase LED Display RS-485 with Modbus RTU Digital Multifunction Meter
• Analog meter replacement
CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.

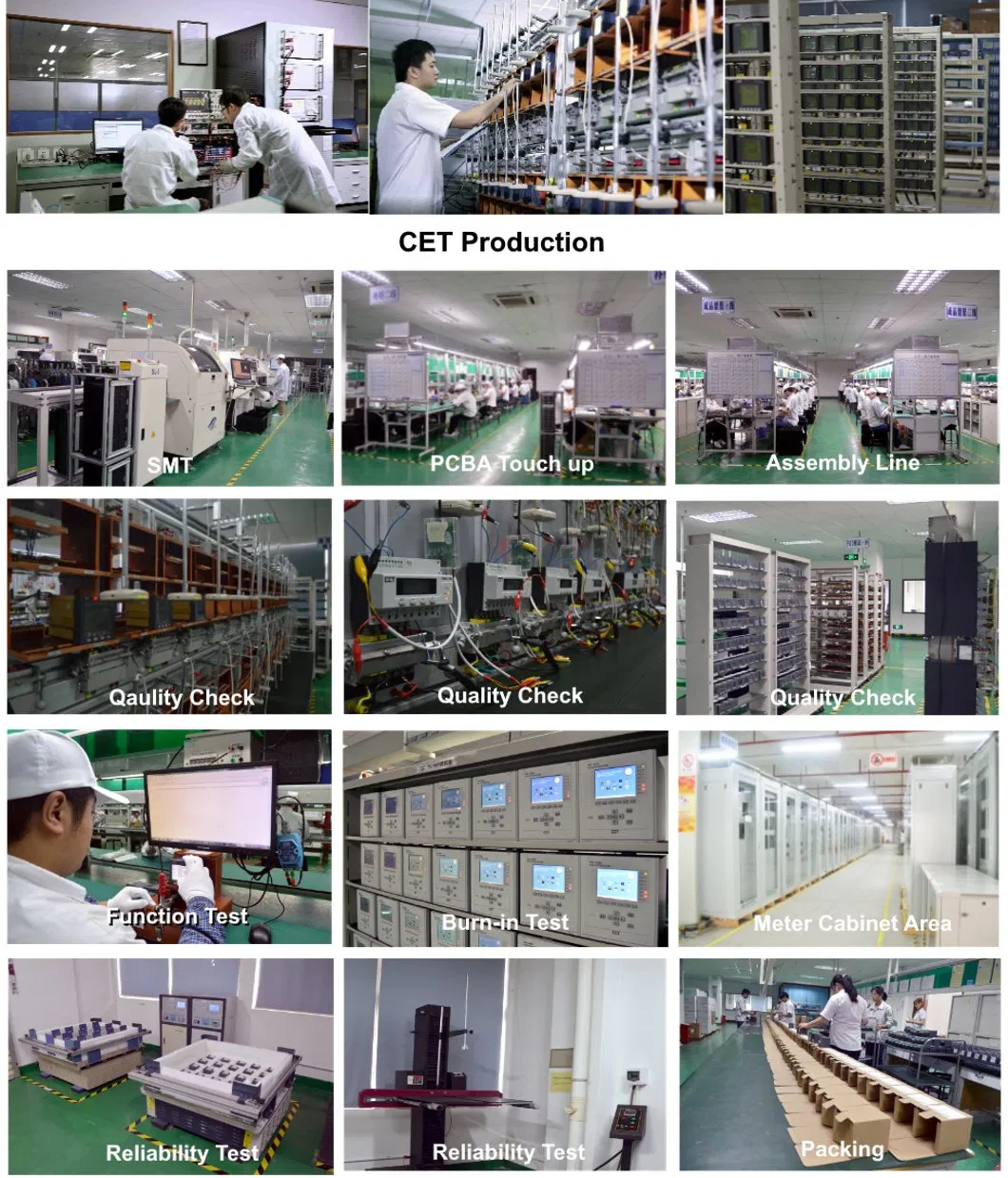

CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.

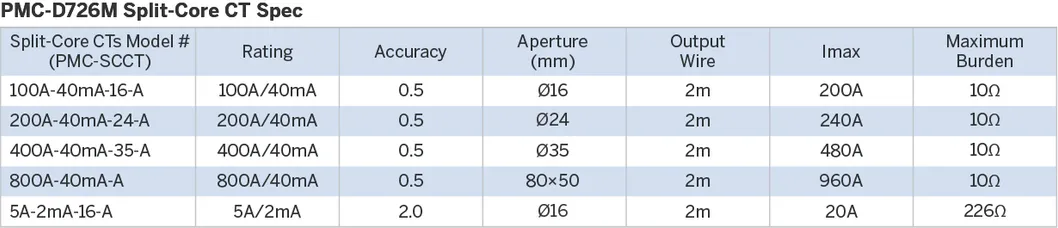

The PMC-D726M Digital Multifunction Meter is CET's latest offer for the low-cost digital power/energy metering market. Housed in an industry standard DIN form factor measuring 72mmx72mmx76.8mm, it is perfectly suited for industrial, commercial and utility metering applications. The PMC-D726M features quality construction, true RMS multifunction measurements and a LED display. Compliance with the IEC 62053-21 Class 1 kWh Accuracy Standard, it provides optimum Price to Value ratio and is a cost effective replacement for traditional analog instrumentation, capable of displaying 3-phase measurements at once. The PMC-D726M optionally provides Split-Core CT (SCCT) support for retrofit applications, two Digital Inputs for status monitoring, two Digital Output for control, or one 0/4-20mA Analog Output for interfacing with 3rd party SCADA system. The standard SOE Log records meter events such as power-off, setup and DI status changes in 1ms resolution. With the optional RS-485 port and Modbus RTU protocol support, the PMC-D726M becomes a vital component of an intelligent, multifunction monitoring solution for any Power and Energy Management systems.
| Typical Application |
• Analog meter replacement
• Industrial, Commercial and Utility panel metering
• Substation, Factory and Building Automation
• Sub-metering and Cost Allocation
• Ideal for retrofitting with the SCCT option
• Sub-metering and Cost Allocation
• Ideal for retrofitting with the SCCT option

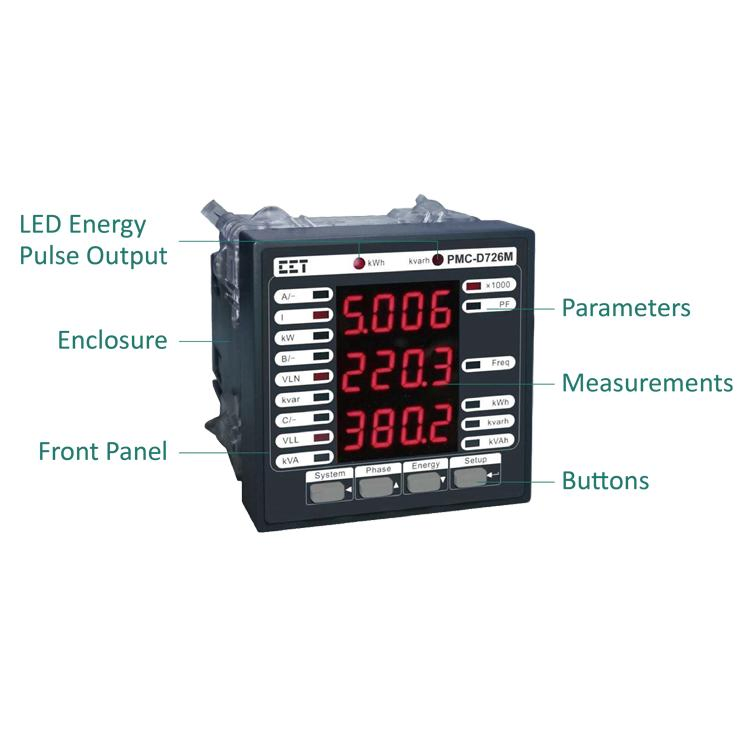

| Feature Summary |

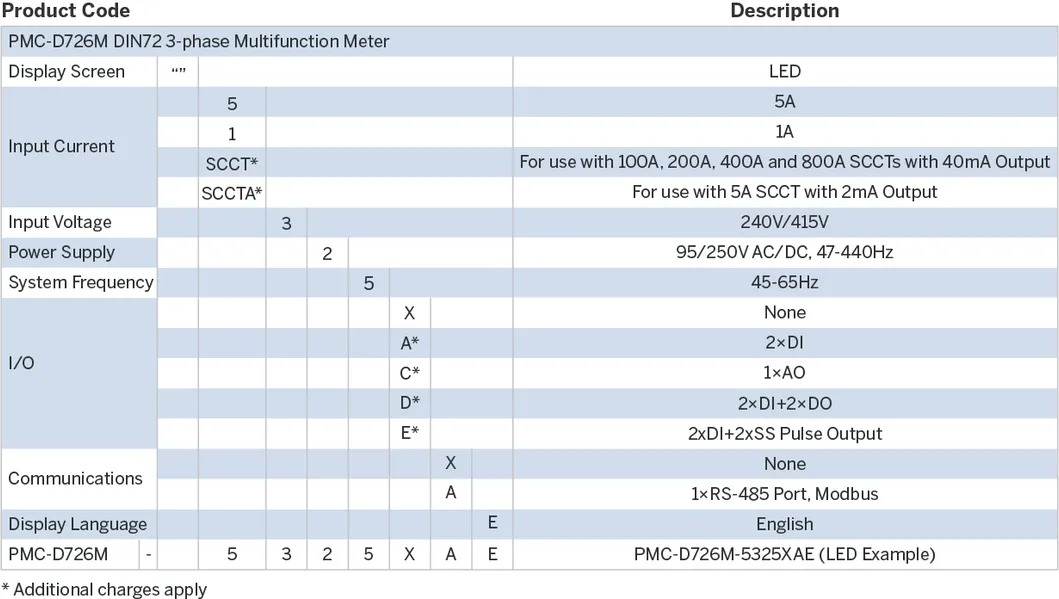

| Ordering Information |

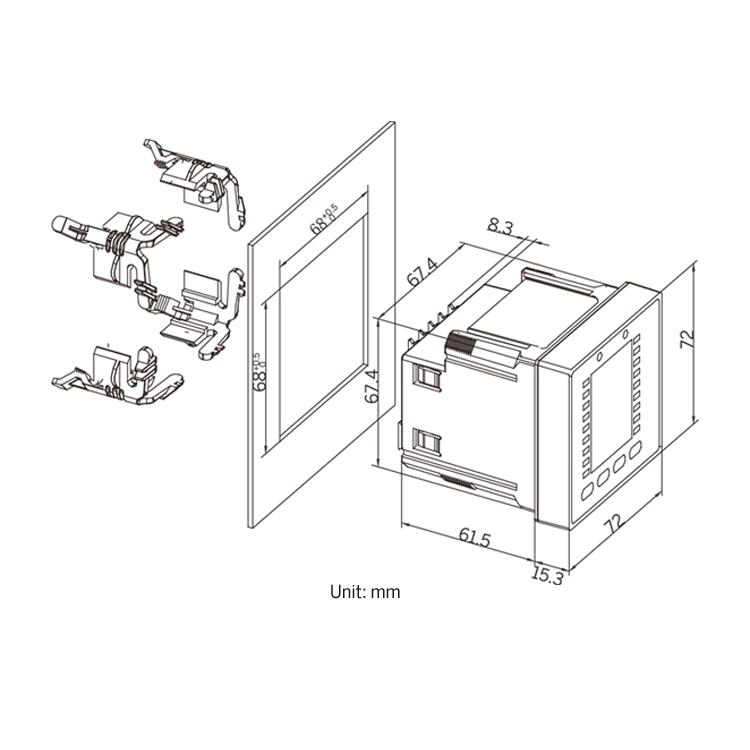

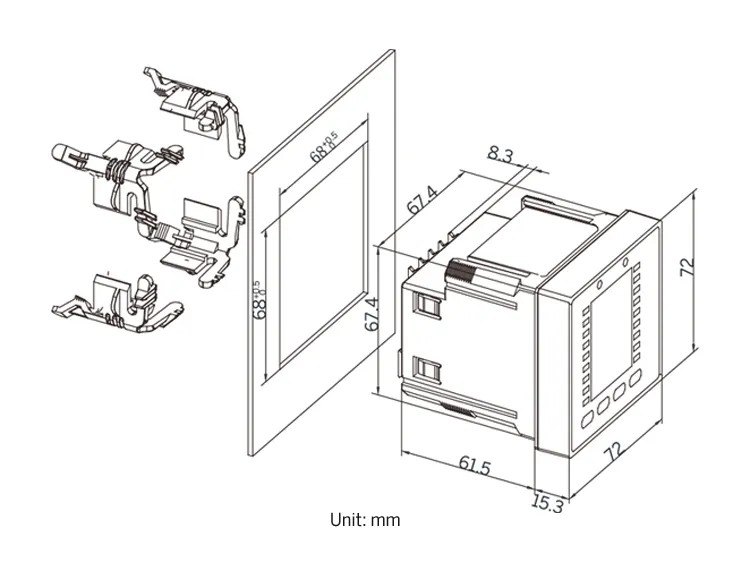

| Dimensions |

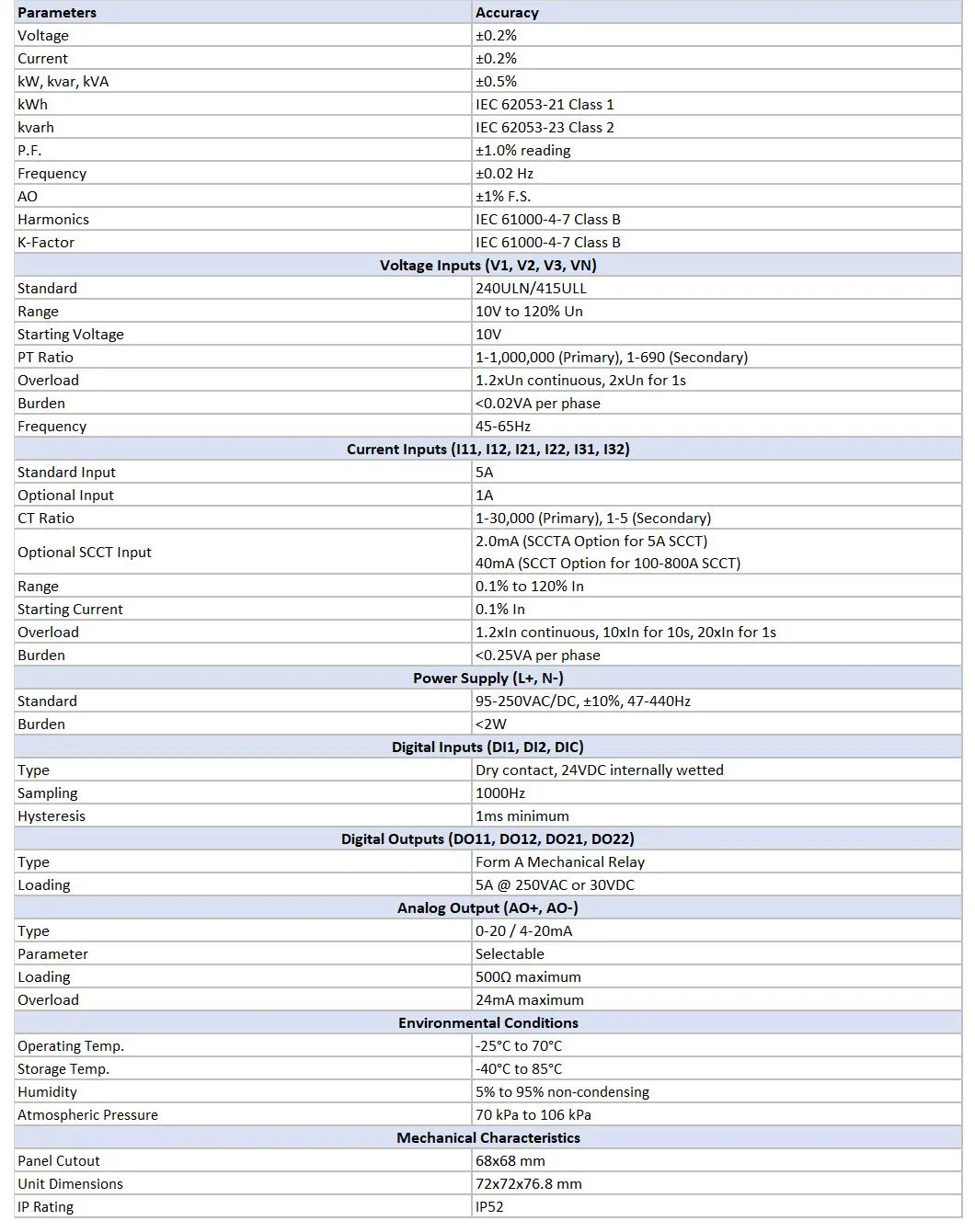

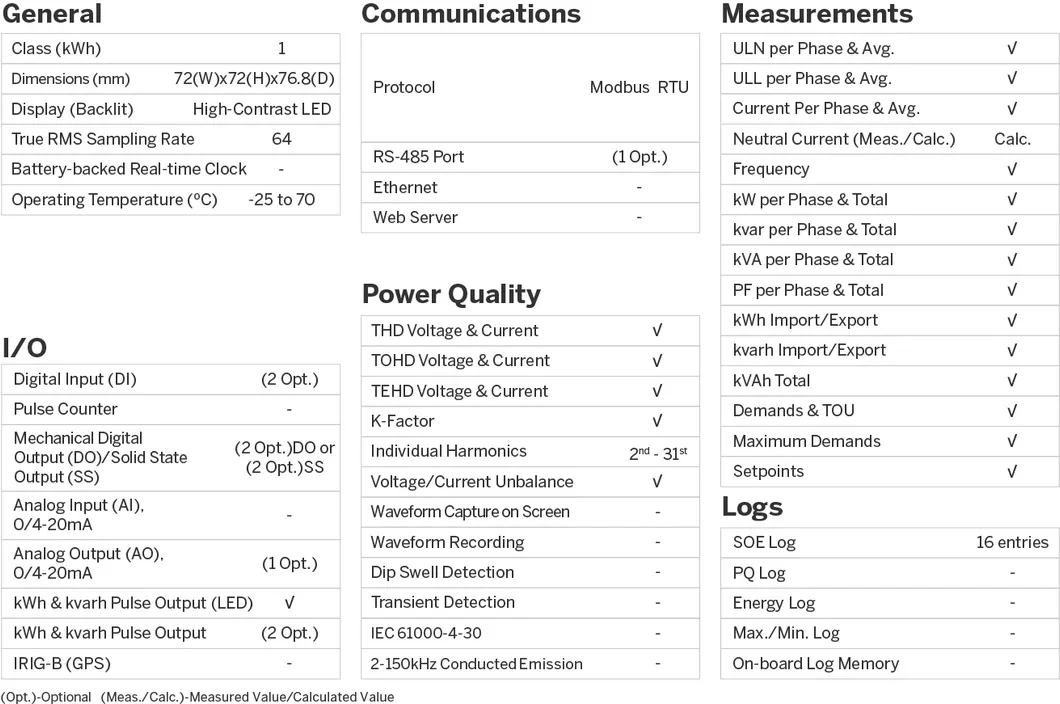

| Technical Specifications |
| Company Profile |
CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
