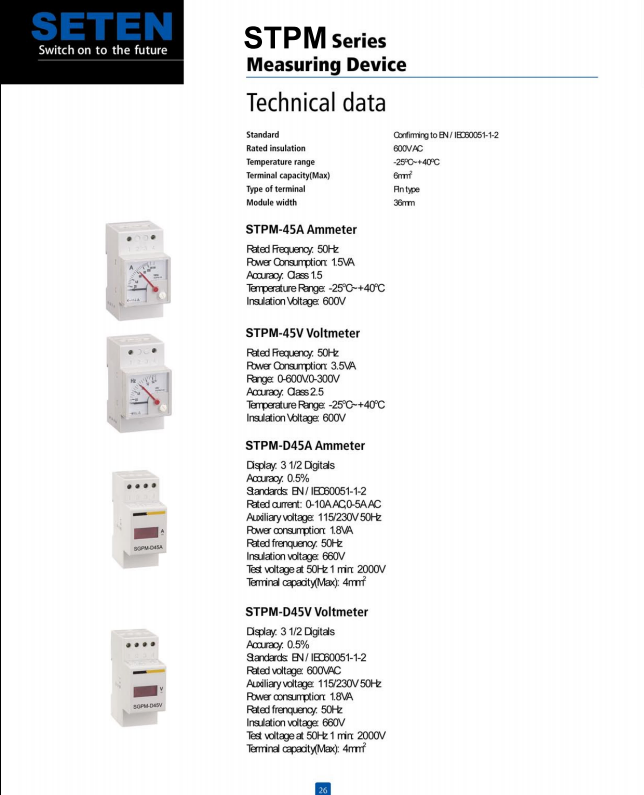

Stpm Series Measuring Device / Ammeter / Voltmeter

Standard
Rated insulation
Temperature range
Terminal capacity(Max)
Type of terminal
Module width
Confirming to EN / IEC60051-1-2
600V AC
-25oC~+40oC
6mm2
Pin type
36mm

STPM-45A Ammeter
Rated Frequency: 50Hz
Power Consumption: 1.5VA
Accuracy: Class 1.5
Temperature Range: -25oC~+40oC
Insulation Voltage: 600V

STPM-45V Voltmeter
Rated Frequency: 50Hz
Power Consumption: 3.5VA
Range: 0-600V. 0-300V
Accuracy: Class 2.5
Temperature Range: -25oC~+40oC
Insulation Voltage: 600V

STPM-D45A Ammeter
Display: 3 1/2 Digitals
Accuracy: 0.5%
Standards: EN / IEC60051-1-2
Rated current: 0-10A AC, 0-5A AC
Auxiliary voltage: 115/230V 50Hz
Power consumption: 1.8VA
Rated frenquency: 50Hz
Insulation voltage: 660V
Test voltage at 50Hz 1 min: 2000V
Terminal capacity(Max): 4mm2

STPM-D45V Voltmeter
Display: 3 1/2 Digitals
Accuracy: 0.5%
Standards: EN / IEC60051-1-2
Rated voltage: 600VAC
Auxiliary voltage: 115/230V 50Hz
Power consumption: 1.8VA
Rated frenquency: 50Hz
Insulation voltage: 660V
Test voltage at 50Hz 1 min: 2000V
Terminal capacity(Max): 4mm2
