PMC-D721MD DIN72 Class 0.5 DC Multifunction Meter for Voltage Power kWh Measurement LCD Optional I/O RS-485
CET PMC-D721MD DIN 72 LCD Display Measuring 0-1000VDC Class 0.5 DC Multifunction MeterThe PMC-D721MD DC Multifunction Meter is CET's latest offer for the low-cost DC metering market. Housed in an industry standard DIN form factor measuring 72mmx72mmx71.8mm, it is perfectly suited for industrial,......
Send Inquiry
Product Description
CET PMC-D721MD DIN 72 LCD Display Measuring 0-1000VDC Class 0.5 DC Multifunction Meter
• DC Inverter, DC Panel Metering and DC Charging Station
CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.

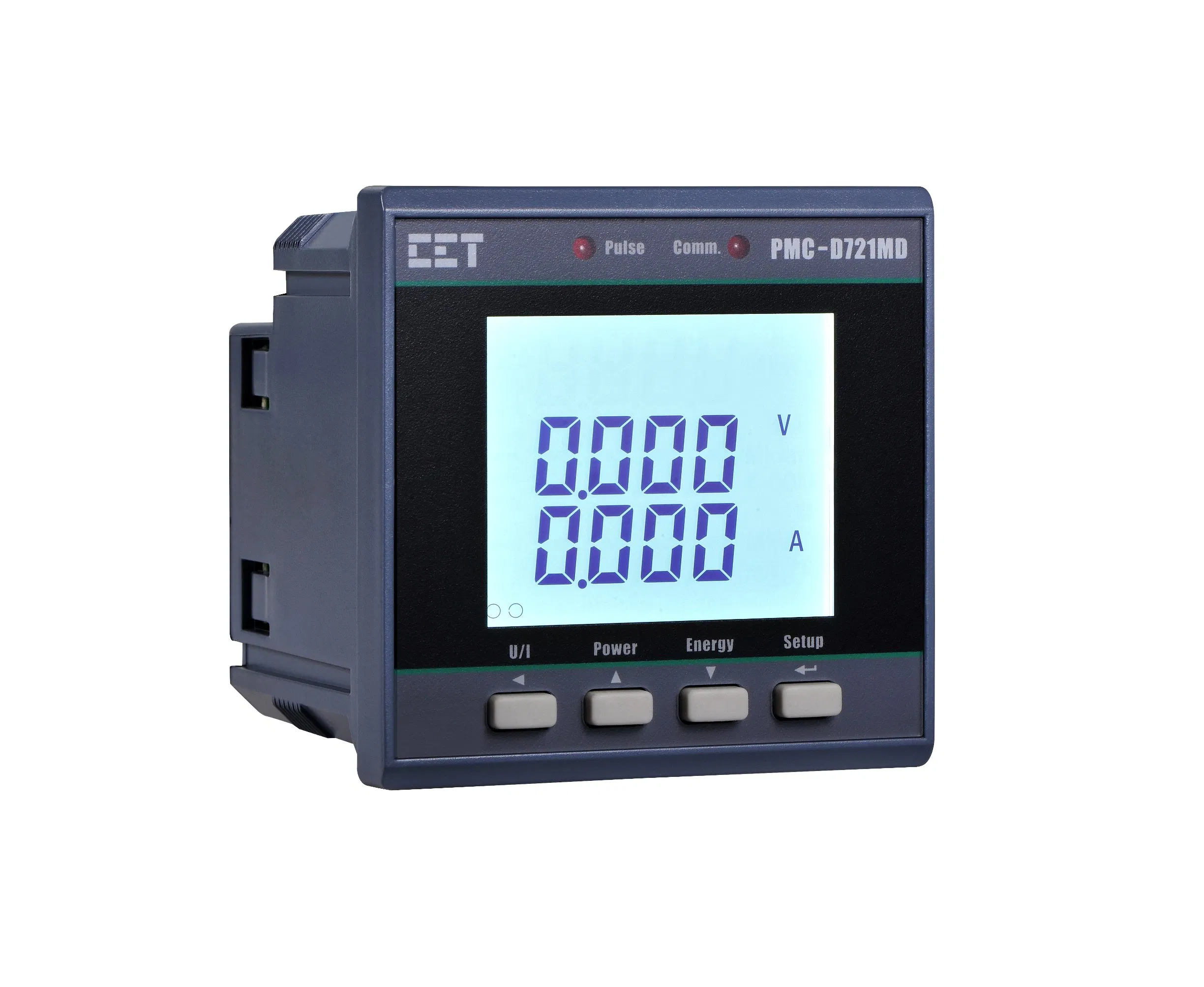

The PMC-D721MD DC Multifunction Meter is CET's latest offer for the low-cost DC metering market. Housed in an industry standard DIN form factor measuring 72mmx72mmx71.8mm, it is perfectly suited for industrial, commercial and utility DC metering applications. The PMC-D721MD complies with Class 0.5 kWh Accuracy Standard and features quality construction, multifunction measurements and a bright, easy to read LCD display. The PMC-D721MD comes standard with two front panel LED indicators for Energy Pulsing and Communication. It optionally provides two Digital Inputs for Status Monitoring and two Solid State Pulse Outputs for kWh Energy Pulsing applications. The standard SOE Log records meter events such as power-off, setup changes and DI operations in 1ms resolution. With the standard RS485 port and Modbus protocol support, the PMC-D721MD becomes a vital component of an intelligent, multifunction monitoring solution for any DC Power and Energy Management systems.
| Typical Application |
• DC Inverter, DC Panel Metering and DC Charging Station
• Industrial and commercial DC metering
• DC Distribution Monitoring

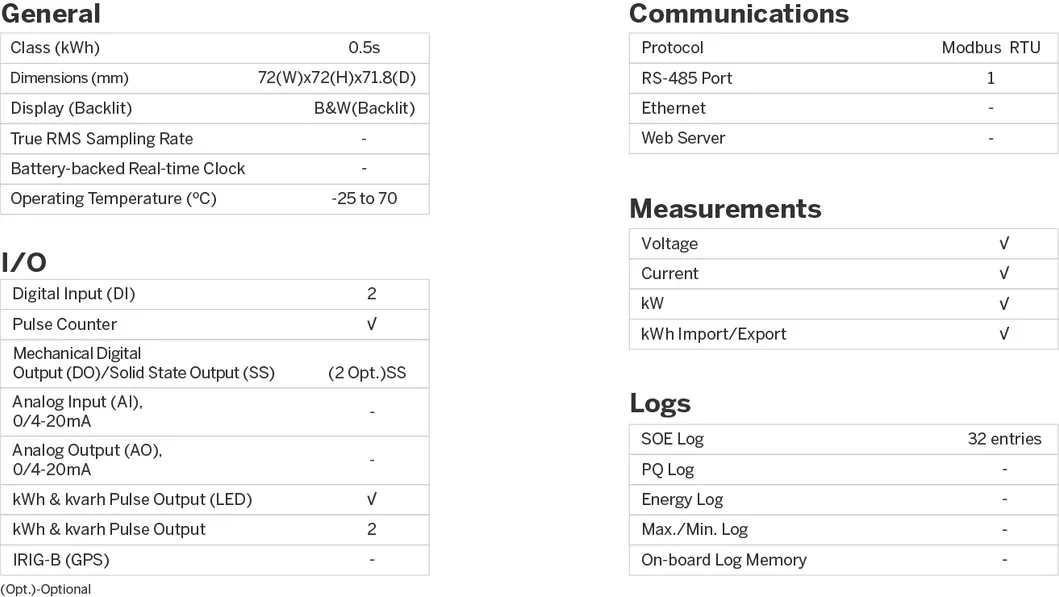

| Feature Summary |

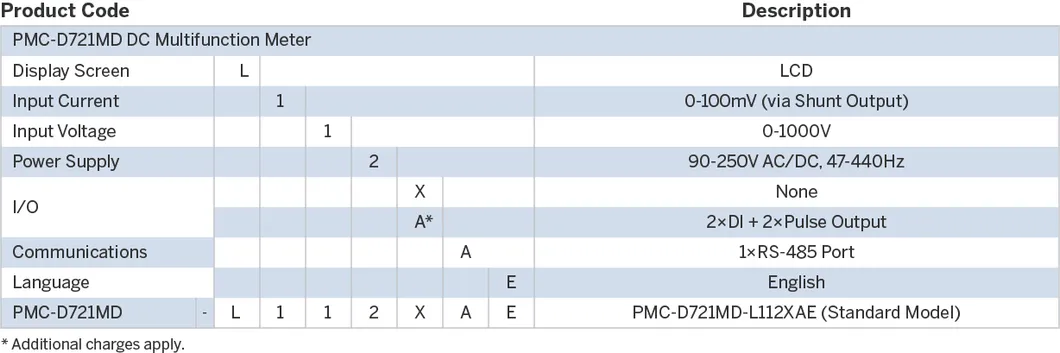

| Ordering Information |

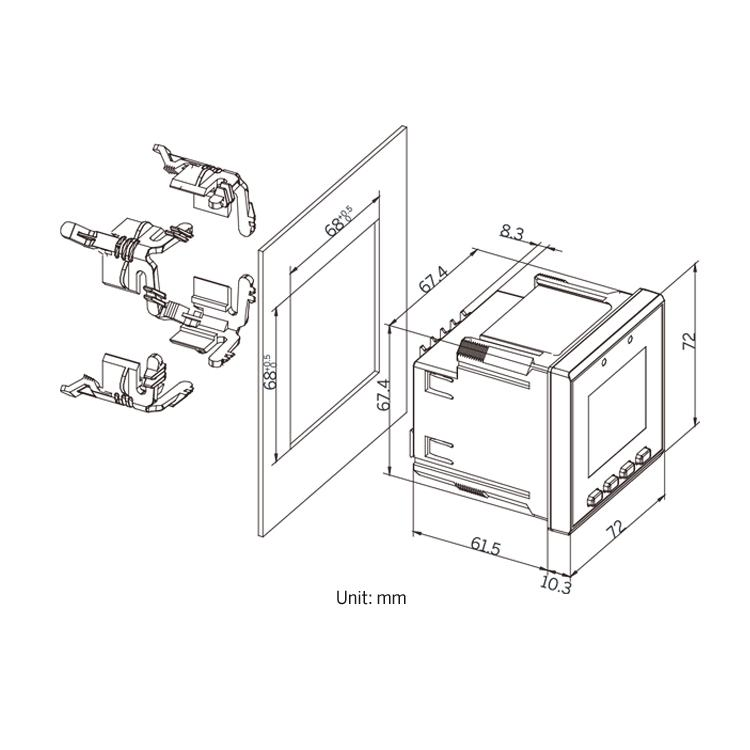

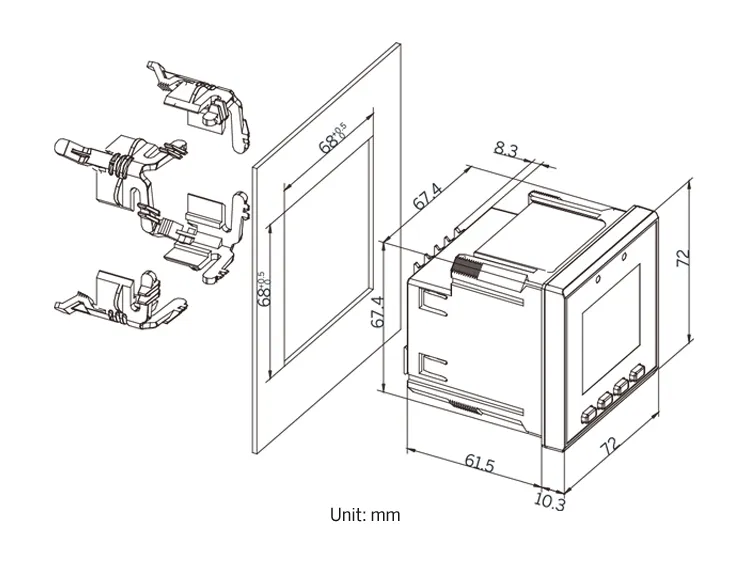

| Dimensions |

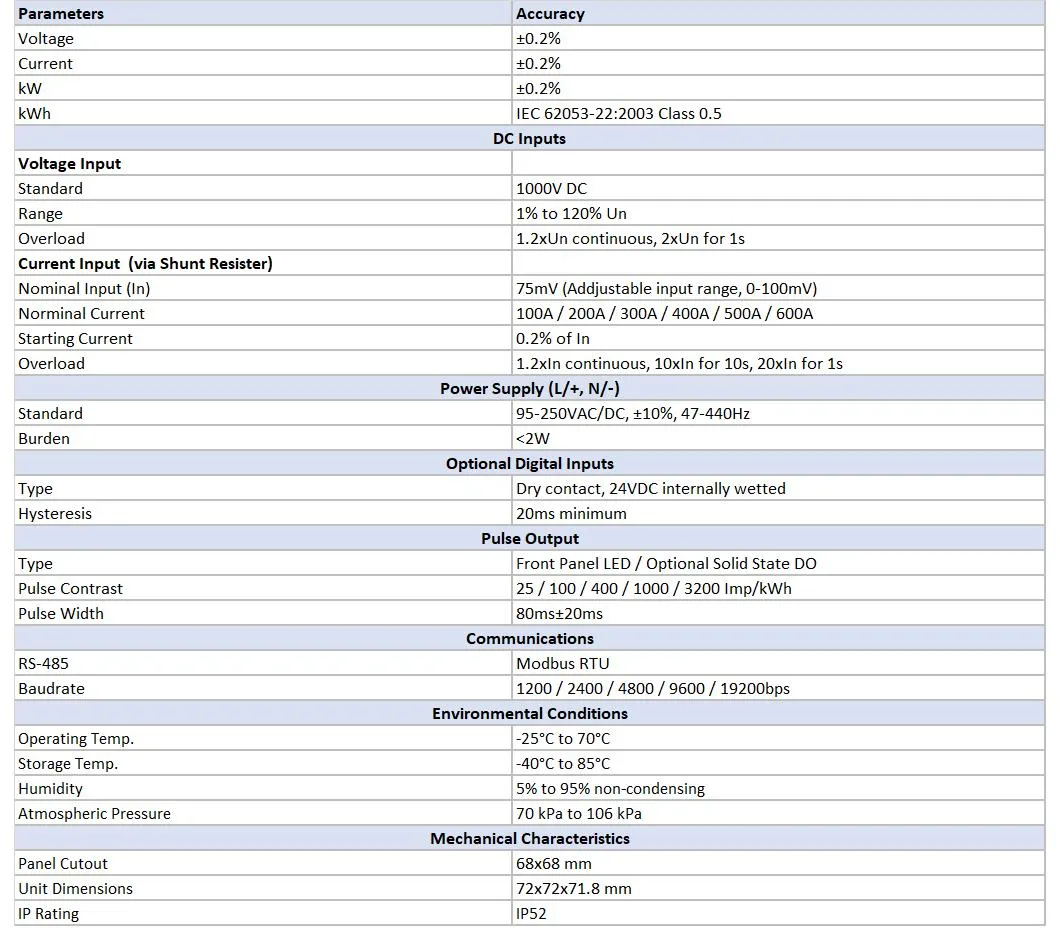

| Technical Specifications |
| Company Profile |

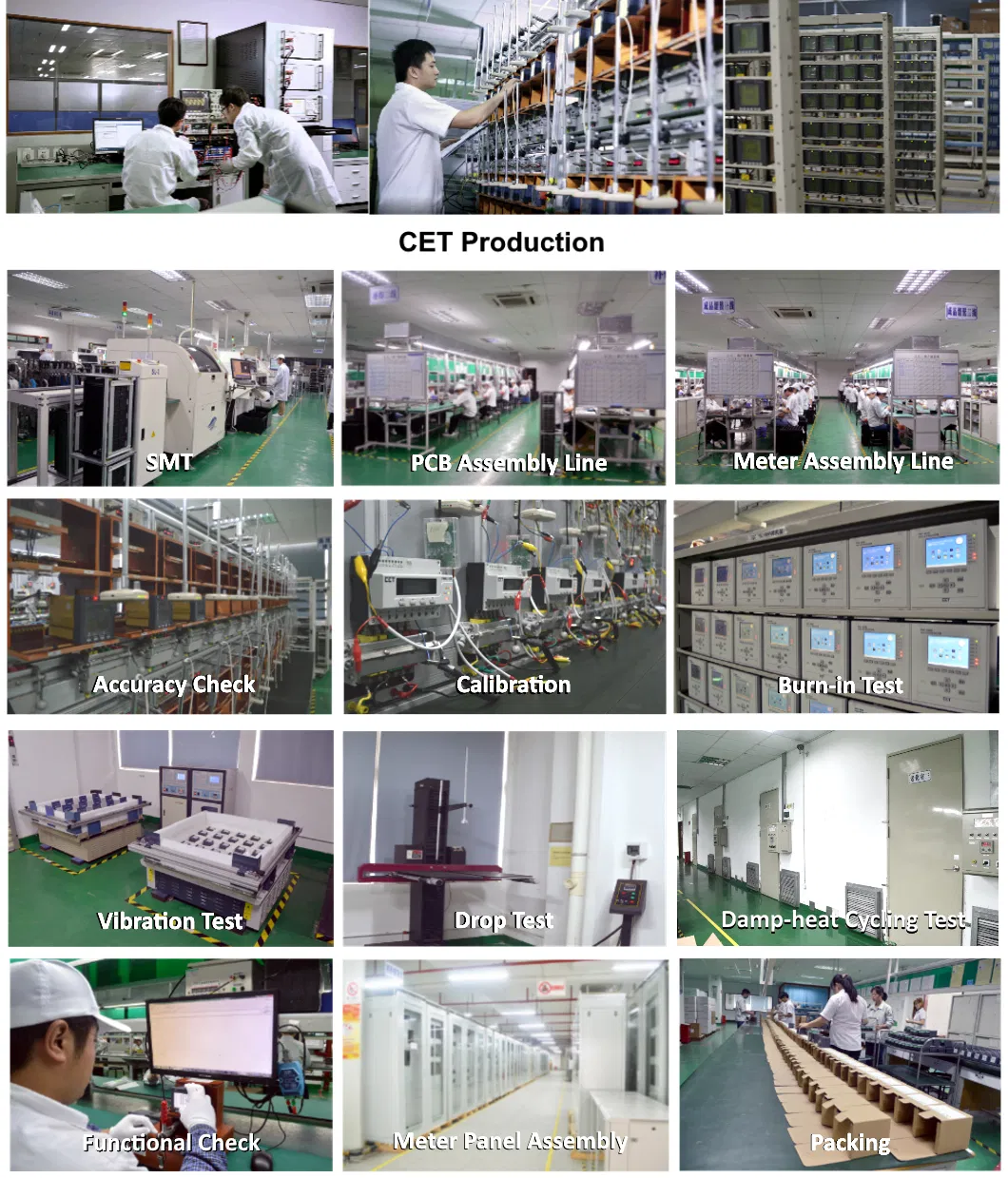

CET has approximately 300 R&D Engineers and a 8000 m2 R&D Center that is strategically located around some of China's Tier 1 Universities in Wuhan.
CET's Production facility is located in Shenzhen's Yantian District, approximately 30 minutes by car from the headquarters, employing about 200 Production workers. CET is fully certified for RoHS manufacturing with an annual production capacity of 600,000 units.
