Product Description

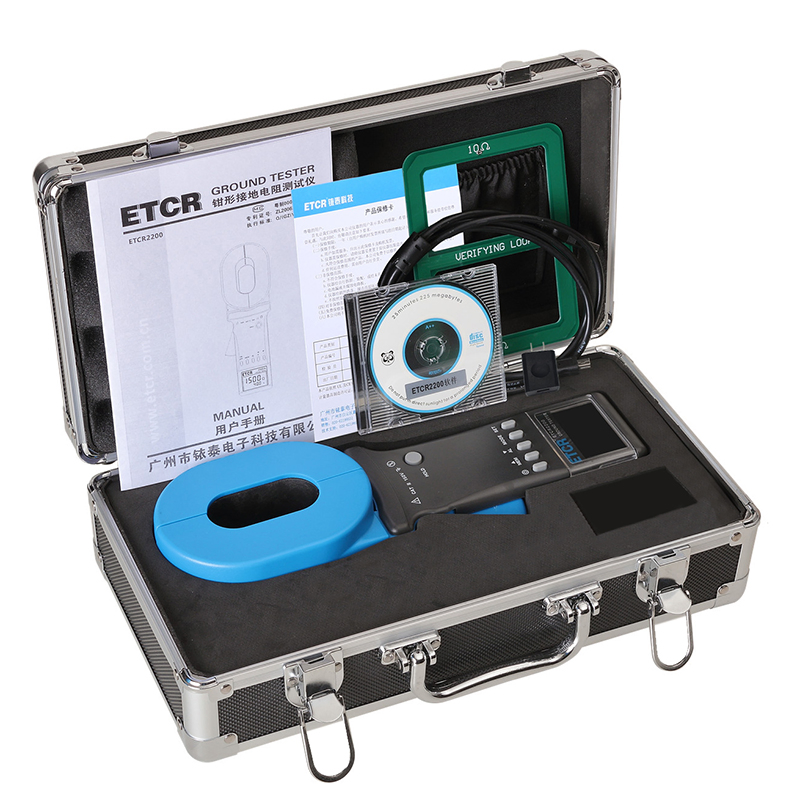

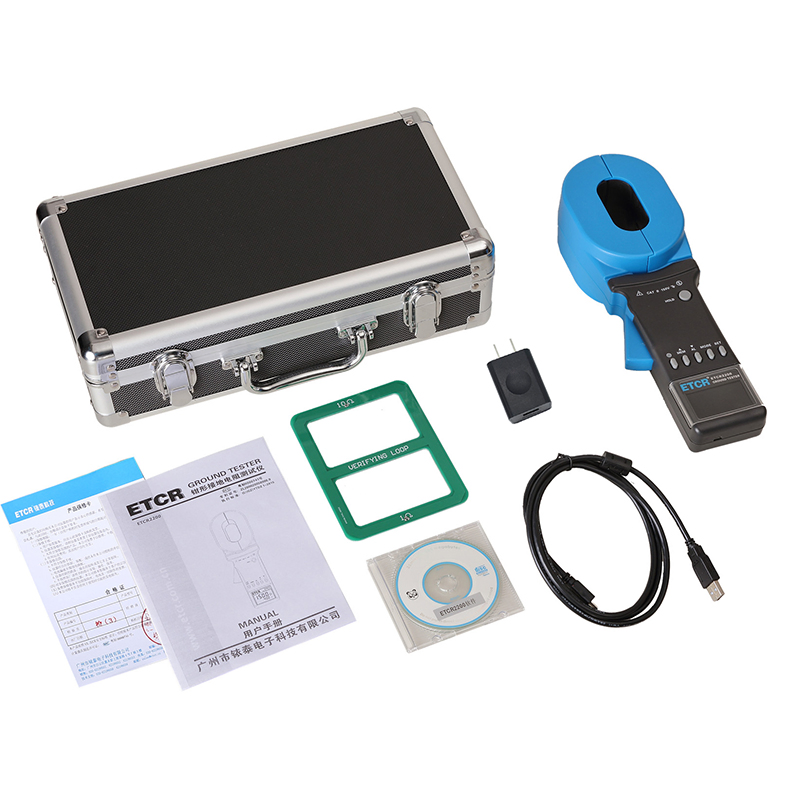

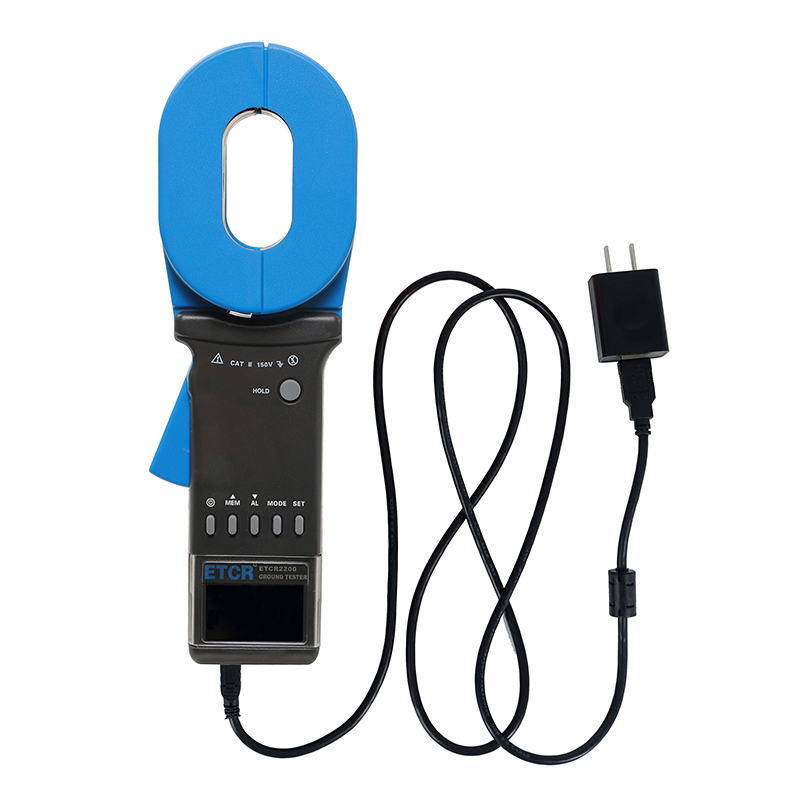

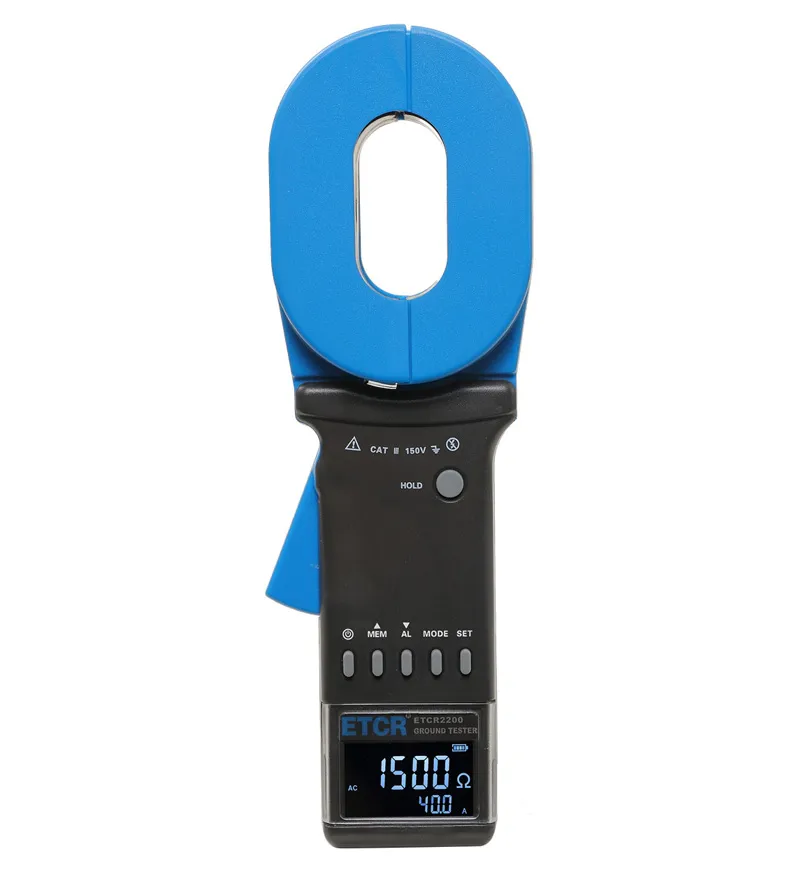

Multifunctional Clamp Grounding Resistance Instrument 0.010~1500ohm leakage current meter 0.00mA~40.0A

Measure Range and Accuracy
Measurement Mode	Measurement Range	Resolution	Accuracy
Resistance	0.010Ω-0.099Ω	0.001Ω	±(1%+0.01Ω)
	0.10Ω-0.99Ω	0.01Ω	±(1%+0.01Ω)
	1.0Ω-49.9Ω	0.1Ω	±(1%+0.1Ω)
	50.0Ω-99.5Ω	0.5Ω	±(1.5%+0.5Ω)
	100Ω-199Ω	1Ω	±(2%+1Ω)
	200Ω-395Ω	5Ω	±(5%+5Ω)
	400-590Ω	10Ω	±(10%+10Ω)
	600Ω-880Ω	20Ω	±(20%+20Ω)
	900Ω-1500Ω	30Ω	±(25%+30Ω)
Current	0.000mA -0.999mA	0.001mA	±(1.5%+0.5mA)
	0.00mA -9.95mA	0.01mA	±(2%+1mA)
	10.0mA -99.0mA	0.1mA	±(2.5%+5mA)
	100mA -300mA	1mA	±(2.5%+20mA)
	0.30A-2.99A	0.01A	±(2.5%+0.1A)
	3.0A-9.9A	0.1A	±(2.5%+0.3A)
	10.0A-19.9A	0.1 A	±(2.5%+0.5A)
	20.0A-40.0A	0.1 A	±(3%+1A)

Specification:
Resistance Range	0.01Ω-1500Ω
Resistance Resolution	0.001Ω
Resistance Max Accuracy	±(1%+0.01Ω)
Current Range	0.00mA-40.0A
Current Resolution	0.001mA
Current Max Accuracy	±(1.5%+0.5mA)
Data Storage	999 Sets
Interface	USB interface, software monitoring, data upload computer, dynamic display
Self-test Time	≤1s,Boot into the test mode quickly
Working Current	≤50mA
Operation Button	6 soft keys, better performance
Communication Cable length	1.5m(USB cable)
Clock Function	Display hour and minute
Audible and VisibleAlarm	"Beep--beep--beep--" alarm sound, press the AL key to turn on and off; LCD alarm flashing indication
Alarm threshold setting range	Resistance:1-199Ω; Current: 1-499mA
power supply	3.7VDC(Rechargeable lithium batteries2600mAh)
Auto Power Off	The instrument flashes 30S after 5 minutes without any operation, and then auto power off
Working Temperature	-20ºC-55ºC; 10%RH-90%RH
LCD Size	47mm×28.5mm
Clamp Size	65mm×32mm
Clamp Opening Size	32mm
Tester Weight	1160g
Tester Size	285mm×85mm×56mm
Protection Level	Double insulation
Structural Features	Clamp CT
Shift	Auto Shift
External Magnetic Field, Electric Field	<40A/m;<1V/m
Single Measurement Time	0.5s
Resistance Measurement Frequency	>1KHz
Measured Current Frequency	50/60Hz Auto
Tester Dimension	285mm×85mm×56mm

Model	Clamp Size	Range	Current Range	Data Upload	Alarm Function	Data Storage	Remark

ETCR2000A+	Long clamp 65×32mm	0.01Ω~200Ω	None	Optional	Yes	Yes	Practical
ETCR2000+		0.01Ω~1200Ω					Basic
ETCR2000B+		0.01Ω~1200Ω					Anti-explosion
ETCR2000C+		0.01Ω~1200Ω	0.00mA~20.0A				Multi-function
ETCR2200		0.01Ω~1500Ω	0.00mA~40.0A	Yes			high-end
ETCR2000A	Long clamp 55×32mm	0.01Ω~200Ω	None	None	Yes	Yes	Practical
ETCR2000		0.01Ω~1000Ω					Basic
ETCR2000C		0.01Ω~1000Ω	0.00mA~30.0A				Multi-function
ETCR2100A+	Round clamp Φ32mm	0.01Ω~1200Ω	None	Optional	Yes	Yes	Basic
ETCR2100+		0.01Ω~1200Ω					Multi-function
ETCR2100C+		0.01Ω~1200Ω	0.00mA~20.0A				Multi-function

Resistance range :0.01-1500ohm

Current range :0.00mA-40.0A

Resistance Resolution :0.001 Omega

Current Resolution :0.05mA

Data storage :999 group

Interface :USB interface, software monitoring, data upload computer, dynamic display

Self checking time :Less than 1s, boot up and quickly enter the test mode

Working current :Less than 50mA

Operation button :6 soft keys, direct performance

Communication line length :1.5m (USB Data Line)

Clock function :Display hours and minutes

Audible and visual alarm :"Du-Du-Du-Du" alarm sound, press AL key to turn on and off; LCD alarm flashing instruction

Setting range of alarm threshold Resistance: 1-1500 Omega;

Current: 1-999999mA

Power Supply :6VDC (4 Sections 5 NiMH Batteries)

Automatic shutdown :The instrument flickers 30S after 5 minutes without operation and then shuts down automatically.

Working temperature and humidity : - 20-55 C; 10% RH-90% RH

Liquid crystal display :Length and width 47 mm x 28.5 mm

Jaw size :Long tongs 65 mm *32 mm

Clamp opening size :Long tongs 28mm

Caliper gauge weight :1160g; (including batteries)

Caliper gauge dimensions :The length, width and thickness of 285 mm x 85 mm x 56 mm

Battery cover plate : Screw fixation

Fixed mode

Protection level :Double insulation

Structural characteristics :Clamp CT

Shift :Fully automatic shift

External magnetic field and electric field :<40A/m;<1V/m

Single measurement time :0.5 seconds

Resistance measurement frequency : > 1KHz

Measured current frequency :50/60Hz Automation

Notes:the batteries not included package
