Product Description

Application:

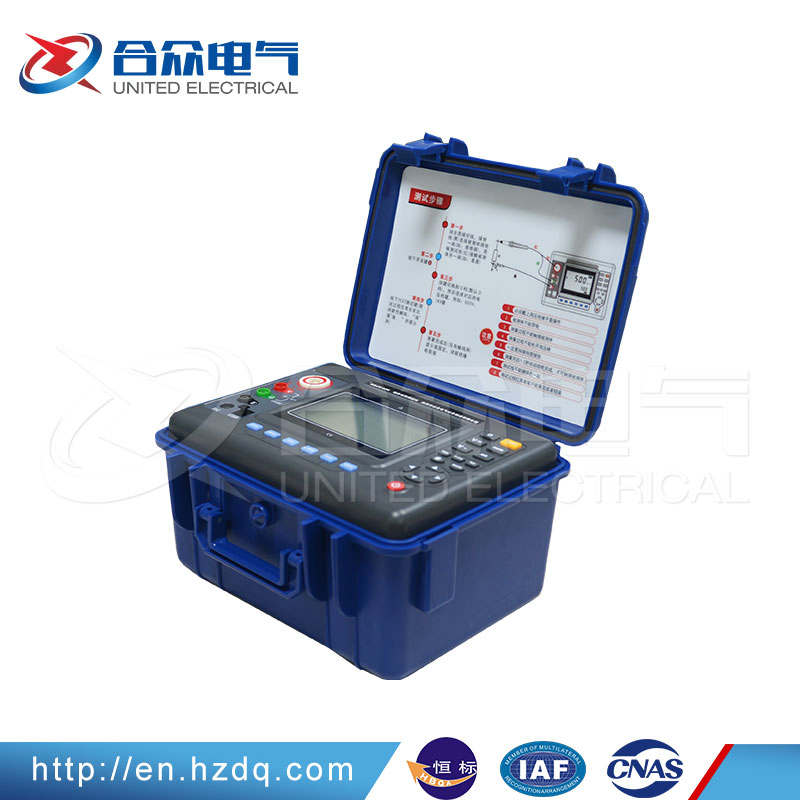

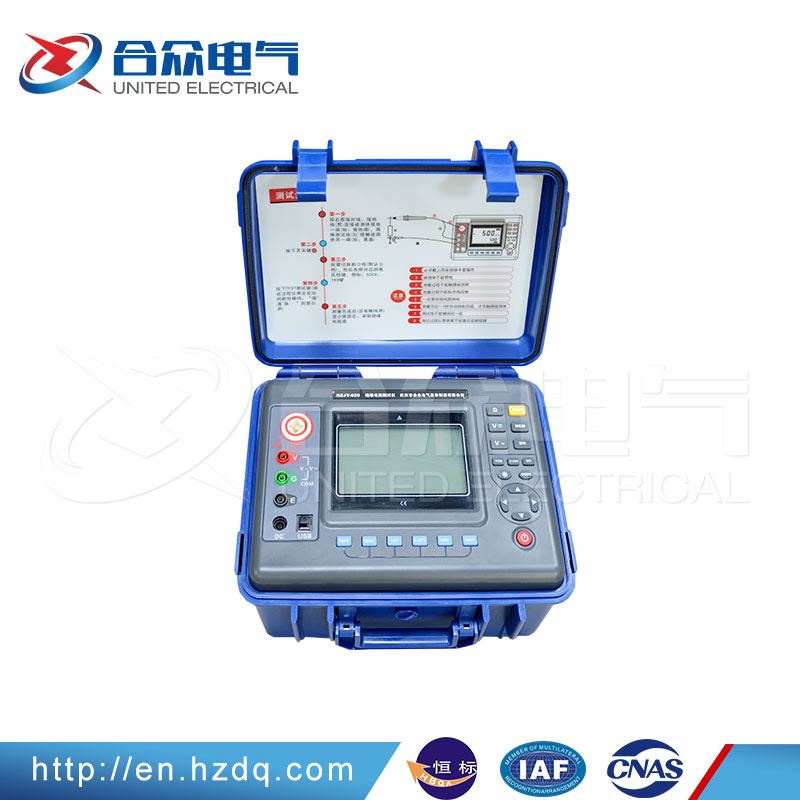

HZJY-624-10 digital insulation resistance tester, also known as megohm meter, high voltage insulation resistance meter, mainly used for insulation resistance testing.
HZJY-624-10 also has shockproof, dustproof and moisture-proof structure, which is suitable for harsh working environment. It is a common and essential meter for telecom, electric power, meteorology, machine room, oil field, electromechanical installation and maintenance as well as industrial enterprise departments that use electric power as industrial power or energy.It is suitable for measuring the insulation resistance of various insulating materials and transformers, motors, cables and electrical equipment.

Features:
With large LCD backlight display, data storage, data query, alarm, automatic discharge, charging, automatic shutdown and other functions.
With function for measuring DC and AC voltage DAR and polarization index.
With beautiful appearance, wide measuring range, high resolution, easy to operate, easy to carry, accurate, reliable, stable performance, large output power, strong anti-interference ability.
It consists of medium and large scale integrated circuits. With high output power and multiple output voltage levels (there are 6 voltage levels).

Specification:

Function	Insulation resistance test, voltage test
Basic condition	23ºC±5ºC,<75%RH
Rated Voltage(V)	250;500;1000;2500;5000V;10KV
Measuring Voltage(V)	Rated voltage×(1±10%)
Measuring range of insulation resistance(GΩ)	0.01MΩ~1000GΩ Accuracy:±3%rdg±5dgt
Insulation resistance resolution	0.01MΩ
DC voltage measuring range	0~1000V
DC voltage resolution	0.1V
AC voltage measuring range	0~750V
AC voltage resolution	0.1V
Output short-circuit current	≥5mA(10KV)
DAR & polarization index	yes
Power supply	12V rechargeable battery
Backlight	Controllable grey screen backlight, suitable for dim places
Display mode	Large LCD display, gray screen backlight
LCD size	108mm×65mm
Meter size	L277.2mm×W227.5mm×H153mm
USB port	With USB interface, software monitoring, storage data can be uploaded to the computer, save and print
Communication line	1pcs USB communication line

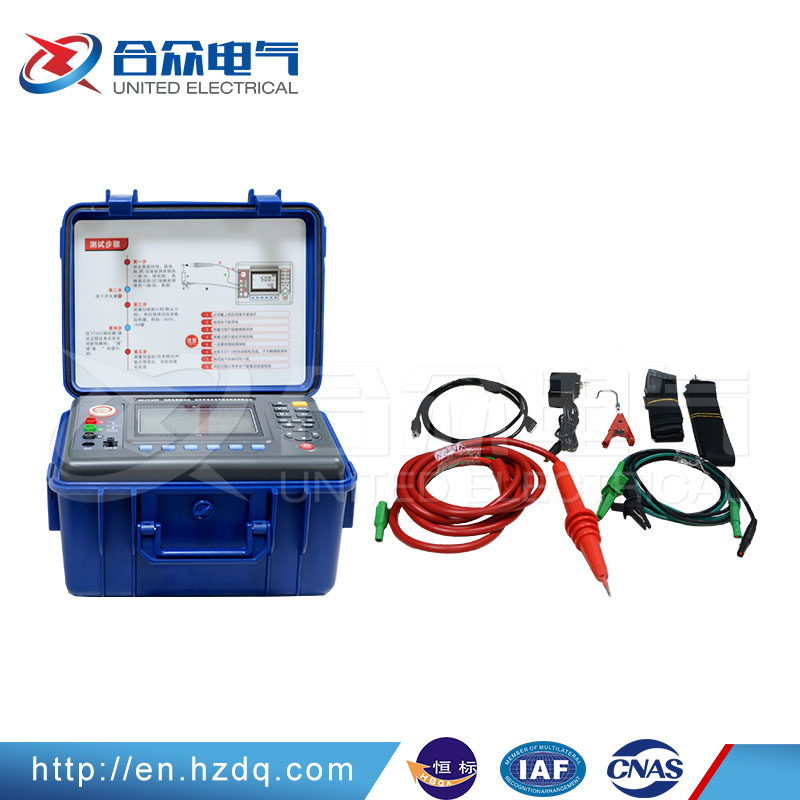

Testing line	high voltage rod is red 3m, the high voltage testing line is black 1.5 m, green line is 1.5m
Data storage	500 group,The "FULL" symbol flashes to indicate that the storage is full
Data query	Data query function: "READ" symbol display
Overflow Indication	Overflow function: "OL" symbol display
Alarm function	When the measured value exceeds the set alarm value, an alarm will be given
Power Consumption	Stand by computer: 30mA Max(backlight closed)
	Turn on, the backlight: 42mA Max
	Measurement:200mA Max(backlight closed)
Meter weight	2.720kg(including buttery)
Battery voltage	Insufficient battery voltage, display low power symbol" "
Auto Power -Off	meter no operation 15 minutes shutdown
Insulation resistance	≥50MΩ(Measure the distance between the circuit and the housing)
Voltage withstand	AC 3kV/50Hz 1min
Operating temperature and humidity	-10ºC~+50ºC<85%RH
Storage temperature and humidity	-15ºC~+55ºC<90%RH
Suitable for safety	IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54),Pollution etc. 2.CAT III 300V

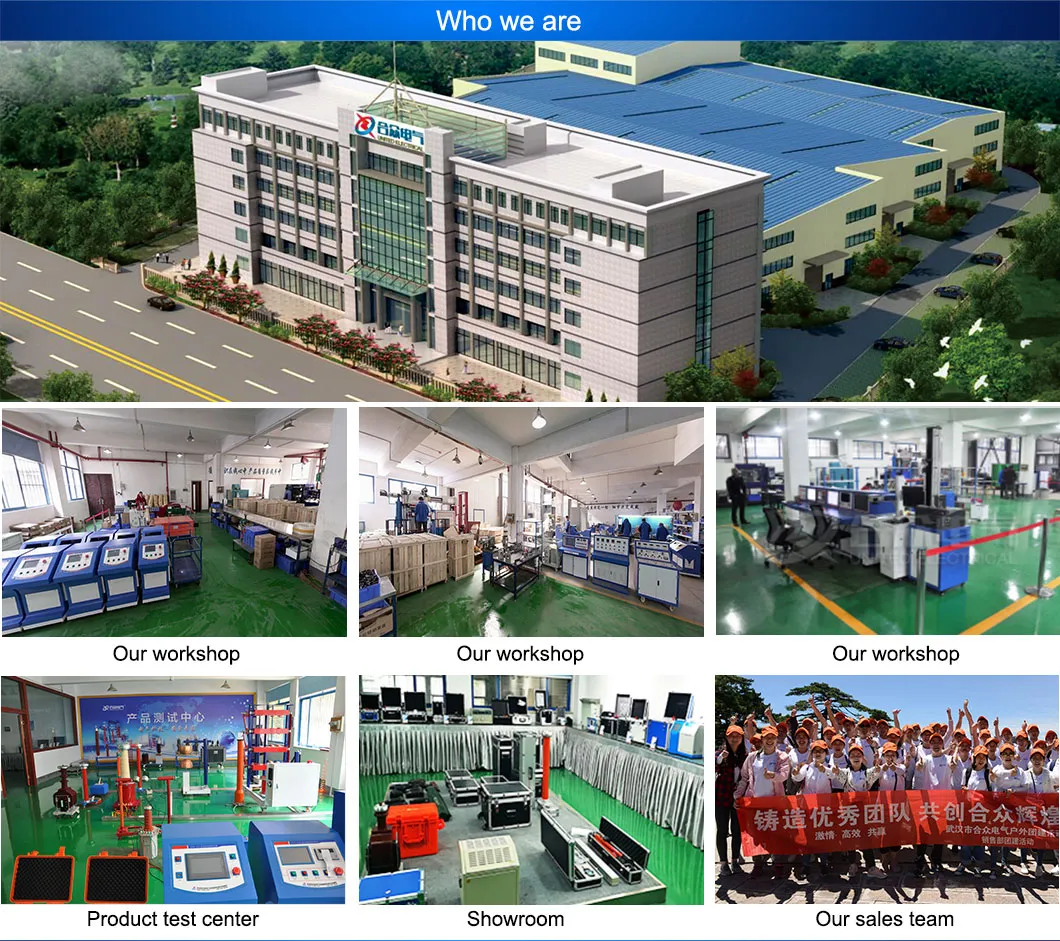

Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
