Product Description

Ground Resistance Clamp Meter Tester 0.01-1200ohm 0.00mA-20A for Electricity Multi Testers

Product Introduction

Parameters

Power Supply	6VDC 4 PCS of LR6 lkaline batteries
Clamp Size	65mm×32mm
LCD Size	4 Digits LCD display, Screen: 47mm×28.5mm
Range	Resistance: 0.010Ω~1200Ω
Range	Current: 0.00mA~20.0A
Resolution	Resistance: 0.001Ω; Current: 0.05mA
Accuracy	Resistance: ±1%±0.01Ω; Current:±2.5%±1mA
Data Storage	99 sets
Data Upload Function	RS232 Interface (Optional)
Auto Power-off	Automatically power off after 5 minutes without any operate
Power Consumption	≤50mA continuously working for 30 hours
Working Environment	-20~5520%rh~80%rh
Store Environment	-20~60below 90%rh
Alarm Threshold Setting Range	Resistance1~199Ω
Audible and VisibleAlarm	"Beep-beep-beep" alarm sound, alarm symbol flashing, pressALkey to turn on/off and setting
Interference Signal Recognition	"Beep-beep-beep" indicator,NOISEsymbol blinking
Protection Level	Double insulation
Structural Feature	Clamp CT
Shift	Automatic shift
External Magnetic Field	40A/m
External Electrical Field	1V/m
Single Measurement Time	0.5 second
Resistance Measurement Frequency	1KHz
Measured Current Frequency	50/60Hz Automatic
Low Battery Voltage Indication	When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed
Storage Full Indication	Storage data full of 99 sets,flashed display ''MEM'' symbol
Over Range Indication	Over range indication "OLΩ", "L0.01" or "OL A"
Tester Weight	1160g
Tester Dimension	285mm×85mm×56mm
Tester Weight	1160g
Tester Dimension	285mm×85mm×56mm

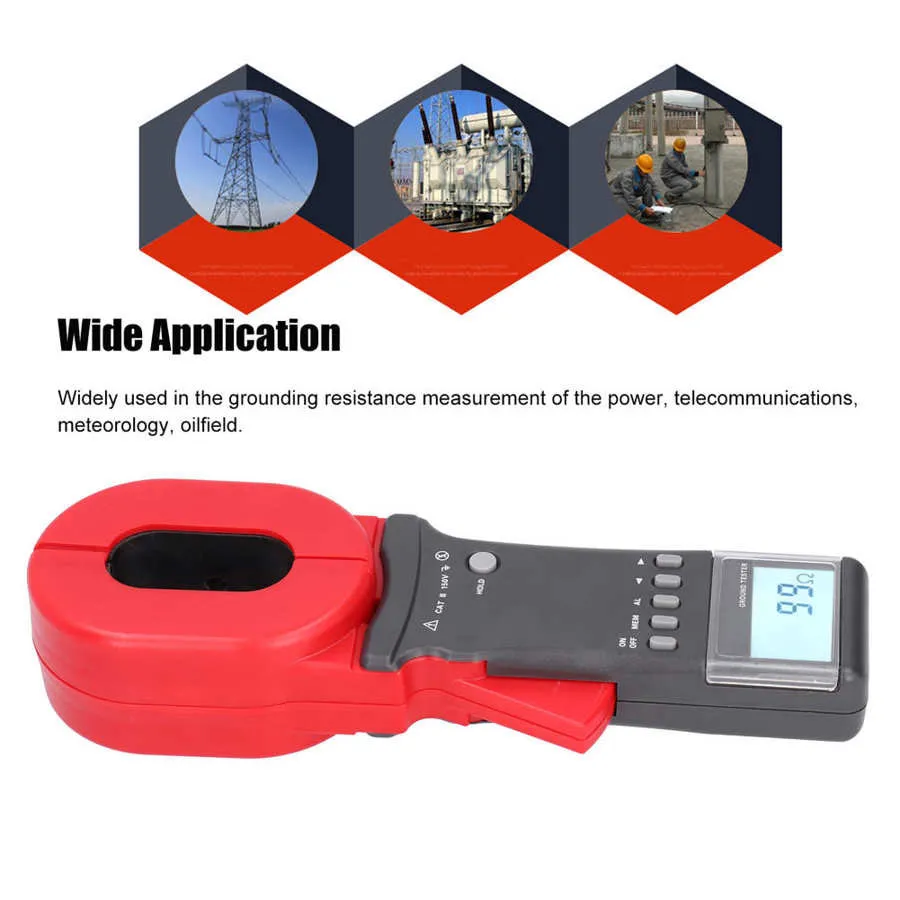

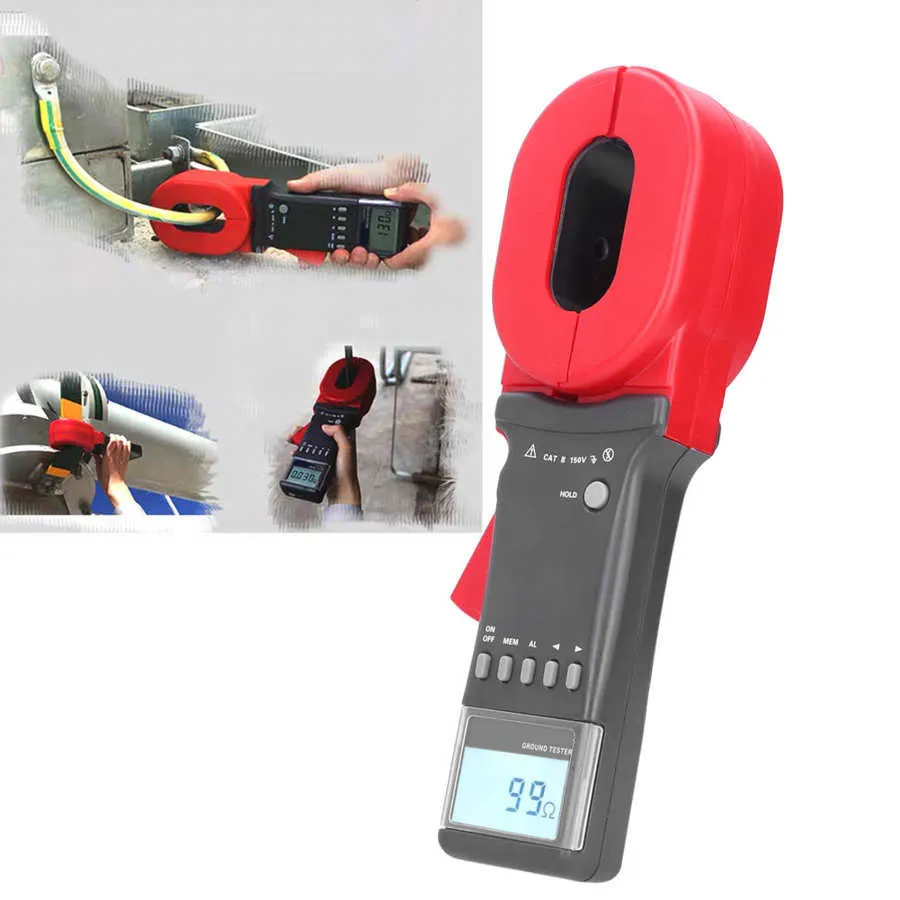

Application
Widely used in electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment and other fields.
