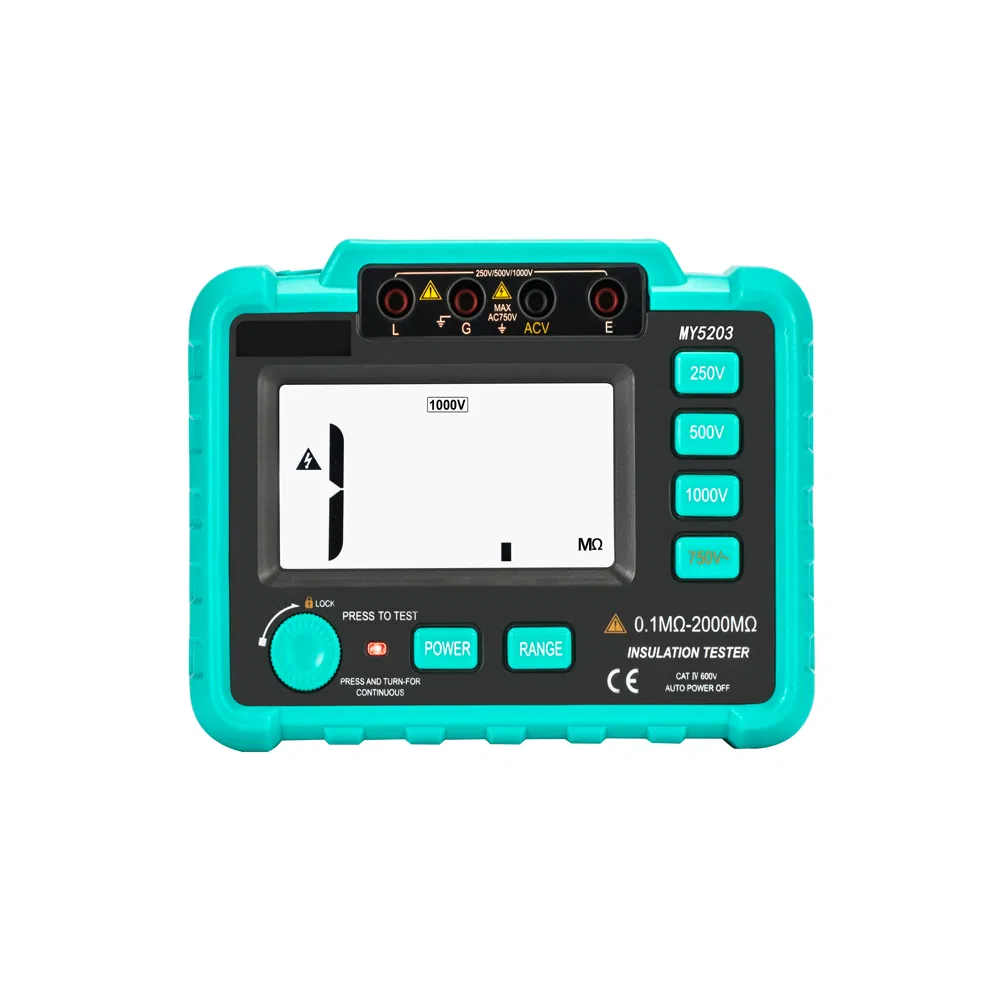

250V High Quality Digital Megger Tester 500V Insulation Resistance Tester 1000V Megger
250V high quality digital megger tester 500V Insulation resistance tester 1000V megger safety :CAT III 1000V,CAT IV 600V,CE ,ROHS Voltage:250V/500V/1000V Measuring functiontest voltage250V 10%500V 10%1000V 10% range 0.1MΩ~20MΩ0.1MΩ~50MΩ0.1MΩ~100M&......
Send Inquiry
Product Description
250V high quality digital megger tester 500V Insulation resistance tester 1000V megger
safety :CAT III 1000V,CAT IV 600V,CE ,ROHS
Voltage:250V/500V/1000V
Measuring function | |||
test voltage | 250V 10% | 500V 10% | 1000V 10% |
range
| 0.1MΩ~20MΩ | 0.1MΩ~50MΩ | 0.1MΩ~100MΩ |
20MΩ~500MΩ | 50MΩ~1000MΩ | 100MΩ~2000MΩ | |
accuracy | ±(4%+2) | ||
Short circuit current | 1.8mA | 1.8mA | 1.6mA |
Median resistance | 2MΩ | 2MΩ | 5MΩ |
Socket location | L-E | ||
750V ac voltage | √ | ||
Low voltage display | √ | ||
Alarm function | Red indicator | ||
Overload protection | √ | ||
Unit symbol display | √ | ||
Automatic shutdown | √ | ||
Maximum display | 1999 | ||
usage temperature | 0ºC~40ºC | ||
Relative humidity | 30%RH~85%RH | ||
Overrange display | The highest bit shows " 1" | ||
size | 175×110×70mm | ||
Weight | 630g | ||
Power supply | 9V(8 1.5V 5th batteries), external | ||
company
company introduce
Packing & Delivery
FAQ
-Do we support OEM or ODM?
-Will the original R&D manufacturing paint have a price advantage?
-Are you products high quality products?
-Do we have a good team?
-Does our product support global after-sales service ?
-Are our product certified?
every answer is "YES"
