1200 Ohm +a Same Screen Display Multifunctional Clamp Ground Resistance Tester
HT2000C+ Clamp Ground Resistance Tester (Multifunctional) Resistance Range: 0.01Ω-1200ΩCurrent Range: 0.00mA-20.0ANew black screen design, luxuryΩ+A same screen displayQuick self-test function without waitingUsing fast filtering technology, strong anti-interference ......
Send Inquiry
Product Description

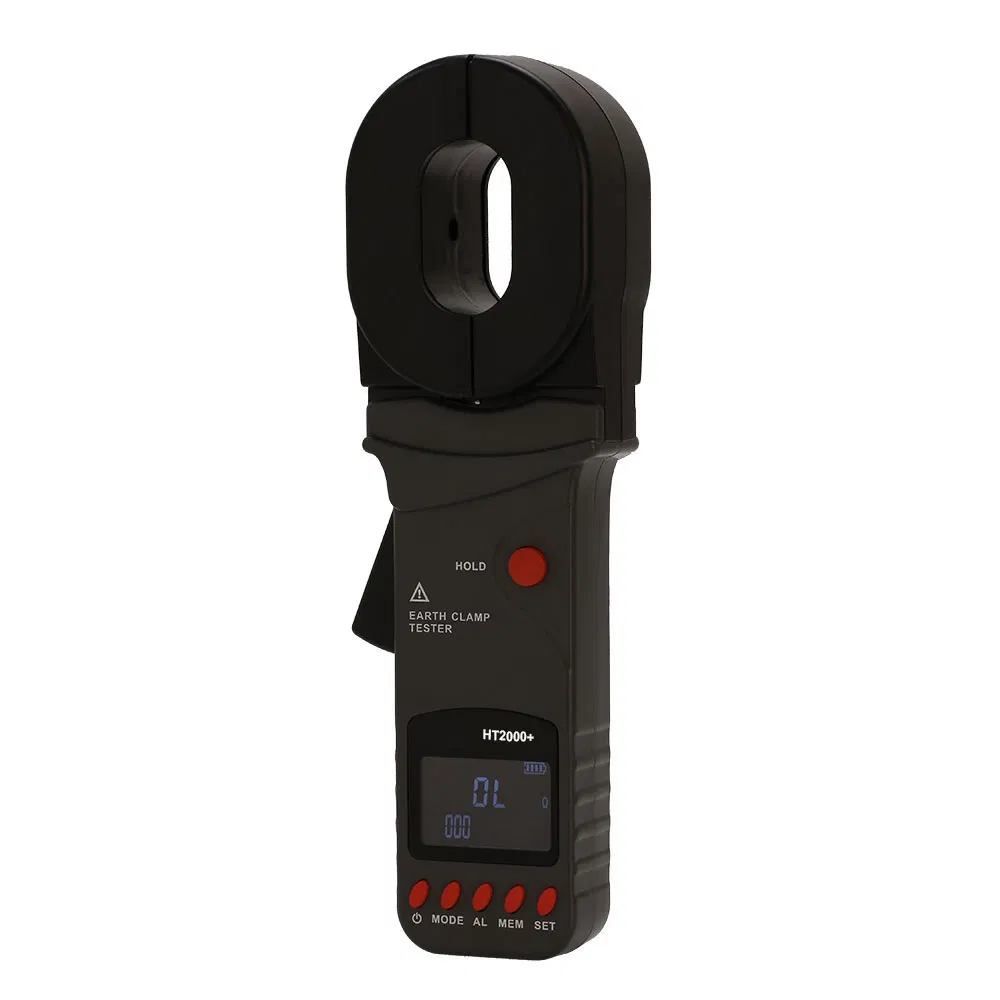

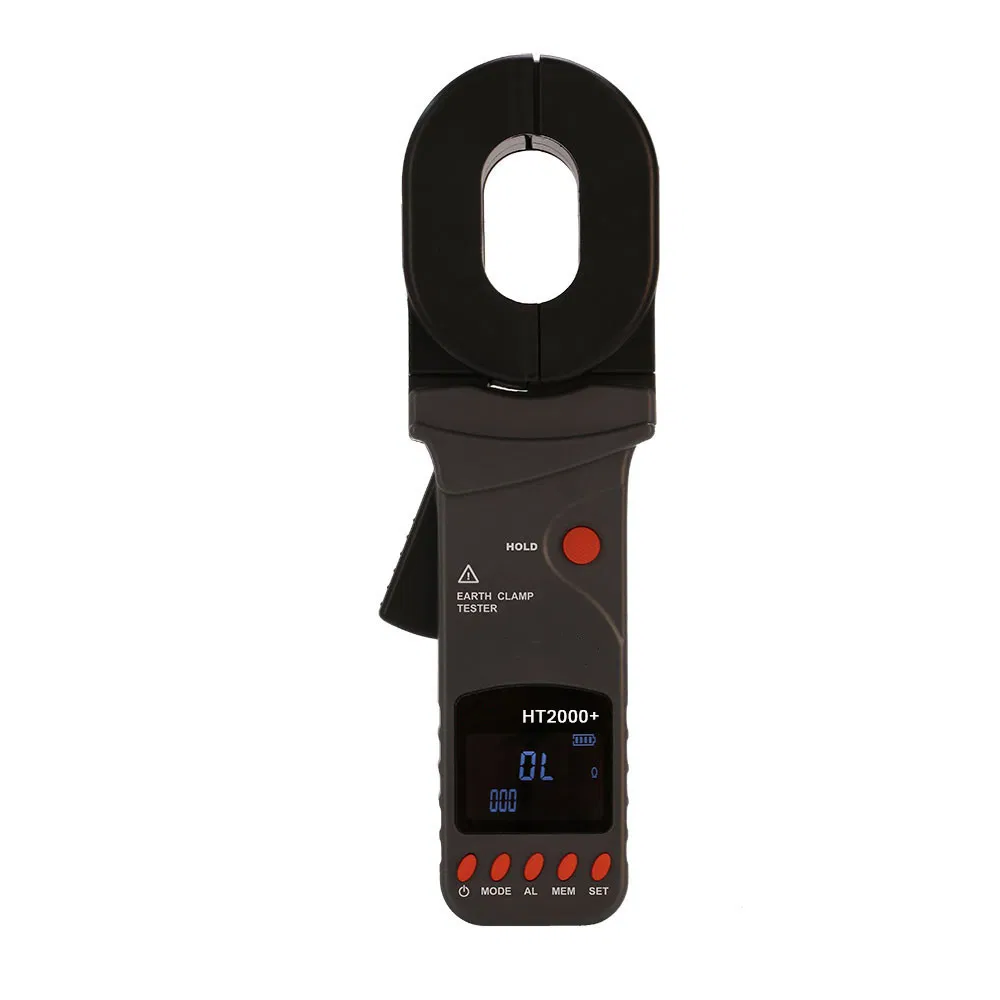

HT2000C+ Clamp Ground Resistance Tester (Multifunctional)
Resistance Range: 0.01Ω-1200Ω
- Current Range: 0.00mA-20.0A
- New black screen design, luxury
- Ω+A same screen display
- Quick self-test function without waiting
- Using fast filtering technology, strong anti-interference ability
- New design, long life clamp head
- 300 sets of storage
Technical Specification
Function | Ground resistant test, Loop resistance test, leakage current test | ||
Range | Ground resistance: 0.01Ω-1200Ω | Resolution: 0.001Ω | Accuracy: ±1%±0.01Ω |
Current: 0.00mA-20.0A | Resolution:0.01mA; | Accuracy: ±2%±1mA | |
Ambient temperature and humidity | 23ºC±5ºC,below 75%rh | ||
Power Supply | 4 section 5 alkaline dry battery | ||
Measurement Method | Mutual induction | ||
Clamp Diameter | 55mm×32mm | ||
Ω+A Synchronized display | Ω+A same screen display | ||
Display Mode | 4-digit LCD display, black screen design | ||
LCD Dimension | 46mm×29mm | ||
Meter Dimension | W/T/H: 85mm×58mmx285mm | ||
Sampling Speed | About 2 times/second | ||
Data Storage | 300 Groups, the symbol "MEM" gives indication, "FULL" mark will flash to indicate the memory has been full | ||
Data Review | "MR" symbol indication when reviewing data | ||
Overflow Display | Exceed measurement range overflow function: "OL " symbol display | ||
Interference Test | Automatic identify interference signal, "NOISE" symbol indication when the interference current is large | ||
Alarm Function | Alarm when the measured value exceeds the alarm setting value | ||
Battery Voltage | Real-time display of battery power, reminding timely charging when battery voltage is low | ||
Automatic shut-down | "APO" instruction, automatic shutdown after 5 minutes boot | ||
Power Consumption | 50MA Max | ||
Weight | Instrument: 1180g (with battery) | ||
Working Temperature and Humidity | -10°C~40C; below 80% rh | ||
Storage Temperature and Humidity | -20°C~60C; below 70% rh | ||
Insulation Resistance | 20Ω or more (500V between circuit and outside) | ||
Pressure Resistance | AC 3700V/rms(between circuit and outside) | ||
External magnetic field | <40A/m | ||
External electric field | <1V/m | ||
Suitable for Safety Regulations | IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance) | ||
Q&A
FQA :
-Can the equipment be customized?
Provide technical specifications and standards, customized
-About warranty?
Our quality is trustworthy, but we promise a one-year warranty.
-Worried not to use?
We will have professional technicians to guide us remotely. If you like, you can also teach on site.
