Product Description

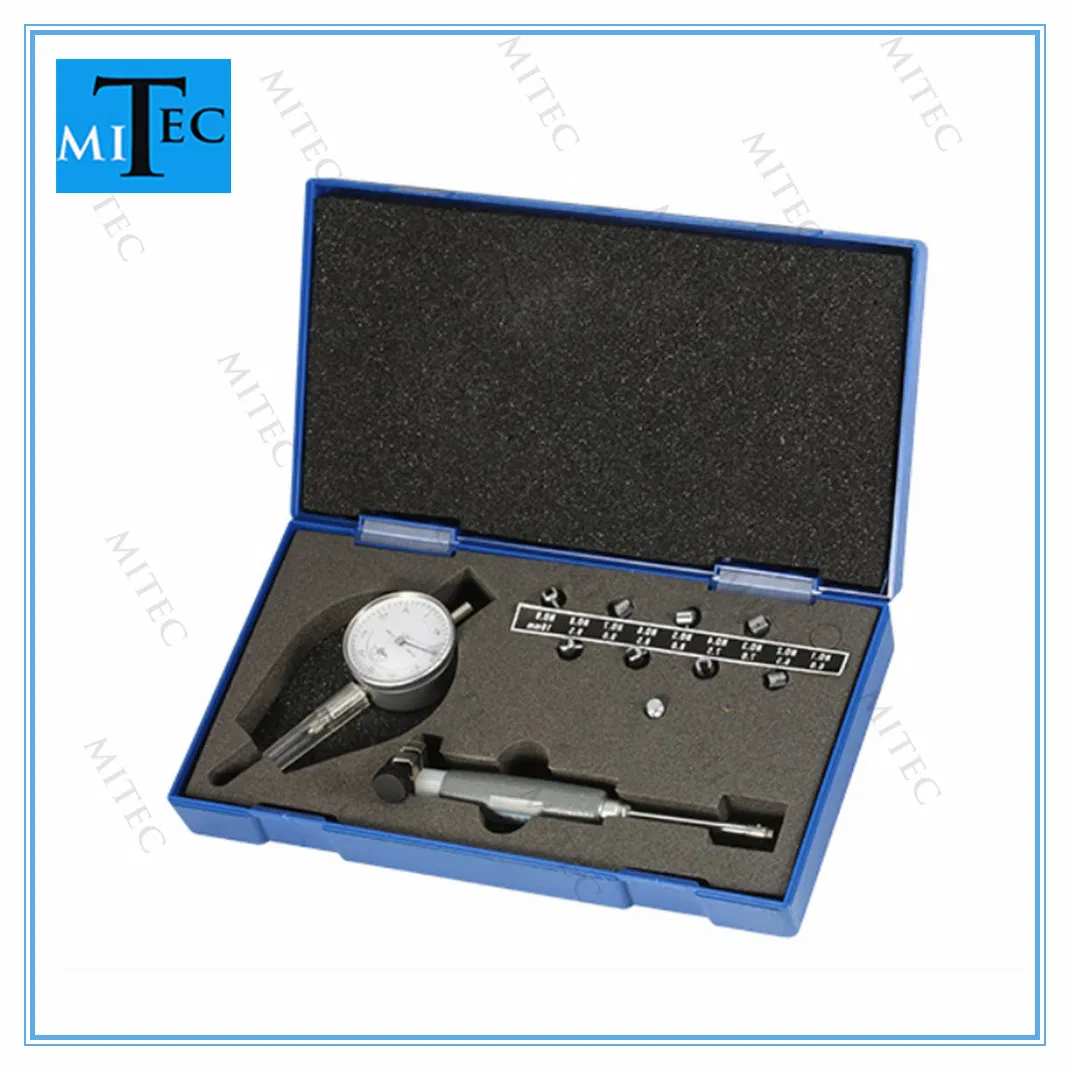

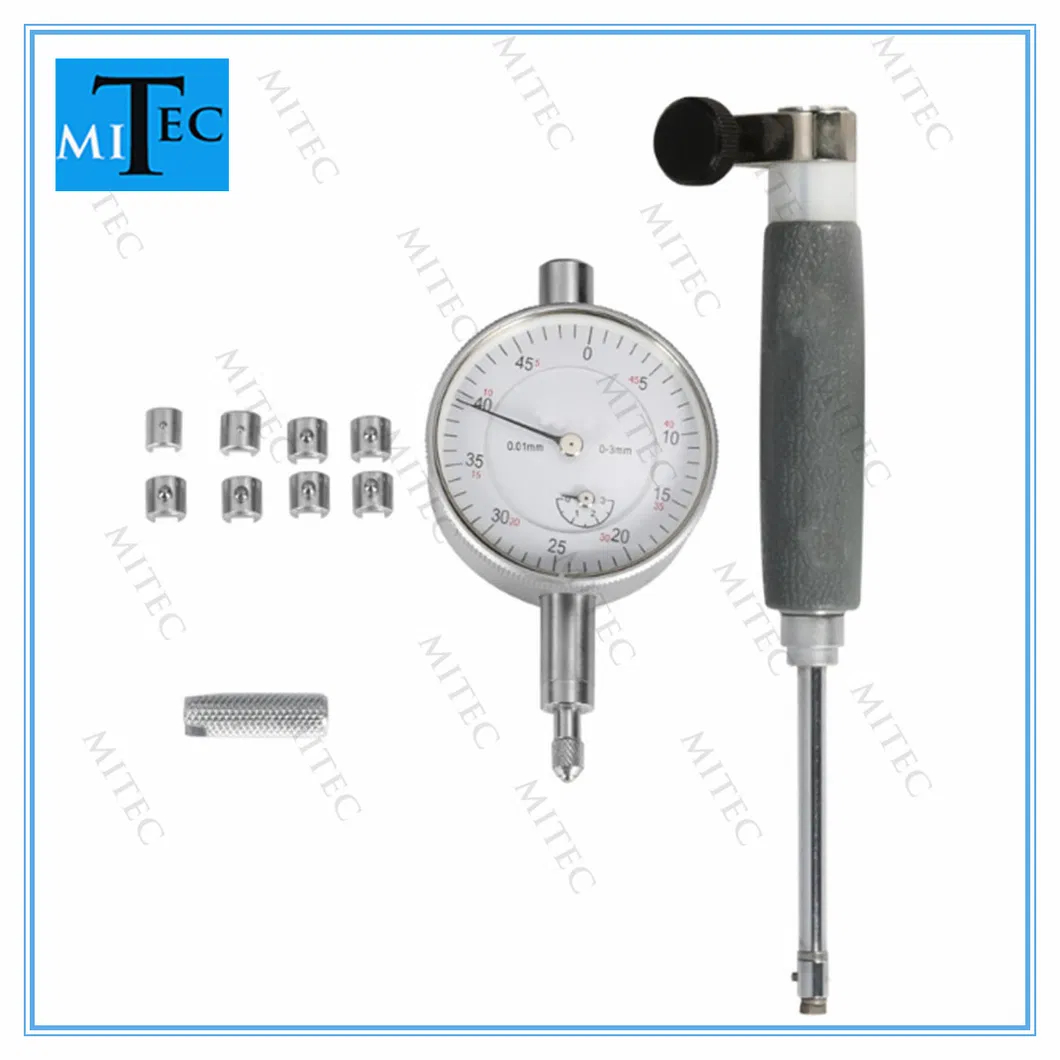

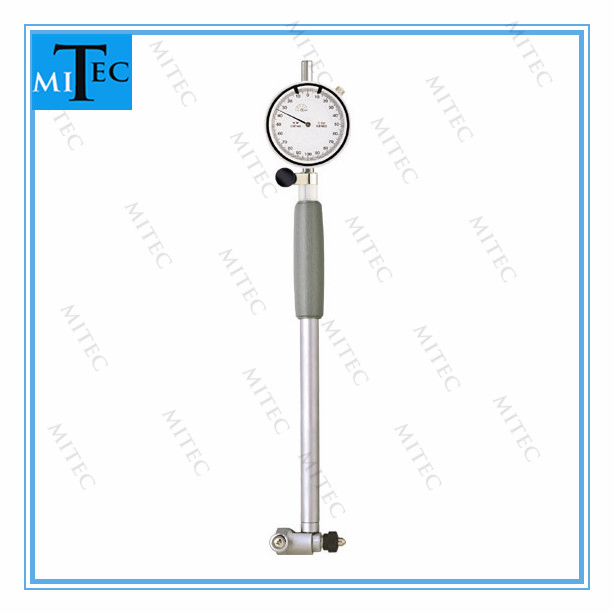

Product Name: 35-50mm Dial Bore Gauge 0.01mm Measuring Tool
Features:

Movable probe pin with carbide ball
6-10mm range is with fixed anvil

     10-18mm range is with plate guide and fixed anvil
     18-35mm range is with canister and fixed anvil
     Over 35mm range is with wheel guide and inserting anvils
35-50mm Dial Bore Gauge 0.01mm Measuring Tool

35-50mm Dial Bore Gauge 0.01mm Measuring Tool

Specification:

Range	Graduation	Dial Travel	Accuracy	Probe Depth	Code No.
Metric
6-10mm	0.01mm	3 mm (AGD1)	±0.015mm	40mm	42011-006
10-18mm	0.01mm	3 mm (AGD1)	±0.015mm	100mm	42011-010
18-35mm	0.01mm	3 mm (AGD2)	±0.020mm	150mm	42011-018
35-50mm	0.01mm	3 mm (AGD2)	±0.020mm	150mm	42011-035
50-160mm	0.01mm	3 mm (AGD2)	±0.025mm	150mm	42011-050
160-250mm	0.01mm	3 mm (AGD2)	±0.025mm	400mm	42011-160
250-400mm	0.01mm	3 mm (AGD2)	±0.025mm	400mm	42011-250
400-600mm	0.01mm	3 mm (AGD2)	±0.025mm	400mm	42011-400
Inch
0.24-0.4"	0.0001"	0.05" (AGD1)	± .0002"	2"	42021-002
0.4-0.7"	0.0001"	0.05" (AGD1)	± .0003"	4"	42021-004
0.7-1.5"	0.0001"	0.05" (AGD2)	± .0003"	6"	42021-007
1.4-2.4"	0.0001"	0.05" (AGD2)	± .0003"	6"	42021-014
2-6"	0.0001"	0.05" (AGD2)	± .0003"	6"	42021-020
6-10"	0.0001"	0.05" (AGD2)	± .0003"	16"	42021-060
10-16"	0.0001"	0.05" (AGD2)	± .0003"	16"	42021-100
