Product Description

600mm (24") Digital Height Gauge with carbide scribe...

QUICK OVERVIEW

600mm (24inch) digital height gauge and multi function display. The height gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing

Key Features

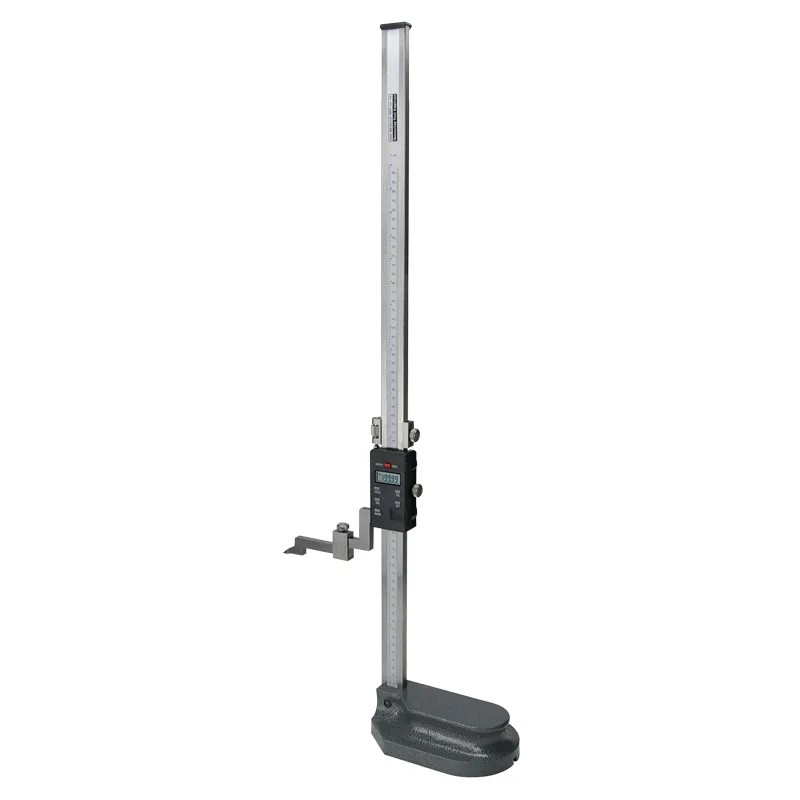

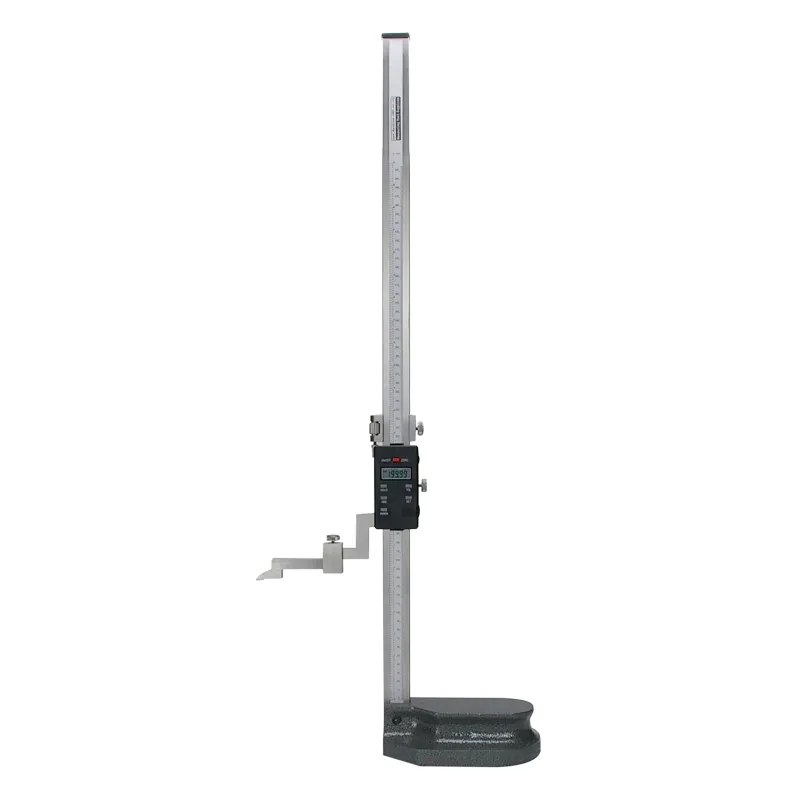

600mm (24inch) digital height gauge and multi function display. The basic functions include metric or imperial reading and zero the display in any position
Tolerance Function - Set a tolerance limit, and the display will indicate if the measurement is Under, Over or In the set tolerance. The measurement value is also displayed
Set Value - Enter a measurement value
Hold Function - Will hold the displayed reading until hold button is pressed again
ABS/INC - Absolute and incremental zero can be set to zero in any position
Data Output - External data output interface via data cable (not supplied)
The scale beam is mounted in the ground cast iron base, providing a rigid assembly for the display head

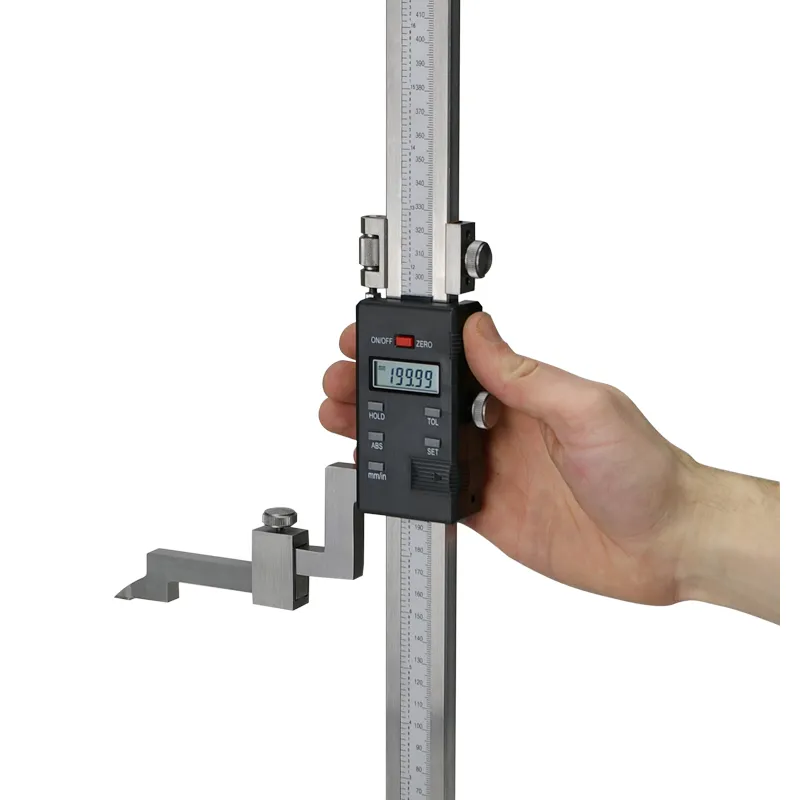

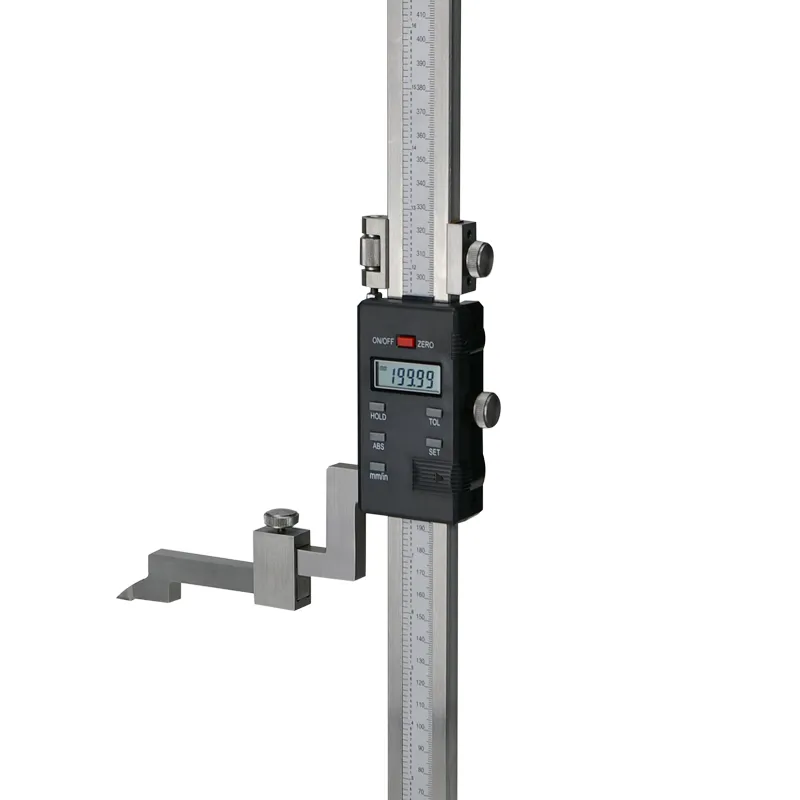

The fine feed adjustment on the display head allows for precision measuring. The reading head also has a locking screw to fix the head in any position along the scale beam

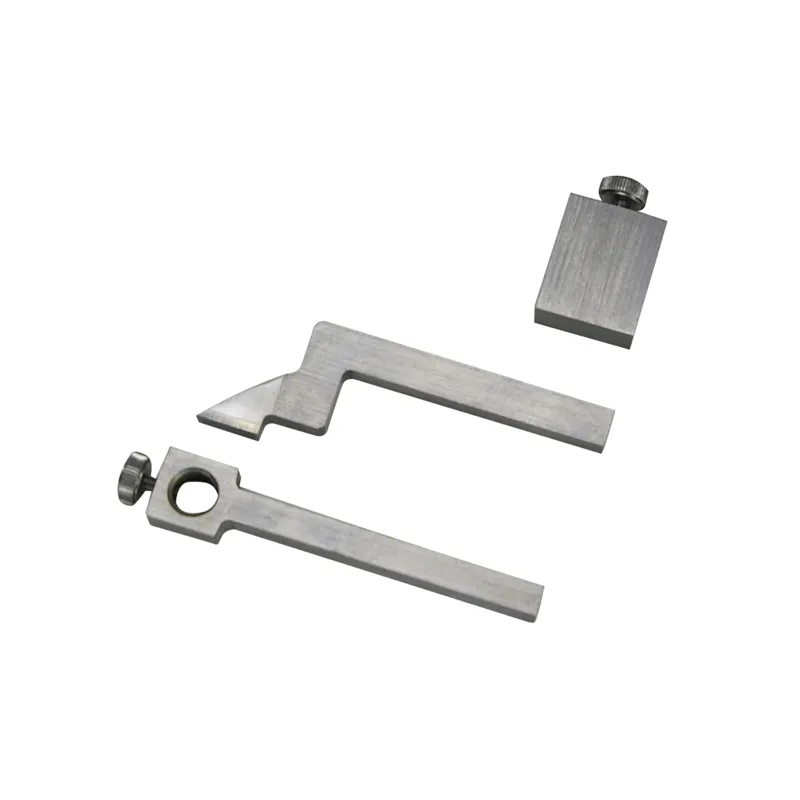

The gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing hole with a knurled locking bolt.
Ideal for attaching depth, thickness, other probes or indicators to the height gauge
Resolution - 0.01mm (0.0005inch)
Accuracy - +/-0.05mm
